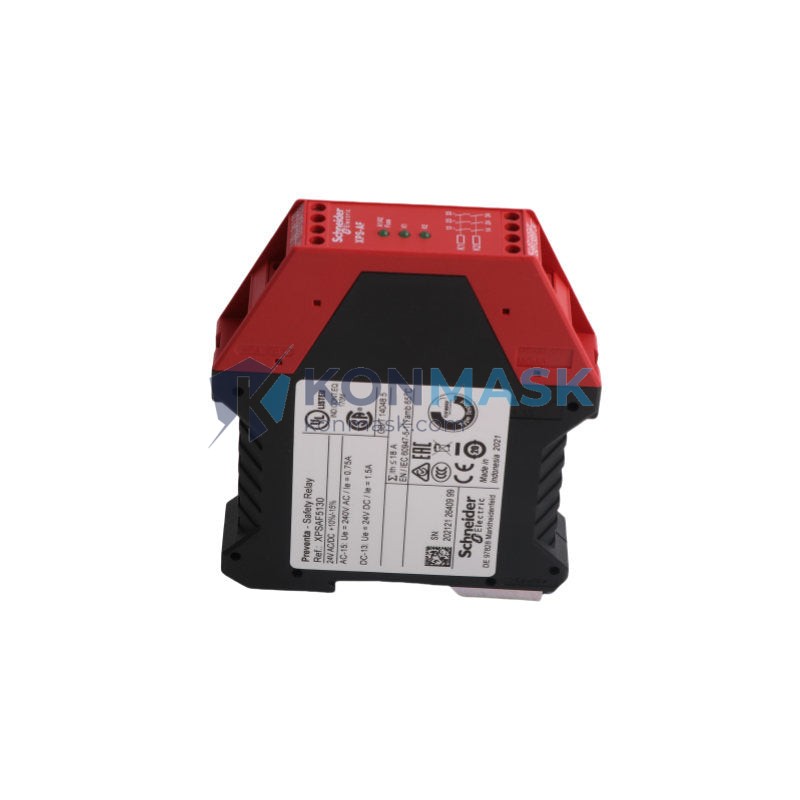

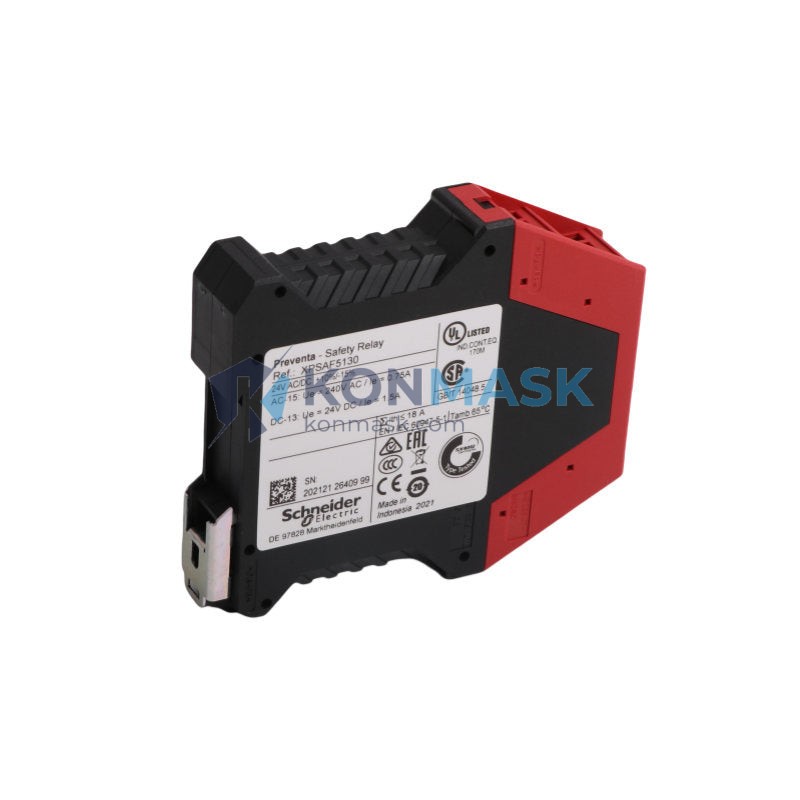

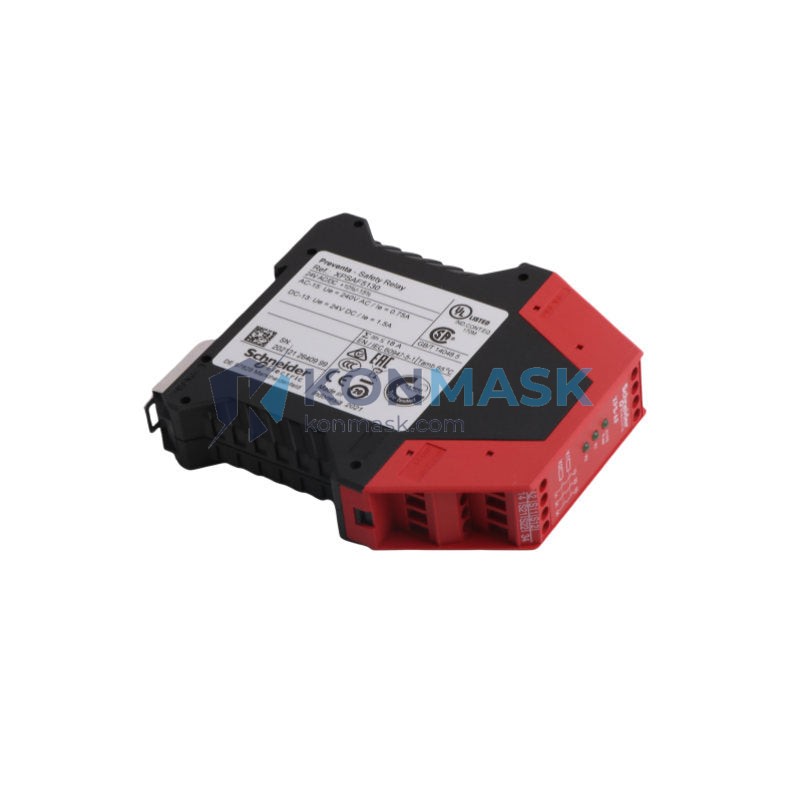

Schneider Electric XPSAF5130 Safety Relay Module – Preventa XPS Series
Imagine a high-speed stamping press on your production floor — no safety interlock, no monitored emergency stop circuit. A single operator error could result in catastrophic injury, unplanned downtime, and regulatory shutdown. The Schneider Electric XPSAF5130 is precisely the component that stands between normal operation and disaster: a dedicated safety relay module engineered to monitor emergency stop devices and safety gate switches, ensuring that hazardous machine motion is arrested the instant a safety condition is violated.
Within the Preventa XPS family — Schneider Electric’s globally recognized range of safety automation products — the XPSAF5130 occupies a core position as a dual-channel emergency stop and safety gate monitoring relay. Compliant with IEC 62061 and EN ISO 13849-1 up to PLe / SIL 3, it is deployed across thousands of industrial installations worldwide, from automotive body shops to pharmaceutical packaging lines, wherever machine safety is non-negotiable.
Technical Specifications
- Part Number / SKU: XPSAF5130
- Brand: Schneider Electric
- Series: Preventa XPS
- Product Type: Safety Relay Module
- Function: Emergency stop monitoring / Safety gate monitoring (dual-channel)
- Supply Voltage: 24 V DC
- Safety Outputs: 3 N/O (normally open) instantaneous safety contacts
- Auxiliary Output: 1 N/C (normally closed) signaling contact
- Safety Category: Category 4 / PLe / SIL 3
- Standards: IEC 62061, EN ISO 13849-1, EN 60947-5-1
- Mounting: DIN rail (35 mm)
- Housing Width: 22.5 mm
- Operating Temperature: 0 °C to +55 °C
- Weight: 220 g
- Degree of Protection: IP40 (front panel)
Note: All specifications are sourced from Schneider Electric official documentation. Contact us to verify the latest datasheet before engineering integration.
Key Features & Benefits
- Dual-Channel Monitoring: Detects single-fault conditions in the safety input circuit, preventing dangerous single-point failures from going undetected.
- Automatic & Manual Reset: Configurable reset mode allows adaptation to machine-specific safety procedures and operator workflows.
- Compact 22.5 mm Housing: Saves valuable control cabinet space without compromising safety performance — ideal for dense panel layouts.
- 3 N/O Safety Contacts: Provides redundant output switching capacity to control multiple actuators (contactors, drives, valves) simultaneously.
- LED Diagnostics: Onboard status LEDs enable rapid fault identification, reducing mean time to repair (MTTR) on the production floor.
- Wide Industry Acceptance: Certified to global safety standards, accepted by TÜV, CE marked, and suitable for machinery directive compliance across EU and international markets.
- Plug-and-Play Integration: Compatible with Schneider Electric Preventa safety sensors, light curtains, and interlock switches for seamless system design.
Industry & Equipment Applications
- Automotive Manufacturing: Robotic welding cells, stamping presses, assembly line guarding
- Packaging Machinery: High-speed cartoners, case packers, palletizers with safety gate interlocks
- Pharmaceutical & Food Processing: Hygienic machinery with frequent access doors requiring monitored interlocking
- Metal Fabrication: CNC machining centers, laser cutting systems, press brakes
- Material Handling: Conveyor systems, AGVs, and automated storage requiring perimeter guarding
- Energy & Utilities: Control panels requiring emergency stop circuits per IEC 60204-1
System Integration & Compatible Parts
The XPSAF5130 is designed to integrate seamlessly within Schneider Electric’s Preventa XPS ecosystem and broader automation architecture:
- Compatible Safety Sensors: Preventa XCS series interlock switches, XCSDMP magnetic safety switches
- Compatible Light Curtains: Preventa XUSB / XUSL series safety light curtains
- Downstream Contactors: Schneider Electric TeSys D / TeSys K series safety contactors
- PLC Safety Integration: Can be wired to Modicon M580 / M340 safety I/O modules for monitored feedback loops
- Related Safety Modules: XPSAL, XPSAK, XPSATE series for expanded safety functions
Our technical team can assist with wiring diagrams and system architecture review — contact us before ordering for complex applications.
Our Quality Assurance Process
At Konmask.com, every Schneider Electric XPSAF5130 unit we supply undergoes a rigorous sourcing and verification process:
- Authorized Supply Chain: Units are sourced exclusively from verified Schneider Electric authorized distributors and certified secondary market channels.
- Visual & Label Inspection: Each unit is inspected for authentic Schneider Electric labeling, holographic seals, and correct part number markings.
- Functional Verification: Where applicable, modules are bench-tested for basic power-on and contact continuity prior to shipment.
- Secure Packaging: Anti-static packaging with moisture barrier protection ensures safe transit for sensitive electronic components.
- Documentation: Certificate of conformity and original manufacturer documentation provided upon request.
How to Order
- Submit an Inquiry: Contact us via email at support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Upon agreement, we issue a proforma invoice and confirm your order in writing.
- Shipment & Tracking: We ship via DHL, FedEx, or UPS with full tracking. Export documentation (commercial invoice, packing list) provided for customs clearance.
- After-Sales Support: Our engineering team remains available for installation guidance and technical questions post-delivery.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: We focus exclusively on PLC, DCS, safety, and drive components — not a generalist marketplace.
- ✅ Global B2B Export Experience: Serving OEMs, system integrators, and MRO buyers across Europe, Southeast Asia, the Middle East, and the Americas.
- ✅ Fast Inquiry Response: Dedicated account managers respond within 24 hours — no automated bots, no runaround.
- ✅ Competitive Pricing: Direct relationships with distributors allow us to offer competitive pricing on both new and surplus stock.
- ✅ Reliable Logistics: Experienced in export compliance, dangerous goods documentation, and multi-country customs requirements.
Frequently Asked Questions
- Q: Is the XPSAF5130 still in production by Schneider Electric?
- A: Please contact us directly for the latest product lifecycle status. We maintain stock of both current and legacy Preventa XPS modules to support ongoing maintenance needs.
- Q: What is the difference between XPSAF5130 and XPSAF3410?
- A: The XPSAF5130 provides 3 N/O safety outputs and 1 N/C auxiliary output at 24 VDC, while the XPSAF3410 offers a different output configuration. Contact our team for a detailed comparison based on your application requirements.
- Q: Can the XPSAF5130 be used with third-party safety sensors?
- A: Yes, the XPSAF5130 accepts standard dual-channel dry contact inputs, making it compatible with most IEC-compliant emergency stop buttons and safety gate switches from any manufacturer.
- Q: What certifications does the XPSAF5130 carry?
- A: The module is CE marked and compliant with EN ISO 13849-1 (PLe), IEC 62061 (SIL 3), and EN 60947-5-1. TÜV certification documentation is available from Schneider Electric upon request.
- Q: Do you offer expedited shipping for urgent MRO requirements?
- A: Yes. We offer express DHL/FedEx shipping for urgent orders. Please indicate your required delivery date when submitting your inquiry and we will confirm feasibility.
