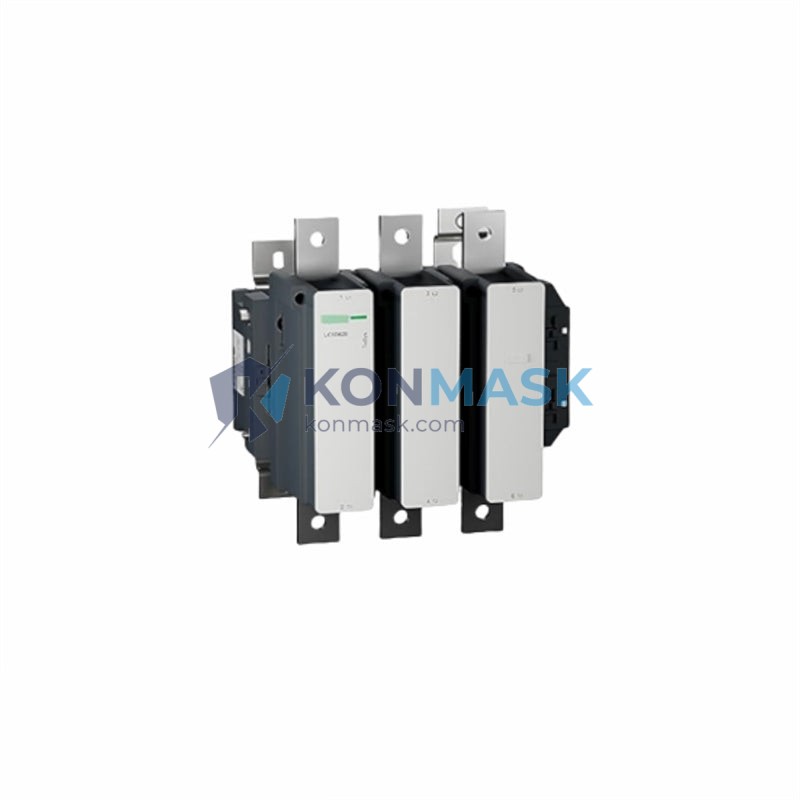

Schneider LC1D620M7C – 620A 3-Pole AC Magnetic Contactor | TeSys D Series
Engineering Background: The LC1D620M7C is Schneider Electric’s flagship high-current contactor within the globally proven TeSys D platform. Designed for demanding industrial power switching applications, it delivers reliable make-and-break performance at 620A AC-3 duty, making it the preferred choice for motor starters, power distribution panels, and heavy-load switching circuits across energy, marine, and process industries.
Product Positioning: Targeted at procurement engineers and panel builders who require IEC-certified, OEM-grade contactors with traceable manufacturing provenance. The LC1D620M7C is a direct-fit replacement and upgrade path for legacy high-current switching assemblies, fully compatible with TeSys D auxiliary contact blocks and overload relays.
Complete Technical Specifications
- Part Number / SKU: LC1D620M7C
- Manufacturer: Schneider Electric
- Series / Platform: TeSys D
- Poles: 3-Pole (3P), Main Power Contacts
- Rated Operational Current (AC-3): 620 A @ 400 V
- Rated Operational Current (AC-1): 820 A
- Rated Power (AC-3, 400V): 335 kW
- Coil Voltage (Uc): 220 VAC, 50/60 Hz (M7 = 220 VAC)
- Coil Consumption (Inrush / Sealed): ~1400 VA / ~70 VA
- Auxiliary Contacts (Built-in): 1 NO + 1 NC
- Utilization Category: AC-3 (squirrel-cage motor switching)
- Conventional Thermal Current (Ith): 820 A
- Rated Insulation Voltage (Ui): 1000 V
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Mechanical Endurance: 1,000,000 operations
- Electrical Endurance (AC-3): 100,000 operations
- Mounting: Vertical, DIN rail or panel mount
- Degree of Protection: IP20 (open type)
- Operating Temperature: -25°C to +60°C
- Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2
- Weight: ~1300 g
- Country of Origin: China (Schneider Electric manufacturing)
- HS Code: 8536.49.00
Proven Application Environments
- High-power motor starters for pumps, compressors, and fans (>200 kW)
- Main power switching in MCC (Motor Control Centers) and MDB panels
- Reversing contactor assemblies with mechanical interlocking
- Star-delta (Y-Δ) starter configurations for large induction motors
- Marine and offshore power distribution switchboards
- Mining, oil & gas, and heavy process industry control panels
- Renewable energy inverter output switching and grid-tie applications
- Building automation: HVAC chiller and AHU motor control
Engineering Advantages
- TeSys D Ecosystem Compatibility: Direct add-on for LA1D auxiliary contact blocks, LRD overload relays, and LAD4 suppressor modules — no adapter required.
- Double-break Silver-alloy Contacts: Ensures low contact resistance and extended electrical life under high-inrush motor loads.
- Integrated Coil Suppression: Built-in RC snubber reduces EMI and protects PLC/relay outputs driving the coil.
- Vibration & Shock Resistance: Certified for marine and mobile equipment environments per IEC 60068-2.
- Compact Footprint: High current density design minimizes panel real estate vs. equivalent IEC frame sizes.
- Global Certifications: IEC, UL, CSA, CE — accepted by engineering authorities worldwide without re-certification.
System Architecture & Signal Flow
The LC1D620M7C operates as a 3-pole main switching element in a typical motor control circuit:
- Control Circuit (A1/A2): 220 VAC coil energized via PLC digital output, relay, or manual pushbutton. Coil draws ~1400 VA inrush; ensure control transformer is rated accordingly.
- Power Circuit (L1/L2/L3 → T1/T2/T3): Main contacts switch 3-phase supply to motor terminals. Rated 620A AC-3 continuous.
- Auxiliary Contacts (13/14 NO, 21/22 NC): Used for feedback signaling to PLC, interlocking with reversing contactor, or indicator lamp circuits.
- Overload Relay Interface: Mounts directly below via LRD series clip-on relay; trip signal fed back to control circuit for motor protection.
- Suppressor Module (optional): LAD4 RC or varistor module clips onto A1/A2 terminals to suppress coil back-EMF.
Sourcing & Quality Verification
- Source: Konmask.com sources LC1D620M7C units from authorized Schneider Electric distribution channels and verified industrial surplus with full traceability.
- Inspection Protocol: Each unit undergoes visual inspection, label authenticity check (hologram, date code, batch number), and coil continuity verification before dispatch.
- Packaging: Ships in original Schneider Electric retail carton with factory documentation where available. Surplus units include inspection report.
- Warranty: 12-month operational warranty against manufacturing defects. DOA replacement within 7 days of receipt.
- Counterfeit Risk Mitigation: All units verified against Schneider Electric’s published label specifications. Customers may request batch photos and test reports prior to shipment.
Procurement Process
- Step 1 – Confirm Specification: Verify coil voltage suffix (M7 = 220VAC; other suffixes available on request: B7=24VAC, Q7=380VAC, etc.).
- Step 2 – Request Quote: Contact [email protected] for volume pricing (>5 units), lead time, and freight options.
- Step 3 – Place Order: Add to cart and checkout, or submit a purchase order via email for B2B net-terms arrangements.
- Step 4 – Shipping: DHL Express / FedEx International Priority standard. Sea freight available for bulk orders. Export documentation (CO, packing list, commercial invoice) provided.
- Step 5 – Incoming Inspection: We recommend verifying coil resistance (typically 35–50 Ω for M7 coil) and contact continuity upon receipt.
Technical FAQ
- Q: What does the “M7” suffix mean?
- A: “M7” designates a 220 VAC, 50/60 Hz coil. Schneider uses a standardized suffix system — always confirm the coil voltage suffix matches your control circuit voltage before ordering.
- Q: Can LC1D620M7C be used for AC-1 (resistive) loads?
- A: Yes. The AC-1 rating is 820A, higher than the AC-3 motor rating. Suitable for resistive heating banks and capacitor switching with appropriate derating.
- Q: Is this contactor reversible?
- A: Yes, two LC1D620M7C units can be mechanically and electrically interlocked using the LAD9R3 reversing kit to form a reversing starter.
- Q: What overload relay is compatible?
- A: The LRD3363 (200–630A adjustable) is the recommended clip-on overload relay for this frame size.
- Q: Is CE / UL certification documentation available?
- A: Yes. Schneider Electric’s official Declaration of Conformity and UL listing file (E164862) are publicly available and can be provided upon request.
