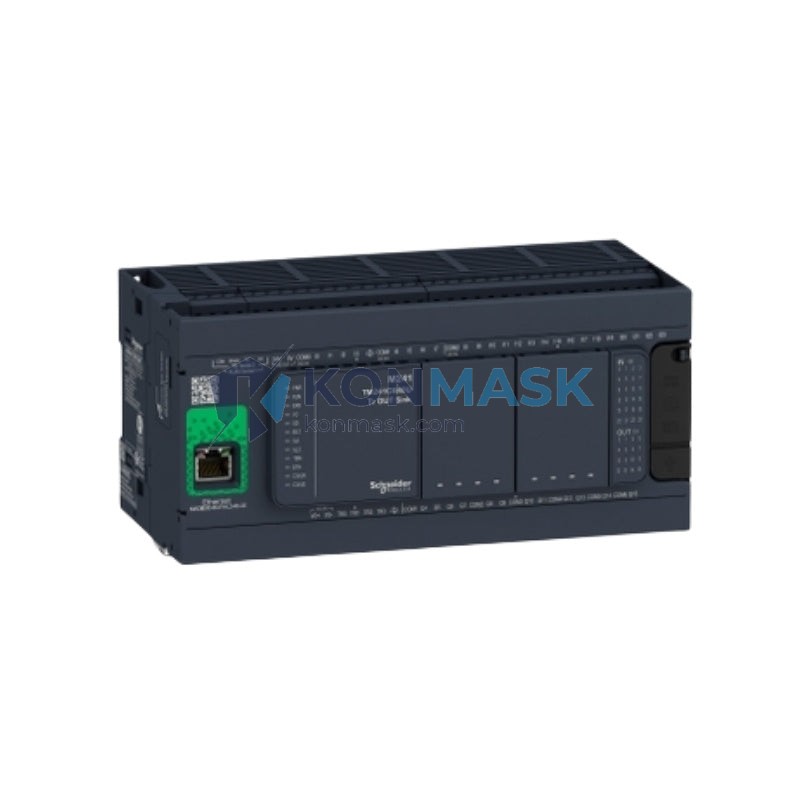

Packaging & Conveyor Automation Solution – SCHNEIDER TM241CE40R | Modicon M241 Series
Where This Product Is Used
The Schneider Electric TM241CE40R is a high-performance programmable logic controller (PLC) from the Modicon M241 series, purpose-built for demanding industrial automation environments. Engineers and system integrators specify this controller across a wide range of applications:
- Packaging Machinery – Precise sequencing and high-speed I/O for filling, sealing, labeling, and cartoning lines.
- Conveyor & Material Handling Systems – Multi-axis coordination, belt speed control, and fault detection in logistics and warehousing.
- HVAC & Building Automation – Energy management, zone control, and BACnet/Modbus integration for commercial building systems.
- Water & Wastewater Treatment – Pump sequencing, level monitoring, and remote SCADA connectivity via Ethernet.
- Food & Beverage Processing – Hygienic-environment control with robust relay outputs and CANopen device integration.
- Textile & Printing Equipment – Synchronized motion and tension control for web-handling processes.
- OEM Machine Builders – Compact DIN-rail form factor with rich connectivity for embedded machine control.
Technical Specifications
- Model: TM241CE40R
- Series: Modicon M241
- Brand: Schneider Electric
- Total I/O Points: 40 (24 Digital Inputs / 16 Digital Outputs – Relay)
- Output Type: Relay (NO contacts, 2 A per output)
- Supply Voltage: 100–240 V AC, 50/60 Hz
- Processor Speed: 32-bit ARM Cortex, up to 100 MHz
- Program Memory: 64 MB Flash
- Data Memory: 64 MB RAM
- Communication Ports: 1 × Ethernet (RJ45, 10/100 Mbps), 2 × Serial (RS-232 / RS-485), 1 × USB Mini-B (programming)
- Fieldbus: CANopen Master (integrated)
- High-Speed Counters: 4 × HSC up to 100 kHz
- Pulse Outputs: 2 × PTO (Pulse Train Output) for stepper/servo positioning
- SD Card Slot: Yes (data logging, firmware update)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: –25 °C to +70 °C
- Humidity: 10–95% RH (non-condensing)
- Protection Rating: IP20
- Mounting: DIN rail (35 mm)
- Dimensions (W × H × D): 195 × 90 × 70 mm
- Weight: 620 g
- Programming Software: EcoStruxure Machine Expert (SoMachine)
- Programming Languages: IEC 61131-3 (LD, FBD, SFC, ST, IL)
Why Engineers Specify This Model
- Relay Outputs for Mixed Loads – Directly drives solenoids, contactors, and indicator lamps without external relays, reducing panel BOM cost.
- Integrated CANopen Master – Eliminates the need for a separate fieldbus master module; connects up to 127 CANopen slave devices natively.
- Dual Serial Ports – Simultaneous RS-232 and RS-485 communication enables legacy device integration alongside modern Modbus RTU networks.
- Ethernet + Modbus TCP – Native SCADA/HMI connectivity without additional gateways; supports EtherNet/IP adapter mode.
- High-Speed Counting & PTO – Handles encoder feedback and stepper motor positioning in a single compact unit.
- EcoStruxure Ecosystem – Seamless integration with Schneider HMIs (Magelis/Harmony), drives (Altivar), and energy meters.
- Wide AC Supply Range – 100–240 V AC input eliminates the need for a separate 24 V DC PSU in many panel designs.
Complete System Bill of Materials
For a complete TM241CE40R-based control panel, engineers typically specify the following complementary components:
- TM241CE40R – Main CPU (this unit)
- TM3DI16 / TM3DQ16R – I/O expansion modules (digital input/output)
- TM3AI8 / TM3AQ4 – Analog I/O expansion modules
- HMIG3U / HMISTO511 – Magelis/Harmony HMI touchscreen panels
- ATV320 / ATV340 – Altivar variable speed drives (CANopen or Modbus RTU)
- LXM28A / LXM32A – Lexium servo drives (CANopen)
- XBTN401 / XBTGT2330 – Remote operator terminals
- TSXCUSB485 – USB-to-RS485 programming cable
- VW3A8306 – CANopen termination resistor plug
- BMXXSP0400 – SD memory card for data logging
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive (LVD) and EMC Directive
- UL 508 – Listed for industrial control equipment (North America)
- CSA C22.2 – Canadian Standards Association certified
- IEC 61131-2 – Programmable controllers hardware standard
- IEC 61131-3 – Programming languages standard
- RoHS Compliant – Restriction of Hazardous Substances Directive
- REACH Compliant – EU chemical safety regulation
- CANopen CiA 301 / CiA 302 – CANopen communication profile
Quality Assurance & Sourcing
Konmask.com sources the TM241CE40R exclusively through authorized Schneider Electric distribution channels and verified industrial surplus networks. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and connector condition
- Firmware version verification against Schneider Electric release notes
- Functional power-on test with EcoStruxure Machine Expert connectivity check
- Anti-static packaging with humidity indicator card
- Serial number traceability documentation provided on request
We maintain a no-counterfeit policy. All units are supplied with original Schneider Electric packaging where available. Certificate of conformity available upon request for regulated industries.
How to Source This Part
- In-Stock Orders: Add to cart and complete checkout — same-day dispatch for orders placed before 15:00 CST on business days.
- Bulk / Project Quantities: Contact [email protected] for volume pricing, lead time confirmation, and project BOM support.
- Urgent Requirements: Call or WhatsApp +0086 19859288691 for expedited sourcing and air freight options.
- International Shipping: We ship worldwide via DHL Express, FedEx International, and sea freight for pallet quantities. Export documentation (commercial invoice, packing list, CO) included.
- Payment: T/T (bank transfer), PayPal, and major credit cards accepted. LC available for orders above USD 10,000.
Application-Specific FAQ
Q: Can the TM241CE40R control servo drives directly?
A: Yes. The integrated CANopen master port supports Lexium servo drives (LXM28A, LXM32A) and third-party CiA 402-compliant drives. For pulse-direction control, the two PTO outputs support stepper and servo drives up to 100 kHz.
Q: Is this controller suitable for ATEX / hazardous area installations?
A: The TM241CE40R itself is rated IP20 and is not ATEX-certified. For hazardous areas, it must be installed in a certified enclosure with appropriate barriers. Contact us for guidance on compliant panel design.
Q: What is the maximum number of I/O points with expansion modules?
A: The M241 series supports up to 14 TM3 expansion modules, allowing a maximum of approximately 224 additional I/O points depending on module mix.
Q: Can I use EcoStruxure Machine Expert (formerly SoMachine) to program this PLC?
A: Yes. TM241CE40R is fully supported by EcoStruxure Machine Expert v1.2 and later. Legacy SoMachine v4.3 projects can be migrated with the built-in migration wizard.
Q: Does this unit support Modbus TCP and Modbus RTU simultaneously?
A: Yes. Modbus TCP runs over the Ethernet port while Modbus RTU operates on either serial port (RS-232 or RS-485), enabling simultaneous multi-protocol communication.
Q: What is the warranty on this product?
A: Konmask.com provides a 12-month warranty against manufacturing defects. Warranty claims are processed within 5 business days. See our warranty policy page for full terms.
