SCHNEIDER TSXAEZ414 Analog Input Module | Replacement, Equivalent & Selection Guide

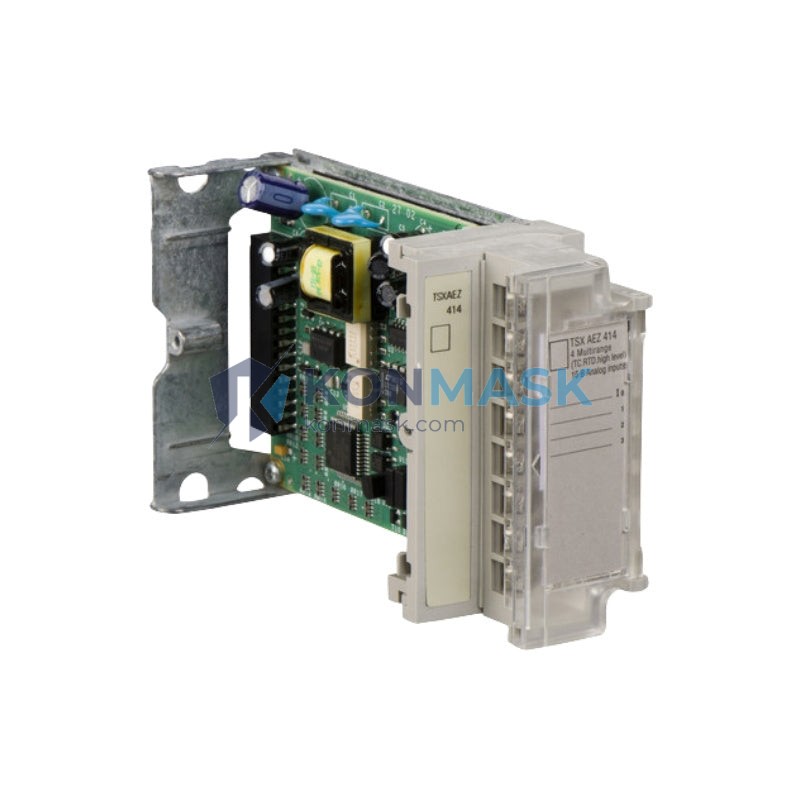

The Schneider Electric TSXAEZ414 is a high-precision analog input module designed for the TSX Premium PLC platform. It provides 4 differential analog input channels with configurable voltage/current ranges, making it a core component in process control, industrial automation, and SCADA systems. This page covers full technical specifications, compatible replacement models, selection criteria, and sourcing guidance.
Technical Specifications
- Part Number: TSXAEZ414
- Manufacturer: Schneider Electric (formerly Telemecanique)
- Module Type: Analog Input Module
- Number of Channels: 4 differential analog inputs
- Input Range: ±10 V / 0–10 V / 0–20 mA / 4–20 mA (configurable per channel)
- Resolution: 12-bit + sign (13-bit)
- Conversion Time: ≤ 1 ms per channel
- Isolation: Galvanic isolation between field and bus
- Power Supply: Supplied via TSX Premium rack backplane (5 VDC internal bus)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% non-condensing
- Dimensions (W×H×D): Single-slot module, standard TSX Premium form factor
- Weight: Approx. 330 g
- Certifications: CE, UL, cUL
- Compatible Racks: TSXRKY4, TSXRKY6, TSXRKY8, TSXRKY12
- Programming Software: Unity Pro / PL7 Pro
Compatible Replacement & Equivalent Models
If the TSXAEZ414 is discontinued, obsolete, or unavailable, the following models are functionally compatible or serve as direct/near-direct replacements:
- TSXAEZ802 — 8-channel analog input, same TSX Premium platform; use when more channels are needed
- TSXAEZ412 — 4-channel analog input, earlier revision; pin-compatible in most rack configurations
- BMXAMI0410 — Modicon M340 analog input module (4 channels); requires rack/platform migration
- BMXAMI0800 — Modicon M340, 8-channel analog input; suitable for system upgrades
- 140AII33000 — Modicon Quantum analog input module; for large-scale DCS migration projects
- Third-party equivalents: Wago 750-452, Phoenix Contact IB IL AI 2/SF — verify signal range and rack compatibility before substitution
Note: Always verify firmware version, rack slot compatibility, and I/O addressing before substituting modules in a live system.
Why Choose the Original Model
- Proven reliability in TSX Premium installations with 10+ years field history
- Native PL7 Pro & Unity Pro integration — no additional driver or configuration overhead
- Galvanic isolation protects against ground loops and transient surges common in industrial environments
- Per-channel configurability supports mixed sensor types (voltage + current) in a single module
- Compact single-slot form factor maximizes rack density in space-constrained panels
- Schneider Electric global support with documented spare parts lifecycle
Typical Applications
- Process temperature monitoring via 4–20 mA transmitters (thermocouples, RTDs with transmitter)
- Pressure and flow measurement in water treatment, HVAC, and chemical processing
- Level sensing in tanks and silos using analog level transmitters
- Speed and position feedback from analog encoders or transducers
- Energy monitoring and power quality measurement in building automation
- Machine tool and packaging line process variable acquisition
System Compatibility
- PLC Platform: Schneider TSX Premium series (TSX P57 1xx / 2xx / 3xx / 4xx / 5xx CPUs)
- Racks: TSXRKY4, TSXRKY6, TSXRKY8, TSXRKY12 (standard and extended)
- Software: PL7 Pro V4.x and above; Unity Pro V2.x and above
- Bus: TSX Premium internal X-bus / FIPIO (no additional fieldbus adapter required)
- Not compatible with: TSX Micro, TSX Nano, Modicon M580, or Modicon Momentum without hardware migration
Selection Guide
Use the following criteria to determine whether TSXAEZ414 is the right module for your application:
- Channel count: Need exactly 4 analog inputs → TSXAEZ414. Need 8 → consider TSXAEZ802.
- Signal type: Voltage (±10 V / 0–10 V) or current (0–20 mA / 4–20 mA) — TSXAEZ414 supports all four ranges per channel.
- Resolution requirement: 12-bit resolution is sufficient for most process control; if 16-bit is required, evaluate TSXAEZ814 or M340 platform.
- Platform constraint: Existing TSX Premium rack → TSXAEZ414 is the native fit. Migrating to M340 → use BMXAMI0410.
- Budget vs. new vs. refurbished: New OEM stock available; certified refurbished units available from Konmask with full test report.
- Lead time sensitivity: Contact us for current stock availability — we maintain buffer stock for critical spare parts.
Quality Assurance & Sourcing
- All TSXAEZ414 units sourced by Konmask.com are tested and verified against Schneider Electric factory specifications
- Each module undergoes power-on functional test, channel-by-channel signal verification, and visual inspection
- Units are supplied with anti-static packaging and traceable lot documentation
- We source from authorized distributors and certified secondary market channels — no counterfeit risk
- Warranty: 12 months from date of shipment (DOA replacement within 7 days)
- Certificate of conformity and test report available upon request
How to Order
- Step 1: Confirm your TSX Premium rack model and available slot position
- Step 2: Verify CPU firmware version supports TSXAEZ414 (PL7 Pro ≥ V4.0 or Unity Pro ≥ V2.0)
- Step 3: Add to cart or contact us for bulk/project pricing
- Step 4: Provide your shipping address — we ship worldwide via DHL / FedEx / SF Express
- Step 5: Receive module with test report; install and configure via Unity Pro I/O configuration wizard
For project quantities (>5 units), OEM orders, or urgent requirements, email [email protected] or call +0086 19859288691 for a dedicated quote within 24 hours.
Replacement & Compatibility FAQ
Q: Is TSXAEZ414 still in production?
A: Schneider Electric has moved its primary platform to Modicon M340/M580. TSXAEZ414 is in the mature/end-of-life phase. New and refurbished stock remains available through authorized spare parts channels including Konmask.com.
Q: Can I replace TSXAEZ414 with TSXAEZ412?
A: In most cases yes — both are 4-channel analog input modules for TSX Premium. Verify the firmware revision and I/O object addressing in your PL7/Unity project before swapping.
Q: Will BMXAMI0410 work as a drop-in replacement?
A: No. BMXAMI0410 is for the Modicon M340 platform and requires a different rack, CPU, and software project. It is a migration option, not a drop-in replacement.
Q: What is the difference between TSXAEZ414 and TSXAEZ802?
A: TSXAEZ802 provides 8 analog input channels vs. 4 on the TSXAEZ414. Both use the same TSX Premium rack and software. Choose TSXAEZ802 if you need more channels in a single slot.
Q: Do you provide a test report with each unit?
A: Yes. All units shipped by Konmask.com include a functional test report. Certificate of conformity is available on request.
Q: What is the lead time?
A: In-stock units ship within 1–2 business days. Contact us for current inventory status.
