Schneider XS4P30NA340 Inductive Proximity Sensor | Replacement, Equivalent & Selection Guide

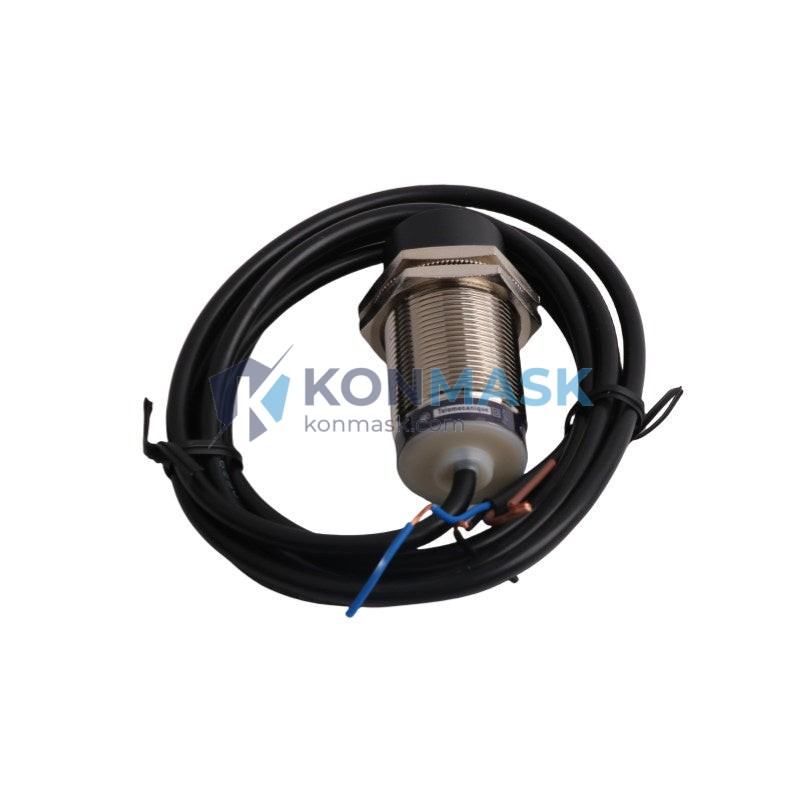

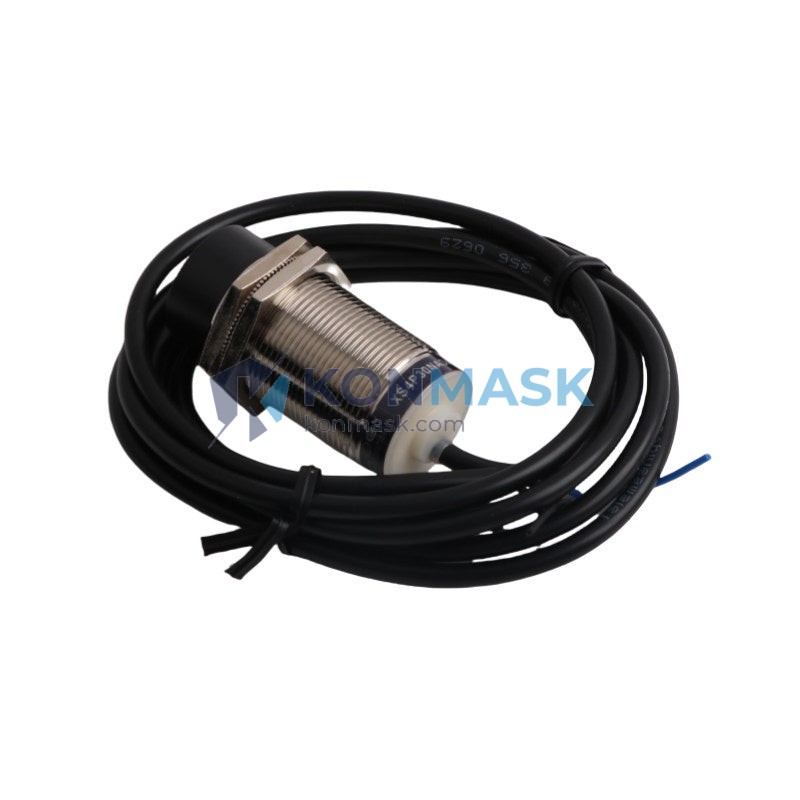

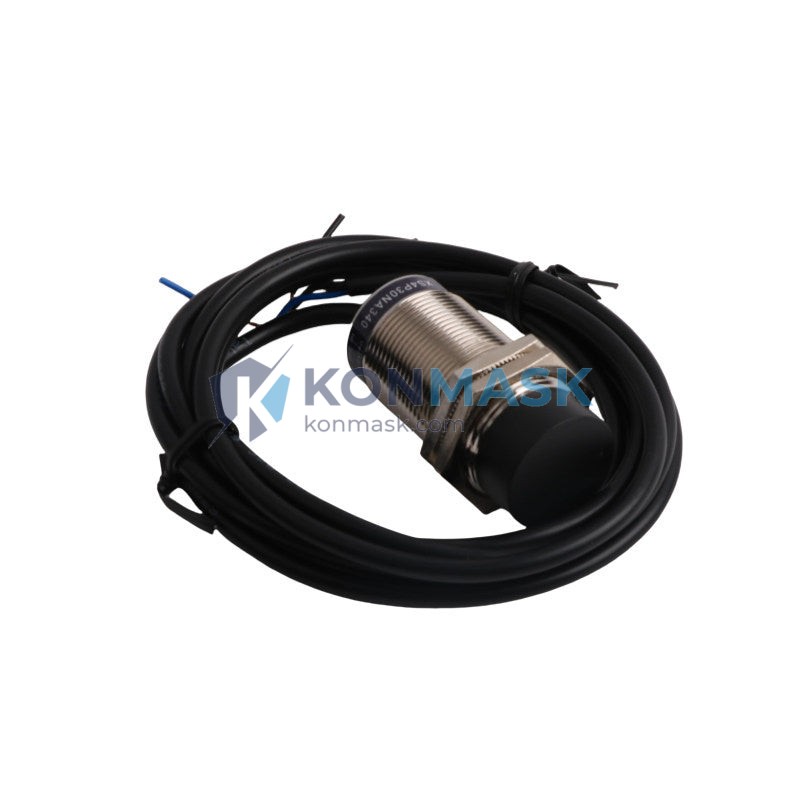

The Schneider Electric XS4P30NA340 is an M30-threaded inductive proximity sensor from the XS4 series, featuring a PNP normally-open (NO) output, 40 mm sensing range, and 3-wire DC connection. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Part Number | XS4P30NA340 |
| Brand | Schneider Electric |
| Series | XS4 (OsiSense XS) |
| Sensor Type | Inductive Proximity Sensor |
| Housing Diameter | M30 |
| Sensing Range (Sn) | 40 mm (nominal) |
| Output Type | PNP, Normally Open (NO) |
| Supply Voltage | 24–240 V AC/DC |
| Output Current | ≤ 200 mA |
| Connection | 3-wire, cable |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Housing Material | Nickel-plated brass |
| Standards | IEC 60947-5-2 |
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the XS4P30NA340. Always verify electrical and mechanical compatibility before substitution.
| Brand | Model | Key Difference |
|---|---|---|
| Schneider Electric | XS4P30NA340D | DIN connector variant |
| Schneider Electric | XS4P30PA340 | PNP NO, same range, alternate cable |
| Omron | E2E-X20MY1 | M30, PNP NO, 20 mm range |
| Sick | IME30-20BPSZW2S | M30, PNP NO, 20 mm range |
| Balluff | BES M30MI-PSC80B-S04G | M30, PNP NO, 20 mm range |
| Turck | BI20-G30-AP6X | M30, PNP NO, 20 mm range |
| IFM | IF5714 | M30, PNP NO, flush mount |
Note: Sensing range and supply voltage may differ. Confirm specifications with your system requirements before ordering.
Why Choose the Original Model
- OEM Compatibility: Guaranteed fit for Schneider Electric Modicon, Altivar, and Preventa systems.
- Certified Performance: Fully compliant with IEC 60947-5-2 and CE/UL standards.
- Long Service Life: Nickel-plated brass housing with IP67 protection for harsh industrial environments.
- Reliable Switching: Solid-state PNP output with ≤ 200 mA load capacity and short-circuit protection.
- Wide Voltage Range: 24–240 V AC/DC operation reduces the need for additional power conditioning.
Typical Applications
- Conveyor belt position detection and end-of-travel sensing
- Metal part presence/absence detection on assembly lines
- Cylinder position feedback in pneumatic and hydraulic systems
- Machine tool spindle and door interlock sensing
- Packaging machinery product counting and jam detection
- Automotive body shop welding fixture positioning
System Compatibility
- Schneider Electric PLCs: Modicon M221, M241, M251, M340, M580 — direct I/O module connection
- Schneider Drives: Altivar ATV312, ATV320, ATV630 — digital input wiring
- Safety Systems: Preventa XPS series safety relays (verify safety category requirements)
- Third-Party PLCs: Compatible with Siemens S7-1200/1500, Allen-Bradley CompactLogix, Mitsubishi FX/Q series via standard PNP 3-wire interface
- I/O Modules: Any 24 V DC PNP-compatible digital input module
Selection Guide
Use the parameters below to confirm the XS4P30NA340 is the correct model for your application, or to identify the best alternative:
| Parameter | XS4P30NA340 | Guidance |
|---|---|---|
| Housing Size | M30 | Match to mounting hole diameter |
| Sensing Range | 40 mm | Use ≥ 80% of Sn for reliable detection |
| Output | PNP NO | Confirm PLC input type (PNP/NPN sourcing/sinking) |
| Supply Voltage | 24–240 V AC/DC | Match to control panel supply |
| Target Material | Ferrous metals (standard) | For non-ferrous, apply correction factor (typically 0.4–0.7×) |
| Environment | IP67 | Suitable for wash-down; not for full immersion |
| Connection | 3-wire cable | For connector version, select XS4P30NA340D |
Quality Assurance & Sourcing
- Authorized Distribution: Konmask.com sources XS4P30NA340 from verified Schneider Electric authorized distributors and certified industrial suppliers.
- Authenticity Guarantee: Every unit is inspected for genuine labeling, date codes, and packaging integrity before shipment.
- Traceability: Batch records and certificates of conformity available upon request for MRO and OEM procurement.
- Warranty: 12-month warranty against manufacturing defects. Replacement or refund per Konmask.com policy.
How to Order
- Confirm your required quantity and delivery timeline.
- Add XS4P30NA340 to cart or contact us for bulk/OEM pricing.
- Provide your PO number, shipping address, and any special requirements (e.g., COC, RoHS declaration).
- Orders ship within 1–3 business days from verified stock. Express options available.
Contact: support@konmask.com | +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace XS4P30NA340 with a shorter-range M30 sensor?
A: Only if your target is within the replacement sensor’s effective sensing range (≥ 80% of Sn). A 20 mm sensor will not reliably detect targets at 35–40 mm.
Q: Is XS4P30NA340 compatible with NPN PLC inputs?
A: No. This model is PNP (sourcing) output. For NPN (sinking) inputs, select the XS4P30NA340 NPN equivalent or use an interface relay.
Q: What is the difference between XS4P30NA340 and XS4P30NA340D?
A: The “D” suffix indicates a DIN connector (M12) instead of a fixed cable. Electrically identical; choose based on your wiring infrastructure.
Q: Can this sensor detect aluminum or copper targets?
A: Yes, but with a reduced sensing range. Apply the correction factor for non-ferrous metals (typically 0.4–0.7× of rated Sn).
Q: Is XS4P30NA340 RoHS compliant?
A: Yes. Schneider Electric XS4 series sensors comply with RoHS 2 (EU Directive 2011/65/EU). Documentation available on request.
