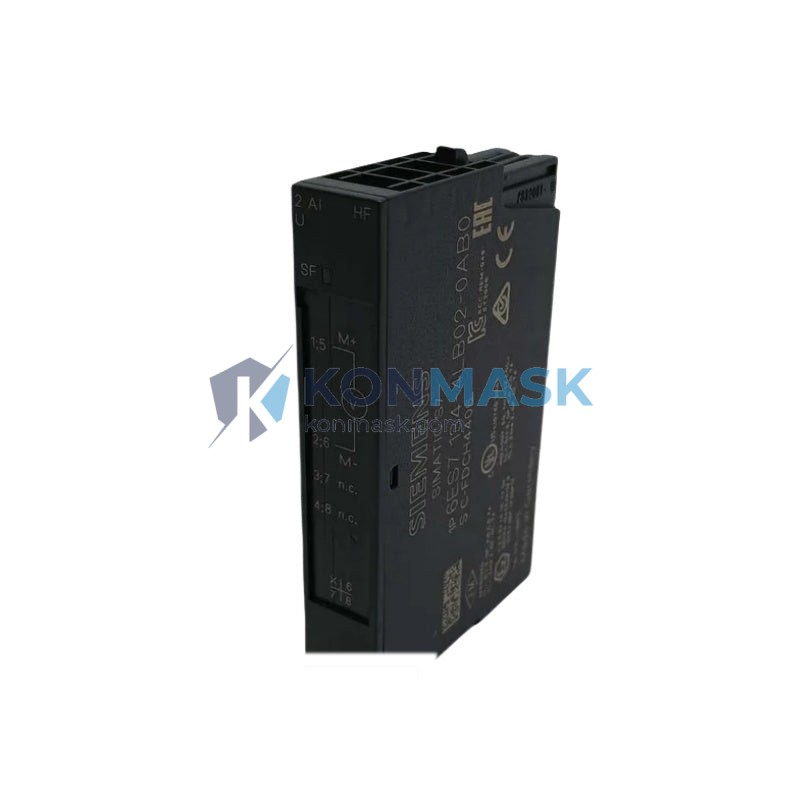

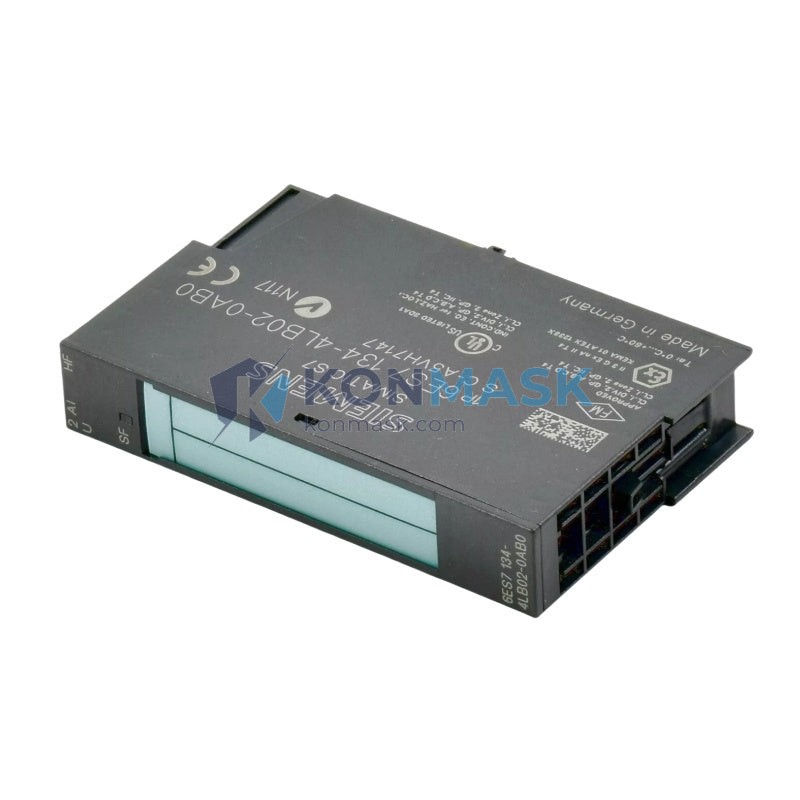

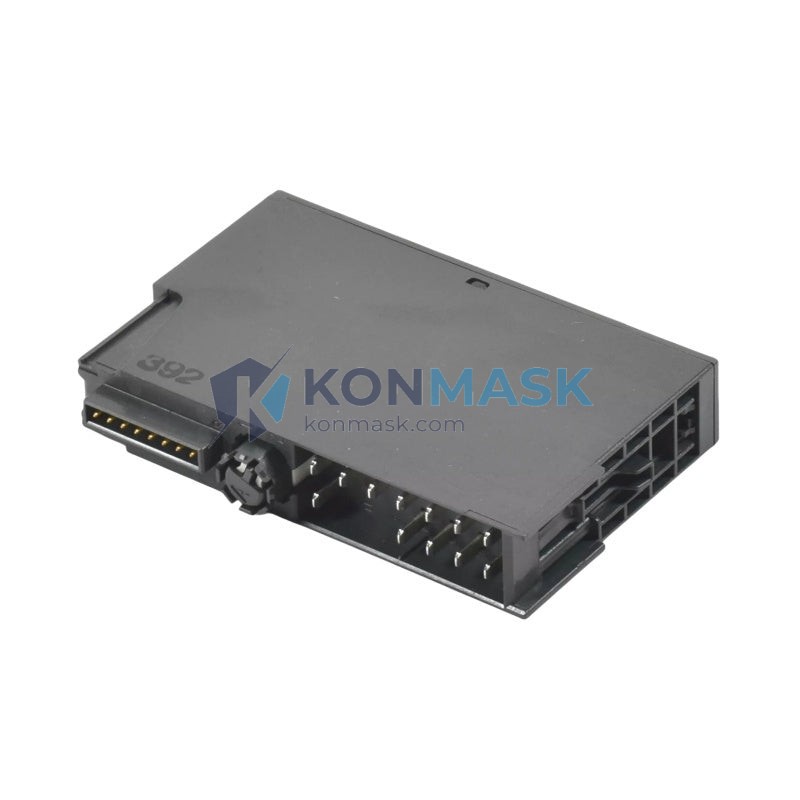

Siemens 6ES7134-4LB02-0AB0 – 4-Channel Analog Input Module | ET 200S Distributed I/O
Engineering Background
The Siemens SIMATIC ET 200S system is a modular, distributed I/O platform engineered for high-density signal acquisition in process automation and machine control. Designed to operate directly in the field—close to sensors and actuators—the ET 200S reduces wiring complexity and improves signal integrity across large-scale installations.
Product Positioning
The 6ES7134-4LB02-0AB0 is a 4-channel analog input module within the ET 200S family, purpose-built for procurement engineers who require precise, multi-range voltage and current signal acquisition with seamless PROFIBUS DP integration. It is the preferred choice for OEM machine builders, process plant integrators, and MRO sourcing teams requiring a drop-in replacement for legacy ET 200S analog front-ends.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6ES7134-4LB02-0AB0 |
| Product Family | SIMATIC ET 200S |
| Module Type | Analog Input Module (4AI) |
| Number of Channels | 4 (differential) |
| Input Ranges – Voltage | ±10 V, ±5 V, ±2.5 V, 1–5 V |
| Input Ranges – Current | 0–20 mA, 4–20 mA, ±20 mA |
| Resolution | 13-bit + sign |
| Conversion Time per Channel | ≥ 2 ms (50 Hz suppression) |
| Permissible Input Voltage | Max. ±35 V (destruction limit) |
| Supply Voltage (L+) | 24 V DC (20.4–28.8 V) |
| Current Consumption from L+ | Typ. 60 mA |
| Backplane Bus Current Draw | Max. 10 mA |
| Isolation | Channels to backplane bus: galvanically isolated |
| Interference Suppression | 50 Hz / 60 Hz selectable |
| Dimensions (W × H × D) | 15 mm × 81 mm × 52 mm |
| Weight | Approx. 45 g |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Degree of Protection | IP20 |
| Certifications | CE, UL, cULus, ATEX Zone 2 |
| Firmware Version | V2.0 (0AB0 revision) |
Proven Application Environments
- Process Industry: Temperature, pressure, and flow signal acquisition in chemical, oil & gas, and water treatment plants via 4–20 mA transmitters.
- Automotive Manufacturing: Multi-axis force and torque monitoring on assembly lines using ±10 V load cell amplifiers.
- Building Automation: HVAC sensor integration (CO₂, humidity, differential pressure) in BMS-controlled facilities.
- Food & Beverage: CIP-compatible sensor interfacing in hygienic production environments with IP20 cabinet mounting.
- Energy & Utilities: Grid monitoring and power quality measurement via current transducers (0–20 mA output).
- MRO / Spare Parts: Direct drop-in replacement for failed ET 200S analog input modules without reconfiguration.
Engineering Advantages
- Multi-Range Flexibility: Single module supports both voltage (±10 V) and current (4–20 mA) inputs—configurable per channel via STEP 7 / TIA Portal without hardware changes.
- Galvanic Isolation: Channel-to-backplane isolation eliminates ground loop interference in mixed-signal environments.
- Compact 15 mm Pitch: Ultra-narrow form factor maximizes channel density in space-constrained ET 200S racks.
- Selectable Noise Suppression: 50 Hz / 60 Hz filter selection ensures compatibility with both European and North American power grids.
- Hot-Swap Capable: Module can be replaced under power when used with the ET 200S IM 151-1 interface module in appropriate configurations.
- ATEX Zone 2 Rated: Suitable for use in potentially explosive atmospheres (Group II, Category 3G) when installed in certified enclosures.
System Architecture & Signal Flow
The 6ES7134-4LB02-0AB0 slots directly onto the ET 200S power module and terminal module assembly. Field signals enter via the terminal module (e.g., 6ES7193-4CA40-0AA0), pass through the analog front-end (ADC + multiplexer), and are transmitted over the PROFIBUS DP backplane to the IM 151-1 interface module. The CPU reads process image data cyclically; diagnostic interrupts are generated on wire-break or overflow conditions.
Compatible Interface Modules: IM 151-1 Standard (6ES7151-1AA05-0AB0), IM 151-1 High Feature (6ES7151-1BA02-0AB0), IM 151-3 PN (6ES7151-3AA23-0AB0).
Required Terminal Module: TM-E15S24-A1 (6ES7193-4CA40-0AA0) or equivalent 4-channel analog terminal module.
Sourcing & Quality Verification
- All units sourced from authorized Siemens distribution channels or verified surplus with full traceability documentation.
- Each module undergoes incoming inspection: visual check, label verification (MLFB, date code, country of origin), and functional power-on test.
- Firmware version and hardware revision confirmed against Siemens product lifecycle records prior to shipment.
- Anti-static packaging with humidity indicator card; ESD-safe handling throughout the supply chain.
- Certificate of Conformity (CoC) and test report available upon request for critical infrastructure projects.
Procurement Process
- Submit RFQ – Contact support@konmask.com with quantity, required delivery date, and project reference.
- Quotation & Lead Time – We respond within 1 business day with pricing, availability, and estimated ship date.
- Order Confirmation – Purchase order accepted via email; proforma invoice issued for prepayment or net terms (qualified accounts).
- Quality Inspection & Packing – Module inspected, photographed, and packed in anti-static ESD bag with bubble wrap and outer carton.
- Shipping – DHL Express / FedEx International Priority standard; freight forwarder handoff available for large orders.
- After-Sales Support – 12-month warranty against defects; technical support for integration questions.
Technical FAQ
Q: Is the 6ES7134-4LB02-0AB0 compatible with TIA Portal?
A: Yes. The module is supported in TIA Portal V13 SP1 and later via the HSP (Hardware Support Package) for ET 200S. It is also fully configurable in STEP 7 V5.x.
Q: What is the difference between 0AB0 and 0AA0 revisions?
A: The 0AB0 revision (this listing) includes firmware V2.0 with improved diagnostic capabilities and extended temperature range compared to the earlier 0AA0 variant. The two are functionally interchangeable in most applications.
Q: Can I mix voltage and current channels on the same module?
A: Yes. Each of the 4 channels is independently configurable for voltage or current input via software parameter assignment—no hardware jumpers required.
Q: What terminal module is required?
A: The 6ES7134-4LB02-0AB0 requires a 4-channel analog terminal module. The standard choice is 6ES7193-4CA40-0AA0 (TM-E15S24-A1). Ensure the terminal module is ordered separately if not already installed.
Q: Do you provide Siemens Certificate of Origin?
A: We provide our own Certificate of Conformity with traceability information. Original Siemens CoO is available for new-in-box units sourced directly from authorized distributors—please specify at time of order.
