Machine Control & Process Automation Solution – SIEMENS 6ES7223-1PL22-0XA8 | EM223 Digital I/O Expansion Module
Where This Product Is Used

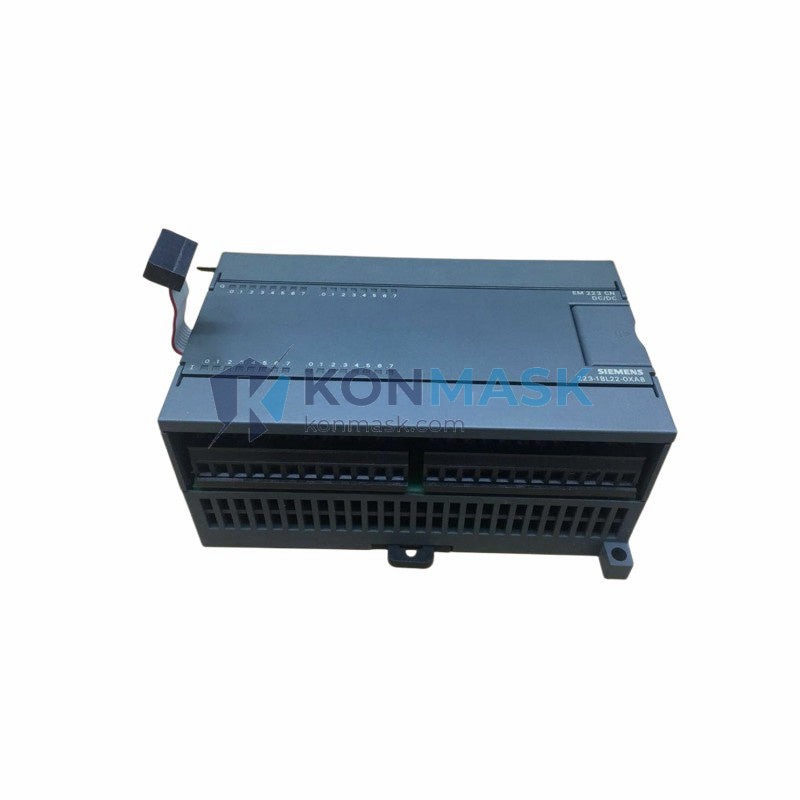

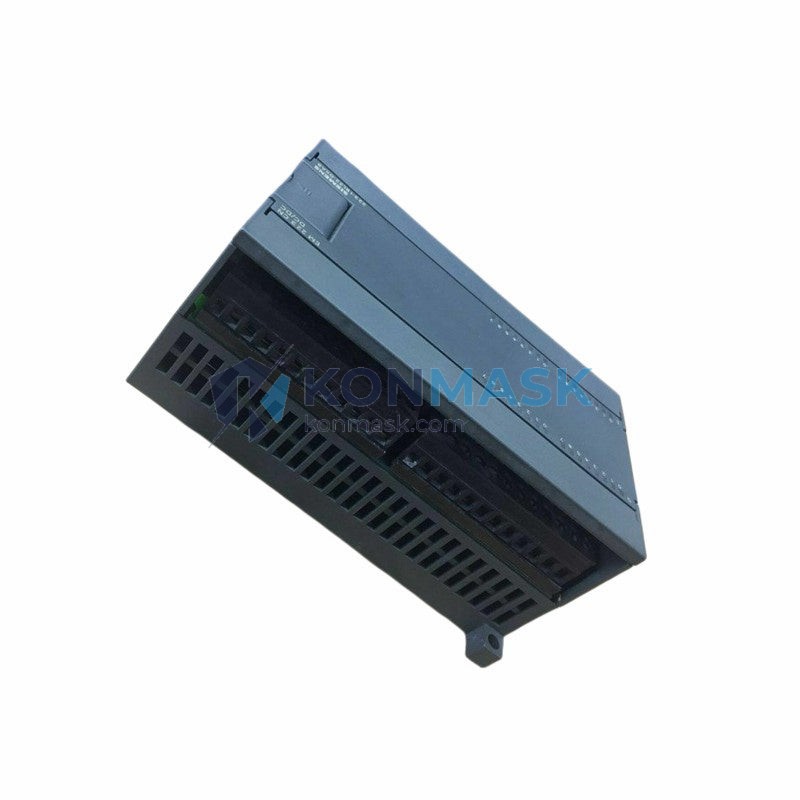

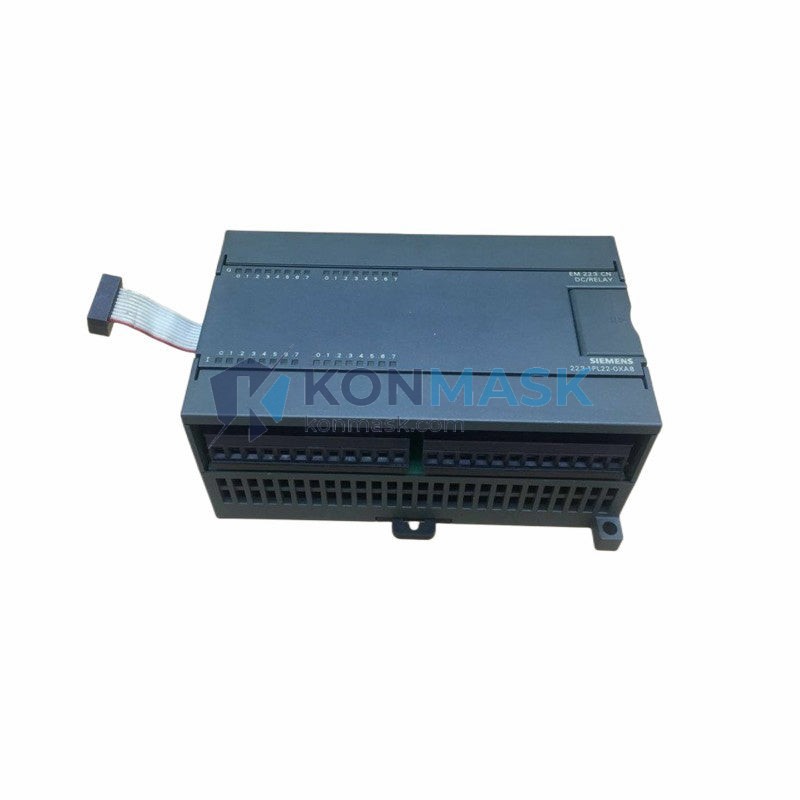

The SIEMENS 6ES7223-1PL22-0XA8 EM223 is a digital I/O expansion module designed for the S7-200 Micro PLC family. It is widely deployed across demanding industrial environments where reliable discrete signal handling is critical:
- Packaging & Filling Lines – Controls conveyor start/stop, reject gates, and fill-level sensors in bottling and FMCG packaging systems.
- Machine Tool & CNC Auxiliary Control – Manages tool-change signals, door interlocks, coolant pumps, and spindle enable/disable outputs.
- Building Automation & HVAC – Interfaces with damper actuators, fan contactors, and occupancy sensors in commercial building management systems.
- Water & Wastewater Treatment – Drives pump contactors, valve solenoids, and monitors float switches and flow sensors in lift stations and filtration plants.
- Material Handling & Logistics – Coordinates sorter diverters, pallet stop/release cylinders, and barcode scanner triggers on warehouse conveyor systems.
- Textile & Printing Machinery – Handles web-break detection inputs and tension-roller brake outputs in continuous-process textile equipment.
- Food & Beverage Processing – Interfaces with proximity sensors, level switches, and solenoid valves in hygienic process lines.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6ES7223-1PL22-0XA8 |
| Series | EM223 – S7-200 Digital I/O Expansion |
| Digital Inputs | 16 × DC 24 V (sink/source) |
| Digital Outputs | 16 × Relay, 2 A per point |
| Input Voltage Range | 20.4 – 28.8 V DC |
| Output Type | Relay (NO contact), 2 A / 30 V DC or 250 V AC |
| Isolation | Optocoupler (inputs); Relay (outputs) |
| Input Delay | 0.2 ms (standard filter) |
| Backplane Bus Current Draw | 145 mA @ 5 V DC |
| 24 V DC Sensor Supply Current | Up to 280 mA |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 – 95 % (non-condensing) |
| Dimensions (W × H × D) | 196.6 × 80 × 62 mm |
| Weight | approx. 180 g |
| Mounting | DIN rail (EN 60715) |
| Protection Class | IP20 |
| Certifications | CE, UL, cUL, FM, ATEX Zone 2 |
Why Engineers Specify This Model
- Relay Outputs for Mixed-Voltage Loads – The 16 relay outputs can switch both AC and DC loads without additional interface relays, reducing panel wiring complexity and BOM cost.
- High Point Density in Compact Form – 32 I/O points in a single 196.6 mm-wide module minimises DIN rail space versus discrete relay modules.
- Direct S7-200 Expansion Bus – Plug-and-play connection to CPU 221/222/224/224XP/226 via the integrated expansion connector; no additional power supply required for logic.
- Proven Field Reliability – Mechanical relay rated for 10 million operations; optocoupler inputs provide robust noise immunity in electrically harsh environments.
- STEP 7-Micro/WIN Compatible – Fully supported in Siemens STEP 7-Micro/WIN programming environment; I/O addresses auto-assigned by CPU configuration wizard.
- Wide Operating Temperature – Qualified to 55 °C ambient, suitable for non-air-conditioned control cabinets in tropical and industrial environments.
Complete System Bill of Materials
A typical S7-200 discrete control panel using this module includes:
- SIEMENS S7-200 CPU (e.g., 6ES7214-1BD23-0XB8 CPU 224) – main controller
- 6ES7223-1PL22-0XA8 EM223 – this module (16DI / 16DO relay expansion)
- SIEMENS 6ES7291-8GF23-0XA0 – Memory Cartridge (optional, for program backup)
- SIEMENS 6ES7901-3CB30-0XA0 – PC/PPI+ Cable for programming
- SIEMENS 6ES7221-1BF22-0XA0 EM221 – additional 8DI module (if more inputs needed)
- 24 V DC DIN Rail Power Supply (e.g., SITOP PSU100S 6EP1334-2BA20)
- Weidmüller or Phoenix Contact terminal blocks for field wiring
- DIN rail, cable duct, and enclosure (customer-supplied)
Compliance & Industry Standards
- CE Marking – Complies with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
- UL / cUL Listed – UL 508 (Industrial Control Equipment); suitable for North American panel installations.
- FM Approved – Factory Mutual approval for use in Class I, Division 2 hazardous locations.
- ATEX Zone 2 – Certified for use in potentially explosive atmospheres (Group IIC, Temperature Class T4).
- IEC 61131-2 – Programmable controller hardware standard compliance.
- EN 61000-6-2 / EN 61000-6-4 – Industrial EMC immunity and emission standards.
- RoHS Compliant – Restriction of Hazardous Substances Directive 2011/65/EU.
Quality Assurance & Sourcing
Konmask.com sources the 6ES7223-1PL22-0XA8 through verified industrial distribution channels. Every unit offered is:
- Inspected for original Siemens holographic label and date-code consistency.
- Tested for expansion bus communication and I/O point continuity prior to dispatch.
- Shipped in original or equivalent ESD-protective packaging with full documentation.
- Traceable to authorised distributor invoices upon request for compliance audits.
- Backed by Konmask’s 12-month warranty against manufacturing defects.
How to Source This Part
Ready to order or need a formal quotation for your project BOM?
- Online Order – Add to cart and check out directly. Stock availability shown in real time.
- RFQ / Bulk Pricing – Email support@konmask.com with your required quantity and delivery schedule for volume pricing.
- Urgent / Emergency Orders – Call or WhatsApp +0086 19859288691 for same-day quotation and expedited dispatch.
- OEM / System Integrator Accounts – Contact us to establish a trade account with net payment terms and priority allocation.
Application-Specific FAQ
Q: Can the EM223 6ES7223-1PL22-0XA8 be used with an S7-200 SMART CPU?
A: No. The EM223 uses the classic S7-200 expansion bus connector and is not compatible with S7-200 SMART CPUs. For SMART systems, use the SIEMENS EM DR16 (6ES7288-2DR16-0AA0).
Q: How many EM223 modules can be chained to one S7-200 CPU?
A: The S7-200 CPU supports up to 7 expansion modules in total. The actual limit depends on the 5 V DC bus current budget of the CPU; the EM223 draws 145 mA, so verify the CPU’s available expansion current before adding multiple modules.
Q: Are the relay outputs suitable for driving 220 V AC motor contactors directly?
A: Yes. Each relay output is rated 2 A at 250 V AC, making it suitable for driving standard IEC motor contactor coils (typically 6–10 VA). For larger loads, use the relay output to drive an intermediate contactor.
Q: What is the I/O address assignment for this module?
A: I/O addresses are automatically assigned by the S7-200 CPU based on the module’s slot position in the expansion chain. STEP 7-Micro/WIN’s System Block configuration displays the assigned addresses. Typically, the first EM223 in slot 0 occupies IB2/QB2 through IB3/QB3.
Q: Is a separate 24 V DC supply required for the module?
A: The module logic is powered from the CPU’s 5 V expansion bus. However, a 24 V DC sensor supply is required for the digital inputs and must be provided externally (the CPU’s 24 V sensor supply can be used if within current budget).
