Genuine SIEMENS 6ES7314-6CH04-0AB0 CPU 314C-2 DP | SIMATIC S7-300 – Verified Source

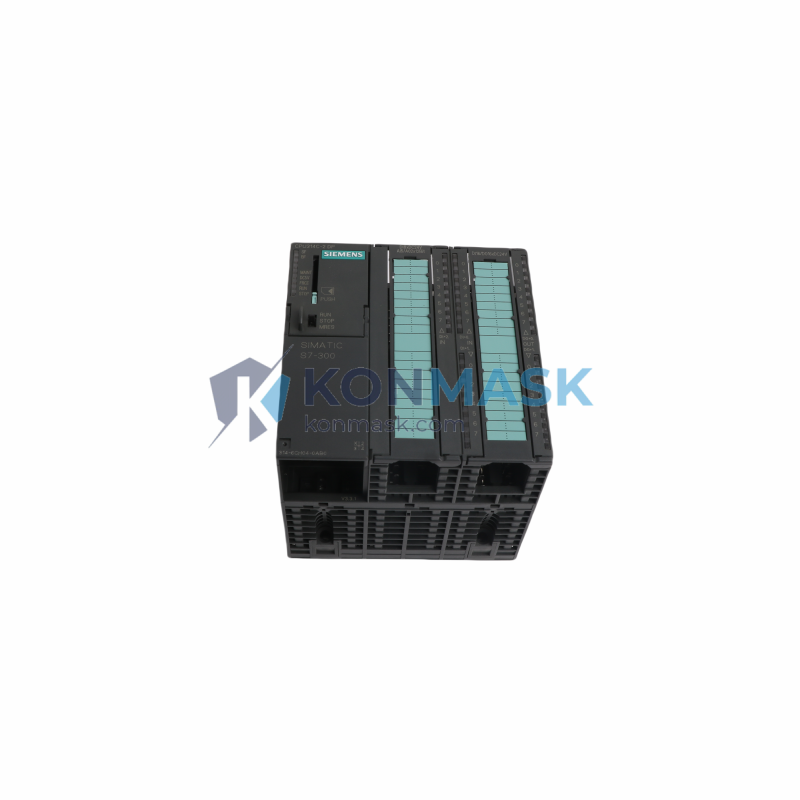

The SIEMENS 6ES7314-6CH04-0AB0 is a compact CPU module from the SIMATIC S7-300 series, featuring an integrated PROFIBUS-DP interface and onboard I/O. Designed for mid-range automation tasks, it delivers reliable performance in demanding industrial environments. At Konmask.com, every unit is sourced through verified supply channels and undergoes multi-point inspection before dispatch.
Technical Specifications
- Part Number: 6ES7314-6CH04-0AB0
- Series: SIMATIC S7-300
- CPU Type: CPU 314C-2 DP
- Work Memory: 192 KB
- Integrated Digital Inputs: 24 × DI (24 V DC)
- Integrated Digital Outputs: 16 × DO (24 V DC / 0.5 A)
- Integrated Analog Inputs: 4 × AI (12-bit)
- Integrated Analog Outputs: 2 × AO (12-bit)
- Communication Interface: MPI + PROFIBUS-DP (Master/Slave)
- Counting / Positioning: 4 × 60 kHz counters
- Supply Voltage: 24 V DC
- Operating Temperature: 0 °C to +60 °C
- Dimensions (W×H×D): 80 × 125 × 130 mm
- Weight: Approx. 660 g
- Protection Class: IP20
- Standards: CE, UL, cULus
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured directly from authorized distributors or verified secondary-market suppliers with traceable documentation.
- Step 2 – Physical Inspection: Each module is visually inspected for label integrity, housing condition, connector pins, and firmware version markings.
- Step 3 – Functional Testing: Where applicable, modules are bench-tested for power-on response and communication handshake verification.
- Step 4 – Secure Packaging: Units are packed in anti-static ESD bags with foam cushioning and sealed cartons to prevent transit damage.
Key Features & Benefits
- Compact CPU with integrated I/O — reduces panel space and wiring complexity
- Onboard PROFIBUS-DP master/slave interface for seamless network integration
- High-speed counting inputs (up to 60 kHz) for encoder and positioning tasks
- Compatible with STEP 7 and TIA Portal (via legacy support) programming environments
- Proven reliability in continuous 24/7 industrial operation
- Drop-in replacement for existing S7-300 installations — no rack redesign required
Typical Applications
- Machine tool control and CNC auxiliary systems
- Conveyor and material handling automation
- Packaging and bottling line control
- Building automation and HVAC systems
- Water treatment and pump station control
- Automotive assembly and test rigs
Compatible System Components
- Power Supply: SIEMENS PS 307 series (e.g., 6ES7307-1EA01-0AA0)
- Signal Modules: SM 321 / SM 322 / SM 331 / SM 332 digital and analog I/O
- Communication Modules: CP 342-5 PROFIBUS, CP 343-1 Ethernet
- Rack: SIMATIC S7-300 DIN rail mounting rack (UR1 / UR2)
- Programming Cable: PC Adapter USB (6ES7972-0CB20-0XA0)
- HMI: SIMATIC TP / MP series panels via MPI or PROFIBUS
Global Sourcing & Shipping Capabilities
Konmask.com ships the 6ES7314-6CH04-0AB0 worldwide from our warehouse in China. We support express courier (DHL / FedEx / UPS), air freight, and sea freight options. Export documentation including commercial invoice, packing list, and certificate of origin is provided upon request. Lead time for in-stock units is typically 1–3 business days after payment confirmation.
- ✅ Ships to: USA, EU, UK, Southeast Asia, Middle East, Australia, and more
- ✅ Export-compliant packaging and documentation
- ✅ Bulk order discounts available — contact us for a quote
Certifications & Compliance Statement
This product is manufactured by Siemens AG and carries the following certifications:
- CE – Conformité Européenne (EU Machinery & EMC Directives)
- UL / cULus – Underwriters Laboratories (North America)
- RoHS – Restriction of Hazardous Substances compliant
- PROFIBUS – Certified PROFIBUS-DP interface
Konmask.com does not manufacture or modify this product. We are an independent distributor. All trademarks and brand names remain the property of Siemens AG.
How to Order
- Confirm the part number 6ES7314-6CH04-0AB0 matches your system requirements
- Select quantity and add to cart, or contact us for bulk pricing
- Choose your preferred shipping method at checkout
- Receive order confirmation and tracking number within 1 business day
- For urgent requirements or technical pre-sales questions, email support@konmask.com
Authenticity & Trust FAQ
Q: Are these units genuine SIEMENS products?
A: Yes. All units sold on Konmask.com are genuine OEM products. We do not sell counterfeit, refurbished-as-new, or grey-market goods without disclosure.
Q: Can you provide a certificate of authenticity?
A: We provide available sourcing documentation upon request. For critical applications, we recommend verifying the serial number with Siemens’ official product authentication service.
Q: What is your return policy?
A: We accept returns within 30 days for items in original, unopened condition. DOA (Dead on Arrival) units are replaced at no cost within 7 days of receipt.
Q: Do you offer a warranty?
A: Yes — all units carry a 12-month warranty against manufacturing defects under normal operating conditions.
Q: Can I get a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com and we will provide the official SIEMENS datasheet for this part number.
