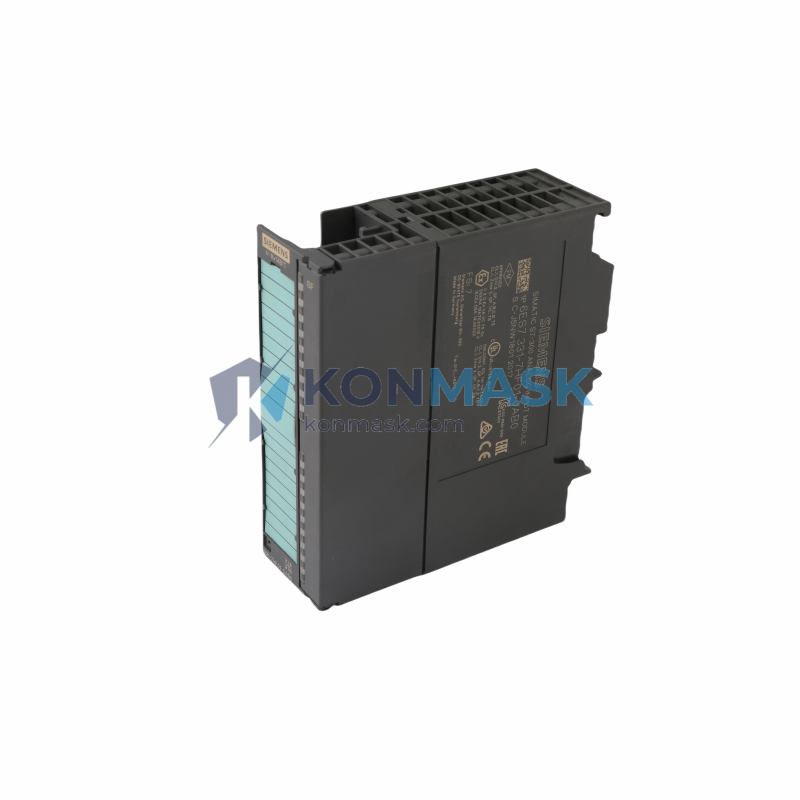

SIEMENS 6ES7331-7HF01-0AB0 8-Channel Analog Input Module – SIMATIC S7-300 SM 331 Series
When a critical analog signal chain fails on the plant floor — whether it’s a thermocouple reading from a high-temperature furnace or a 4–20 mA current loop from a pressure transmitter — the entire production line can grind to a halt within seconds. Without a reliable analog input module like the SIEMENS 6ES7331-7HF01-0AB0, engineers face unplanned downtime, compromised process data integrity, and costly emergency shutdowns. This module is not a commodity component; it is the sensory nerve of your S7-300 control system.
The 6ES7331-7HF01-0AB0 belongs to the SM 331 family within the SIMATIC S7-300 platform — Siemens’ most widely deployed modular PLC architecture in global process and discrete manufacturing. With 8 individually configurable analog input channels, 12-bit resolution, and support for thermocouples, resistance thermometers (RTD), voltage, and current signals, this module occupies a premium position in the SM 331 lineup. It is trusted in thousands of installations across petrochemical, automotive, food & beverage, and power generation industries worldwide.
Technical Specifications
- Part Number: 6ES7331-7HF01-0AB0
- Series: SIMATIC S7-300, SM 331
- Number of Analog Inputs: 8 channels (individually configurable)
- Resolution: 12 bits + sign
- Input Types: Voltage (±10V, ±5V, ±2.5V, 1–5V), Current (0–20 mA, 4–20 mA, ±20 mA), Thermocouple (Type B, C, E, J, K, L, N, R, S, T, U), RTD (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000)
- Supply Voltage: DC 24 V
- Current Consumption (from backplane bus): 60 mA
- Current Consumption (from L+): 100 mA
- Isolation: Galvanic isolation between channels and backplane bus
- Conversion Time per Channel: Min. 52 ms (all 8 channels active)
- Dimensions (W×H×D): 40 × 125 × 120 mm
- Weight: Approx. 260 g
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP 20
- Certifications: CE, UL, cULus, FM, ATEX (zone 2)
Key Features & Benefits
- Universal Signal Compatibility: A single module handles voltage, current, thermocouple, and RTD inputs — reducing spare parts inventory and simplifying cabinet design.
- High-Precision 12-Bit Resolution: Delivers accurate process variable measurement critical for closed-loop PID control in temperature, pressure, and flow applications.
- Individual Channel Configuration: Each of the 8 channels can be independently set via STEP 7 or TIA Portal, enabling mixed-signal installations without additional hardware.
- Galvanic Isolation: Protects the CPU and backplane from ground loops and transient voltage spikes common in industrial environments.
- Plug-and-Play Integration: Fully compatible with the S7-300 backplane bus; no additional power supply or interface module required for standard configurations.
- Diagnostic Capability: Supports hardware interrupts and diagnostic alarms for wire-break detection and overflow/underflow conditions.
Industry & Equipment Applications
- Petrochemical & Refining: Temperature monitoring in reactors and distillation columns via thermocouple inputs.
- Automotive Manufacturing: Precision current-loop feedback from servo drives and hydraulic pressure sensors on assembly lines.
- Food & Beverage: RTD-based temperature control in pasteurization and CIP (Clean-In-Place) systems.
- Power Generation: Voltage and current monitoring for generator excitation control and transformer protection panels.
- Water & Wastewater Treatment: Flow meter and level transmitter signal acquisition in SCADA-integrated pump stations.
- Pharmaceutical: Validated analog data acquisition for batch process control under FDA 21 CFR Part 11 environments.
System Integration & Compatible Parts
The 6ES7331-7HF01-0AB0 integrates seamlessly within the SIMATIC S7-300 ecosystem. Compatible and commonly paired components include:
- CPUs: 6ES7315-2EH14-0AB0, 6ES7317-2EK14-0AB0, 6ES7318-3EL01-0AB0
- Power Supplies: 6ES7307-1BA01-0AA0, 6ES7307-1EA01-0AA0
- Digital I/O Modules: 6ES7321-1BL00-0AA0 (DI 32×DC24V), 6ES7322-1BL00-0AA0 (DO 32×DC24V/0.5A)
- Front Connectors: 6ES7392-1AJ00-0AA0 (20-pin screw-type)
- Signal Cables: 6ES7390-1AE80-0AA0 (bus connector)
- Programming Software: SIMATIC STEP 7 V5.x, TIA Portal V13 and above
Our Quality Assurance Process
At Konmask.com, every SIEMENS 6ES7331-7HF01-0AB0 unit undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors and verified OEM channels with full traceability documentation.
- Visual Inspection: Each module is inspected for physical integrity — housing, connector pins, label authenticity, and firmware version markings.
- Functional Testing: Where applicable, modules are bench-tested on a live S7-300 rack to confirm backplane communication and channel response.
- Anti-Counterfeit Check: Serial numbers are cross-referenced against Siemens’ product authentication database.
- Packaging & ESD Protection: Shipped in anti-static bags with foam padding inside double-wall cartons to prevent transit damage.
How to Order
- Submit your inquiry via the Contact / Request a Quote form on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical sales team will respond within 24 business hours with availability, lead time, and a formal quotation.
- Upon order confirmation, we issue a proforma invoice and arrange shipment via DHL, FedEx, or sea freight as required.
📧 support@konmask.com | 📞 +0086 19859288691
Why Choose Konmask.com?
- ✅ Genuine Parts Guaranteed — 100% authentic SIEMENS components with full documentation.
- ✅ Global Shipping — Export experience to 50+ countries; customs clearance support available.
- ✅ Technical Expertise — Our team includes certified automation engineers who can advise on compatibility and integration.
- ✅ Competitive Lead Times — In-stock items ship within 3–5 business days; sourced items within 2–4 weeks.
- ✅ B2B Focused — Dedicated account management for OEMs, system integrators, and MRO procurement teams.
- ✅ Secure Transactions — T/T, L/C, and PayPal accepted; all transactions protected by formal commercial contracts.
Frequently Asked Questions
- Q: Is the 6ES7331-7HF01-0AB0 compatible with TIA Portal?
- A: Yes. While originally designed for STEP 7 Classic (V5.x), this module is fully supported in TIA Portal V13 and later via the hardware catalog for S7-300 systems.
- Q: Can I mix thermocouple and current inputs on the same module?
- A: Yes. Each of the 8 channels is independently configurable, allowing you to mix signal types within a single module — a key advantage over fixed-type analog modules.
- Q: What is the difference between 6ES7331-7HF01-0AB0 and 6ES7331-7KF02-0AB0?
- A: The 7HF01 offers 8 channels with 12-bit resolution and thermocouple/RTD support. The 7KF02 provides higher resolution (13-bit + sign) and faster conversion times, suited for more demanding measurement applications.
- Q: Do you provide a warranty on this module?
- A: Yes. Konmask.com provides a 12-month warranty against manufacturing defects on all genuine SIEMENS modules. Warranty claims are processed within 5 business days.
- Q: Can you supply this module in bulk quantities for a plant upgrade project?
- A: Absolutely. We specialize in bulk procurement for MRO and project-based orders. Contact us with your BOM (Bill of Materials) for a consolidated quotation.
