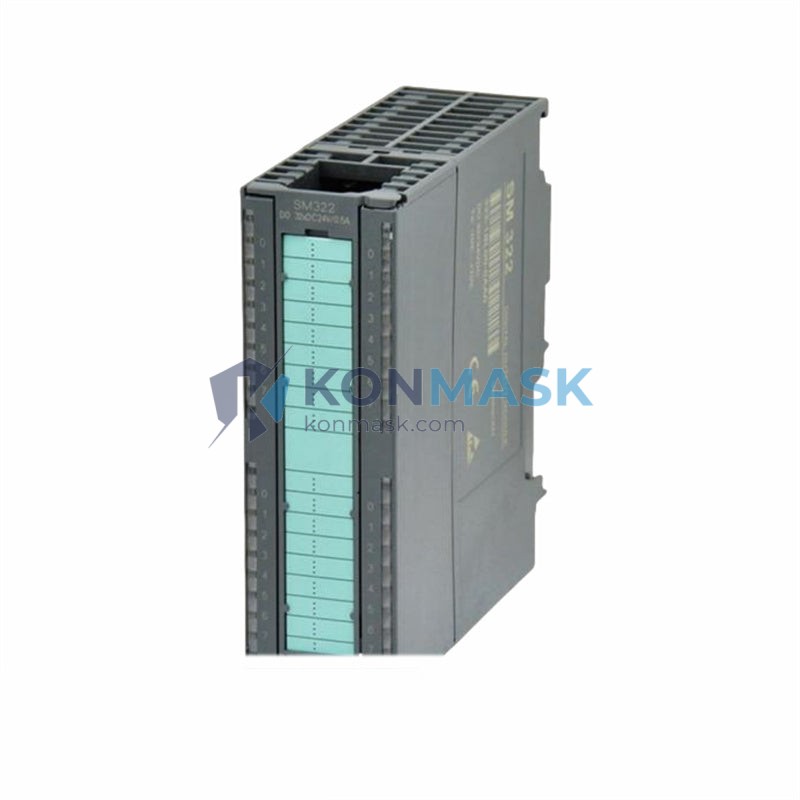

SIEMENS 6ES7322-1FF01-0AA0 – Digital Output Module DO 6×DC24V/2A | SIMATIC S7-300 Platform
Engineering Background: The SIMATIC S7-300 series remains one of the most widely deployed modular PLC platforms in global industrial automation. Designed for mid-range applications, it delivers deterministic control performance across discrete manufacturing, process control, and infrastructure sectors. The 6ES7322-1FF01-0AA0 is a compact 6-channel digital output module engineered for high-current DC switching tasks within the S7-300 rack architecture.
Product Positioning: This module addresses applications requiring robust, isolated DC output switching at 2A per channel — ideal for driving solenoid valves, contactors, indicator lamps, and actuator interfaces. Its compact footprint and direct backplane integration make it a preferred choice for space-constrained control panels and retrofit projects.
Complete Technical Specifications
| Part Number | 6ES7322-1FF01-0AA0 |
| Series / Platform | SIMATIC S7-300 |
| Module Type | Digital Output (DO) |
| Number of Outputs | 6 channels |
| Output Voltage | DC 24V |
| Output Current (per channel) | 2A |
| Total Current (all channels) | 12A max |
| Output Type | Transistor (sourcing) |
| Isolation | Optocoupler isolated, group isolation |
| Backplane Bus | S7-300 P-bus / K-bus |
| Mounting | DIN rail via S7-300 rack |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Degree of Protection | IP20 |
| Dimensions (W×H×D) | 40mm × 125mm × 120mm |
| Weight | approx. 310g |
| Country of Origin | Germany |
| Certifications | CE, UL, cULus, ATEX (zone 2) |
Proven Application Environments
- Discrete Manufacturing: Conveyor control, robotic cell I/O, assembly line actuator switching
- Process Industry: Solenoid valve control in chemical, oil & gas, and water treatment plants
- Building Automation: HVAC damper actuators, pump starters, lighting control
- Energy & Utilities: Substation control panels, generator management systems
- Automotive: Body-in-white welding lines, paint shop conveyors, test bench control
- Food & Beverage: Filling machine I/O, CIP valve sequencing, packaging lines
Engineering Advantages
- High Current Capacity: 2A per channel supports direct actuation of solenoids and contactors without intermediate relays
- Optocoupler Isolation: Protects the CPU and backplane from field-side voltage transients and ground loops
- Compact 6-Channel Design: Maximises rack density in space-constrained enclosures
- Plug-and-Play Integration: Native S7-300 backplane bus — no additional configuration hardware required
- Diagnostic Capability: Short-circuit and wire-break detection with status LED per channel
- Wide Temperature Range: Suitable for harsh industrial environments without additional cooling
- Long Product Lifecycle: Siemens S7-300 platform supported with spare parts and firmware through extended lifecycle program
System Architecture & Signal Flow
The 6ES7322-1FF01-0AA0 slots directly into any S7-300 rack (e.g., UR1, UR2, ER1, ER2) and communicates via the integrated P-bus. The CPU writes output data to the module’s process image output (PIO) area each scan cycle. The module’s internal logic drives the transistor output stage through optocoupler isolation, switching the 24VDC load circuit. Each channel features an individual status LED and internal short-circuit protection, with fault status reported back to the CPU via the K-bus diagnostic channel.
Typical Wiring: Load+ → Output terminal → Field device → 24VDC supply common. Front connector (20-pin) is removable for fast replacement without rewiring.
Sourcing & Quality Verification
At Konmask.com, every SIEMENS module undergoes a structured 4-step verification process before dispatch:
- Documentation Audit: Cross-reference part number, date code, and firmware version against Siemens official product database
- Physical Inspection: Label authenticity, housing integrity, connector pin condition, and seal verification
- Functional Bench Test: Power-on self-test, channel-by-channel output switching verification at rated load
- Packaging & ESD Control: Anti-static packaging, humidity indicator card, and tamper-evident sealing prior to shipment
All units are sourced from authorised distribution channels or verified surplus stock with full traceability documentation available on request.
Procurement Process
- Enquiry: Submit your BOM or part number to support@konmask.com or via the product page
- Quotation: Receive a formal quotation with lead time, quantity availability, and unit pricing within 24 hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Check & Dispatch: Module verified, packed, and shipped with tracking number and test report
- After-Sales Support: 12-month warranty; technical support available via email and phone
Technical FAQ
Q: Is 6ES7322-1FF01-0AA0 compatible with S7-300 CPUs such as 315-2DP or 317-2PN/DP?
A: Yes. This module is compatible with all standard S7-300 CPUs and racks. It occupies one slot and requires no special CPU configuration beyond standard HW Config in STEP 7 or TIA Portal.
Q: Can this module replace 6ES7322-1FF00-0AA0?
A: The -1FF01- revision supersedes -1FF00-. They are functionally equivalent and mechanically interchangeable in the same rack slot.
Q: What front connector is required?
A: The 20-pin front connector (e.g., 6ES7392-1AJ00-0AA0) is required and sold separately. Screw or spring-clamp versions are available.
Q: Does Konmask provide a test report with shipment?
A: Yes. A functional test report is available upon request at no additional charge.
Q: What is the lead time for stock items?
A: In-stock units ship within 1–3 business days. For larger quantities, lead time is confirmed at quotation stage.
