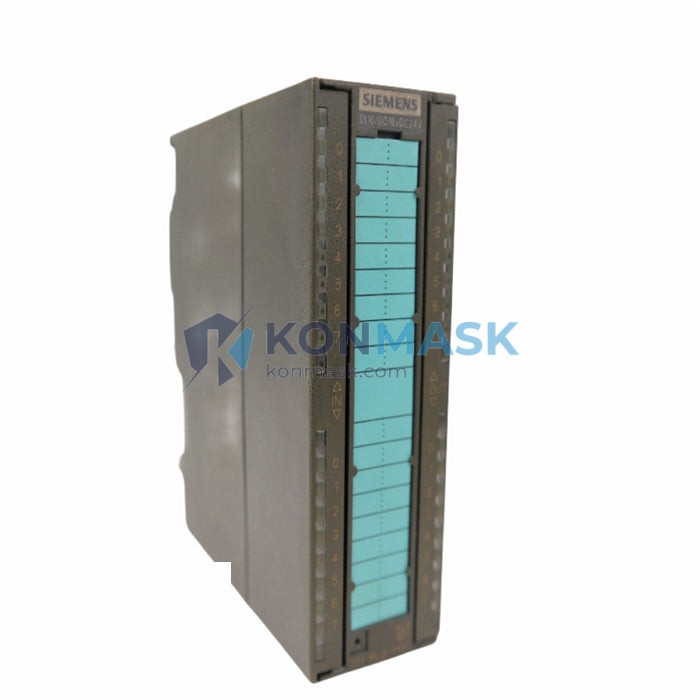

SIEMENS 6ES7323-1BL00-0AA0 — 32-Channel Digital I/O Module | SIMATIC S7-300 Platform
Engineering Background: The SIMATIC S7-300 series has been a cornerstone of industrial automation since the 1990s, deployed across millions of installations in manufacturing, process control, and infrastructure worldwide. The 6ES7323-1BL00-0AA0 is a high-density digital I/O module purpose-built for this platform, combining 16 digital inputs and 16 digital outputs in a single compact housing — reducing rack space, wiring complexity, and BOM cost for system integrators.
Product Positioning: Designed for procurement engineers and system integrators who require a verified, drop-in replacement or expansion module for existing S7-300 installations. This module is ideal for machine control panels, conveyor systems, packaging lines, and utility automation where mixed I/O density is required without the overhead of separate DI and DO modules.
Complete Technical Specifications
- Order Number: 6ES7323-1BL00-0AA0
- Module Type: Digital Input / Digital Output (DI 16 × DC 24V / DO 16 × DC 24V / 0.5A)
- Digital Inputs: 16 channels, 24 VDC, IEC Type 1 sink
- Digital Outputs: 16 channels, 24 VDC, 0.5 A per channel (transistor, sourcing)
- Total I/O Points: 32 (16 DI + 16 DO)
- Supply Voltage (Load): 24 VDC (20.4–28.8 V)
- Current Consumption (Backplane Bus): 80 mA at 5 VDC
- Current Consumption (Load Supply): Max. 100 mA (no load)
- Input Delay: 0.5 ms / 3 ms (configurable)
- Output Short-Circuit Protection: Yes (electronic)
- Isolation: Optocoupler isolation between field and backplane bus
- Connector Type: 40-pin front connector (not included)
- Dimensions (W × H × D): 40 × 125 × 120 mm
- Weight: Approx. 1,200 g (packaged)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP20
- HS Code: 8537.10
- Country of Origin: Germany
- Compatible Platform: SIMATIC S7-300 (all CPU variants)
- STEP 7 / TIA Portal: Fully supported
Proven Application Environments
- Discrete Manufacturing: Assembly line control, robotic cell I/O interfacing, end-of-line testing rigs
- Packaging & Material Handling: Conveyor start/stop control, sensor feedback loops, actuator command outputs
- Building Automation: HVAC damper control, lighting relay outputs, occupancy sensor inputs
- Water & Wastewater: Pump station control, valve position feedback, alarm input monitoring
- Energy & Utilities: Substation auxiliary control, generator status monitoring, switchgear I/O
- Food & Beverage: Filling line sequencing, CIP cycle control, conveyor interlocking
Engineering Advantages
- High I/O Density: 32 points in a single 40 mm wide slot — reduces rack slots and wiring harness cost vs. separate DI/DO modules
- Configurable Input Delay: 0.5 ms for fast-response applications; 3 ms for noise-immune environments — selectable per channel group in STEP 7 / TIA Portal
- Electronic Output Protection: Built-in short-circuit and overload protection on all 16 DO channels eliminates external fusing for standard loads
- Optocoupler Isolation: Full galvanic isolation between field wiring and S7-300 backplane bus — protects CPU from field-side transients
- Hot-Swap Compatible: Module can be replaced without powering down the rack (CPU-dependent; verify with project configuration)
- Diagnostic Integration: Channel-level diagnostics readable via STEP 7 / TIA Portal for rapid fault isolation during commissioning and maintenance
System Architecture & Signal Flow
The 6ES7323-1BL00-0AA0 interfaces directly to the S7-300 backplane bus via the integrated bus connector. Field wiring connects through a 40-pin front connector (order separately: 6ES7392-1AM00-0AA0 for screw terminals or 6ES7392-1BM01-0AA0 for spring-cage). Signal flow:
- DI Path: Field sensor (24 VDC) → Front connector → Optocoupler → Backplane bus → CPU process image input (PII)
- DO Path: CPU process image output (PIQ) → Backplane bus → Transistor driver → Front connector → Field actuator (24 VDC / max. 0.5 A)
- Diagnostics: Module status and channel fault data accessible via SFC 51 (RDSYSST) or TIA Portal online diagnostics
- Power Supply: 24 VDC load supply must be provided externally to the front connector; backplane 5 VDC supplied by the CPU/PS module
Sourcing & Quality Verification
- Source: Procured from authorized SIEMENS distributors and verified industrial surplus channels with full traceability documentation
- Inspection Protocol: Each unit undergoes visual inspection, label verification (order number, firmware revision, date code), and functional power-on test prior to shipment
- Authenticity Markers: Genuine SIEMENS holographic label, CE marking, and SIMATIC branding verified against current SIEMENS product authentication guidelines
- Condition: New-in-box (NIB) or refurbished-to-spec (clearly stated at time of order confirmation)
- Documentation: Certificate of conformity and test report available upon request for regulated industries
Procurement Process
- Step 1 — Inquiry: Submit your BOM or part number via the product page or email support@konmask.com with quantity and required delivery date
- Step 2 — Quote: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL Express / FedEx / sea freight)
- Step 3 — Order Confirmation: Purchase order accepted via email or online checkout; proforma invoice issued for T/T wire transfer or credit card payment
- Step 4 — Inspection & Dispatch: Unit inspected, photographed, and packed with anti-static protection; tracking number provided within 24 hours of dispatch
- Step 5 — After-Sales: 12-month warranty on all units; technical support available via email and WhatsApp (+0086 19859288691)
Technical FAQ
- Q: Is the 6ES7323-1BL00-0AA0 compatible with all S7-300 CPUs?
- A: Yes. It is compatible with all standard S7-300 CPUs (CPU 312 through CPU 319) and can be used in central or distributed racks. Verify slot count and power budget with your specific CPU configuration.
- Q: What front connector is required?
- A: A 40-pin front connector is required. Recommended: 6ES7392-1AM00-0AA0 (screw-type) or 6ES7392-1BM01-0AA0 (spring-cage). These are sold separately.
- Q: Can I mix DI and DO groups independently?
- A: The module provides 16 DI and 16 DO as fixed channel groups. Input delay is configurable per 8-channel group. Output behavior is fixed at 24 VDC / 0.5 A sourcing transistor.
- Q: Is this module supported in TIA Portal?
- A: Yes. The 6ES7323-1BL00-0AA0 is fully supported in STEP 7 V5.x and TIA Portal V13 and above. HSP (Hardware Support Package) may be required for TIA Portal V15+.
- Q: What is the maximum aggregate output current?
- A: Each DO channel is rated at 0.5 A. The total aggregate output current for all 16 DO channels must not exceed 4 A per output group (8 channels). Refer to SIEMENS manual 6ES7323-1BL00-0AA0 for derating curves.
- Q: Do you provide export documentation for international shipments?
- A: Yes. Commercial invoice, packing list, certificate of origin, and HS code declaration (8537.10) are provided for all international orders. ECCN classification available on request.
