Process Measurement & Control Solution — Siemens 6ES7531-7NF10-0AB0 | SIMATIC S7-1500 AI 16×U/I/RTD/TC ST

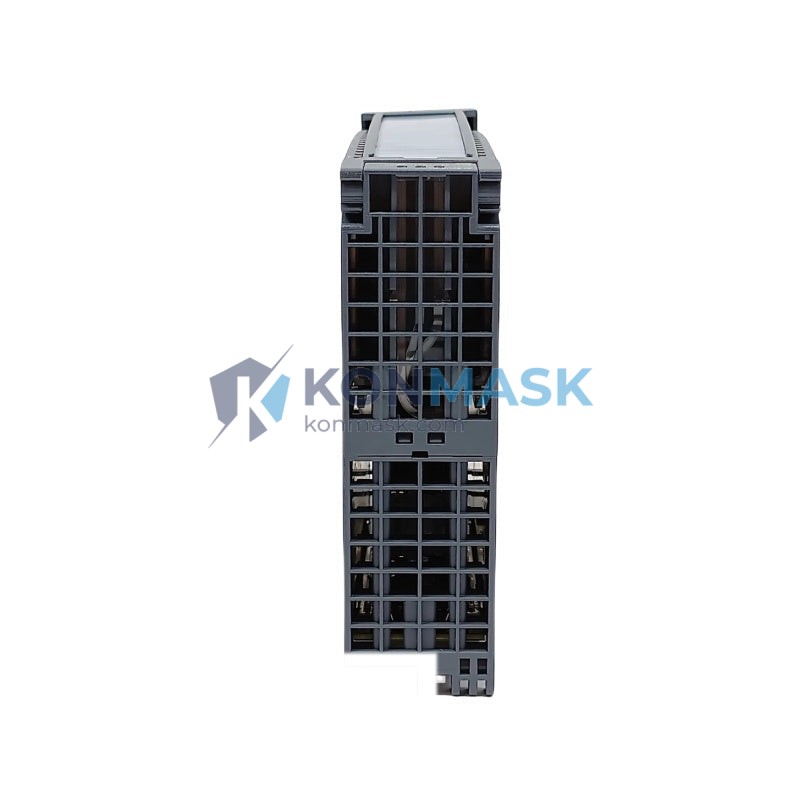

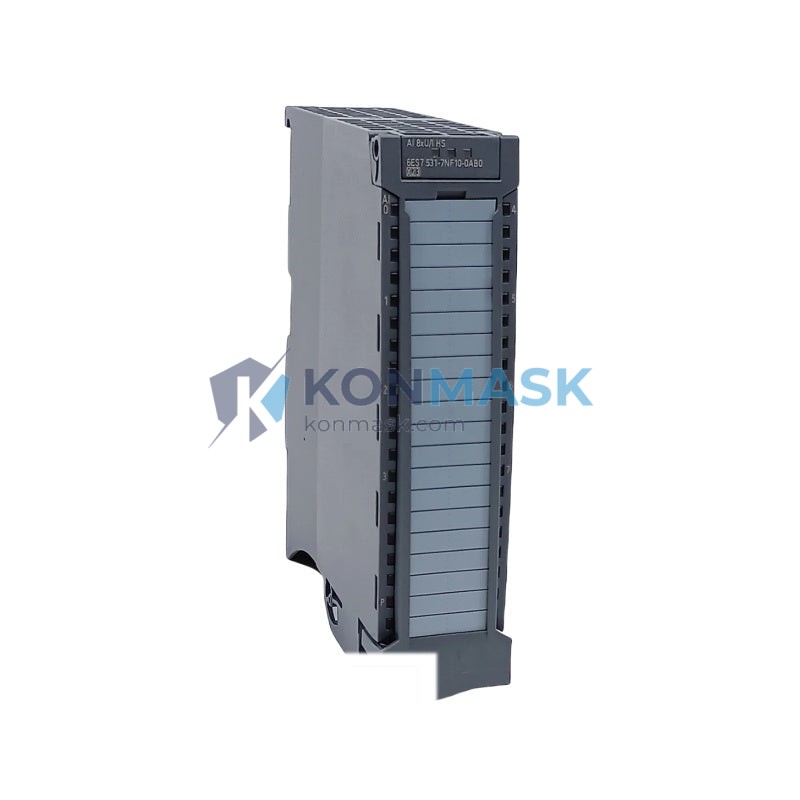

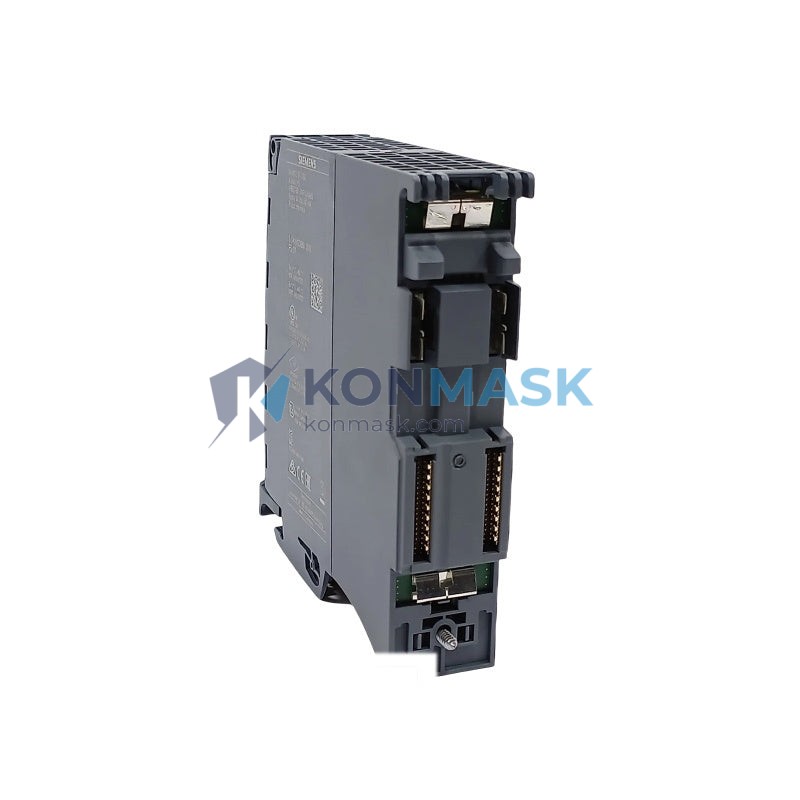

The Siemens 6ES7531-7NF10-0AB0 is a high-density analog input module engineered for precision process measurement in demanding industrial environments. As part of the SIMATIC S7-1500 controller platform, this module delivers 16 configurable analog channels with 16-bit resolution, enabling engineers to consolidate multi-signal acquisition — voltage, current, RTD, and thermocouple — into a single compact footprint. At Konmask.com, we supply this module to automation integrators, OEM panel builders, and MRO procurement teams worldwide.
Where This Product Is Used
The 6ES7531-7NF10-0AB0 is specified across a broad range of process-intensive industries where accurate analog signal acquisition is mission-critical:
- Chemical & Petrochemical Plants — Multi-point temperature and pressure monitoring via RTD/TC inputs on reactor vessels and distillation columns.
- Water & Wastewater Treatment — Flow rate, pH, and level measurement integrated directly into S7-1500 SCADA architectures.
- Pharmaceutical Manufacturing — GMP-compliant process variable logging for batch reactors, autoclaves, and clean-room HVAC systems.
- Food & Beverage Processing — Temperature profiling across pasteurization lines, fermentation tanks, and cold-chain conveyor systems.
- Power Generation & Utilities — Turbine inlet/outlet temperature monitoring and generator load current measurement.
- Automotive Assembly — Weld current monitoring, paint-oven temperature zoning, and press force feedback via 0–20 mA transducers.
- Building Automation (BMS) — Multi-zone HVAC sensor aggregation in large commercial and industrial facilities.
- Oil & Gas Upstream/Midstream — Wellhead pressure and flow transmitter integration in remote RTU/PLC panels.
Technical Specifications
| Parameter | Value |
|---|---|
| Order Number (MLFB) | 6ES7531-7NF10-0AB0 |
| Module Type | Analog Input (AI) |
| Platform | SIMATIC S7-1500 |
| Number of Channels | 16 (configurable per channel) |
| Input Signal Types | Voltage (±10 V, ±5 V, ±2.5 V, 0–10 V), Current (0–20 mA, 4–20 mA, ±20 mA), RTD (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000), Thermocouple (Type B, C, E, J, K, L, N, R, S, T, U) |
| Resolution | 16-bit (including sign) |
| Conversion Time per Channel | Min. 400 µs (voltage/current); configurable integration time for RTD/TC |
| Permissible Input Voltage | Max. ±35 V (destruction limit) |
| Supply Voltage (L+) | 24 V DC (20.4–28.8 V) |
| Current Consumption (L+) | Typ. 80 mA |
| Isolation | Galvanically isolated between channels and backplane bus |
| Diagnostic Functions | Wire break, short circuit, overflow/underflow, supply voltage failure |
| Backplane Bus Interface | PROFINET/PROFIBUS via S7-1500 backplane |
| Dimensions (W × H × D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 300 g |
| Operating Temperature | 0 °C to +60 °C (horizontal mounting); 0 °C to +40 °C (vertical) |
| Storage Temperature | −40 °C to +70 °C |
| Protection Rating | IP20 |
| Certifications | CE, UL, cULus, ATEX Zone 2 (with barrier), KC, RCM |
| STEP 7 / TIA Portal | TIA Portal V13 SP1 and above |
Why Engineers Specify This Model
- Universal Input Flexibility — A single module replaces separate voltage, current, RTD, and TC input cards, reducing panel footprint and BOM complexity.
- 16-Bit Resolution — Delivers 0.003% full-scale accuracy, meeting the precision demands of pharmaceutical and chemical process control.
- Per-Channel Configurability — Each of the 16 channels is independently configurable via TIA Portal, eliminating the need for hardware jumpers or DIP switches.
- Integrated Diagnostics — Wire-break and short-circuit detection with channel-level fault reporting reduces MTTR in production environments.
- Galvanic Isolation — Protects the S7-1500 CPU and backplane from ground loops and transient surges common in industrial field wiring.
- Seamless TIA Portal Integration — Auto-parameterization, online monitoring, and firmware update via standard S7-1500 engineering workflow.
- Compact 35 mm Width — High channel density in a narrow form factor maximizes rack utilization in space-constrained control cabinets.
Complete System Bill of Materials
For a complete S7-1500 analog acquisition system, the following components are typically specified alongside the 6ES7531-7NF10-0AB0:
- CPU: Siemens 6ES7511-1AK02-0AB0 (CPU 1511-1 PN) or higher
- Power Supply Module: Siemens 6EP1333-4BA00 (SITOP PSU100S 24V/5A)
- Front Connector: Siemens 6ES7592-1BM00-0XA0 (40-pin, screw terminal)
- Shield Connecting Element: Siemens 6ES7390-6AA00-0AA0
- Rack / Mounting Rail: Siemens 6ES7590-1AB60-0AA0 (S7-1500 mounting rail, 482 mm)
- PROFINET Switch: Siemens 6GK5005-0BA00-1AB2 (SCALANCE XB005)
Compliance & Industry Standards
- IEC 61131-2 — Programmable controllers: Equipment requirements and tests
- IEC 61000-4 series — EMC immunity (ESD, EFT, surge, conducted RF)
- EN 61010-1 — Safety requirements for electrical equipment for measurement
- UL 508 — Industrial Control Equipment (cULus listed)
- ATEX Directive 2014/34/EU — Zone 2 use with approved Zener barriers
- RoHS 2011/65/EU — Restriction of hazardous substances compliant
- REACH Regulation (EC) No 1907/2006 — Compliant
Quality Assurance & Sourcing
Konmask.com sources the 6ES7531-7NF10-0AB0 exclusively through verified supply channels with full traceability:
- Authenticity Verification — Each unit is inspected against Siemens factory labeling, holographic seals, and MLFB/serial number cross-reference prior to dispatch.
- Functional Testing — Modules undergo power-on and backplane communication verification before shipment.
- Packaging Integrity — Original Siemens ESD-safe packaging retained; anti-static bags and foam inserts preserved for transit protection.
- Documentation — CE Declaration of Conformity, product datasheet, and test report available upon request.
- Warranty — 12-month Konmask warranty covering manufacturing defects; DOA replacement within 7 business days.
How to Source This Part
- Request a Quote — Email [email protected] with your required quantity, delivery timeline, and destination country.
- Receive Proforma Invoice — We issue a detailed PI within 1 business day including unit price, shipping cost, and lead time.
- Payment & Order Confirmation — We accept T/T bank transfer, PayPal, and major credit cards. Order confirmed upon payment receipt.
- Inspection & Dispatch — Units are inspected, photographed, and dispatched within 2–5 business days via DHL Express, FedEx, or UPS.
- Tracking & Delivery — Full tracking number provided. Typical transit: 3–7 business days to Europe/Americas; 2–5 days to Southeast Asia.
- After-Sales Support — Technical support available via email and WhatsApp (+0086 19859288691) for installation and commissioning queries.
Application-Specific FAQ
Q: Can the 6ES7531-7NF10-0AB0 be used with an S7-300 or S7-400 CPU?
A: No. This module is exclusively designed for the SIMATIC S7-1500 backplane. It is not compatible with S7-300/400 racks. For S7-300 applications, refer to the SM 331 series (e.g., 6ES7331-7KF02-0AB0).
Q: How many RTD channels can be active simultaneously?
A: All 16 channels can be configured as RTD inputs simultaneously. Conversion time increases with the number of active RTD/TC channels due to the integration-time measurement method.
Q: Is a front connector included with the module?
A: No. The front connector (6ES7592-1BM00-0XA0 for screw terminals or 6ES7592-1AM00-0XA0 for push-in) must be ordered separately.
Q: What TIA Portal version is required?
A: TIA Portal V13 SP1 minimum. Siemens recommends TIA Portal V17 or V18 for full diagnostic and firmware update functionality.
Q: Can this module be used in SIL 2 safety applications?
A: The 6ES7531-7NF10-0AB0 is a standard (ST) module and is not rated for functional safety (SIL). For SIL 2/3 applications, specify the SIMATIC S7-1500 F-series fail-safe analog input modules (e.g., 6ES7531-7QD00-0AB0).
Q: What is the maximum cable length for analog inputs?
A: Siemens recommends a maximum of 200 m for shielded twisted-pair cable on voltage/current inputs, and 50 m for RTD/TC inputs to maintain measurement accuracy.
Q: Do you offer volume pricing for system integrators?
A: Yes. Contact us at [email protected] for tiered pricing on orders of 5+ units.
