SIEMENS 6GK1105-2AE00 Industrial Ethernet OSM TP22 | Replacement, Equivalent & Selection Guide

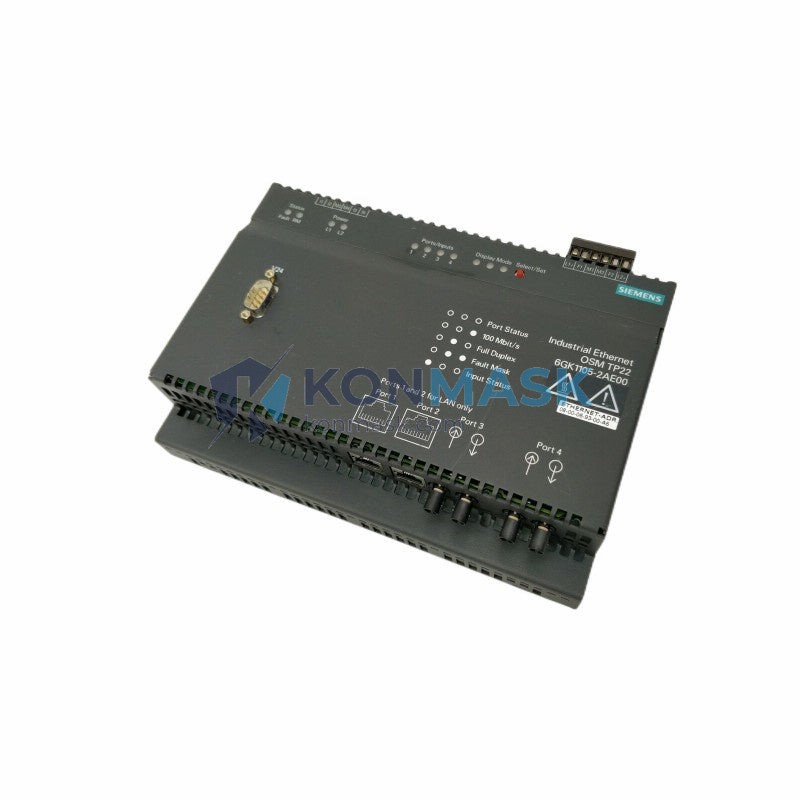

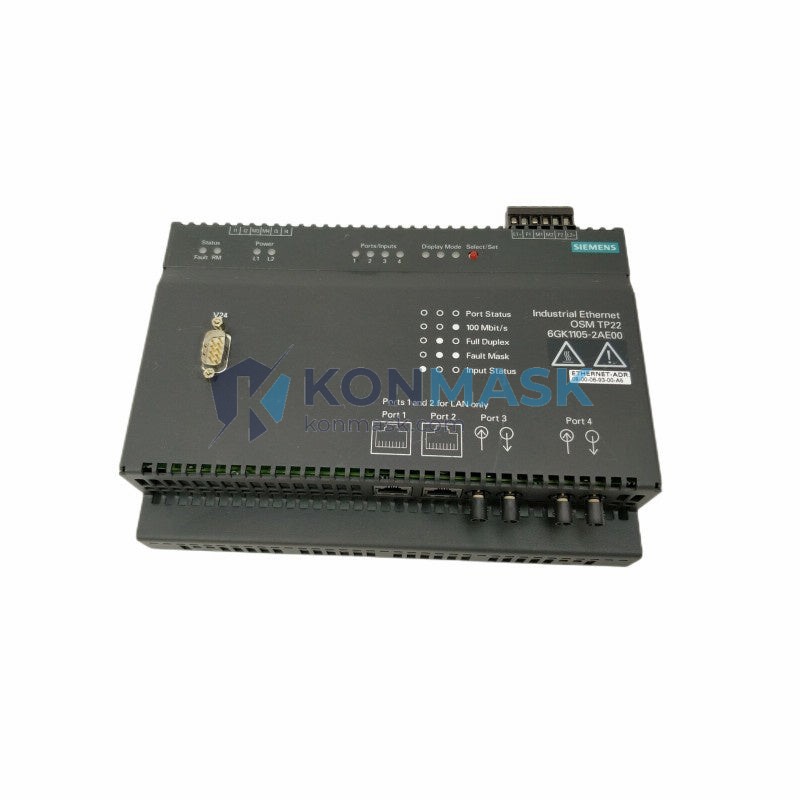

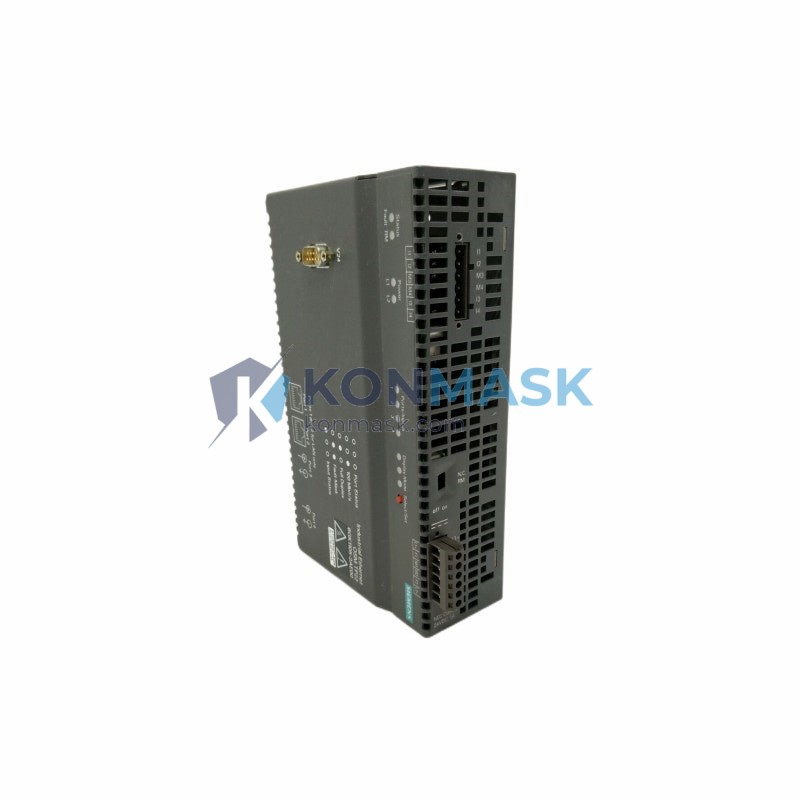

The SIEMENS 6GK1105-2AE00 is an Optical Switch Module (OSM TP22) designed for SIMATIC NET Industrial Ethernet networks. It provides reliable fiber-optic and twisted-pair connectivity in demanding industrial environments, supporting ring redundancy and high-availability topologies. This page serves as a comprehensive selection, replacement, and compatibility reference for procurement engineers and automation system integrators.
Technical Specifications
- Part Number: 6GK1105-2AE00
- Product Family: SIMATIC NET OSM (Optical Switch Module)
- Model: OSM TP22
- Ports: 2 × fiber-optic (BFOC/2.5 ST connector) + 2 × RJ45 10/100 Mbps TP
- Fiber Type: Multimode (62.5/125 µm)
- Transmission Rate: 10/100 Mbps (auto-sensing)
- Redundancy: Optical ring redundancy (reconfiguration < 0.3 s)
- Power Supply: 24 V DC (18–32 V DC)
- Power Consumption: Approx. 5 W
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +80 °C
- Protection Class: IP30
- Mounting: DIN rail (35 mm)
- Dimensions (W×H×D): Approx. 60 × 125 × 75 mm
- Weight: Approx. 0.35 kg
- Certifications: CE, UL, cUL, FM
- MTBF: > 100,000 hours
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the 6GK1105-2AE00. Always verify electrical, mechanical, and firmware compatibility before substitution.
- SIEMENS 6GK1105-2AB00 – OSM TP22 EEC (extended temperature variant, −40 °C to +70 °C); direct functional equivalent for harsh environments
- SIEMENS 6GK1105-2AD00 – OSM TP22 with different fiber port configuration; verify port mapping before replacement
- SIEMENS 6GK1105-3AB00 – OSM ITP62 (6 TP + 2 fiber); suitable when more TP ports are required
- SIEMENS 6GK1108-0AA00 – ESM TP80 (8-port TP switch); suitable for pure copper topologies without fiber requirement
- SIEMENS 6GK5208-0BA10-2AA3 – SCALANCE X208 (managed, 8-port); recommended upgrade path for new installations requiring SNMP/web management
- SIEMENS 6GK5216-0BA00-2AA3 – SCALANCE X216; suitable for larger port-count requirements
Note: OSM/ESM series modules are legacy products. SCALANCE X-series is the recommended successor platform for new designs.
Why Choose the Original Model
- Proven field reliability – Widely deployed in SIMATIC NET ring topologies across automotive, energy, and process industries
- Fast ring redundancy – Sub-300 ms reconfiguration ensures minimal downtime in ring fault scenarios
- Drop-in compatibility – Identical form factor and connector layout for direct board-level or panel replacement
- Firmware continuity – No reconfiguration required when replacing a failed unit in an existing network
- Long service life – Designed for 24/7 continuous operation in industrial control cabinets
Typical Applications
- SIMATIC NET Industrial Ethernet ring networks (optical redundancy backbone)
- Automotive manufacturing lines with distributed PLC/HMI nodes
- Power generation and substation automation (IEC 61850 adjacent topologies)
- Process control systems requiring fiber isolation between control zones
- Building automation and SCADA network infrastructure
- Machine tool and robotics cell networking
System Compatibility
- SIMATIC S7-300 / S7-400 – Direct integration via CP 343-1 / CP 443-1 communication processors
- SIMATIC S7-1500 – Compatible via PROFINET/Industrial Ethernet infrastructure layer
- SIMATIC PCS 7 – Supported as network infrastructure component in plant bus and terminal bus segments
- WinCC / WinCC OA – Transparent Ethernet switching; no special configuration required
- Third-party PLCs – Compatible with any IEEE 802.3 10/100BASE-TX or 100BASE-FX device
- OSM/ESM Ring Topology – Supports up to 50 nodes per optical ring segment
Selection Guide
Use the following criteria to determine whether the 6GK1105-2AE00 is the right choice or to identify a suitable alternative:
- Fiber required? → Yes: OSM series (6GK1105-2AE00 or equivalent). No: ESM TP series or SCALANCE X208
- Extended temperature needed (below 0 °C)? → Select 6GK1105-2AB00 (EEC variant) or SCALANCE XC-200 series
- Management & SNMP required? → Upgrade to SCALANCE X208 (6GK5208-0BA10-2AA3) or higher
- More than 2 TP ports needed? → Consider OSM ITP62 (6GK1105-3AB00) or SCALANCE X216
- Replacing a failed unit in existing ring? → Use 6GK1105-2AE00 for direct drop-in replacement; no network reconfiguration needed
- New installation / greenfield? → Evaluate SCALANCE X-200 or X-300 series for future-proof managed switching
- Budget-constrained spare? → Verified OEM-grade 6GK1105-2AE00 from authorized distributors is the safest option
Quality Assurance & Sourcing
- All units supplied by Konmask.com are sourced from verified industrial distributors and authorized supply chains
- Each module undergoes visual inspection and basic power-on verification prior to shipment
- Original SIEMENS packaging and labeling preserved where available
- Traceability documentation (batch records, country of origin) available upon request for regulated industries
- Anti-counterfeit measures: holographic labels and serial number cross-verification with SIEMENS databases where applicable
- Warranty: 12 months from date of shipment against manufacturing defects
How to Order
- Step 1: Confirm the exact part number: 6GK1105-2AE00
- Step 2: Specify quantity and required delivery timeline
- Step 3: Contact us via email or phone for stock availability and lead time confirmation
- Step 4: Receive formal quotation with unit price, shipping cost, and payment terms
- Step 5: Place order and receive tracking information within 1 business day of payment confirmation
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace a 6GK1105-2AE00 with a SCALANCE X208 without reconfiguring the ring?
A: No. SCALANCE X-series uses a different ring redundancy protocol (MRP vs. OSM proprietary ring). A full network reconfiguration is required. Recommended only for planned upgrades, not emergency replacements.
Q: Is the 6GK1105-2AE00 still in production?
A: This model is a legacy/discontinued product. SIEMENS recommends SCALANCE X-series as the successor. However, OEM-grade spare units remain available through authorized distributors including Konmask.com.
Q: What fiber cable is required?
A: Multimode fiber, 62.5/125 µm, with BFOC/2.5 (ST-type) connectors. Maximum segment length is 3 km at 10 Mbps and 2 km at 100 Mbps.
Q: Can this module be used with PROFINET?
A: The OSM TP22 operates at the Ethernet layer and is transparent to PROFINET traffic. It does not natively support PROFINET diagnostics or topology detection. For full PROFINET integration, use SCALANCE X-series with PROFINET support.
Q: What is the lead time for this part?
A: Typical lead time is 3–10 business days depending on stock availability. Contact us for real-time inventory status.
Q: Do you provide a certificate of conformity?
A: Yes. A certificate of conformity and inspection report can be provided upon request at no additional charge.
