Motion Control Solution – Siemens 6SE7090-0XX84-0FJ0 | SIMOVERT Master Drives

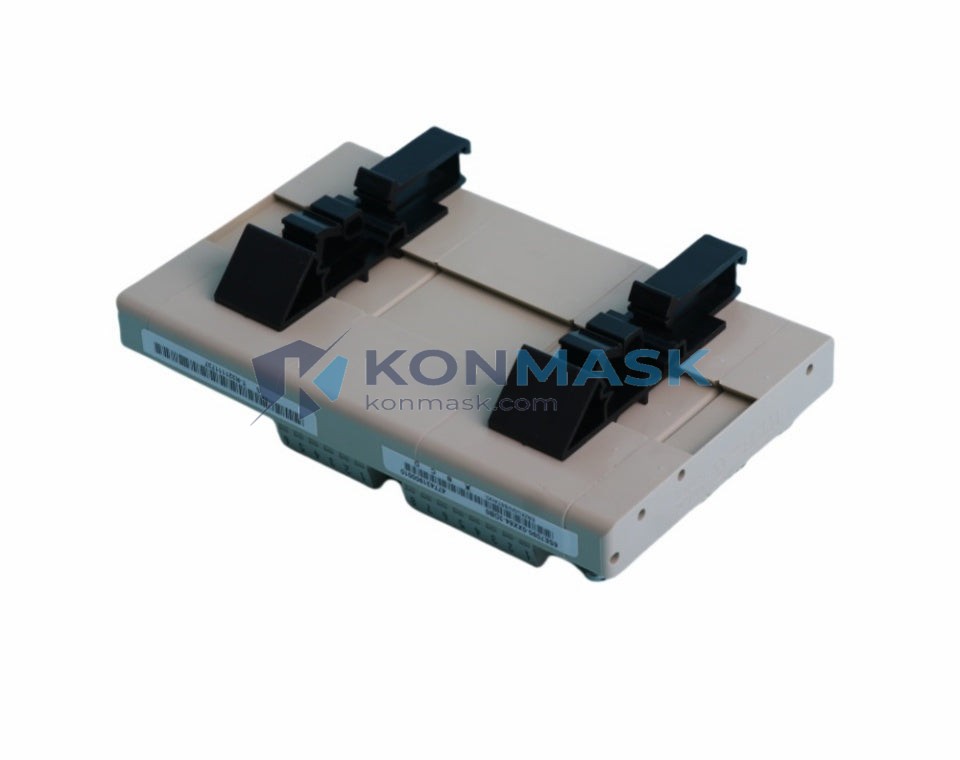

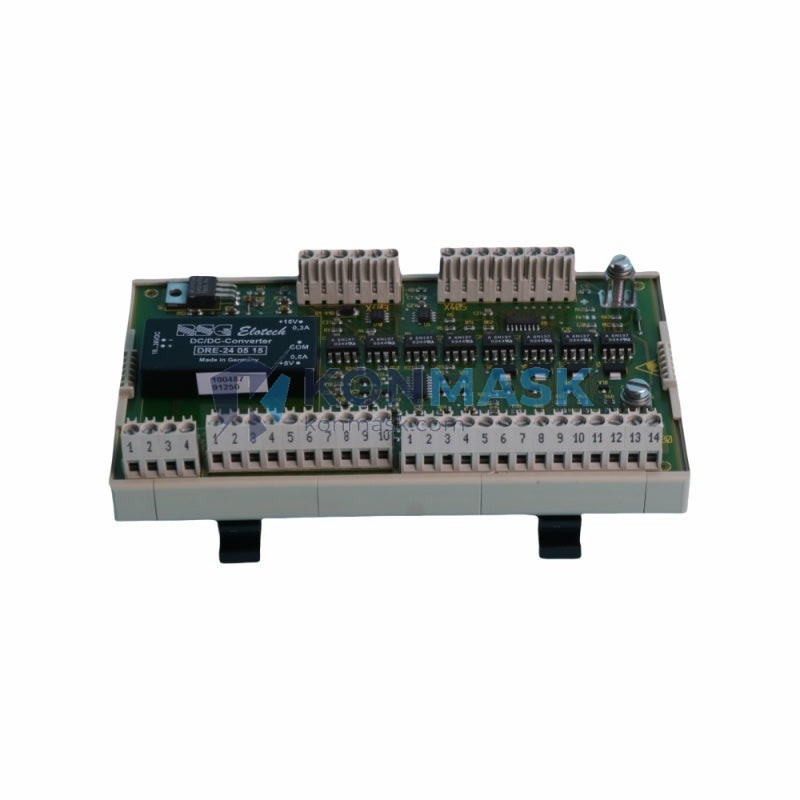

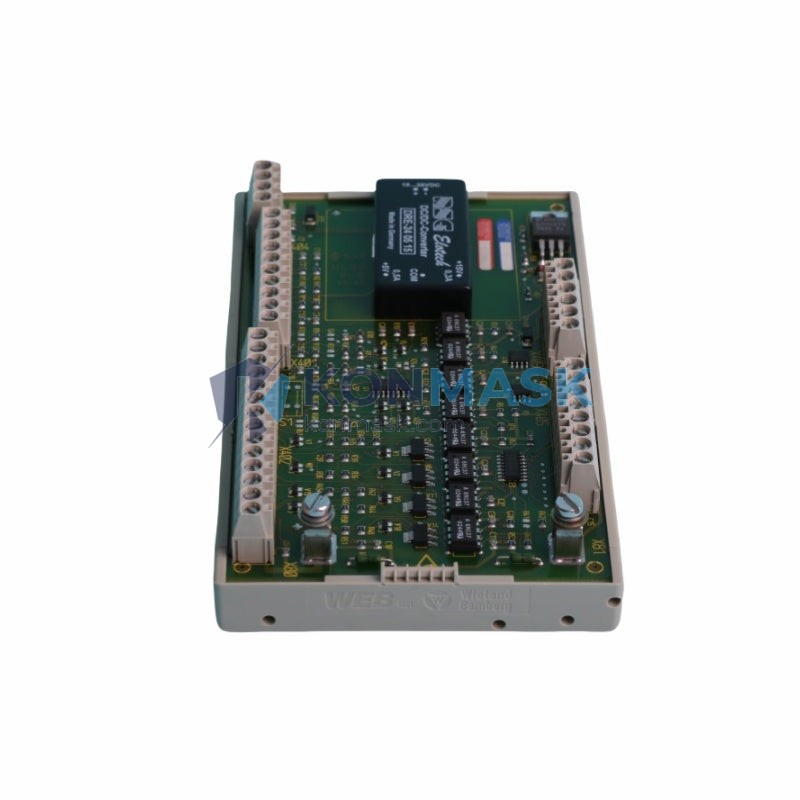

The Siemens 6SE7090-0XX84-0FJ0 is a technology option board (Motion Control Unit) for the SIMOVERT MASTERDRIVES series, enabling high-precision closed-loop vector and servo control in demanding industrial motion applications. Designed for engineers who require deterministic torque response, multi-axis coordination, and seamless integration with Siemens SIMATIC and SINUMERIK ecosystems.
Where This Product Is Used
- CNC Machine Tools – Spindle and feed-axis control in milling centers, lathes, and grinding machines requiring sub-millisecond torque response.
- Industrial Robotics – Multi-axis coordinated motion in articulated arm robots and SCARA systems on automotive assembly lines.
- Printing & Packaging Machinery – Register control and tension management in web-fed offset presses and form-fill-seal packaging lines.
- Crane & Hoist Systems – Precise load positioning and anti-sway control in overhead bridge cranes and port gantry cranes.
- Extruder & Winding Lines – Speed-synchronized multi-drive control in plastic extrusion and wire/cable winding applications.
- Test Benches & Dynamometers – Torque-controlled loading in engine test stands and material fatigue testing equipment.
Technical Specifications
- Part Number: 6SE7090-0XX84-0FJ0
- Series: SIMOVERT MASTERDRIVES Motion Control (MC)
- Function: Motion Control Option Board (Technology Board)
- Control Mode: Vector control (closed-loop), servo control
- Interface: Compatible with SIMOVERT MASTERDRIVES compact and chassis units
- Communication: PROFIBUS-DP via CBP2 option (sold separately)
- Encoder Support: Incremental TTL / HTL, resolver, absolute encoders (SSI)
- Sampling Time: Current control cycle ≤ 1.25 ms
- Protection Class: IP00 (board-level component, installed inside drive chassis)
- Operating Temperature: 0 °C to +55 °C (derate above 40 °C)
- Storage Temperature: −25 °C to +70 °C
- Compliance: CE, UL, cUL
- Weight: ~120 g (board assembly)
Why Engineers Specify This Model
- Deterministic Motion Performance – The dedicated motion control processor handles trajectory interpolation independently of the main drive CPU, ensuring consistent cycle times even under heavy bus load.
- Seamless SIMATIC Integration – Native PROFIBUS-DP support allows direct parameter access and setpoint transfer from S7-300/400/1500 PLCs without gateway hardware.
- Flexible Encoder Interface – Supports TTL, HTL, resolver, and SSI absolute encoders on a single board, reducing BOM complexity in mixed-encoder installations.
- Proven Field Reliability – SIMOVERT MASTERDRIVES has accumulated millions of operating hours in automotive, steel, and paper industries since the mid-1990s; spare boards remain fully supported under Siemens Industry Services.
- Retrofit-Ready – Drop-in replacement for existing MASTERDRIVES MC installations without mechanical or wiring changes to the drive chassis.
Complete System Bill of Materials
- Siemens 6SE7090-0XX84-0FJ0 – Motion Control Option Board (this item)
- SIMOVERT MASTERDRIVES Compact or Chassis Unit (e.g., 6SE7021-8EB84-1HF3) – Host drive
- CBP2 Communication Board (6SE7090-0XX84-0FF5) – PROFIBUS-DP interface
- SBP Sensor Board (6SE7090-0XX84-0FG0) – Second encoder channel
- Incremental encoder (e.g., Siemens 6FX2001-2CC50) – Motor feedback
- SIMATIC S7-1500 PLC + TM PosInput module – Supervisory motion controller
- STARTER / SCOUT commissioning software – Drive parameterization
- 24 VDC auxiliary power supply (e.g., SITOP PSU100S) – Control electronics
Compliance & Industry Standards
- CE Marking – Low Voltage Directive 2014/35/EU; EMC Directive 2014/30/EU
- UL 508C – Power Conversion Equipment (North American market)
- IEC 61800-3 – Adjustable speed electrical power drive systems – EMC requirements
- IEC 61800-5-1 – Safety requirements for adjustable speed drive systems
- ISO 13849 / EN 954-1 – Safety of machinery (when used with STO option)
- RoHS 2011/65/EU – Restriction of hazardous substances
Quality Assurance & Sourcing
Every unit offered through Konmask.com undergoes a structured incoming inspection process:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Label and date-code verification against Siemens factory records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Full traceability documentation available on request
We source from authorized distributors, OEM decommissions, and verified surplus channels. Certificates of conformance and test reports are available for volume orders.
How to Source This Part
- In-Stock Orders: Add to cart and check out — most orders ship within 1–3 business days from our Xiamen warehouse.
- Volume / Project Quotes: Email support@konmask.com with your project BOM for tiered pricing.
- Urgent Requirements: Call or WhatsApp +0086 19859288691 for same-day shipping options.
- Global Shipping: DHL Express, FedEx IP, and UPS Worldwide available. Export documentation (CO, packing list, commercial invoice) included.
Application-Specific FAQ
Q: Is the 6SE7090-0XX84-0FJ0 compatible with all SIMOVERT MASTERDRIVES chassis sizes?
A: Yes. The Motion Control option board fits all MASTERDRIVES compact and chassis units (frame sizes A through K) that have an available option slot. Verify slot availability in your drive’s hardware manual before ordering.
Q: Can this board be used for spindle orientation on a CNC lathe?
A: Yes. The MC board supports M19 spindle orientation and C-axis positioning when combined with an appropriate encoder and the SINUMERIK 840D/840Di CNC controller via PROFIBUS.
Q: What is the difference between the 0FJ0 and 0FF0 option boards?
A: The 0FJ0 is the Motion Control board (trajectory/position control); the 0FF0 is the Technology board for process control applications (winders, dancers). Select based on your control topology.
Q: Do you provide a warranty?
A: All units carry a 12-month warranty against defects in materials and workmanship from the date of shipment. Warranty claims are processed within 5 business days.
Q: Can you supply the full MASTERDRIVES system (drive + options + cables)?
A: Yes. Contact us with your complete BOM and we will provide a consolidated quote with lead times.
