Multi-Axis Servo Drive Solution – SIEMENS 6SL3040-0MA00-0AA0 | SINAMICS S120

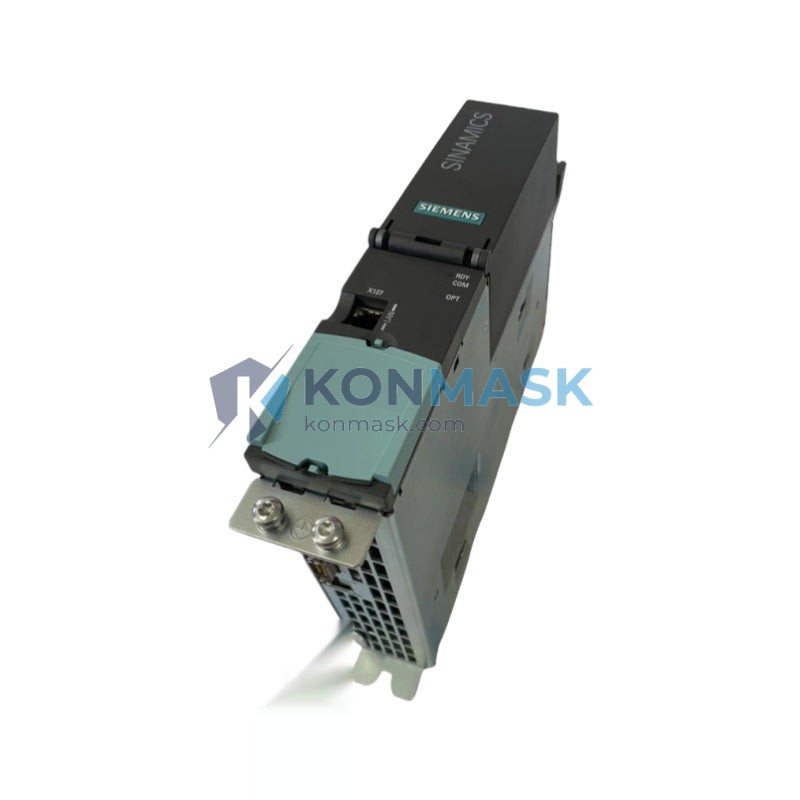

The SIEMENS 6SL3040-0MA00-0AA0 is the CU320-2 DP Control Unit for the SINAMICS S120 drive system — the central intelligence module that coordinates multi-axis motion, closed-loop vector control, and PROFIBUS DP communication in demanding industrial automation environments. Engineered for precision, reliability, and seamless integration with Siemens TIA Portal and STEP 7 ecosystems.
Where This Product Is Used
- CNC Machine Tools – Coordinates spindle and feed axis drives in high-precision machining centers and turning machines.
- Printing & Packaging Machinery – Synchronizes multiple servo axes for register accuracy and web tension control.
- Textile & Winding Equipment – Manages torque and speed profiles across multi-motor winding lines.
- Automotive Assembly Lines – Controls servo-driven transfer systems, welding positioners, and press feeders.
- Crane & Hoist Systems – Provides closed-loop vector control for safe, smooth load handling.
- Plastics & Extrusion Lines – Regulates extruder speed and downstream haul-off drives with tight synchronization.
- Paper & Converting Machines – Enables section-by-section speed control for draw and nip roll drives.
- Test Benches & Dynamometers – Delivers high-dynamic torque control for motor and component testing rigs.
Technical Specifications
- Part Number (SKU): 6SL3040-0MA00-0AA0
- Series: SINAMICS S120
- Module Type: CU320-2 DP – Central Control Unit
- Fieldbus Interface: PROFIBUS DP (up to 12 Mbit/s)
- Drive Objects Supported: Up to 6 drive objects (axes) per CU320-2
- Encoder Interfaces: 2 × DRIVE-CLiQ ports for Motor Modules and Sensor Modules
- Digital I/O: 8 × DI / 8 × DO (24 V DC)
- Analog I/O: 2 × AI / 2 × AO
- Memory Card Slot: CompactFlash (for firmware and parameter backup)
- Supply Voltage: 24 V DC (via DRIVE-CLiQ or external)
- Operating Temperature: 0 °C to +55 °C
- Protection Class: IP20
- Dimensions (W × H × D): 73 mm × 380 mm × 270 mm (approx.)
- Weight: Approx. 1.6 kg
- Standards: CE, UL, cUL
Why Engineers Specify This Model
- Centralized Multi-Axis Control: One CU320-2 DP manages up to 6 drive objects, reducing cabinet space and wiring complexity versus distributed drive architectures.
- PROFIBUS DP Native: Direct integration with SIMATIC S7-300/400/1500 PLCs without additional gateways — critical for legacy and hybrid plant architectures.
- DRIVE-CLiQ Topology: Automatic component recognition and parameterization via DRIVE-CLiQ eliminates manual encoder configuration errors.
- Safety Ready: Supports SINAMICS Safety Integrated functions (STO, SS1, SLS) when paired with compatible Motor Modules — no external safety relay required.
- TIA Portal & Startdrive Compatible: Full commissioning, diagnostics, and firmware update via Startdrive in TIA Portal V14+.
- Proven Field Reliability: Deployed globally in millions of drive axes across automotive, packaging, and process industries.
Complete System Bill of Materials
The CU320-2 DP (6SL3040-0MA00-0AA0) is the control brain of an S120 drive line. A complete system typically includes:
- Active Line Module (ALM) – e.g., 6SL3130-7TE21-6AA3 (16 kW infeed)
- Single Motor Module (SMM) – e.g., 6SL3120-1TE21-0AA3 (per axis)
- Synchronous Servo Motor – e.g., 1FK7 or 1FT7 series with DRIVE-CLiQ encoder
- Sensor Module Cabinet (SMC) – e.g., 6SL3055-0AA00-5AA3 (for non-DRIVE-CLiQ encoders)
- CompactFlash Card – e.g., 6SL3054-0EG00-1BA0 (firmware storage)
- PROFIBUS DP Cable & Connectors – Siemens 6XV1830-0EH10 or equivalent
- 24 V DC Power Supply – e.g., SITOP PSU100S 6EP1334-2BA20
Contact Konmask.com for complete system configuration and BOM assistance.
Compliance & Industry Standards
- CE Marking: Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL / cUL Listed: Recognized for North American markets
- IEC 61800-5-1: Adjustable speed electrical power drive systems – Safety requirements
- IEC 61800-3: EMC requirements for drive systems
- ISO 13849 / IEC 62061: Functional safety (when Safety Integrated options are activated)
- RoHS Compliant
Quality Assurance & Sourcing
- ✅ Genuine SIEMENS OEM Part – sourced through authorized industrial distribution channels
- ✅ Pre-shipment Inspection – each unit visually inspected and firmware version verified before dispatch
- ✅ Original Packaging – shipped in Siemens OEM packaging with serial number traceability
- ✅ Warranty: 12-month replacement warranty against manufacturing defects
- ✅ Export Compliance: HS Code 8537.10 — properly documented for international customs clearance
How to Source This Part
- Add to Cart – Click “Buy Now” or “Add to Cart” above for immediate checkout.
- Request a Quote – For volume orders (5+ units), email [email protected] for tiered pricing.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock lead time for special orders: 2–4 weeks.
- Payment – T/T (Bank Transfer), PayPal, and major credit cards accepted.
- Shipping – DHL Express, FedEx International Priority, and sea freight available worldwide.
Application-Specific FAQ
Q: Can the 6SL3040-0MA00-0AA0 control both servo and vector (induction motor) drives simultaneously?
A: Yes. The CU320-2 DP supports mixed drive object configurations — servo control (DSC) and vector control can coexist on the same control unit, each assigned to separate Motor Modules.
Q: What is the maximum number of axes this control unit can manage?
A: Up to 6 drive objects (axes) per CU320-2 DP, depending on firmware version and computational load. For higher axis counts, multiple CU320-2 units can be networked via PROFIBUS.
Q: Is a CompactFlash card included?
A: The CompactFlash card (6SL3054-0EG00-1BA0) is ordered separately. It is required for firmware storage and parameter backup — do not operate the CU320-2 without it.
Q: Can this unit replace an older CU320 (6SL3040-0MA00-0AA0 vs. 6SL3040-0LA00-0AA0)?
A: The CU320-2 DP is the successor to the original CU320. It is backward-compatible in most S120 booksize configurations but requires firmware ≥ V4.3. Verify your Motor Module firmware versions before replacement.
Q: Does Konmask.com provide technical support for commissioning?
A: Yes. Our engineering team can assist with PROFIBUS network configuration, DRIVE-CLiQ topology setup, and Startdrive parameterization. Contact us at [email protected].
