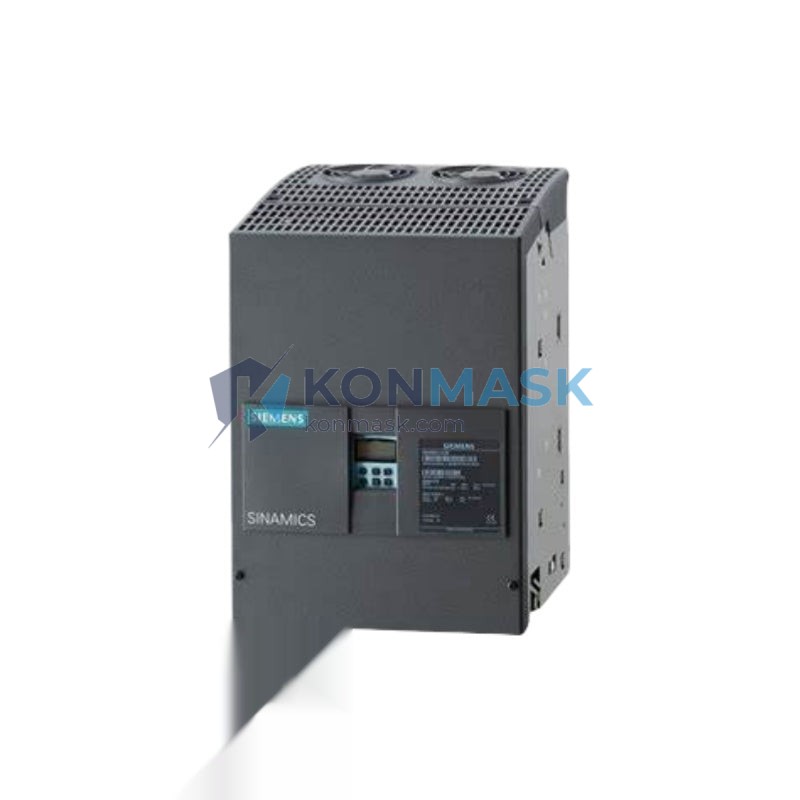

Genuine SIEMENS 6RA8025-6DS22-0AA0 DC Drive Converter | SINAMICS DCM – Verified Source
The SIEMENS 6RA8025-6DS22-0AA0 is a fully digital DC drive converter from the SINAMICS DCM (DC Master) series, engineered for precise armature and field current control in demanding industrial DC motor applications. When a DC drive fails on the production floor, the consequences are immediate: conveyor lines stop, rolling mills halt, and paper machines lose tension control — costing thousands per hour in downtime. The 6RA8025-6DS22-0AA0 is the engineered answer to that risk, delivering reliable, field-proven DC drive performance backed by Siemens’ decades of drive technology leadership.
Within the SINAMICS DCM portfolio, the 6RA8025-6DS22-0AA0 occupies a critical mid-range position — offering a rated DC current output suited for medium-power DC motor drives while maintaining full compatibility with Siemens’ PROFIBUS and USS communication ecosystems. Globally, SINAMICS DCM drives are trusted in steel, paper, plastics, and mining industries where DC motor infrastructure remains the backbone of production.
Technical Specifications
- Part Number: 6RA8025-6DS22-0AA0
- Series: SINAMICS DCM (DC Master)
- Manufacturer: SIEMENS AG
- Product Type: Fully Digital DC Drive Converter
- Rated Supply Voltage (Armature): 3-phase AC 400 V
- Rated DC Output Current: 210 A
- Field Supply: 1-phase AC 400 V
- Control Method: Fully digital, closed-loop armature and field current control
- Communication Interfaces: PROFIBUS DP, USS protocol
- Protection Degree: IP00 (cabinet installation)
- Cooling Method: Forced air cooling
- Weight: Approx. 16 kg
- Standards: CE, UL (refer to product documentation for full compliance list)
Note: All specifications are based on published Siemens documentation. Konmask.com does not modify or fabricate technical data.
Our 4-Step Quality Verification Process
Every unit sourced and supplied by Konmask.com undergoes a rigorous internal verification process before shipment:
- Step 1 — Source Authentication: We verify the supply chain origin of each unit, prioritizing authorized distributors and certified secondary-market channels. Counterfeit units are rejected at intake.
- Step 2 — Visual & Physical Inspection: Trained technicians inspect housing integrity, label authenticity (hologram, serial number format), connector condition, and PCB cleanliness for any signs of repair, burn, or tampering.
- Step 3 — Functional Bench Test (where applicable): Units are powered up and tested for basic operational response, fault code behavior, and communication port functionality using Siemens STARTER or SCOUT toolchain.
- Step 4 — Documentation & Traceability: Each unit is logged with its serial number, inspection date, and condition grade. Customers receive a condition report upon request.
Key Features & Benefits
- Fully digital closed-loop control for precise speed and torque regulation of DC motors
- Integrated field weakening control for extended speed range operation
- PROFIBUS DP interface enables seamless integration into Siemens SIMATIC S7 PLC networks
- Comprehensive diagnostic and fault logging via onboard operator panel or STARTER software
- Compact cabinet-mount design (IP00) optimized for panel integration
- Compatible with both new installations and legacy DC motor retrofit projects
- Supports 4-quadrant operation (motoring and regenerative braking)
Typical Applications
- Steel & Metal Processing: Rolling mills, wire drawing machines, coiler/decoiler drives
- Paper & Printing: Winder/unwinder tension control, calendar roll drives
- Plastics & Rubber: Extruder main drives, calender line drives
- Mining & Minerals: Conveyor belt drives, hoist and winch systems
- Marine & Offshore: Anchor windlass, deck machinery drives
- General Industry: Test bench drives, dynamometer systems, retrofit of legacy DC motor installations
Compatible System Components
The 6RA8025-6DS22-0AA0 is designed to operate within the broader Siemens SINAMICS DCM ecosystem. Compatible and commonly paired components include:
- Operator Panels: AOP30 Advanced Operator Panel (6SL3055-0AA00-4CA0)
- Communication Modules: CBP2 PROFIBUS module (6SX7010-0FF00)
- Supplementary Reactors: Line commutating reactors for harmonic mitigation
- Siemens PLCs: SIMATIC S7-300, S7-400, S7-1500 series via PROFIBUS DP
- Engineering Software: SINAMICS STARTER, TIA Portal Drive Lib
- Spare Parts: SINAMICS DCM fan units, fuse sets, and thyristor modules
Contact Konmask.com for compatibility confirmation before ordering system combinations.
Global Sourcing & Shipping Capabilities
- Stock Availability: Inquire for current stock status — we maintain active sourcing networks across Asia, Europe, and North America
- Lead Time: In-stock units typically ship within 3–5 business days; sourced units within 2–4 weeks depending on origin
- Shipping Methods: DHL Express, FedEx International Priority, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin available upon request
- Served Markets: Southeast Asia, Middle East, Europe, South America, Africa
- Customs Support: We assist with standard export documentation; buyers are responsible for import duties in their jurisdiction
Certifications & Compliance Statement
The SIEMENS 6RA8025-6DS22-0AA0 is manufactured by Siemens AG in accordance with applicable IEC, EN, and UL standards. Konmask.com supplies this product as an independent distributor and does not alter, remanufacture, or relabel any units. All compliance certifications (CE marking, UL listing) are as issued by Siemens AG and apply to genuine, unmodified units only. Customers requiring specific compliance documentation should request the original Siemens Declaration of Conformity.
How to Order
- Submit an Inquiry: Use the contact form on this page or email [email protected] with your part number, required quantity, and destination country.
- Receive a Quote: Our team will respond within 1 business day with pricing, availability, lead time, and shipping options.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other agreed payment methods. Pro-forma invoice issued upon order confirmation.
- Shipment & Tracking: Units are carefully packed with anti-static and shock-absorbing materials. Tracking number provided upon dispatch.
- After-Sales Support: Our technical team is available post-delivery for installation guidance and troubleshooting assistance.
Authenticity & Trust FAQ
- Q: Is the 6RA8025-6DS22-0AA0 you supply genuine Siemens?
- A: Yes. We source exclusively from verified supply chains. Every unit undergoes our 4-step verification process. We do not supply counterfeit or relabeled products.
- Q: Can you provide a warranty?
- A: We offer a limited inspection warranty covering the condition as described at time of sale. Extended warranty options are available — please inquire.
- Q: Do you accept returns?
- A: Returns are accepted within 14 days for units that do not match the described condition, subject to inspection. Contact us before returning any item.
- Q: Can you supply multiple units or provide a long-term supply agreement?
- A: Yes. We welcome blanket orders and framework agreements for industrial MRO customers. Contact us to discuss volume pricing and priority allocation.
- Q: What if I need a different variant of the SINAMICS DCM series?
- A: We source across the full SINAMICS DCM range. Send us your required part number and we will check availability.
- Q: How do I verify the unit’s serial number after receipt?
- A: Siemens serial numbers can be cross-referenced via the Siemens Industry Online Support (SIOS) portal. We encourage customers to verify authenticity independently.
