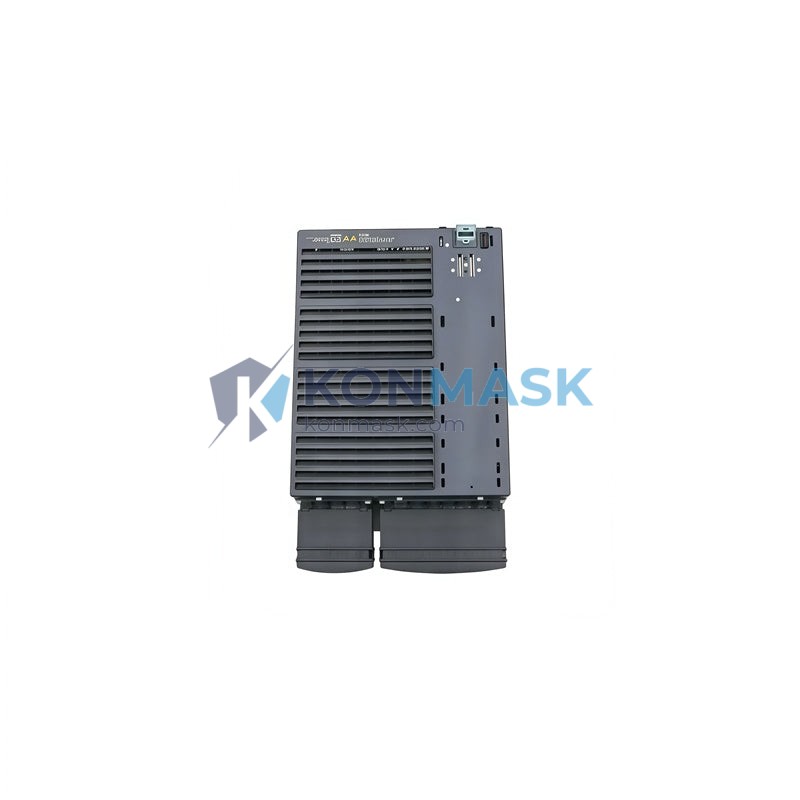

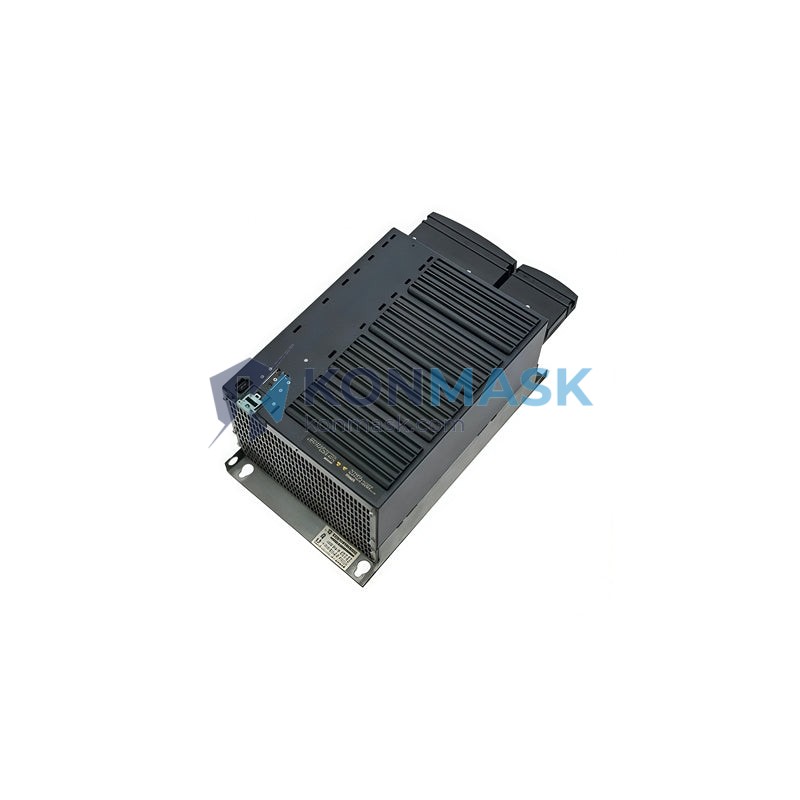

SIEMENS 6SL3210-1SE24-5UA0 PM340 Power Module – SINAMICS S120 Series
When a PM340 Power Module fails on the production floor, the consequences are immediate and costly: servo axes lose their power supply, the entire drive line-up goes offline, and manufacturing lines grind to a halt. Unplanned downtime in automotive stamping, packaging, or textile machinery can cost thousands of dollars per hour. The SIEMENS 6SL3210-1SE24-5UA0 is the precision-engineered power module that keeps your SINAMICS S120 drive system running without interruption — a component you simply cannot substitute with an off-spec alternative.
Within the SINAMICS S120 booksize family, the 6SL3210-1SE24-5UA0 occupies a critical mid-range power position, delivering a balanced combination of output current capacity and compact booksize form factor. The SINAMICS S120 platform is Siemens’ flagship multi-axis servo drive system, widely deployed across global OEM machine builders and end-user plants in automotive, food & beverage, printing, and material handling industries. This specific module is engineered to pair with the S120 Control Unit and Motor Modules in a shared DC bus architecture, enabling highly dynamic, coordinated multi-axis motion.
Technical Specifications
- Part Number: 6SL3210-1SE24-5UA0
- Series: SINAMICS S120
- Module Type: PM340 Power Module (Booksize)
- Manufacturer: Siemens AG
- Weight: Approx. 11 kg
- Cooling Method: Internal air cooling (fan-cooled)
- Design Form: Booksize
- Compatible Control Units: CU320-2 DP / CU320-2 PN and compatible S120 CUs
- DC Bus Architecture: Shared DC bus with Motor Modules
Note: Detailed electrical ratings (input voltage, output current, power) should be verified against the official Siemens datasheet for 6SL3210-1SE24-5UA0 prior to installation.
Key Features & Benefits
- Booksize Form Factor: Space-saving design integrates seamlessly into S120 booksize drive line-ups, minimizing cabinet footprint.
- Shared DC Bus: Enables energy exchange between motor and regenerative axes, improving overall system energy efficiency.
- High Dynamic Response: Supports fast current control loops required for precision servo applications.
- Integrated Safety Functions: Compatible with SINAMICS Safety Integrated functions (STO, SS1, SLS) when paired with appropriate Control Units.
- Robust EMC Design: Built-in EMC filtering reduces interference in sensitive industrial environments.
- Plug-and-Play Drive Line-Up: Standardized DRIVE-CLiQ interface simplifies commissioning and topology recognition via STARTER / TIA Portal.
- Wide Industry Acceptance: Globally stocked spare part recognized by Siemens-trained service engineers worldwide.
Industry & Equipment Applications
- Automotive Manufacturing: Servo press lines, transfer systems, robotic welding cells
- Packaging Machinery: High-speed form-fill-seal machines, cartoners, palletizers
- Printing & Converting: Web tension control, register control in offset and flexo presses
- Textile Machinery: Winding, unwinding, and draw-frame drives
- Material Handling: Conveyor systems, gantry cranes, automated storage & retrieval
- Machine Tools: CNC machining centers requiring coordinated multi-axis servo control
System Integration & Compatible Parts
The 6SL3210-1SE24-5UA0 is designed to operate within the SINAMICS S120 booksize ecosystem. Typical system components include:
- Control Units: 6SL3040-1MA01-0AA0 (CU320-2 DP), 6SL3040-1MA00-0AA0 (CU320-2 PN)
- Motor Modules (Booksize): 6SL3120-series single-axis and double-axis modules
- DRIVE-CLiQ Cables: 6FX2002-1DC00 series for topology wiring
- Braking Resistors: 6SE7023-series or external resistor units for regenerative braking
- Servo Motors: SIMOTICS S-1FK7, 1FT7, 1PH8 series
Always verify compatibility using the Siemens SIZER for Drives engineering tool or consult your Siemens distributor before system design.
Our Quality Assurance Process
- Source Verification: All units are sourced from authorized channels or verified surplus with full traceability documentation.
- Visual & Physical Inspection: Each module is inspected for physical damage, connector integrity, and label authenticity before listing.
- Functional Testing: Where applicable, units undergo power-on and communication interface checks.
- Secure Packaging: Anti-static packaging with foam protection ensures safe international transit.
- Documentation: CE declaration, test records, and shipping documents provided upon request.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon order confirmation, we arrange secure export packaging and international freight (DHL, FedEx, UPS, or sea freight).
- Tracking information and commercial invoice are provided for customs clearance.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo drives, and automation components — not a generalist marketplace.
- Global B2B Export Experience: Serving engineering teams and MRO buyers across Europe, Southeast Asia, the Middle East, and the Americas.
- Fast Response: Dedicated account managers respond to RFQs within one business day.
- Competitive Pricing: Direct sourcing relationships enable competitive pricing on both new and refurbished units.
- Technical Support: Our team includes engineers with hands-on SINAMICS S120 commissioning experience.
Frequently Asked Questions
Q: Is the 6SL3210-1SE24-5UA0 a new or refurbished unit?
A: We stock both new-in-box and professionally refurbished units. Please specify your preference in the RFQ form and we will confirm availability and pricing accordingly.
Q: What is the lead time for this part?
A: Lead time varies by stock status. In-stock units typically ship within 3–5 business days. For out-of-stock items, lead time is quoted individually — usually 2–4 weeks.
Q: Can you provide a warranty?
A: Yes. We offer a standard 12-month warranty on new units and a 6-month warranty on refurbished units, covering manufacturing defects and functional failures under normal operating conditions.
Q: Do you support export to my country?
A: We export globally. Please contact us with your destination country and we will advise on shipping options, estimated freight cost, and any applicable export documentation.
Q: Can I get a datasheet or technical manual?
A: Yes. The official Siemens SINAMICS S120 PM340 Power Module manual is available from Siemens Industry Online Support. We can also assist in locating the correct document for your firmware version.
