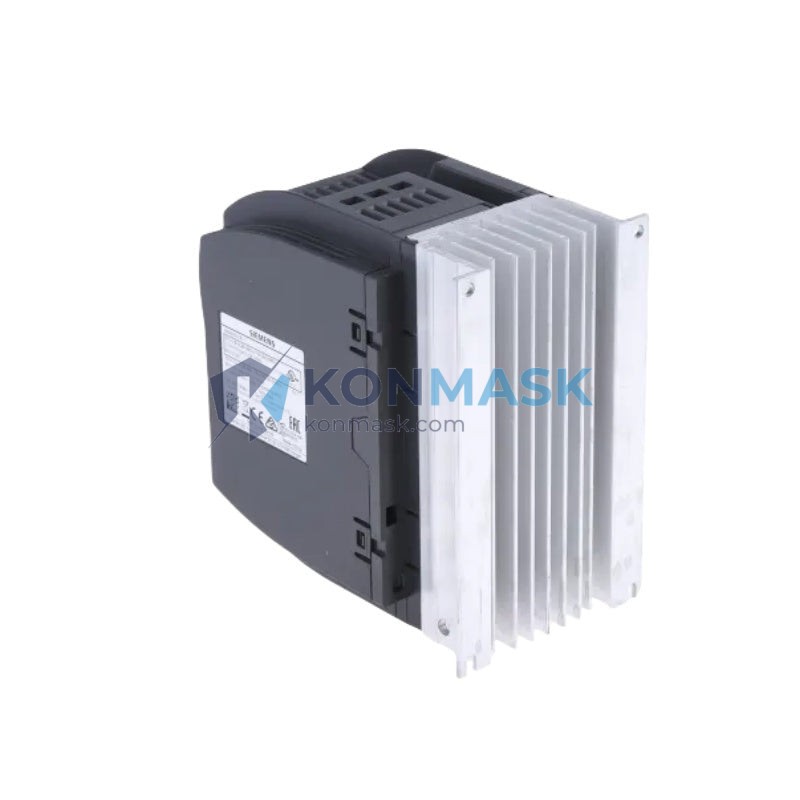

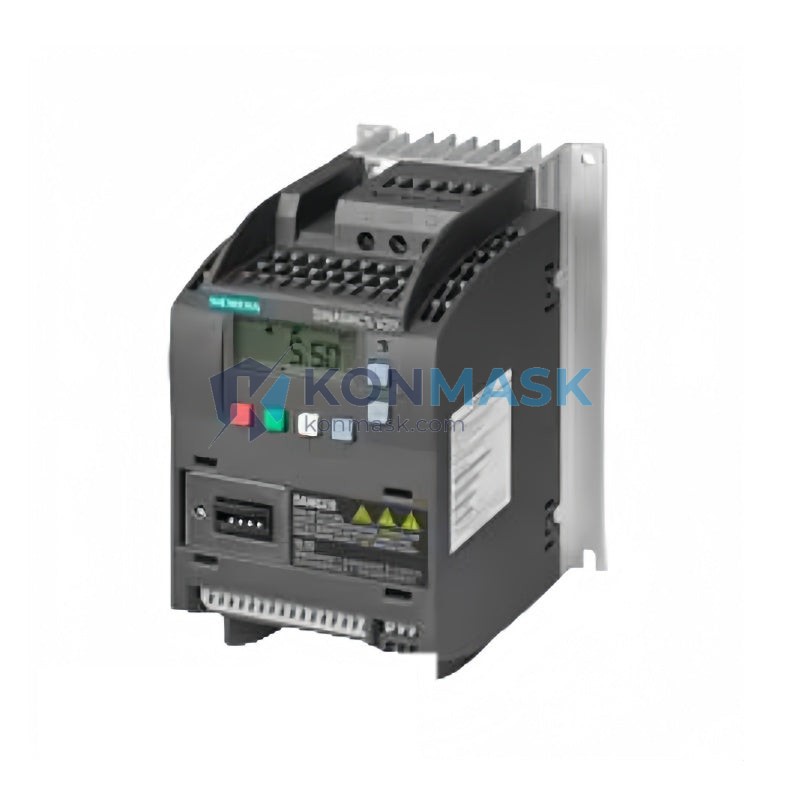

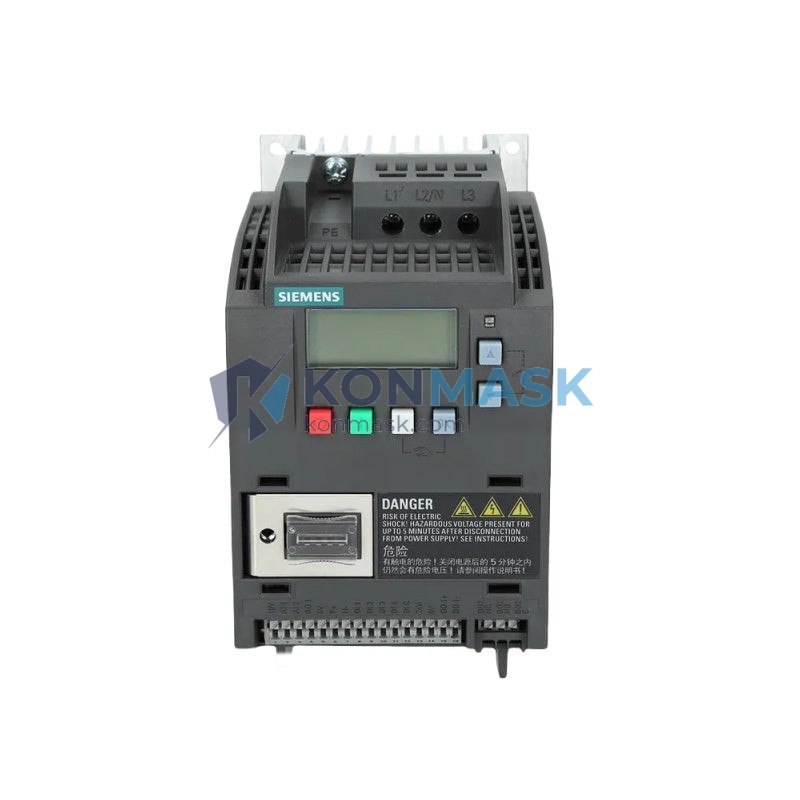

Siemens 6SL3210-5BE17-5UV0 Compact AC Inverter Drive – SINAMICS V20 Series
When a variable frequency drive fails on the production floor, the consequences are immediate and costly: motors run at fixed speed, process control is lost, energy consumption spikes, and in many cases the entire line grinds to a halt. For applications where precise motor speed control is non-negotiable — pumps, fans, compressors, conveyors — the absence of a reliable inverter is not just an inconvenience, it is a production crisis. The Siemens 6SL3210-5BE17-5UV0 is engineered to eliminate that risk.
Within the SINAMICS V20 family, the 6SL3210-5BE17-5UV0 occupies the entry-level power class (0.75 kW / 1 HP) for 200 V single-phase input applications. Despite its compact footprint, it delivers the full feature set of Siemens’ proven SINAMICS platform — making it one of the most widely deployed compact drives in global light-industrial and OEM automation markets. Its combination of plug-and-play commissioning, robust protection functions, and Siemens’ global service network has made it a benchmark product in the sub-1 kW inverter segment.
Technical Specifications
- Part Number / SKU: 6SL3210-5BE17-5UV0
- Brand: Siemens
- Series: SINAMICS V20
- Rated Output Power: 0.75 kW (1 HP)
- Input Voltage: 1AC 200–240 V (±10%)
- Output Voltage: 3AC 0–240 V
- Input Frequency: 47–63 Hz
- Output Frequency Range: 0–550 Hz
- Rated Input Current: 7.5 A
- Rated Output Current: 3.9 A
- Protection Degree: IP20
- Ambient Operating Temperature: -10°C to +50°C
- Overload Capacity: 150% for 60 s
- Communication Interface: USS / Modbus RTU (via RS-485)
- Control Mode: V/f (linear / quadratic / programmable)
- Braking: DC braking, dynamic braking (with external resistor)
- Weight: 0.93 kg
- Dimensions (W×H×D): 68 × 142 × 126 mm (approx.)
- Certifications: CE, UL, cUL
Key Features & Benefits
- Quick Commissioning: The built-in Basic Operator Panel (BOP) and guided parameter wizard allow first-time setup in under 10 minutes — no laptop or software required.
- Energy Savings: Quadratic V/f characteristic for fan and pump loads reduces energy consumption by up to 50% compared to direct-on-line starting.
- Compact Design: Ultra-slim 68 mm width enables high-density panel installation, ideal for space-constrained OEM enclosures.
- Robust Protection: Integrated protection against overvoltage, undervoltage, overcurrent, overtemperature, and motor stall ensures long service life.
- Flexible Control: Supports both local (BOP) and remote control via analog inputs (0–10 V / 0–20 mA) and digital inputs (6 DI).
- Serial Communication: Native USS and Modbus RTU over RS-485 for seamless integration with PLCs and SCADA systems.
- Copy Function: Parameter sets can be uploaded/downloaded via the BOP for rapid multi-drive deployment.
Industry & Equipment Applications
- HVAC: Small circulation pumps, exhaust fans, air handling units
- Water Treatment: Dosing pumps, booster pumps, aeration blowers
- Food & Beverage: Conveyor belts, mixers, filling machines
- Textile: Winding machines, tension control systems
- Packaging: Label applicators, wrapping machines, indexing conveyors
- OEM Machinery: General-purpose machine drives requiring single-phase input
System Integration & Compatible Parts
- Operator Panels: Siemens BOP-2 (6SL3255-0AA00-4CA1) for remote mounting
- EMC Filters: Class C1/C2 external EMC filters for compliance in sensitive environments
- Braking Resistors: External dynamic braking resistors for high-inertia loads
- Communication Modules: Compatible with USS/Modbus RTU master PLCs (S7-1200, S7-200 SMART, third-party)
- Related SINAMICS V20 Variants: 6SL3210-5BE21-1UV0 (1.1 kW), 6SL3210-5BE21-5UV0 (1.5 kW), 6SL3210-5BE22-2UV0 (2.2 kW)
Our Quality Assurance Process
Every unit sourced by Konmask.com undergoes a structured verification process before dispatch:
- Visual inspection for physical damage, label authenticity, and serial number traceability
- Functional power-on test to confirm display, parameter access, and basic I/O response
- Cross-reference of firmware version and hardware revision against Siemens official documentation
- Anti-static packaging with humidity indicator cards for safe international transit
We supply both new original and factory-refurbished units. Condition is clearly stated on every quotation.
How to Order
- Submit an inquiry via the Contact Us form or email [email protected]
- Provide your required quantity, delivery destination, and any special requirements (e.g., firmware version, packaging)
- Receive a formal quotation within 1 business day
- Confirm order and arrange payment via T/T, L/C, or other agreed terms
- Shipment with full documentation: commercial invoice, packing list, and test report
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: 100% focus on PLC, DCS, VFD, and automation components — not a general electronics marketplace
- ✅ Global Sourcing Network: Direct relationships with authorized distributors and certified secondary-market suppliers across Asia, Europe, and North America
- ✅ Fast Response: Dedicated B2B inquiry team responds within 24 hours, with expedited quoting for urgent MRO needs
- ✅ Traceability: Every shipment includes documentation supporting your incoming inspection and audit requirements
- ✅ Long-Term Partnership: We support repeat buyers with blanket order arrangements, consignment stock, and priority allocation
Frequently Asked Questions
Q: Is the 6SL3210-5BE17-5UV0 suitable for three-phase motor control?
A: Yes. Although the input is single-phase (1AC 200–240 V), the output is three-phase (3AC 0–240 V), making it fully compatible with standard three-phase induction motors up to 0.75 kW.
Q: Can this drive be controlled via PLC?
A: Yes. The built-in RS-485 port supports USS protocol and Modbus RTU, enabling full remote control and parameter access from any compatible PLC or SCADA system.
Q: What is the difference between the 6SL3210-5BE17-5UV0 and the 6SL3210-5BE21-1UV0?
A: The primary difference is rated output power: 0.75 kW vs. 1.1 kW. Both belong to the SINAMICS V20 family with identical communication and control architecture.
Q: Do you provide a warranty?
A: Warranty terms are specified per order. New original units carry the standard Siemens warranty where applicable. Refurbished units include a Konmask.com service warranty. Details are stated in the quotation.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 piece. We welcome both single-unit MRO orders and bulk OEM procurement.
