Siemens A5E00430140 – 8-Channel Analog Input Module | SIMATIC S7-300 Platform
The Siemens A5E00430140 is a high-precision analog input module (SM 331) engineered for the SIMATIC S7-300 programmable logic controller platform. Designed for demanding industrial measurement tasks, this module converts real-world analog signals—voltage, current, resistance, and thermocouple inputs—into digital values for processing by the S7-300 CPU. It is the preferred choice for process engineers and system integrators who require reliable, high-resolution signal acquisition in continuous manufacturing, energy management, and process automation environments.
Konmask.com supplies this module as verified industrial-grade stock, fully tested and traceable, serving procurement engineers across Asia-Pacific, Europe, and the Americas.
Complete Technical Specifications
- Part Number / SKU: A5E00430140
- Product Family: SIMATIC S7-300 SM 331
- Module Type: Analog Input Module (AI)
- Number of Channels: 8 (configurable in groups of 2)
- Resolution: 12-bit (+ sign bit)
- Input Signal Types: Voltage (±10 V, ±5 V, ±2.5 V, 1–5 V), Current (0–20 mA, 4–20 mA, ±20 mA), Resistance (0–600 Ω), Thermocouple (Type J, K, N, E, R, S, T, B)
- Cycle Time: Min. 1 ms per channel (integration time dependent)
- Isolation: Galvanic isolation between channels and backplane bus
- Supply Voltage: 24 V DC (via S7-300 backplane)
- Power Consumption: Approx. 60 mA from backplane bus
- Dimensions (W × H × D): 40 × 125 × 120 mm
- Weight: Approx. 800 g (with front connector)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +70 °C
- Degree of Protection: IP 20
- Standards / Certifications: CE, UL, cULus, ATEX (Zone 2), FM, C-Tick
- Country of Origin: Germany
- Siemens Order Number: 6ES7331-7KF02-0AB0 (compatible reference)
Proven Application Environments
- Process Industries: Chemical plants, oil & gas refineries, water treatment facilities requiring precise temperature and flow measurement
- Energy Management: Power generation and distribution systems monitoring voltage and current transducers
- Automotive Manufacturing: Robotic welding lines and press control systems with multi-channel analog feedback
- Food & Beverage: Pasteurization and filling lines requiring thermocouple-based temperature control
- Building Automation: HVAC systems integrating pressure, temperature, and humidity sensors
- Pharmaceutical: Batch process control with FDA-compliant data acquisition requirements
Engineering Advantages
- Universal Input Flexibility: Single module supports voltage, current, RTD, and thermocouple inputs—reducing spare-parts inventory and simplifying cabinet design
- Channel-Group Configuration: Each pair of channels is independently configurable via STEP 7 / TIA Portal parameter assignment—no hardware jumpers required
- Galvanic Isolation: Protects the CPU and backplane from ground loops and common-mode interference common in industrial field environments
- Diagnostic Interrupts: Supports wire-break detection, overflow/underflow alarms, and configurable diagnostic interrupts for predictive maintenance integration
- Seamless S7-300 Integration: Plug-and-play on any S7-300 rack; recognized automatically by STEP 7 HW Config and TIA Portal V13+
- Long-Term Availability: Siemens extended lifecycle support; Konmask maintains verified surplus stock for MRO and emergency replacement
System Architecture & Signal Flow
The A5E00430140 mounts directly onto the S7-300 DIN-rail rack and communicates via the S7-300 backplane bus (P-bus). Field signals connect through a 40-pin front connector (6ES7392-1AM00-0AA0 or equivalent). The module’s internal multiplexer sequentially samples each channel pair, applies the configured integration time for noise rejection, and transfers 16-bit data words (12-bit value + status bits) to the CPU via the backplane. Diagnostic data is accessible via SFCs (SFC 51/52) or OB82 interrupt routines in STEP 7.
Recommended Front Connector: 6ES7392-1AM00-0AA0 (40-pin screw terminal)
Compatible CPUs: All S7-300 CPUs (314, 315, 317, 319 series)
Software: STEP 7 V5.5+, TIA Portal V13+
Sourcing & Quality Verification
- Source: Verified industrial surplus and authorized distribution channels
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment
- Traceability: Batch records and date codes available upon request for MRO and audit compliance

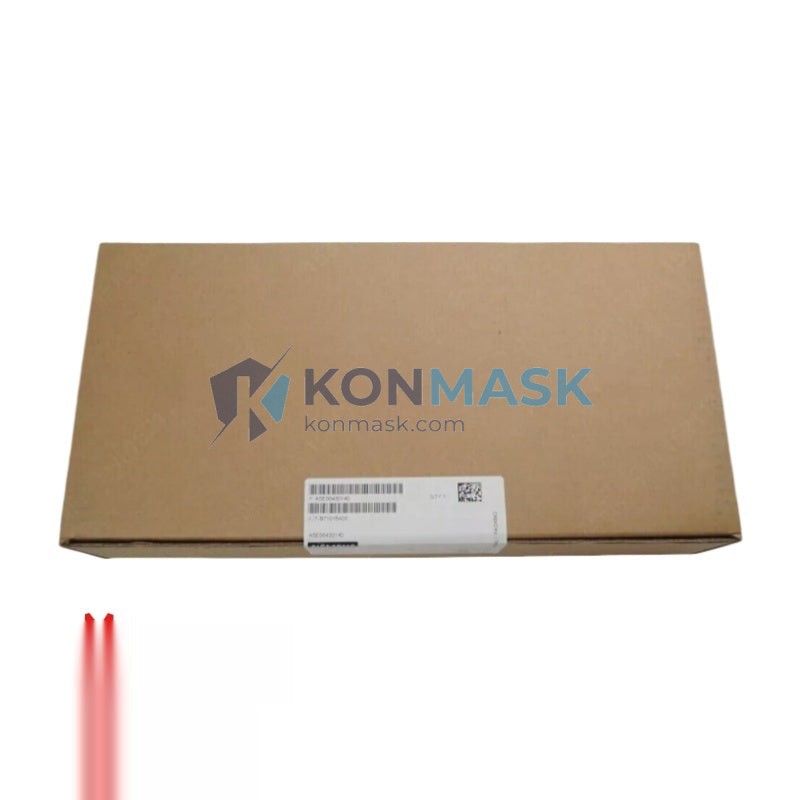

- Packaging: Anti-static ESD bag + foam-lined carton; original Siemens packaging where available
- Warranty: 12-month Konmask operational warranty against manufacturing defects
- Counterfeit Prevention: All units verified against Siemens holographic labels and PCB markings; suspicious units are quarantined and not listed
Procurement Process
- Confirm Compatibility: Verify your S7-300 rack slot availability and CPU firmware version (STEP 7 HW Config or TIA Portal)
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Place Order: Purchase directly via Konmask.com checkout or submit a formal PO for B2B orders
- Shipping: DHL / FedEx express worldwide; export documentation (commercial invoice, packing list, COO) provided for customs clearance
- After-Sales: Technical support available for installation and STEP 7 parameter configuration queries
Technical FAQ
Q: Is A5E00430140 the same as 6ES7331-7KF02-0AB0?
A: A5E00430140 is Siemens’ internal component/spare part number. The corresponding catalog order number is 6ES7331-7KF02-0AB0. Both refer to the same SM 331 8-channel analog input module.
Q: Can this module be used with S7-400 or S7-1500?
A: No. The SM 331 is designed exclusively for the S7-300 rack and backplane bus. For S7-400, use the SM 431 series; for S7-1500, use the AI series (e.g., 6ES7531-7KF00-0AB0).
Q: Does it support HART communication?
A: The standard SM 331 (A5E00430140) does not support HART. For HART-enabled analog input, refer to the SM 331 HART variant (6ES7331-7TF01-0AB0).
Q: What is the maximum cable length for thermocouple inputs?
A: Siemens recommends shielded thermocouple extension cable up to 200 m. Ground the shield at one end only to minimize EMI interference.
Q: Can I mix input types on the same module?
A: Yes. Each channel group (2 channels) can be independently configured for a different input type via software—no hardware changes required.
