Siemens A5E00714565 IGD2/R4 IGBT Module | Replacement, Equivalent & Selection Guide

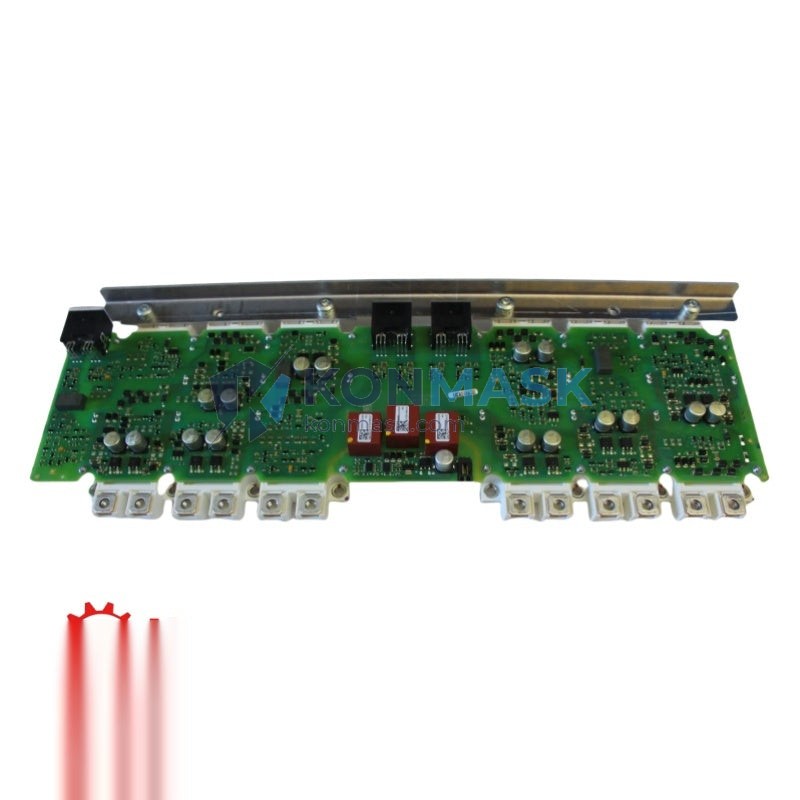

The Siemens A5E00714565 IGD2/R4 is an IGBT (Insulated Gate Bipolar Transistor) driver/gate module used in Siemens SINAMICS and MASTERDRIVES frequency inverter systems. This page provides full technical specifications, compatible replacement options, equivalent models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
| Part Number | A5E00714565 |
| Series / Variant | IGD2/R4 |
| Manufacturer | Siemens AG |
| Module Type | IGBT Gate Driver Module |
| Application | SINAMICS / MASTERDRIVES Inverter Drive Systems |
| Weight | approx. 500 g |
| Condition | New / Refurbished / Tested Available |
| Origin | Germany (OEM) |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the A5E00714565 IGD2/R4. Always verify electrical ratings and mechanical dimensions before substitution:
- Siemens A5E00714566 – Next-revision gate driver, pin-compatible in most SINAMICS G150/S150 platforms
- Siemens 6SE7038-6GL84-1JA0 – IGBT stack assembly used in overlapping drive generations
- Semikron SKHI 22A – Third-party IGBT gate driver with comparable isolation and switching characteristics
- Concept (now Infineon) 2SD315AI – Industry-standard dual-channel IGBT driver, widely used as a functional equivalent
- Fuji Electric EXB841 – Compact IGBT driver module, suitable for retrofit evaluation
Note: Cross-referencing requires confirmation of gate voltage levels, isolation ratings, and PCB footprint. Contact our technical team for application-specific validation.
Why Choose the Original Model
- OEM Guaranteed Compatibility – Designed and validated specifically for Siemens SINAMICS and MASTERDRIVES platforms
- Proven Reliability – Siemens IGBT driver modules undergo rigorous factory testing and burn-in procedures
- Firmware & Diagnostics Integration – Seamless integration with Siemens drive diagnostics and fault-reporting systems
- Warranty & Traceability – Full OEM traceability, batch records, and manufacturer warranty support
- Reduced Commissioning Risk – No re-parameterization or compatibility validation required when using original parts
Typical Applications
- Siemens SINAMICS G150 / S150 Cabinet Drive Units
- Siemens MASTERDRIVES MC / VC Series Inverters
- Medium-voltage industrial motor control systems
- Crane, hoist, and heavy-duty conveyor drive systems
- Pump and fan variable-speed drive (VSD) applications
- Steel mill and paper mill drive automation
System Compatibility
- Siemens SINAMICS G150 – Confirmed compatible (verify firmware revision)
- Siemens SINAMICS S150 – Confirmed compatible
- Siemens MASTERDRIVES 6SE70 Series – Compatible with IGD2/R4 variant
- Siemens SIMOVERT MASTERDRIVES VC – Evaluate with drive-specific BOM
Always cross-check the drive’s spare parts list (SPL) or contact Siemens technical support to confirm module revision compatibility before installation.
Selection Guide
Use the following criteria to determine whether the A5E00714565 IGD2/R4 is the correct module for your application:
- Step 1 – Identify Drive Model: Confirm your Siemens drive model number (e.g., 6SE7038-xxxx) from the nameplate
- Step 2 – Check Spare Parts List: Locate the SPL or service manual to confirm A5E00714565 is listed as a replaceable component
- Step 3 – Verify Revision: IGD2/R4 denotes a specific hardware revision — confirm this matches your drive’s requirement
- Step 4 – Assess Condition Requirement: Choose New OEM, Certified Refurbished, or Exchange unit based on budget and lead-time constraints
- Step 5 – Contact Konmask: Submit your drive model and serial number for a compatibility confirmation before ordering
Quality Assurance & Sourcing
- All units sourced from authorized distributors or directly from Siemens-certified supply chains
- Refurbished units undergo full functional testing, including gate drive signal verification and isolation resistance testing
- Anti-static packaging and climate-controlled storage for all IGBT modules
- Batch traceability records available upon request
- ISO-compliant inspection process with test reports available for critical orders
How to Order
- Add the Siemens A5E00714565 IGD2/R4 to your cart on this page
- Or contact us directly with your drive model, serial number, and required quantity
- Our team will confirm compatibility, stock availability, and lead time within 24 hours
- Bulk and OEM pricing available for orders of 5+ units
Email: support@konmask.com
Phone / WhatsApp: +0086 19859288691
Website: https://konmask.com
Replacement & Compatibility FAQ
Q: Can I use a third-party IGBT driver instead of the A5E00714565?
A: Functionally possible in some cases, but not recommended without engineering validation. Third-party drivers may differ in gate voltage, propagation delay, and fault output logic. Contact us for a validated alternative recommendation.
Q: Is the IGD2/R4 the same as IGD2/R3?
A: No. R3 and R4 are different hardware revisions with potential differences in gate resistor values and protection thresholds. Always match the revision specified in your drive’s spare parts list.
Q: Do you offer exchange / repair service for A5E00714565?
A: Yes. We offer board-level repair and exchange programs. Contact support@konmask.com with your unit’s condition and fault description.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on sourcing channel.
Q: Can I get a test report or certificate of conformance?
A: Yes, available upon request for refurbished and tested units.
