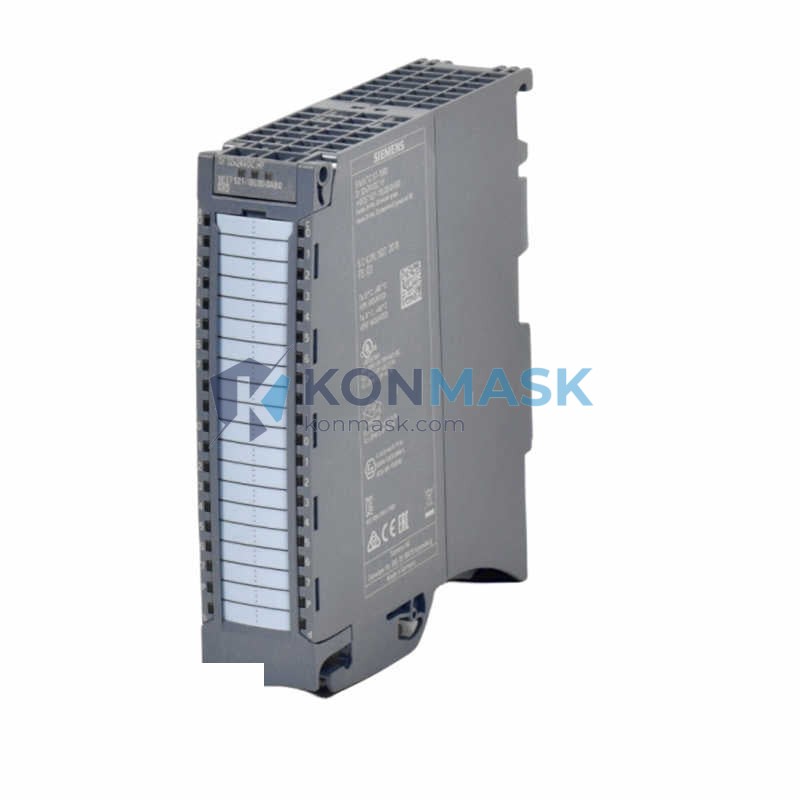

Discrete Control & High-Speed Sensing Solution — Siemens 6ES7521-1BL00-0AB0 | SM 521 S7-1500
Where This Product Is Used
The Siemens 6ES7521-1BL00-0AB0 (SM 521 DI 32×24VDC HF) is a high-feature digital input module engineered for demanding industrial automation environments. Engineers specify this module across a wide range of sectors and applications:
- Automotive Manufacturing — Body-in-white assembly lines, robotic welding cells, and conveyor interlocking systems where fast, reliable discrete signal acquisition is critical.
- Packaging & Material Handling — High-speed bottling, cartoning, and palletizing lines requiring sub-millisecond input response to synchronize motion sequences.
- Process & Chemical Plants — Valve position feedback, pump status monitoring, and safety interlock circuits in continuous-process environments.
- Water & Wastewater Treatment — Level switch inputs, flow-switch monitoring, and pump run/fault feedback across distributed pump stations.
- Machine Tool & CNC — Limit switch acquisition, tool-change confirmation, and door-interlock monitoring on machining centers.
- Building Automation & Infrastructure — Fire-alarm dry-contact inputs, access-control status, and HVAC damper-position feedback in large facilities.
- Energy & Power Distribution — Breaker status, relay feedback, and protection-relay trip signals in MV/LV switchgear panels.
Technical Specifications
| Parameter | Value |
|---|---|
| Order Number | 6ES7521-1BL00-0AB0 |
| Module Type | SM 521 — Digital Input, High Feature |
| Compatible System | SIMATIC S7-1500 / ET 200MP |
| Number of Inputs | 32 × DI |
| Input Voltage | 24 V DC |
| Input Current (per channel) | Typ. 4.5 mA |
| Input Delay (configurable) | 0.05 ms / 0.1 ms / 0.4 ms / 1.6 ms / 3.2 ms / 12.8 ms |
| Isochronous Mode | Supported |
| Diagnostics | Wire-break, short-circuit, missing encoder supply |
| Backplane Bus Current Draw | Max. 80 mA (5 V DC) |
| Power Supply (encoder) | 24 V DC, max. 0.5 A per group |
| Degree of Protection | IP20 |
| Operating Temperature | 0 °C … +60 °C (horizontal), 0 °C … +40 °C (vertical) |
| Dimensions (W × H × D) | 35 mm × 147 mm × 129 mm |
| Weight | Approx. 280 g |
| Firmware | V2.0 and above |
Why Engineers Specify This Model
- High-Feature (HF) Designation — Supports isochronous real-time (IRT) operation via PROFINET, enabling deterministic cycle synchronization for motion-critical applications.
- Configurable Input Filters — Six selectable input delay settings from 0.05 ms to 12.8 ms allow engineers to balance noise immunity against response speed per channel group.
- Channel-Level Diagnostics — Wire-break and short-circuit detection per channel reduces mean time to repair (MTTR) by pinpointing faults without panel inspection.
- 32-Channel Density — High channel count in a 35 mm wide module minimizes rack footprint and wiring cost compared to lower-density alternatives.
- ET 200MP Compatibility — Identical module used in both centralized S7-1500 racks and distributed ET 200MP I/O stations, simplifying spare-parts inventory.
- TIA Portal Integration — Full parameter assignment, online diagnostics, and firmware update via STEP 7 / TIA Portal V13 SP1 and above.
Complete System Bill of Materials
A typical S7-1500 discrete input station using this module requires the following components:
- CPU 1511-1 PN (6ES7511-1AK02-0AB0) or higher — S7-1500 central processing unit
- 6ES7521-1BL00-0AB0 — SM 521 DI 32×24VDC HF (this module)
- Front connector 40-pin (6ES7592-1AM00-0XB0) — screw or push-in type
- Shield connecting element (6ES7590-1AB60-0AA0) — for shielded cable termination
- PS 60W 24/48/60V DC HF (6EP1333-4BA00) — system power supply
- PM 70W 120/230V AC (6EP1332-4BA00) — load power supply for 24 V DC field devices
- U-connector (6ES7590-1AE80-0AA0) — backplane bus connector
- Mounting rail (6ES7590-1BC00-0AA0) — 482.6 mm (19″) or cut-to-length
Compliance & Industry Standards
- CE Marking — Complies with EU Low Voltage Directive and EMC Directive
- UL / cUL Listed — UL 508 Industrial Control Equipment
- IEC 61131-2 — Programmable controllers — Equipment requirements and tests
- PROFINET — Conformance Class B (CC-B) certified
- RoHS — Restriction of Hazardous Substances compliant
- ATEX / IECEx — Suitable for use in Zone 2 hazardous areas when installed per Siemens application note
- Marine Approvals — GL, DNV, BV, LR (consult Siemens certificate database for current validity)
Quality Assurance & Sourcing
Konmask.com sources industrial automation components through verified supply channels with full traceability. Every unit of 6ES7521-1BL00-0AB0 offered on this listing is subject to the following quality controls:
- Visual inspection against Siemens OEM packaging and label standards
- Firmware version verification prior to dispatch
- Functional power-on test where applicable
- Anti-static packaging and humidity-indicator cards for long-haul shipments
- Full documentation package: datasheet, EU Declaration of Conformity, and packing list
We do not list products of unknown provenance. If you require a Certificate of Origin or third-party inspection report, please contact us before placing your order.
How to Source This Part
- Request a Quote — Email support@konmask.com with your required quantity, delivery timeline, and destination country.
- Bulk / Project Orders — Volume pricing is available for orders of 5 units or more. Provide your BOM for a consolidated project quotation.
- Lead Time — In-stock units ship within 2 business days. Ex-stock lead time for larger quantities is typically 7–15 business days depending on origin warehouse.
- Payment — T/T (bank transfer), PayPal, and trade-finance options available for qualified buyers.
- Export Compliance — This product may be subject to export control regulations. Buyers are responsible for compliance with applicable laws in their jurisdiction.
Application-Specific FAQ
Q: Can this module be used with an ET 200MP distributed I/O station without a local S7-1500 CPU?
A: Yes. The 6ES7521-1BL00-0AB0 is fully compatible with the ET 200MP interface module (IM 155-5 PN ST/HF) and operates identically whether mounted in a central S7-1500 rack or a remote ET 200MP station.
Q: What is the minimum input pulse width the module can reliably detect?
A: With the input filter set to 0.05 ms, the module can reliably detect pulses as short as 0.1 ms (100 µs), making it suitable for high-speed encoder or proximity-switch applications.
Q: Does this module support hardware interrupts?
A: Yes. The HF variant supports hardware interrupts (rising edge, falling edge, or both) configurable per channel group in TIA Portal, enabling event-driven program execution without polling overhead.
Q: Is the module compatible with STEP 7 Classic (non-TIA Portal)?
A: No. The S7-1500 platform and this module require TIA Portal V13 SP1 or later. STEP 7 Classic (V5.x) is not supported.
Q: Can I mix 24 V DC sensors with different current ratings on the same module?
A: Yes, provided each sensor’s output current falls within the 2 mA (min.) to 15 mA (max.) IEC 61131-2 Type 1/3 input specification. Verify sensor output current against the module’s input characteristic curve in the Siemens manual (A5E03484347).
Q: What spare-part strategy do you recommend for a production line using this module?
A: For lines with more than four SM 521 modules, we recommend holding one cold-standby spare per eight modules installed. For critical single-point-of-failure positions, consider a hot-standby configuration using S7-1500 H redundancy CPUs.
