TDK TAS-CPU TAS-MAIN REV.4.10 | 653B-21801 / 0100-20157 WAFER FOUP Load Port Controller | Replacement, Equivalent & Selection Guide

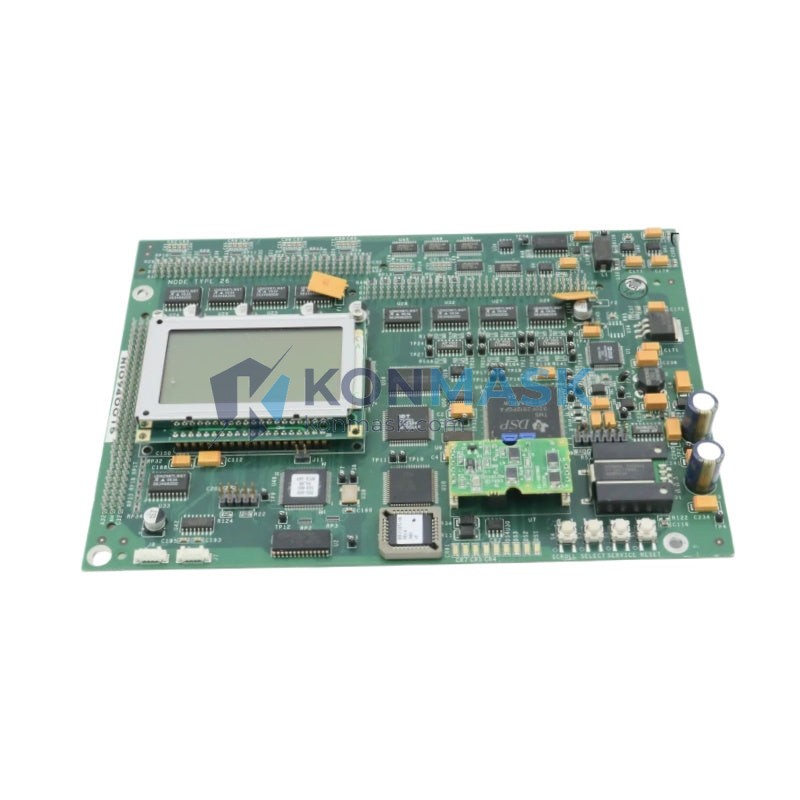

The TDK TAS-CPU TAS-MAIN REV.4.10 (Part Numbers: 653B-21801 / 0100-20157) is the central CPU and main control board for TDK WAFER FOUP Load Port systems. Designed for semiconductor front-end automation, this module manages FOUP docking sequences, E84 handshake communication, door open/close control, and real-time status monitoring. Konmask.com supplies both OEM-original and verified-equivalent units to minimize fab downtime.
Technical Specifications
- Manufacturer: TDK Corporation
- Model / Board Name: TAS-CPU TAS-MAIN
- Revision: REV.4.10
- Part Numbers: 653B-21801 / 0100-20157
- Function: CPU & Main Control Board for WAFER FOUP Load Port
- Communication Protocol: SEMI E84 (Active / Passive), SEMI E87
- Interface: Internal bus to TAS-MAIN sub-boards; external I/O to fab host
- Operating Voltage: 24 VDC (typical, system-supplied)
- Form Factor: PCB module, rack/chassis mount
- Weight: Approx. 800 g (board + housing)
- Origin: Japan
- Condition Available: OEM New / Tested Refurbished / Exchange
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct replacements depending on firmware revision and system generation:
- TDK TAS-CPU REV.3.xx series (earlier firmware — confirm compatibility)
- TDK TAS-CPU REV.4.00 / REV.4.05 (same hardware platform, firmware upgrade may be required)
- TDK 653B-21800 (predecessor part number — verify connector pinout)
- TDK 0100-20156 (alternate BOM reference for same assembly)
- Equivalent third-party FOUP Load Port CPU boards (E84-compliant, 24 VDC, same I/O mapping) — contact Konmask for cross-reference
Always verify PCB revision, firmware version, and connector layout before substitution. Konmask engineers can assist with compatibility confirmation.
Why Choose the Original TDK TAS-CPU TAS-MAIN REV.4.10
- OEM Precision: Factory-programmed firmware ensures full SEMI E84/E87 compliance without re-calibration
- Proven Reliability: Validated in high-volume 200 mm / 300 mm wafer fab environments
- Plug-and-Play Replacement: Direct drop-in for existing TDK FOUP Load Port chassis — no wiring modification
- Reduced Qualification Risk: OEM part eliminates re-qualification burden vs. third-party alternatives
- Long Service Life: Industrial-grade components rated for continuous 24/7 fab operation
Typical Applications
- 300 mm / 200 mm FOUP Load Port front-end automation (EFEM)
- Semiconductor wafer fab material handling systems
- Cluster tool and track system integration
- Lithography, CVD, PVD, and etch equipment front-end interfaces
- Automated Material Handling System (AMHS) load port nodes
System Compatibility
- Host Interface: SEMI E84 Active/Passive, compatible with fab MES/MCS controllers
- FOUP Standards: SEMI E47.1, SEMI E62 (300 mm); SEMI E19 (200 mm)
- Load Port Generations: TDK FOUP Load Port series using TAS-MAIN backplane architecture
- Firmware: REV.4.10 — confirm host-side E84 timing parameters match fab recipe
Selection Guide
Use the table below to select the correct module for your application:
- Need OEM drop-in replacement? → Order TDK 653B-21801 (REV.4.10) directly
- Running REV.3.xx system? → Contact Konmask to confirm firmware cross-compatibility before ordering
- Need cost-optimized equivalent? → Request Konmask cross-reference list for E84-compliant third-party CPU boards
- Emergency / AOG situation? → Inquire about exchange program for same-day dispatch of tested refurbished units
- Unsure of part number? → Send us your load port model number or PCB photo; our engineers will identify the correct module
Quality Assurance & Sourcing
- All units inspected and function-tested prior to shipment
- Sourced from authorized distributors, OEM overstock, or decommissioned fab equipment
- Refurbished units include full I/O functional test and E84 handshake verification
- Traceability documentation available upon request
- Packaging: ESD-safe anti-static bag + foam-lined carton
How to Order
- Online: Add to cart directly on this page
- Email: support@konmask.com — include part number, quantity, and required condition (new / refurbished / exchange)
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Payment: T/T (Wire Transfer), PayPal, credit card via Shopify Payments
- Export: Worldwide shipping available; export documentation provided
Replacement & Compatibility FAQ
Q: Can TAS-CPU REV.4.10 replace REV.3.xx directly?
A: Hardware connectors are typically compatible, but firmware differences may require host-side E84 timing adjustment. Contact us for a compatibility assessment.
Q: Is 653B-21801 the same as 0100-20157?
A: Yes — these are dual part numbers for the same assembly (TDK internal BOM vs. customer-facing part number).
Q: Do you offer a warranty on refurbished units?
A: Yes, 90-day functional warranty on all tested refurbished units. New OEM units carry standard manufacturer warranty.
Q: Can you supply the TAS-MAIN backplane separately?
A: Yes. Contact us with your system configuration for backplane and sub-board availability.
Q: What if my part number is not listed?
A: Send us your PCB photo or equipment model number — our team will identify and source the correct module.
