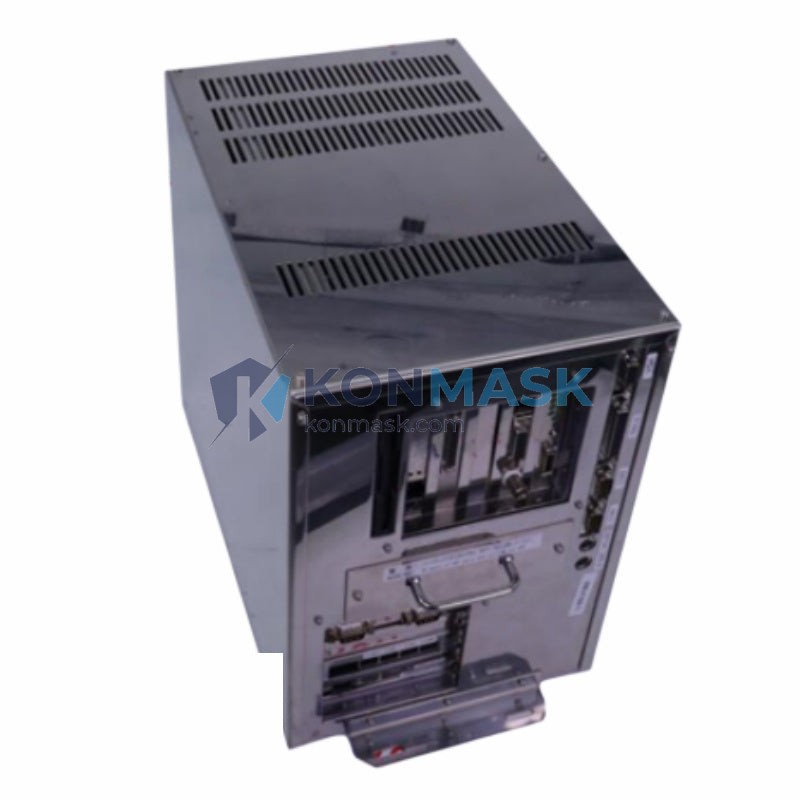

Semiconductor Process Control Solution — TEL TOKYO ELECTRON 2986-411806-11 | System Control Unit
Where This Product Is Used
The TEL TOKYO ELECTRON 2986-411806-11 System Control Unit (SCU) is a mission-critical controller deployed in advanced semiconductor fabrication environments. Typical installation sites include:
- CVD / Etch / Diffusion Process Chambers — coordinates recipe execution, gas flow sequencing, and endpoint detection across TEL process tools.
- 300mm Wafer Fab Lines — integrates with EFEM, load-lock, and transfer modules to maintain wafer-level process integrity.
- Cluster Tool Platforms — serves as the central orchestration node for multi-chamber TEL systems (e.g., Trias, Tactras, Vigus series).
- Spare Parts Inventory for Fab Maintenance — held as a critical spare to minimize unplanned downtime in high-OEE production environments.
Technical Specifications
- Part Number: 2986-411806-11
- Manufacturer: TEL TOKYO ELECTRON
- Component Type: System Control Unit (SCU)
- Form Factor: PCB / Rack-mount module (OEM configuration)
- Weight: 200 g (approx.)
- Compatibility: TEL semiconductor process equipment platforms
- Condition: New / Refurbished / Used — specify at inquiry
- Lead Time: Subject to stock availability — contact for confirmation
Why Engineers Specify This Model
- OEM-Matched Performance: Designed and validated by TEL for use in their own process tools — no compatibility guesswork.
- Process Stability: Maintains deterministic control timing critical for sub-nanometer process nodes.
- Drop-in Replacement: Retains original firmware interface and I/O pinout — minimizes re-qualification time during maintenance windows.
- Reduced MTTR: Stocking this SCU as a spare directly reduces mean-time-to-repair for high-value fab equipment.
- Trusted Supply Chain: Sourced through verified industrial channels — not grey-market or counterfeit risk.
Complete System Bill of Materials
The 2986-411806-11 SCU typically operates alongside the following TEL system components. Contact Konmask for availability on any of these parts:
- TEL I/O Interface Boards (process chamber signal routing)
- TEL Power Distribution Units (PDU) for tool rack
- TEL Communication Bus Modules (SECS/GEM, EtherCAT)
- TEL Sensor Interface Cards (pressure, temperature, flow)
- TEL HMI / Operator Panel assemblies
- Replacement cables and harness assemblies for SCU interconnects
Compliance & Industry Standards
- SEMI S2 — Environmental, Health & Safety guidelines for semiconductor manufacturing equipment
- SEMI E10 — Equipment reliability, availability, and maintainability (RAM) standard
- SEMI E30 / SECS-II — Equipment communication standard compatibility (host-level integration)
- RoHS Directive — Restriction of hazardous substances compliance (confirm per lot)
- CE Marking — Where applicable per OEM documentation
Quality Assurance & Sourcing
- All units are inspected prior to shipment — visual, functional, and label verification.
- Traceability documentation available upon request (serial number, lot, revision).
- Sourced from decommissioned fab equipment, authorized distributors, or OEM surplus — clearly disclosed per order.
- Packaging: ESD-safe anti-static bag + foam-lined carton for international transit.
- Export compliance: HS Code classification and export license review conducted for controlled destinations.
How to Source This Part
- Submit an Inquiry — Email support@konmask.com or call +0086 19859288691 with your part number and required quantity.
- Receive Stock Confirmation — Our team verifies current inventory, condition grade, and lead time within 1 business day.
- Review Quotation — Formal quotation issued with unit price, shipping terms (EXW/FOB/DDP), and payment options.
- Place Order & Ship — Order confirmed upon payment; dispatched with tracking and packing documentation.
- After-Sales Support — Technical questions and warranty claims handled directly by Konmask specialists.
Application-Specific FAQ
Q: Is the 2986-411806-11 compatible with all TEL tool generations?
A: Compatibility depends on the specific tool model and firmware revision. Please provide your tool model number when inquiring so we can confirm fitment.
Q: Can you supply this part with a warranty?
A: Yes. Warranty terms (30–90 days functional guarantee) are available on refurbished units. New OEM units carry standard manufacturer warranty where applicable.
Q: Do you offer exchange / repair services for faulty SCUs?
A: Yes — board-level repair and exchange programs are available. Contact us with your defective unit details for a repair quotation.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. Out-of-stock items are sourced within 2–6 weeks depending on market availability.
Q: Can you assist with customs clearance for international orders?
A: Yes. Konmask provides full export documentation including commercial invoice, packing list, and HS code declaration for smooth customs clearance.
