Safety Shutdown Solution – TRICONEX 3601E | Tricon Series
Where This Product Is Used

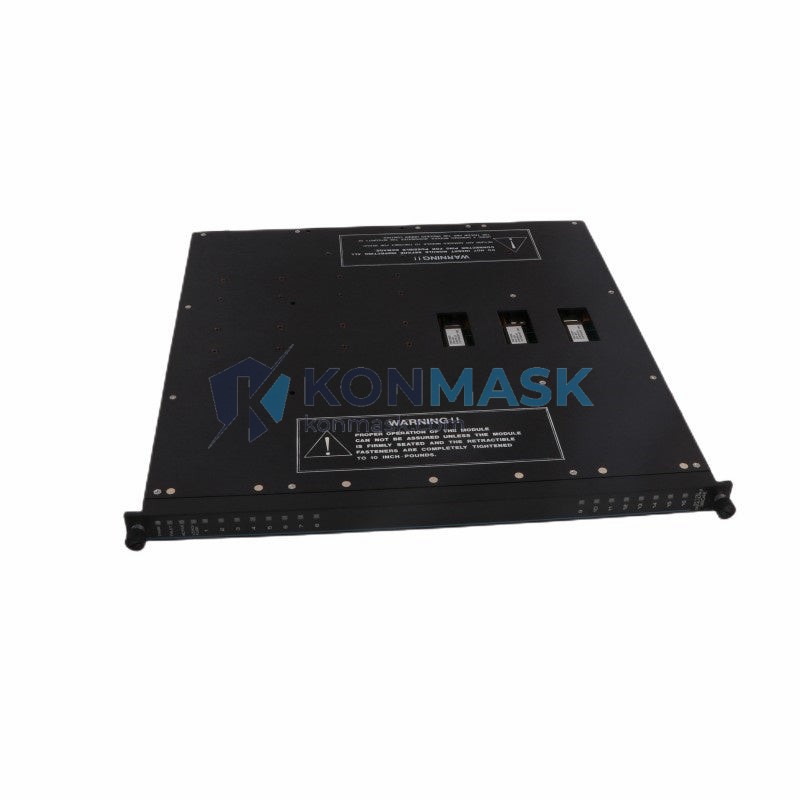

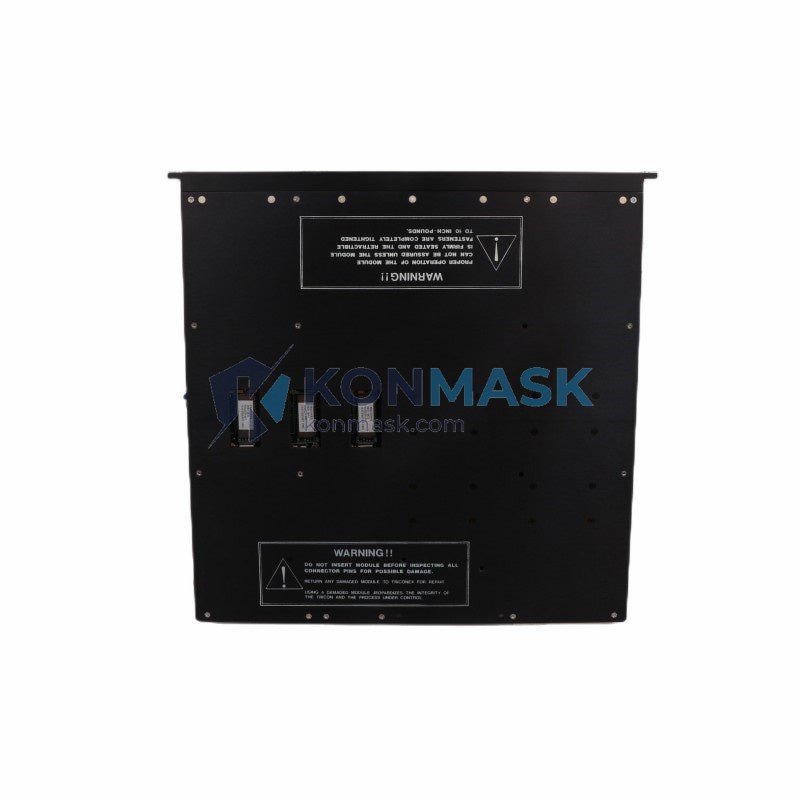

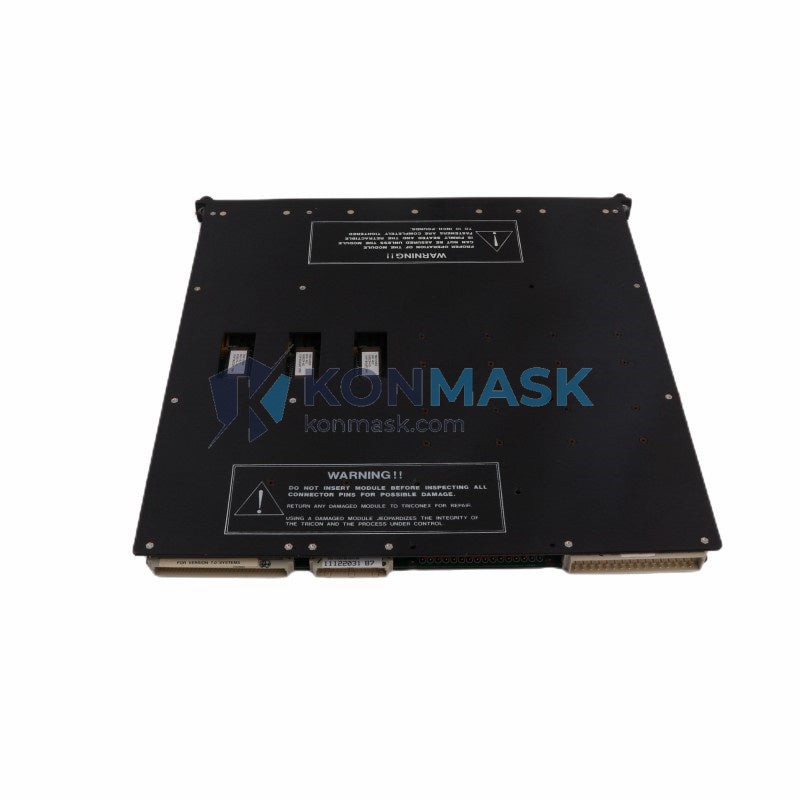

The TRICONEX 3601E is a 32-channel digital output module engineered for deployment in Safety Instrumented Systems (SIS) operating under the most demanding process-industry environments. Typical installation sites include:
- Oil & Gas – Upstream: Wellhead Emergency Shutdown (ESD) panels, Christmas tree valve actuation, and subsea control interface cabinets.
- Oil & Gas – Downstream & Refining: Fired-heater burner management systems (BMS), compressor anti-surge and shutdown logic, and crude-distillation unit safety layers.
- LNG & Gas Processing: Liquefaction train ESD, boil-off gas compressor protection, and loading-arm interlock systems.
- Petrochemical & Chemical Plants: Reactor runaway prevention, high-integrity pressure protection systems (HIPPS), and toxic-gas release mitigation.
- Power Generation: Turbine overspeed protection output actuation, boiler drum-level ESD, and generator protection relay driving.
- Offshore Platforms: Fire & Gas (F&G) system output modules, deluge valve control, and platform ESD logic solvers.
- Pipeline & Terminal Operations: Block-valve actuator control, pig-launcher interlock, and metering station shutdown.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3601E |
| Manufacturer | TRICONEX (Schneider Electric) |
| Module Type | Digital Output (DO) |
| Output Channels | 32 channels |
| Output Voltage | 24 V DC (sourcing) |
| Output Current per Channel | Up to 0.5 A |
| Architecture | Triple Modular Redundant (TMR) – 3 independent output voters |
| Safety Integrity Level | SIL 3 (IEC 61511 / IEC 61508) |
| Backplane Compatibility | Tricon v9 / v10 main chassis |
| Diagnostic Coverage | > 99% (online self-test, voter comparison) |
| MTBF | > 500,000 hours |
| Operating Temperature | 0 °C to +60 °C |
| Humidity | 5% – 95% RH, non-condensing |
| Weight | 3,750 g (module + field termination assembly) |
| Hot-Swap / Online Replacement | Yes – no process interruption |
| Firmware Upgrade | Online, without shutdown |
Why Engineers Specify This Model
- True TMR Voting: Three independent output channels vote 2-out-of-3 (2oo3) before energising any field device, eliminating single-point failures that would cause spurious trips or dangerous non-response.
- Online Diagnostics: Continuous self-test detects open-circuit, short-circuit, and voter-disagreement faults without interrupting the running process — critical for plants targeting > 99.9% availability.
- Hot-Swap Replacement: Modules can be removed and reinserted under power, enabling corrective maintenance during operation and supporting zero-downtime maintenance philosophies.
- Proven Field History: The Tricon platform has accumulated tens of millions of operating hours across global SIS installations; the 3601E is a direct-fit replacement for legacy 3601 modules, protecting existing capital investment.
- Deterministic Scan Time: Fixed-cycle execution ensures output response latency is predictable and documentable for SIL verification calculations.
- Galvanic Isolation: Each output channel is optically isolated from the logic bus, protecting the controller from field-side transients and ground loops common in heavy-industrial environments.
Complete System Bill of Materials
A typical Tricon SIS node incorporating the 3601E includes the following components. Contact Konmask for bundle pricing:
- Tricon Main Chassis (e.g., 3700A or 3706A) – backplane and power distribution
- Tricon Communication Module (e.g., 4351B / 4352B) – Modbus, OPC, or DeltaV integration
- Tricon Power Supply Module (e.g., 8312) – redundant 24 V DC input
- 3601E Digital Output Module – this item
- Tricon Digital Input Module (e.g., 3501E / 3503E) – field sensor interface
- Field Termination Assembly (FTA) – marshalling panel wiring interface
- TriStation 1131 Engineering Workstation License – IEC 61131-3 programming
- Solenoid Valve / Actuator Interface Relay (customer-supplied, per loop)
Compliance & Industry Standards
- IEC 61508 – Functional Safety of E/E/PE Safety-Related Systems (SIL 3 certified)
- IEC 61511 – Functional Safety for the Process Industry Sector
- IEC 61131-2 – Programmable Controllers: Equipment Requirements and Tests
- ATEX / IECEx – Suitable for use in Zone 2 / Class I Div 2 hazardous areas (verify FTA rating)
- TÜV Rheinland – Third-party SIL 3 assessment certificate available on request
- CE Marking – EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- RoHS Compliant – Directive 2011/65/EU
Quality Assurance & Sourcing
Konmask sources TRICONEX 3601E modules exclusively through authorised distribution channels and verified surplus-market partners with full traceability documentation. Every unit offered undergoes the following before dispatch:
- Visual inspection: label integrity, connector condition, no physical damage
- Firmware version verification against TRICONEX release matrix
- Functional power-on test where test-bench infrastructure permits
- Anti-static packaging with humidity indicator card
- Certificate of conformance (CoC) issued per shipment
Lead time for in-stock units: 1–3 business days (Hong Kong warehouse). For urgent plant-shutdown requirements, same-day DHL Express dispatch is available — contact us before 14:00 HKT.
How to Source This Part
- Confirm compatibility: Provide your Tricon chassis model and firmware version. Our engineers will verify the 3601E is a direct fit.
- Request a quotation: Email support@konmask.com or call +0086 198 5928 8691 with your required quantity and delivery timeline.
- Place order: Purchase directly on this page (credit card, T/T wire transfer, or Alibaba Trade Assurance accepted) or via a formal PO for B2B accounts.
- Receive & verify: Each shipment includes packing list, CoC, and tracking number. Our team remains available post-delivery for installation queries.
Application-Specific FAQ
Q: Is the 3601E backward-compatible with the original 3601 module?
A: Yes. The 3601E is a direct drop-in replacement for the 3601 in all Tricon v9 and v10 chassis. No firmware or configuration changes are required.
Q: Can this module be used in a SIL 2 application?
A: Absolutely. A SIL 3-rated module exceeds SIL 2 requirements and is routinely deployed in SIL 2 loops where the higher diagnostic coverage improves overall PFD calculations.
Q: What is the maximum cable length to field devices?
A: TRICONEX recommends a maximum of 1,000 m for 24 V DC output loops with appropriate cable cross-section. Consult the Tricon Planning and Installation Guide (document 9600-1) for derating curves.
Q: Do you supply the Field Termination Assembly (FTA) separately?
A: Yes. Compatible FTAs (e.g., 3601-100) are available. Please specify when requesting a quotation so we can confirm stock and bundle pricing.
Q: What warranty is provided?
A: Konmask offers a 12-month warranty against manufacturing defects on all modules. Advance replacement is available for critical-plant customers under a service agreement.
