Yaskawa AB-PCI-PRT-S (AB3609-C) PROFIBUS Communication Board | Replacement, Equivalent & Selection Guide

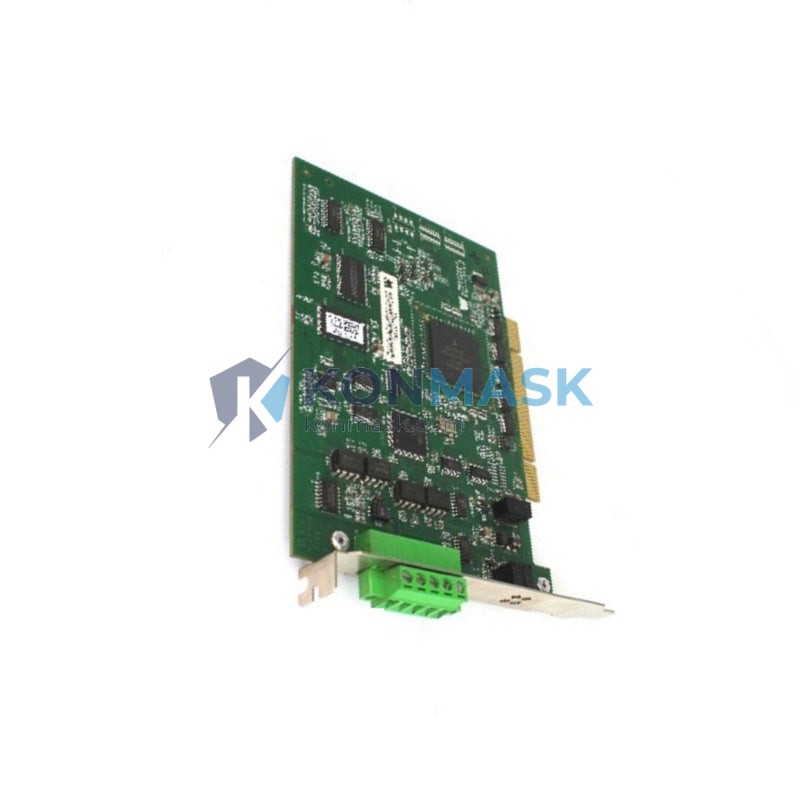

The Yaskawa AB-PCI-PRT-S (part number AB3609-C) is a dedicated PROFIBUS-DP communication option board designed for Yaskawa AC drives and servo systems. It enables seamless integration into PROFIBUS-DP fieldbus networks, allowing real-time parameter control, monitoring, and diagnostics from a PLC or DCS master. Konmask.com supplies genuine and compatible units with full traceability for industrial automation environments.
Technical Specifications
- Manufacturer: Yaskawa Electric Corporation
- Part Number: AB-PCI-PRT-S / AB3609-C
- Type: PROFIBUS-DP Communication Option Board
- Series: A1000 / V1000 / E7 / F7 / G7 Compatible Option
- Fieldbus Protocol: PROFIBUS-DP (EN 50170 / IEC 61158)
- Baud Rate: 9.6 kbps – 12 Mbps (auto-detect)
- Node Address: 1–125 (configurable via DIP switch)
- Connector: 9-pin D-Sub (DB9)
- Power Supply: Supplied via drive option port (no external power required)
- Weight: 560 g (packaged)
- Country of Origin: Japan
- Compliance: CE, UL
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the Yaskawa AB-PCI-PRT-S. Always verify firmware version and drive series compatibility before substitution.
- Yaskawa SI-P3/V – PROFIBUS-DP option for V1000 series (direct functional equivalent for V1000 applications)
- Yaskawa SI-P3 – PROFIBUS-DP option for A1000 / E7 / F7 / G7 series
- Yaskawa CM091 – Legacy PROFIBUS communication card (older E7/G7 platforms)
- Anybus X-gateway AB7000 – Protocol gateway for PROFIBUS-DP to other fieldbus conversion (third-party bridge solution)
- Hilscher CIFX 50-PB – PCI PROFIBUS master/slave card (system-level replacement in PC-based control)
Note: Third-party equivalents may require additional configuration. Konmask recommends using genuine Yaskawa option boards for warranty-critical applications.
Why Choose the Original Model
- Plug-and-play integration with Yaskawa drive option slots — no external wiring or power supply needed
- Factory-validated GSD file for seamless PLC/DCS master configuration (Siemens, Rockwell, Schneider, etc.)
- Full parameter access via PROFIBUS: speed reference, torque limit, fault reset, status monitoring
- Guaranteed firmware compatibility with Yaskawa A1000, V1000, E7, F7, and G7 drive families
- CE & UL certified — meets global industrial safety standards
- Backed by Yaskawa’s global service network and Konmask’s sourcing traceability
Typical Applications
- PROFIBUS-DP fieldbus integration for Yaskawa AC drives in manufacturing lines
- Centralized drive control from Siemens S7 / TIA Portal PLC systems
- Process automation in chemical, water treatment, and HVAC plants
- Conveyor, pump, and fan speed control via PROFIBUS master
- Retrofit of legacy E7/F7/G7 drives into modern PROFIBUS networks
- Multi-axis coordination in packaging and material handling systems
System Compatibility
- Yaskawa Drives: A1000, V1000, E7, F7, G7 series (verify option slot type before ordering)
- PROFIBUS Masters: Siemens S7-300/400/1500, Schneider Modicon, Rockwell ControlLogix (via gateway), ABB AC500
- Engineering Tools: Siemens STEP 7, TIA Portal, Yaskawa DriveWizard Industrial
- GSD File: Available for download — contact Konmask support for the latest version
Selection Guide
Use the table below to select the correct PROFIBUS option board for your Yaskawa drive series:
- A1000 series → SI-P3 or AB-PCI-PRT-S (AB3609-C) ✓
- V1000 series → SI-P3/V (dedicated V1000 option slot)
- E7 / F7 / G7 series → AB-PCI-PRT-S (AB3609-C) ✓ or CM091 (legacy)
- J1000 / J7 series → No native PROFIBUS option; use external gateway
- GA700 / GA800 series → SI-EP3 (newer generation option board)
If you are unsure which option board fits your drive, send us your drive nameplate data and we will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified industrial surplus with full traceability
- Inspection: Each unit visually inspected and function-verified before shipment
- Packaging: Anti-static ESD packaging with original or equivalent protective materials
- Documentation: Certificate of conformity and packing list included on request
- Warranty: 12-month warranty against manufacturing defects
How to Order
- Part Number: AB-PCI-PRT-S / AB3609-C
- MOQ: 1 unit
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Payment: T/T, PayPal, credit card accepted
- Shipping: DHL / FedEx / UPS worldwide express available
- Add to cart directly, or contact support@konmask.com for bulk pricing and technical pre-sales support
Replacement & Compatibility FAQ
Q: Can AB-PCI-PRT-S replace SI-P3 directly?
A: Both are PROFIBUS-DP option boards for Yaskawa drives, but they are designed for different drive generations. AB-PCI-PRT-S targets E7/F7/G7/A1000; SI-P3 is the current A1000 standard option. Verify the option slot type on your drive before substituting.
Q: Is a GSD file available for this board?
A: Yes. Contact Konmask support and we will provide the correct GSD file for your PROFIBUS master configuration.
Q: Can I use this board with a Siemens S7-1500 PLC?
A: Yes, via PROFIBUS-DP. Import the GSD file into TIA Portal and configure the drive as a DP slave device.
Q: What is the difference between AB-PCI-PRT-S and AB3609-C?
A: AB3609-C is the Yaskawa internal assembly/revision code for the AB-PCI-PRT-S communication board. They refer to the same physical product.
Q: Do you supply new or refurbished units?
A: Konmask supplies both new-in-box and inspected surplus units. Stock type is indicated at checkout. Contact us if you require new-only supply.
