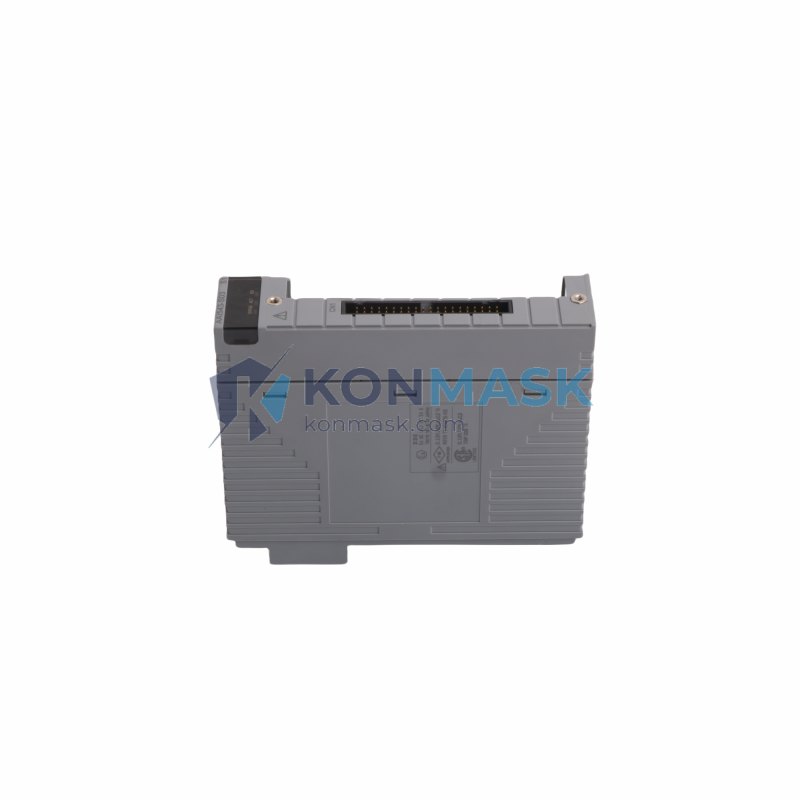

Yokogawa AAI543-S03 S1 – 8-Channel Analog Output Module | CENTUM VP / CS 3000 Platform
Engineering Background
The Yokogawa AAI543-S03 S1 is a high-precision analog output module engineered for the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to meet the rigorous demands of continuous process industries, this module delivers stable, isolated 4–20 mA current loop outputs across 8 independent channels, enabling precise field device actuation in refining, petrochemical, power generation, and advanced manufacturing environments.
Product Positioning
As a field-proven I/O card within Yokogawa’s flagship DCS architecture, the AAI543-S03 S1 is the preferred choice for procurement engineers requiring drop-in replacement compatibility, long-term platform support, and traceable quality assurance. Konmask.com supplies this module as a verified, tested unit with full documentation support.
Complete Technical Specifications
- Part Number: AAI543-S03 S1
- Manufacturer: Yokogawa Electric Corporation
- Module Type: Analog Output (AO)
- Platform Compatibility: CENTUM VP, CENTUM CS 3000
- Number of Channels: 8 channels
- Output Signal: 4–20 mA DC (current loop)
- Output Resolution: 16-bit D/A conversion
- Isolation: Channel-to-channel and channel-to-bus isolation
- Load Resistance: 0–750 Ω (typical)
- Power Supply: Supplied via DCS backplane bus
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 320 g
- Suffix -S03: CE marking / safety compliance variant
- Suffix S1: Standard hardware revision
- Certifications: CE, UL (platform-level)
- Form Factor: Single-slot I/O module for CENTUM VP node unit
Proven Application Environments
- Oil & Gas Refining: Control valve positioner actuation, flow control loops
- Petrochemical Plants: Reactor temperature and pressure setpoint output
- Power Generation: Turbine governor and boiler control signal output
- Pulp & Paper: Consistency and flow ratio control
- Pharmaceutical Manufacturing: Batch process parameter actuation
- Water Treatment: Dosing pump and valve control
- Steel & Metals: Furnace temperature setpoint transmission
Engineering Advantages
- 16-bit Resolution: Delivers 0.0015% full-scale output accuracy for tight loop control
- Full Channel Isolation: Eliminates ground loop interference in multi-device field wiring
- Hot-Swap Capable: Supports online replacement within CENTUM VP node without process interruption
- Integrated Diagnostics: Self-monitoring with fault reporting to DCS HMI via system bus
- Compact Single-Slot Design: Maximizes I/O density in existing node unit enclosures
- Long Product Lifecycle: Yokogawa’s sustained platform support ensures multi-decade availability
- NAMUR NE 43 Compliant: Standardized signal range for fault state indication
System Architecture & Signal Flow
The AAI543-S03 S1 interfaces directly with the CENTUM VP Field Control Station (FCS) via the node unit backplane. Engineering setpoints generated by the FCS control application are transmitted over the internal bus to the module’s D/A converter, which produces precision 4–20 mA current outputs to field-mounted actuators (control valves, variable speed drives, positioners). Each channel operates independently with dedicated output circuitry, ensuring cross-channel isolation and eliminating common-mode interference. The module reports output status and diagnostic data back to the FCS in real time.
Sourcing & Quality Verification
- Source: Decommissioned plant surplus and authorized distributor stock
- Inspection: Each unit undergoes visual inspection, functional power-on test, and output signal verification across all 8 channels
- Firmware/Hardware Revision: Suffix S1 confirmed and documented
- Packaging: Anti-static ESD bag with foam cushioning, double-boxed for international freight
- Documentation: Yokogawa datasheet and test report available upon request
- Warranty: 90-day functional warranty from Konmask.com
Procurement Process
- Submit your RFQ or place order directly on Konmask.com
- Receive order confirmation and stock availability within 24 hours
- Unit inspected and test report issued prior to shipment
- Shipped via DHL / FedEx / UPS with full tracking; export documentation (commercial invoice, packing list, COO) included
- Lead time: In-stock units ship within 3–5 business days; sourced units 7–15 business days
Technical FAQ
Q: Is the AAI543-S03 S1 compatible with CENTUM CS 3000?
A: Yes. The AAI543 series is cross-compatible with both CENTUM CS 3000 and CENTUM VP node units sharing the same backplane standard.
Q: Can this module be replaced online without shutting down the FCS?
A: Yes. CENTUM VP supports hot-swap I/O replacement. Consult your site safety procedures before performing online module exchange.
Q: What is the difference between -S03 and other suffix variants?
A: The -S03 suffix denotes CE marking compliance for European market deployment. Functionally, the module is identical to non-suffixed variants.
Q: Do you provide a test report with each unit?
A: Yes. A functional test report covering all 8 output channels is available upon request at time of order.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume pricing available for orders of 3+ units — contact us for a quote.
