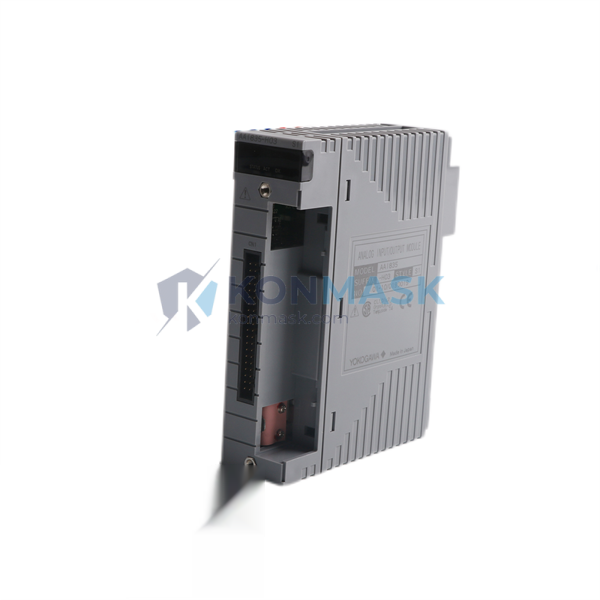

YOKOGAWA AAI835-H03 S1 — 8-Channel Analog Input Module | CENTUM VP / CS 3000 Platform
Engineering Background
The AAI835-H03 S1 is a field-proven analog input module designed for Yokogawa’s CENTUM VP and CS 3000 Distributed Control Systems — the backbone of process automation in refining, petrochemical, power generation, and pharmaceutical industries worldwide. Built to IEC 61508 functional safety standards, this module delivers deterministic signal acquisition with the reliability demanded by continuous-process environments.
Product Positioning
Targeting instrumentation and control engineers who require drop-in replacement or capacity-expansion modules for existing CENTUM VP / CS 3000 installations, the AAI835-H03 S1 provides 8 isolated analog input channels with universal 4–20 mA support and optional HART pass-through — eliminating the need for external signal conditioners and reducing panel footprint.
Complete Technical Specifications
| Model | AAI835-H03 S1 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Analog Input (AI) |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Number of Channels | 8 channels (isolated) |
| Input Signal Range | 4–20 mA DC (standard); 1–5 V DC (optional) |
| HART Communication | HART 5 / HART 7 pass-through supported |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale |
| Scan Cycle | 100 ms (standard) |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Consumption | ≤ 4.5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 320 g |
| Certifications | CE, UL, IEC 61508 SIL 2 capable |
| Suffix -H03 | HART communication enabled |
| Suffix S1 | Standard build with conformal coating |
| Part Number | AAI835-H03 S1 |
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, midstream pipeline SCADA integration, downstream refinery DCS expansion
- Petrochemical & Chemical: Reactor temperature and pressure loop acquisition in continuous-process plants
- Power Generation: Boiler and turbine analog signal marshalling in coal, gas, and nuclear facilities
- Pharmaceutical & Biotech: FDA 21 CFR Part 11-compliant batch process monitoring
- Pulp & Paper / Water Treatment: Multi-loop analog acquisition in utility and environmental control systems
Engineering Advantages
- True Channel Isolation: Eliminates ground-loop interference across all 8 channels — critical in electrically noisy industrial environments.
- HART Pass-Through: Enables simultaneous 4–20 mA process value acquisition and HART device diagnostics without additional multiplexers.
- Hot-Swap Capable: Module can be replaced under power within the CENTUM VP I/O nest, minimizing process downtime during maintenance.
- 16-Bit Resolution: Delivers ±0.1% full-scale accuracy — suitable for precision control loops and regulatory compliance measurements.
- SIL 2 Capable: Supports functional safety architectures per IEC 61508, enabling use in safety-instrumented systems with appropriate SIS design.
- Conformal Coating (S1): Factory-applied coating protects PCB against humidity, condensation, and corrosive atmospheres in coastal or chemical plant environments.
System Architecture & Signal Flow
The AAI835-H03 S1 mounts directly into the CENTUM VP / CS 3000 I/O unit nest. Field wiring connects via the corresponding terminal board (e.g., ATB series). The module performs 16-bit A/D conversion per channel at a 100 ms scan cycle, transmitting digitized process values over the internal V-net/IP or ESB bus to the Field Control Station (FCS). HART secondary variables are extracted and forwarded to the HART DTM layer within CENTUM VP’s Plant Resource Manager (PRM) for asset management and predictive diagnostics.
Sourcing & Quality Verification
- All units sourced from authorized Yokogawa distributors or decommissioned OEM installations with full traceability documentation.
- Pre-shipment inspection includes: visual inspection, label and firmware version verification, functional power-on test where applicable.
- Counterfeit-risk mitigation: serial number cross-referenced against Yokogawa’s published format; holographic labels and PCB markings verified.
- Packaging: anti-static bag + foam-lined carton; humidity indicator card included for long-haul shipments.
Procurement Process
- Step 1 — Inquiry: Submit your BOM or part number via [email protected] or WhatsApp +0086 19859288691 for availability and lead-time confirmation.
- Step 2 — Quotation: Receive a formal quotation within 1 business day, including unit price, quantity, condition (new / refurbished / surplus), and estimated delivery.
- Step 3 — Order Confirmation: Issue PO or confirm via email. Payment terms: T/T, PayPal, or trade-assurance escrow available.
- Step 4 — Shipment: DHL / FedEx / UPS express worldwide. Export documentation (commercial invoice, packing list, COO) provided as standard.
- Step 5 — After-Sales: 90-day warranty on all shipped units. DOA replacement or full refund policy applies.
Technical FAQ
Q: Is the AAI835-H03 S1 compatible with CENTUM CS 3000 as well as CENTUM VP?
A: Yes. The AAI835 series is backward-compatible with CS 3000 I/O nests and forward-compatible with CENTUM VP, provided the correct terminal board and FCS firmware version are in use.
Q: What is the difference between AAI835-H03 and AAI835-S03?
A: The -H03 suffix denotes HART communication capability. The -S03 variant is a standard 4–20 mA input module without HART support. Choose -H03 when HART device diagnostics or secondary variable access is required.
Q: Can this module be used in a SIL 2 safety loop?
A: The AAI835-H03 S1 is SIL 2 capable per IEC 61508. However, SIL suitability depends on the complete safety loop architecture, proof-test interval, and SIS design. Consult your functional safety engineer for loop-level SIL verification.
Q: What terminal board is required?
A: The AAI835 series pairs with Yokogawa ATB (Analog Terminal Board) variants. Confirm the specific ATB model against your I/O nest configuration and wiring diagram.
Q: Do you provide a test report or certificate of conformance?
A: A basic inspection report is provided with every shipment. Full factory test certificates are available for new-in-box units where original Yokogawa documentation accompanies the module.
