Process Control Output Solution – YOKOGAWA ADM52 S2 | CENTUM DCS Series
Where This Product Is Used
The YOKOGAWA ADM52 S2 Output Module Board is a critical analog output card deployed in YOKOGAWA CENTUM distributed control systems (DCS). It is widely specified in the following industries and applications:
- Oil & Gas Refineries – Control valve positioner signals, flow control loops, and pressure regulation in upstream/downstream processing units.
- Chemical & Petrochemical Plants – Reactor temperature and feed-rate control via 4–20 mA analog output channels to field actuators.
- Power Generation – Turbine governor control, boiler feed-water regulation, and load dispatch automation.
- Pulp & Paper Mills – Stock consistency control, headbox pressure management, and dryer section coordination.
- Pharmaceutical Manufacturing – Batch process control requiring precise analog output signals to dosing pumps and control valves.
- Water & Wastewater Treatment – Pump speed control via VFD analog reference signals and chemical dosing automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ADM52 S2 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Series / Platform | CENTUM DCS |

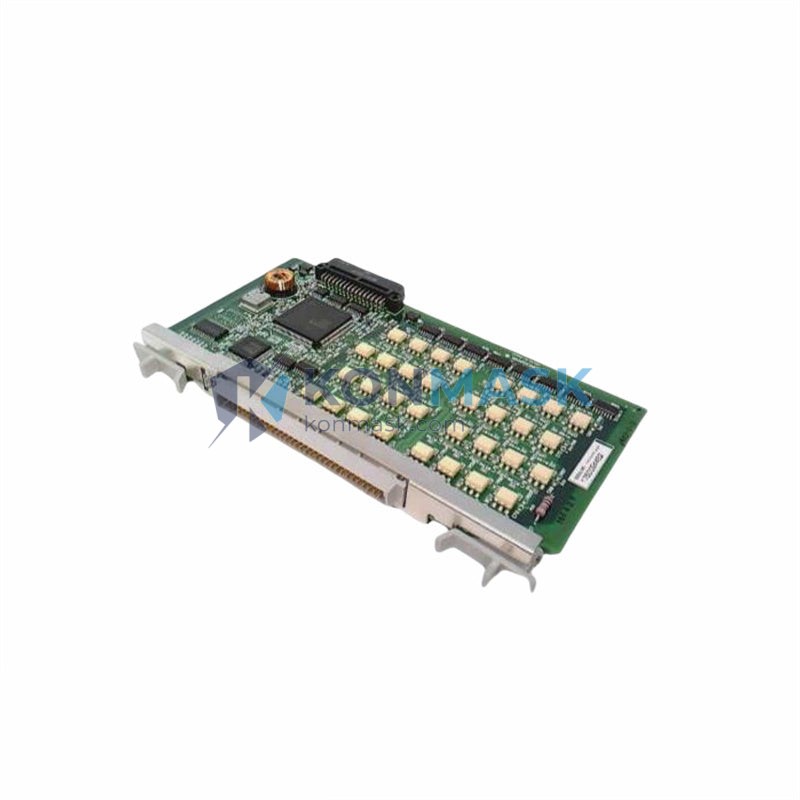

| Module Type | Analog Output Module Board |
| Output Signal | 4–20 mA DC (standard analog output) |
| Form Factor | PCB Module / Plug-in Card |
| Weight | 1,590 g (including packaging) |
| Condition | Used / Refurbished – Fully Tested |
| Compatibility | YOKOGAWA CENTUM DCS control stations |
| Country of Origin | Japan |
Note: Full datasheet available upon request. Contact support@konmask.com for detailed I/O specifications and firmware compatibility.
Why Engineers Specify This Model
- Proven CENTUM Platform Compatibility – Designed and validated for YOKOGAWA CENTUM DCS architectures, ensuring zero integration risk in existing control system expansions or replacements.
- Precision Analog Output – Delivers stable, repeatable 4–20 mA signals essential for tight process control loops in safety-critical environments.
- Reduced Downtime Risk – Sourcing a tested, ready-to-install ADM52 S2 board eliminates the lead time associated with new OEM orders, which can exceed 12–20 weeks.
- Cost-Effective MRO Strategy – Refurbished modules at a fraction of new OEM pricing, enabling budget-conscious maintenance without compromising reliability.
- Plug-and-Play Replacement – Direct form-fit-function replacement for failed or degraded ADM52 S2 boards in existing CENTUM installations.
Complete System Bill of Materials
The ADM52 S2 is typically deployed alongside the following YOKOGAWA CENTUM components. Konmask.com stocks many of these parts — contact us for bundle pricing:
- YOKOGAWA ADM12 – Analog Input Module
- YOKOGAWA ADM51 – Analog Output Module (complementary model)
- YOKOGAWA ACM11 – Communication Module
- YOKOGAWA AIP588 – I/O Power Supply Module
- YOKOGAWA AIP578 – Field Control Station Power Supply
- YOKOGAWA AMM12 – Multi-point Analog I/O Module
- Terminal boards and field wiring connectors for CENTUM I/O nest
Compliance & Industry Standards
- Designed in compliance with IEC 61511 (Functional Safety – Safety Instrumented Systems) requirements for DCS output modules used in SIS-adjacent loops.
- Compatible with NAMUR NE 43 signal range conventions for analog output fault detection.
- Suitable for use in facilities operating under ISA-5.1 instrumentation standards.
- YOKOGAWA CENTUM platform holds global certifications including CE, UL, and CSA for industrial control equipment.
Quality Assurance & Sourcing
Every YOKOGAWA ADM52 S2 module sold by Konmask.com undergoes the following quality process before shipment:
- ✅ Visual Inspection – PCB examined for physical damage, burnt components, corrosion, or connector wear.
- ✅ Functional Power-On Test – Module powered and verified for correct initialization and output channel response.
- ✅ Analog Output Calibration Check – Output channels verified against 4–20 mA reference standard.
- ✅ ESD-Safe Packaging – Shipped in anti-static bags with foam cushioning to prevent transit damage.
- ✅ Traceability Documentation – Test records available upon request for regulated industries.
How to Source This Part
Konmask.com specializes in hard-to-find industrial automation components with fast global fulfillment:
- In-Stock Orders – Add to cart and check out directly. Most orders ship within 1–3 business days from our warehouse.
- Bulk / Project Procurement – Email support@konmask.com with your BOM for volume pricing and availability confirmation.
- Urgent Replacement – Call or WhatsApp +0086 19859288691 for expedited sourcing and same-day quotation.
- Export & International Shipping – We ship to 50+ countries. DDP (Delivered Duty Paid) terms available for select regions.
Application-Specific FAQ
Q: Is the ADM52 S2 compatible with all CENTUM DCS versions?
A: The ADM52 S2 is designed for YOKOGAWA CENTUM series DCS platforms. Compatibility depends on your specific control station model and firmware version. Contact us with your system details for confirmation before ordering.
Q: Can this module be used as a direct replacement for a failed ADM52 board?
A: Yes. The ADM52 S2 is a plug-in replacement card. Ensure the suffix (S2) matches your existing module to guarantee form-fit-function compatibility.
Q: Do you provide a warranty on refurbished DCS modules?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested modules. Extended warranty options are available — contact us for details.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. If not currently in stock, our sourcing team can typically locate and deliver within 2–4 weeks globally.
Q: Can you supply the full CENTUM I/O nest or just individual modules?
A: We supply both individual modules and complete I/O assemblies. Send your BOM to support@konmask.com for a comprehensive quote.
