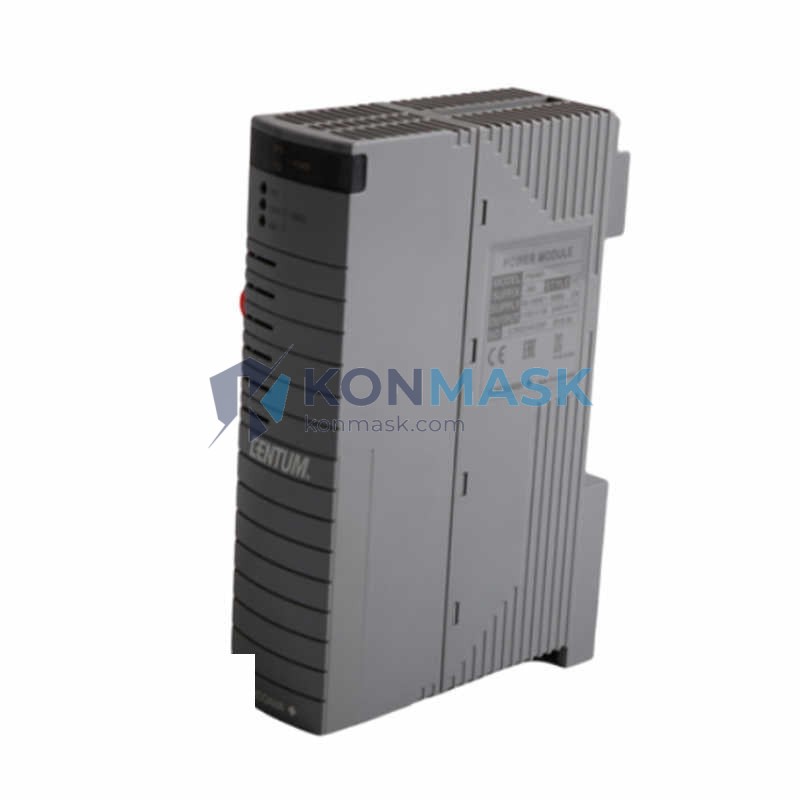

Yokogawa ASS9562DK-00 – High-Precision Analog Input Module | CENTUM DCS Series
Engineering Background
The Yokogawa ASS9562DK-00 is a field-proven analog input module engineered for integration within Yokogawa’s CENTUM distributed control system (DCS) architecture. Designed to meet the rigorous demands of continuous process industries, this module delivers reliable, high-resolution signal acquisition from field instrumentation including transmitters, sensors, and transducers operating across standard analog ranges.
Product Positioning
As a core I/O component within the CENTUM platform, the ASS9562DK-00 serves as the critical interface between field devices and the process control network. It is the preferred choice for engineers specifying replacement or expansion I/O in refinery, chemical, power generation, and utility control systems where signal integrity and system uptime are non-negotiable.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ASS9562DK-00 |
| Manufacturer | Yokogawa Electric Corporation |
| Module Type | Analog Input (AI) |
| Compatible Platform | Yokogawa CENTUM DCS Series |
| Signal Type | Analog (4–20 mA / 1–5 V DC standard ranges) |
| Input Isolation | Channel-to-channel and channel-to-bus isolation |
| Resolution | High-resolution A/D conversion |
| Hazardous Area Rating | Refer to Yokogawa datasheet for ATEX/IECEx classification |
| Communication Bus | CENTUM internal V-net / ESB bus |
| Power Supply | Supplied via backplane (module rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 500 g |
| Compliance | CE, UL, IEC 61508 (SIL-capable platform) |
Note: Full electrical specifications are available in the official Yokogawa ASS9562DK-00 datasheet. Contact Konmask for documentation.
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, downstream refinery process control, pipeline SCADA integration
- Petrochemical & Chemical: Reactor temperature/pressure loop control, batch process management
- Power Generation: Boiler control, turbine monitoring, plant-wide DCS expansion
- Pulp & Paper / Water Treatment: Continuous process analog signal acquisition
- Pharmaceutical: GMP-compliant process monitoring with validated DCS infrastructure
Engineering Advantages
- Seamless CENTUM Integration: Plug-compatible with existing CENTUM racks — no firmware patching or bus reconfiguration required for like-for-like replacement
- High Signal Fidelity: Precision A/D conversion minimizes measurement error across the full operating range, critical for PID loop stability
- Galvanic Isolation: Channel isolation protects the control network from field-side ground loops and transient surges
- Hot-Swap Capable: Supports online module replacement in CENTUM redundant configurations, eliminating planned downtime
- Long-Term Availability: Konmask maintains stock of legacy and current-generation Yokogawa I/O modules to support plant lifecycle management
System Architecture & Signal Flow
The ASS9562DK-00 mounts directly into a CENTUM I/O module rack (FIO or RIO node). Field wiring terminates at the associated terminal board or marshalling cabinet. Analog signals are conditioned, isolated, and digitized within the module before transmission over the CENTUM internal bus to the Field Control Station (FCS). The FCS processes the engineering-unit values and makes them available to the HIS (Human Interface Station) and historian in real time.
Typical Signal Path: Field Transmitter → Terminal Board → ASS9562DK-00 AI Module → CENTUM Bus → FCS → HIS / Historian
Sourcing & Quality Verification
- Source: Procured from authorized distributors, decommissioned plant inventories, and certified surplus channels
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment check
- Condition: New surplus, refurbished, or used serviceable — condition confirmed at time of order
- Traceability: Serial number and firmware revision documented upon request
- Warranty: 90-day operational warranty standard; extended warranty available on request
- Counterfeit Prevention: All modules verified against Yokogawa OEM markings and part number conventions
Procurement Process
- Inquiry: Submit your part number, required quantity, and delivery timeline via email or phone
- Quote: Receive a formal quotation with unit price, lead time, and shipping options within 24 hours
- Order Confirmation: Purchase order accepted; payment terms confirmed (T/T, L/C, or platform checkout)
- Inspection & Packing: Module inspected, photographed, and packed with anti-static protection and foam cushioning
- Shipment: Dispatched via DHL / FedEx / SF Express with full tracking; export documentation provided for international orders
- After-Sales: Technical support available post-delivery; RMA process available within warranty period
Technical FAQ
Q: Is the ASS9562DK-00 compatible with CENTUM VP?
A: Compatibility depends on the specific CENTUM VP revision and FCS configuration. Contact Konmask with your system revision details for confirmation before ordering.
Q: Can this module be used in a redundant I/O configuration?
A: Yes, CENTUM supports redundant I/O node configurations. Consult your CENTUM system engineering documentation for redundancy wiring requirements.
Q: What is the lead time for this module?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week sourcing lead time. Contact us for real-time availability.
Q: Do you provide a certificate of conformance or test report?
A: Yes, documentation packages including inspection reports and serial number records are available upon request for quality-critical procurement.
Q: What are the export control requirements?
A: Industrial automation components may be subject to export regulations depending on destination country. Konmask handles all required export documentation and compliance checks.
