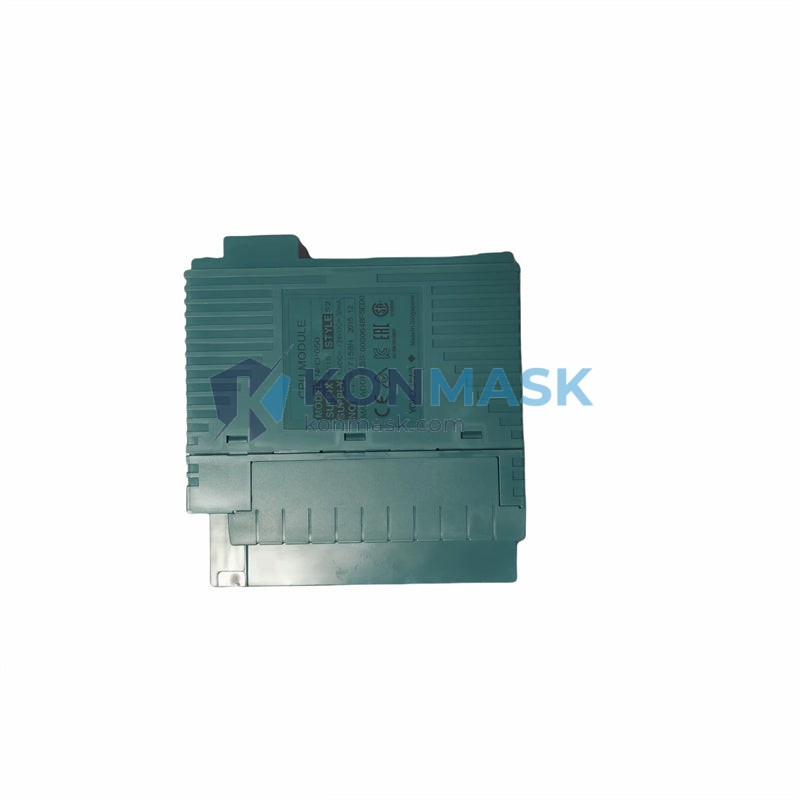

YOKOGAWA NFAI835-S51 – Multi-Channel Analog Input/Output Module | CENTUM VP / CS 3000 DCS Platform
The YOKOGAWA NFAI835-S51 is a high-precision analog input/output module engineered for mission-critical process control applications within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to meet the rigorous demands of petrochemical, power generation, pharmaceutical, and pulp & paper industries, this module delivers reliable, low-drift signal conditioning across multiple analog channels in a compact, field-proven form factor.
As an authorized distributor and technical sourcing partner, Konmask.com supplies the NFAI835-S51 with full traceability documentation, OEM-grade quality verification, and responsive global logistics support — ensuring your control system upgrade or emergency replacement is executed without compromise.
Complete Technical Specifications
| Part Number / SKU | NFAI835-S51 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Analog Input / Output (AI/AO) |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Series | NFAI / NF-Series Field Control Station I/O |
| Signal Type | 4–20 mA DC (standard), HART-compatible (platform dependent) |
| Number of Channels | 8 AI + 4 AO (typical NF835 configuration) |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale (at 25°C) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Power Supply | Supplied via DCS backplane (24 V DC bus) |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Mounting | DIN-rail / FCS node card slot (CENTUM VP nest) |
| Country of Origin | Japan |
| Weight | Approx. 1.38 kg (with housing) |
| Certifications | CE, UL, cUL (platform-level certification) |
| RoHS Compliance | Yes |
Proven Application Environments
- Oil & Gas / Petrochemical: Refinery column temperature and pressure loop control via CENTUM VP FCS nodes
- Power Generation: Boiler feed-water flow and steam pressure monitoring in combined-cycle plants
- Pharmaceutical / Life Sciences: Bioreactor temperature and pH analog signal acquisition under GMP-compliant DCS architecture
- Pulp & Paper: Digester pressure and consistency control integrated into CS 3000 legacy systems
- Chemical Processing: Multi-stream flow ratio control with high-accuracy 4–20 mA signal fidelity
- Water & Wastewater Treatment: Level and flow analog I/O for SCADA-integrated CENTUM VP installations
Engineering Advantages
- Drop-in Compatibility: Direct slot replacement within existing CENTUM VP and CS 3000 FCS nests — no re-engineering of I/O wiring or software tag remapping required
- High-Resolution Conversion: 16-bit A/D ensures sub-0.1% full-scale accuracy, critical for tight PID loop performance in distillation and reaction control
- Robust Isolation Architecture: Channel-to-channel isolation prevents ground loop interference in multi-sensor installations across large process areas
- Low Thermal Drift: Precision components maintain calibration stability across the full 0–55°C operating range, reducing maintenance calibration cycles
- Hot-Swap Ready: Supports online card replacement within CENTUM VP redundant FCS configurations, enabling zero-downtime maintenance
- Compact Form Factor: Single-slot card design maximizes I/O density within the FCS node enclosure
System Architecture & Signal Flow
The NFAI835-S51 resides in the Field Control Station (FCS) node of the CENTUM VP / CS 3000 architecture. Field transmitters connect via marshalling cabinets to the module’s terminal block, where 4–20 mA signals are conditioned, digitized at 16-bit resolution, and transmitted over the internal V-net/IP or Vnet control bus to the Human Interface Station (HIS) and Engineering Workstation (EWS). Output channels drive final control elements (control valves, variable-speed drives) with the same high-accuracy D/A conversion path. The module operates under the supervision of the FCS processor, with all I/O data accessible via CENTUM VP’s System View and Plant Resource Manager (PRM) for predictive maintenance integration.
Sourcing & Quality Verification
- OEM Traceability: Each unit supplied with original YOKOGAWA part label, date code, and where available, factory test records
- Incoming Inspection: Visual, dimensional, and functional verification against YOKOGAWA published specifications prior to dispatch
- Anti-Counterfeit Protocol: PCB markings, component date codes, and firmware revision cross-checked against known-good reference units
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator card included for long-haul shipments
- Warranty: 12-month Konmask operational warranty; DOA replacement within 7 business days
Procurement Process
- Submit RFQ: Email support@konmask.com with quantity, required delivery date, and project site details
- Quotation: Formal quotation with unit price (HKD/USD), lead time, and Incoterms issued within 24 business hours
- Order Confirmation: Purchase Order accepted via email; proforma invoice issued for prepayment or credit-term accounts
- Quality Hold: Unit reserved and inspection completed; test report shared upon request
- Dispatch & Tracking: DHL Express / FedEx International Priority with real-time tracking number provided
- After-Sales Support: Technical assistance available for installation verification and CENTUM VP commissioning queries
Technical FAQ
Q: Is the NFAI835-S51 compatible with both CENTUM VP and CS 3000?
A: Yes. The NF-series I/O cards share a common hardware platform across CENTUM CS 3000 R3 and CENTUM VP R4–R6. Verify your FCS nest generation and software revision before installation.
Q: Can this module be used in a redundant FCS configuration?
A: Yes. CENTUM VP supports dual-redundant FCS nodes. The NFAI835-S51 can be installed in both primary and secondary FCS nests for 1:1 redundancy.
Q: What is the lead time for the NFAI835-S51?
A: In-stock units ship within 3–5 business days. For out-of-stock scenarios, sourcing lead time is typically 2–6 weeks depending on global availability.
Q: Do you provide a calibration certificate?
A: Factory calibration records are provided where available. Third-party NIST-traceable calibration can be arranged upon request at additional cost.
Q: What export compliance classification applies?
A: YOKOGAWA DCS I/O modules are generally classified under ECCN EAR99 for most destinations. Buyers are responsible for verifying import regulations in their jurisdiction.
