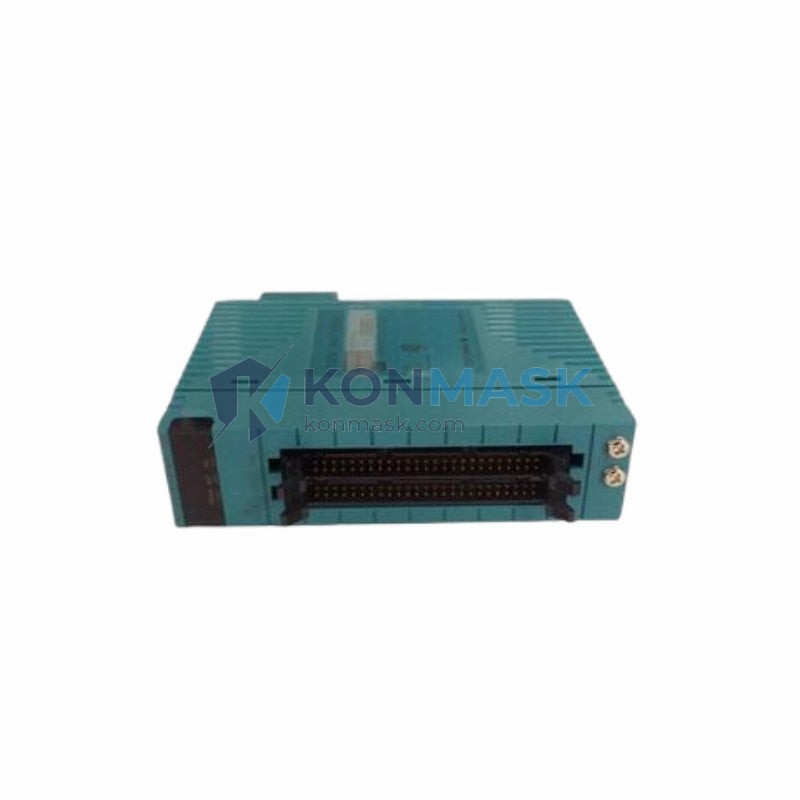

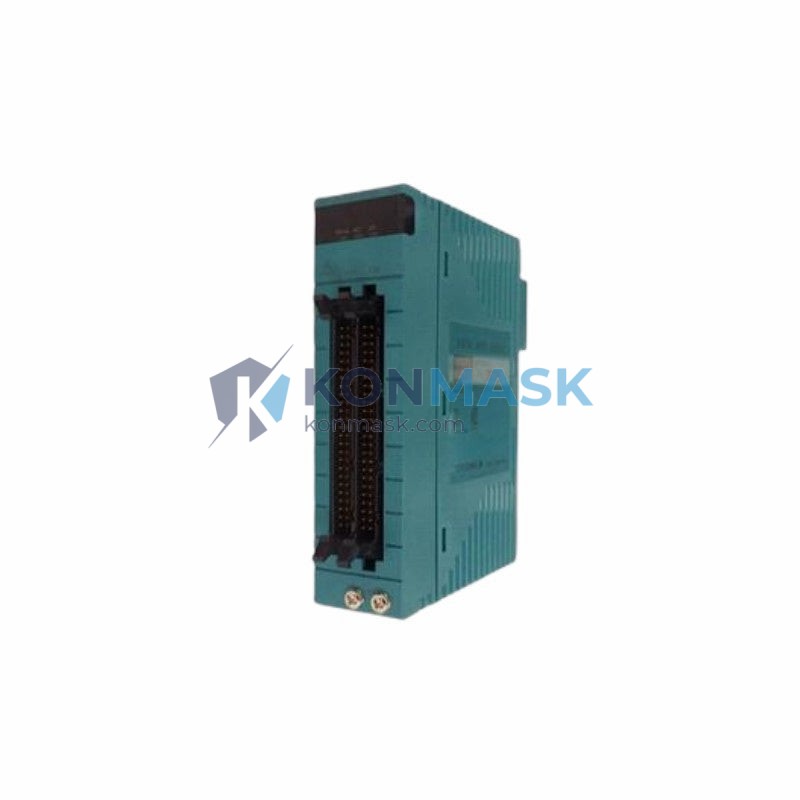

YOKOGAWA NFDV161-P01 – 16-Channel Digital Input Module | CENTUM VP / CS 3000 DCS Platform
Engineering Background
The NFDV161-P01 is a field-proven digital input module designed for YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control System (DCS) platforms — the industry standard for large-scale process automation in refining, petrochemical, power generation, and pharmaceutical manufacturing. As a core I/O component within the Field Control Station (FCS), this module bridges field-level discrete signals with the supervisory control layer, enabling reliable real-time process monitoring and interlock logic execution.
Product Positioning
Procurement engineers sourcing replacement or expansion I/O for CENTUM VP / CS 3000 installations will find the NFDV161-P01 a direct, specification-matched solution. Konmask maintains verified stock of this module to support both planned MRO procurement and emergency plant-down scenarios, with full traceability documentation available on request.
Complete Technical Specifications
| Part Number | NFDV161-P01 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Digital Input (DI) |
| Channel Count | 16 channels |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Subsystem | Field Control Station (FCS) I/O Unit |
| Input Signal Type | Dry contact / Wet contact discrete signals |
| Isolation | Optical isolation between field and system bus |
| Communication Bus | YOKOGAWA proprietary V-net / ER Bus |
| Power Supply | Supplied via I/O unit backplane (no external wiring required) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Approvals / Compliance | CE, UL (refer to YOKOGAWA datasheet for full certification list) |
| Form Factor | Single-slot plug-in module |
| Weight | Approx. 200 g |
| SKU / Order Code | NFDV161-P01 |
Proven Application Environments
- Oil & Gas Refining: Pump status monitoring, valve position feedback, ESD interlock inputs
- Petrochemical Plants: Reactor interlock chains, compressor trip signals, level switch inputs
- Power Generation: Turbine protection logic, breaker status, auxiliary equipment monitoring
- Pharmaceutical Manufacturing: Clean-room equipment status, batch process interlocks, GMP-compliant signal acquisition
- Pulp & Paper / Chemical: Conveyor status, agitator run/stop feedback, safety relay inputs
- Water & Wastewater Treatment: Pump run/fault status, valve open/close confirmation
Engineering Advantages
- 16-Channel Density: High channel-per-slot ratio reduces cabinet footprint and lowers per-point wiring cost in large I/O configurations.
- Optical Isolation: Eliminates ground loops and protects the DCS backplane from field-side transients and surge events.
- Hot-Swap Capable: Supports online module replacement within the CENTUM FCS architecture, minimizing planned maintenance downtime.
- Seamless Platform Integration: Recognized natively by CENTUM VP Engineering Environment (ENG) — no custom configuration or driver development required.
- Diagnostic Transparency: Module health and channel-level fault status are surfaced directly in the CENTUM HIS operator station and engineering workstation.
- Long Service Life: Designed to YOKOGAWA’s industrial-grade reliability standards, consistent with 10–20 year DCS lifecycle expectations.
System Architecture & Signal Flow
The NFDV161-P01 installs into the I/O unit of a CENTUM VP or CS 3000 Field Control Station. Field wiring terminates at the corresponding terminal board (e.g., TB series), which connects to the module via a node connector. Discrete input signals are optically isolated, debounced, and converted to digital status data transmitted over the YOKOGAWA V-net/ER bus to the FCS processor. The FCS executes configured function blocks (e.g., DI blocks, interlock logic) and forwards process data to the HIS and EXAOPC/OPC-DA server for SCADA integration.
Recommended pairing: NFDV161-P01 + corresponding TB terminal board + CENTUM VP FCS node unit. Consult YOKOGAWA GS 33J60B10-01EN for full I/O module selection guidance.
Sourcing & Quality Verification
- Origin: Sourced from authorized distribution channels and verified industrial surplus with full chain-of-custody documentation.
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment checks prior to dispatch.
- Authenticity: Konmask does not deal in counterfeit or refurbished-as-new components. Suspect units are quarantined and not listed.
- Documentation: Factory test reports, certificates of conformance, and original packaging available upon request for critical applications.
- Warranty: 12-month warranty against manufacturing defects. DOA replacement policy within 7 days of receipt.
Procurement Process
- Step 1 – Confirm Part Number: Verify NFDV161-P01 against your CENTUM system BOM or I/O assignment list. Check suffix variants if applicable.
- Step 2 – Request Quote: Contact Konmask via email or phone with required quantity, delivery timeline, and any documentation requirements.
- Step 3 – Review & Approve: Receive formal quotation with unit price, lead time, and shipping terms (EXW / CIF / DAP available).
- Step 4 – Order Confirmation: Submit PO. Payment terms: T/T in advance or net terms for approved accounts.
- Step 5 – Dispatch & Tracking: ESD-safe packaging, export documentation (commercial invoice, packing list, COO) provided. DHL / FedEx / sea freight options available.
Technical FAQ
Q: Is NFDV161-P01 compatible with both CENTUM VP and CS 3000?
A: Yes. The module is designed for the CENTUM FCS I/O architecture shared across both platforms. Confirm your FCS generation and I/O unit type before ordering.
Q: Can this module be replaced online without shutting down the FCS?
A: Hot-swap capability depends on the specific FCS configuration and whether redundant I/O is enabled. Consult your CENTUM system documentation or contact YOKOGAWA engineering support before performing live replacement.
Q: What terminal board is required for field wiring?
A: The appropriate TB (terminal board) depends on your I/O unit model and wiring configuration. Konmask can advise on compatible TB part numbers upon request.
Q: Do you supply the module with original YOKOGAWA firmware?
A: Yes. All modules are supplied as-manufactured. Firmware is embedded and not field-upgradeable on this module type.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume pricing is available for orders of 5 units or more.
Q: Can Konmask provide an export license or end-user declaration?
A: Yes. Konmask can provide standard export documentation. For controlled-destination shipments, additional compliance review may apply.
