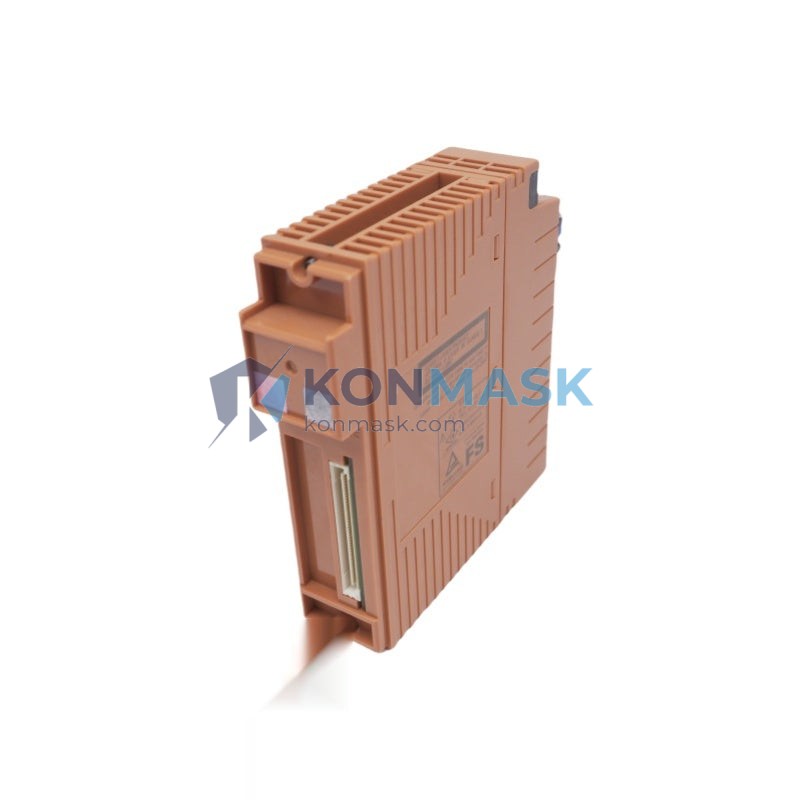

Yokogawa SNT401-53-S1 – High-Speed Network Interface Module | CENTUM CS/VP DCS Platform
Engineering Background: The SNT401-53-S1 is a dedicated network interface module developed by Yokogawa Electric Corporation for integration within the CENTUM CS and CENTUM VP Distributed Control System (DCS) platforms. Designed to bridge field-level instrumentation with supervisory control networks, this module delivers deterministic, high-reliability data communication in mission-critical process environments.
Product Positioning: Targeted at procurement engineers and system integrators managing brownfield DCS expansions, spare-parts inventory, or lifecycle replacement programs, the SNT401-53-S1 provides a direct OEM-equivalent solution for maintaining network communication integrity across aging and active CENTUM installations.
Complete Technical Specifications
- Part Number / SKU: SNT401-53-S1
- Manufacturer: Yokogawa Electric Corporation
- Platform Compatibility: CENTUM CS, CENTUM VP (R4.x / R5.x / R6.x)
- Module Function: Network Interface Module (NIM) – V-net / Vnet/IP communication
- Communication Protocol: Vnet/IP (Ethernet-based, IEC 61784 compliant)
- Network Speed: 100 Mbps / 1 Gbps (dual-port redundant)
- Redundancy Support: Dual-redundant network path (primary + secondary)
- Power Supply: 24 VDC (supplied via backplane)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Vibration Resistance: IEC 60068-2-6 compliant
- EMC Compliance: CE Marking, IEC 61000-4 series
- Dimensions (W × H × D): Standard CENTUM module form factor
- Weight: Approx. 500 g
- Mounting: CENTUM CS/VP standard card cage / FCU backplane
- Certifications: UL, CE, ATEX (zone classification per installation)
- Country of Origin: Japan
Proven Application Environments
- Oil & Gas upstream / midstream / downstream process control
- Petrochemical and refinery DCS network backbone
- Power generation plant control systems (coal, gas, nuclear auxiliary)
- Pulp & paper and chemical batch process automation
- Water treatment and municipal utility SCADA/DCS hybrid systems
- Pharmaceutical manufacturing (FDA 21 CFR Part 11 environments)
- Steel and metals continuous process lines
Engineering Advantages
- Deterministic Latency: Vnet/IP protocol guarantees sub-millisecond cycle time for real-time control loop integrity
- Hot-Swap Capable: Supports online replacement without process interruption (with redundant configuration)
- Dual-Redundant Architecture: Automatic failover to secondary network path eliminates single-point-of-failure risk
- Backward Compatibility: Interoperable with legacy CENTUM CS hardware and modern CENTUM VP R6 environments
- Diagnostic Transparency: Built-in self-test (BIST) and LED status indicators for rapid fault isolation
- Long Service Life: Designed for 10+ year operational cycles in continuous-process industries
System Architecture & Signal Flow
The SNT401-53-S1 resides in the Field Control Unit (FCU) card cage and interfaces directly with the CENTUM VP control bus via the backplane connector. On the network side, dual RJ-45 / fiber ports connect to the plant Vnet/IP Ethernet ring or star topology. The module handles all protocol encapsulation, time-stamping, and redundancy switching transparently to the application layer, ensuring that the DCS engineering environment (CENTUM VP Builder / HIS) sees a single logical network node regardless of physical path status.
Signal Flow: Field I/O → FCU Backplane → SNT401-53-S1 → Vnet/IP Switch → HIS / ENG / BCV Stations
Sourcing & Quality Verification
- Source: Authorized distributor channels and verified industrial surplus with full traceability
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment
- Packaging: ESD-safe anti-static bag + foam-lined carton; original Yokogawa packaging preserved where available
- Documentation: Certificate of conformance (CoC) available upon request; original datasheet provided
- Warranty: 12-month Konmask warranty covering manufacturing defects and DOA (Dead on Arrival)
- Counterfeit Prevention: All units cross-referenced against Yokogawa serial number database; holographic label integrity verified
Procurement Process
- Inquiry: Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required delivery date
- Quotation: Receive formal quotation with lead time, unit price (HKD/USD), and Incoterms within 24 hours
- Order Confirmation: Issue PO; proforma invoice issued for payment processing
- Quality Check: Pre-shipment inspection report dispatched with photos upon request
- Shipping: DHL / FedEx / SF Express; EXW Shenzhen or CIF destination port available
- After-Sales: Technical support and warranty claims handled directly by Konmask engineering team
Technical FAQ
Q: Is the SNT401-53-S1 compatible with CENTUM VP R6.09 and later?
A: Yes. The module is backward and forward compatible across CENTUM VP R4 through R6.x releases, subject to FCU firmware version alignment.
Q: Can this module operate in a non-redundant single-network configuration?
A: Yes. While dual-redundant operation is recommended for SIL-rated loops, the SNT401-53-S1 can be configured for single-path operation via CENTUM VP Builder settings.
Q: What is the typical lead time for in-stock units?
A: In-stock units ship within 3–5 business days. For units sourced to order, lead time is 2–4 weeks depending on global availability.
Q: Do you provide a functional test report?
A: Yes. A power-on test report with pass/fail criteria is available for all units. Extended functional testing on a CENTUM VP test bench can be arranged for volume orders.
Q: What export compliance classification applies?
A: The SNT401-53-S1 is classified as EAR99 under US Export Administration Regulations. No export license is required for most destinations. Buyers are responsible for verifying local import regulations.
