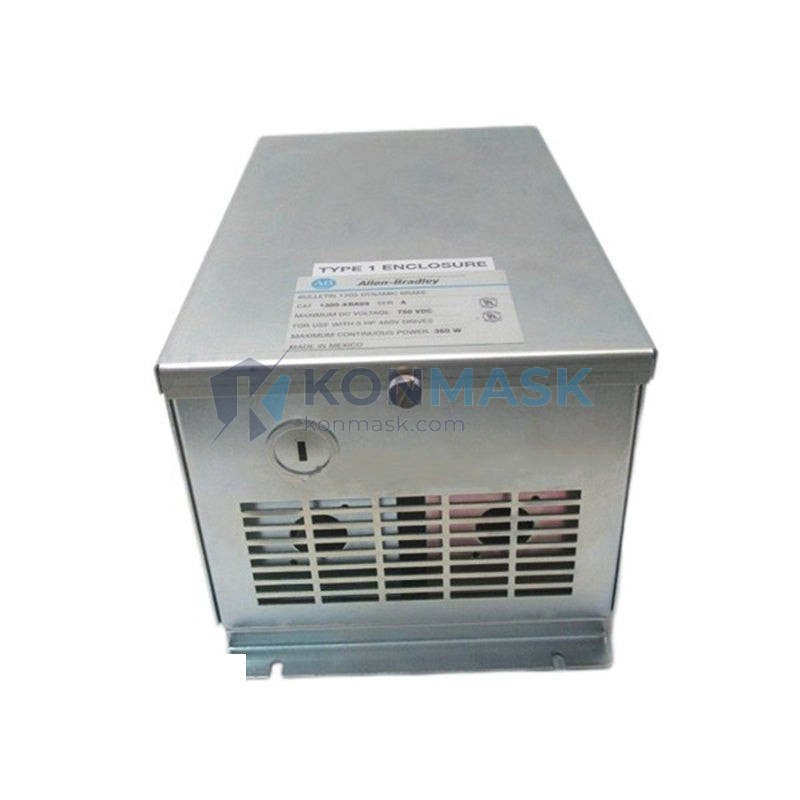

Dynamic Braking Solution — Allen-Bradley 1305-KBA09 | 1305 AC Drive Series
Where This Product Is Used
The Allen-Bradley 1305-KBA09 Dynamic Braking Kit is engineered for applications where rapid, controlled deceleration is critical. Engineers specify this accessory across a wide range of industrial environments:
- Material Handling & Conveyors — Prevents coasting and load runaway on inclined or high-inertia conveyor systems.
- Packaging Machinery — Enables precise stop positioning on form-fill-seal and cartoning lines where cycle time is critical.
- Crane & Hoist Applications — Dissipates regenerative energy during lowering operations, protecting the drive bus from overvoltage faults.
- Pump & Fan Systems — Reduces deceleration time on large-inertia loads where coast-to-stop is unacceptable.
- Machine Tool & CNC Auxiliaries — Supports fast E-stop sequences on spindle and axis drives paired with 1305 series inverters.
- Food & Beverage Processing — Meets hygiene-cycle timing requirements where abrupt, repeatable stops are mandated.
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part Number | 1305-KBA09 |
| Product Series | 1305 AC Drive Accessory |
| Function | Dynamic Braking Kit |
| Compatible Drive Series | Allen-Bradley 1305 AC Drives |
| Braking Method | Resistive dynamic braking (regenerative energy dissipation) |
| Weight | 3.3 kg (approx.) |
| Condition Available | New / Surplus New / Refurbished |
| Country of Origin | USA |
Note: Always cross-reference with the official Allen-Bradley 1305 User Manual (Publication 1305-UM001) for full electrical ratings and installation torque specs before commissioning.
Why Engineers Specify This Model
- OEM-Matched Design — Factory-engineered to integrate directly with the 1305 drive chassis; no external resistor sizing or custom wiring harness required.
- Overvoltage Bus Protection — Clamps DC bus voltage during regenerative braking events, preventing nuisance F05 overvoltage faults and drive trips.
- Reduced Deceleration Time — Enables decel ramp times significantly shorter than coast-to-stop, improving throughput and process repeatability.
- Plug-In Installation — Designed for tool-minimal installation within the 1305 drive enclosure, reducing commissioning time on the plant floor.
- Proven Field Reliability — Part of Rockwell Automation’s validated accessory ecosystem with documented compatibility across 1305 drive variants.
Complete System Bill of Materials
For a fully functional 1305 AC drive braking system, engineers typically specify the following alongside the 1305-KBA09:
- 1305 Series AC Drive (e.g., 1305-BA02A, 1305-BA04A — select per motor HP and voltage)
- 1305-KBA09 — Dynamic Braking Kit (this item)
- Input Line Filter — Recommended for CE compliance and EMI reduction in sensitive environments
- Remote Operator Interface — 1305-series compatible HIM or remote keypad for parameter access
- Motor Cable & Conduit — Shielded cable per Rockwell wiring guidelines to minimize reflected wave issues
- Fusing / Circuit Breaker — Per NEC/IEC requirements for the drive input rating
Compliance & Industry Standards
- Designed and manufactured under Rockwell Automation’s ISO 9001 quality management system
- Compatible with installations targeting UL 508C (Power Conversion Equipment) compliance
- Supports CE-marked 1305 drive configurations when used per installation guidelines
- Suitable for use in facilities operating under OSHA 1910.147 (Lockout/Tagout) procedures — drive must be de-energized before kit installation
- Applicable to systems designed to IEC 61800-5-1 (Adjustable Speed Electrical Power Drive Systems — Safety)
Quality Assurance & Sourcing
Konmask.com sources Allen-Bradley components through established industrial distribution channels. Our quality process includes:
- Visual & Label Inspection — Part number, date code, and Rockwell Automation branding verified against known-good references
- Functional Verification — Where applicable, units are bench-tested prior to shipment
- Secure Packaging — ESD-safe and moisture-barrier packaging for all sensitive drive accessories
- Traceability — Lot and serial documentation available on request for MRO and OEM procurement teams
- Warranty — 90-day replacement warranty against defects in materials and workmanship
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Add to Cart — Immediate checkout for stocked units
- Request a Quote — Email support@konmask.com with your required quantity, delivery timeline, and any certification requirements
- Bulk / OEM Orders — Volume pricing available for orders of 5+ units; contact us for a tiered quote
- Lead Time — In-stock units ship within 1–3 business days; ex-stock international orders typically 5–10 business days via DHL/FedEx
- Export Compliance — We handle CN export documentation; buyers are responsible for import duties and local compliance in their jurisdiction
Application-Specific FAQ
Q: Is the 1305-KBA09 compatible with all 1305 drive frame sizes?
A: The KBA09 kit is designed for specific frame sizes within the 1305 series. Always verify compatibility against your drive’s catalog number and the 1305 accessory compatibility matrix in Publication 1305-UM001 before ordering.
Q: Can I use an external braking resistor instead of this kit?
A: The 1305-KBA09 is a self-contained kit. For applications requiring higher braking duty cycles or extended braking periods, consult Rockwell Automation’s sizing guidelines — an external resistor with appropriate wattage rating may be required in addition to or instead of this kit.
Q: What fault codes does this kit help prevent?
A: Primarily F05 (DC Bus Overvoltage) faults that occur during rapid deceleration of high-inertia loads. It may also reduce nuisance trips on applications with frequent start/stop cycles.
Q: Is installation possible without a Rockwell-certified technician?
A: Installation should be performed by a qualified electrical engineer or technician familiar with drive systems and LOTO procedures. Konmask.com recommends consulting the official installation guide and local electrical codes.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes, CoC documentation is available upon request for MRO, OEM, and government procurement orders. Contact us at the time of order.
