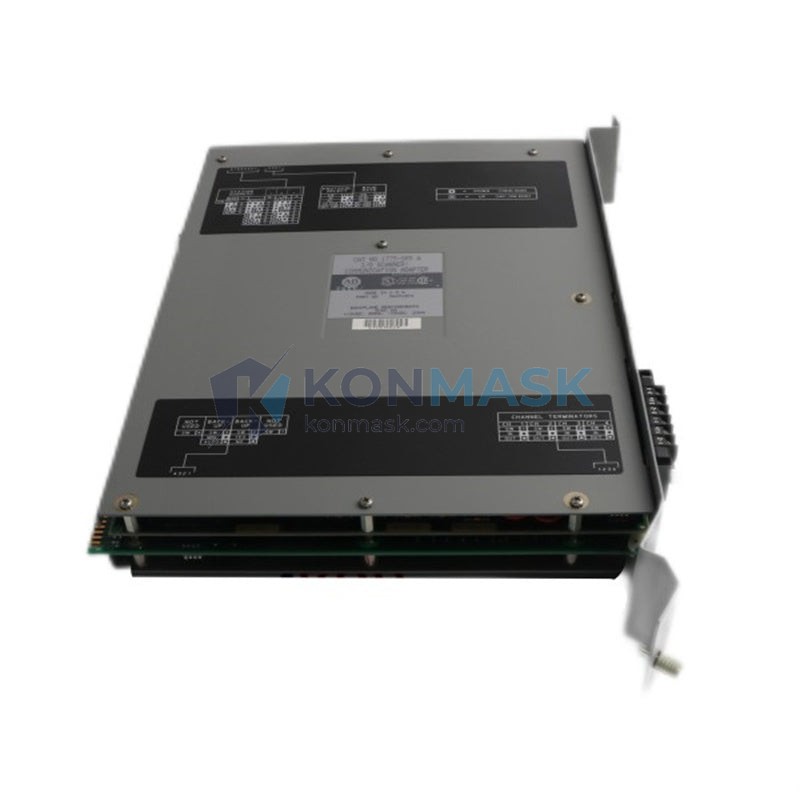

Allen-Bradley 1775-SR5 – I/O Scanner Communications Module | PLC-3 Platform
Engineering Background
The Allen-Bradley 1775-SR5 is a dedicated I/O Scanner Communications Module engineered for the PLC-3 family — Rockwell Automation’s high-performance mid-range programmable controller platform widely deployed throughout the 1980s and 1990s in process-critical and discrete manufacturing environments. The 1775-SR5 serves as the communication backbone between the PLC-3 processor and remote I/O racks, enabling deterministic, high-speed data exchange across distributed control architectures.
Product Positioning
Designed for system integrators, maintenance engineers, and MRO procurement teams supporting legacy PLC-3 installations, the 1775-SR5 is an essential spare and replacement module for facilities that cannot justify a full migration to ControlLogix or CompactLogix. Konmask.com sources verified surplus and refurbished units to support long-lifecycle industrial operations worldwide.
Complete Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part Number | 1775-SR5 |
| Series / Platform | PLC-3 |
| Module Type | I/O Scanner Communications Module |
| Communication Protocol | Allen-Bradley Remote I/O (RIO) — 1771 I/O chassis compatible |
| Baud Rate | 57.6 Kbps / 115.2 Kbps (configuration-dependent) |
| Max Remote I/O Racks | Up to 32 I/O racks per scanner |
| Backplane Interface | PLC-3 processor backplane (1775 chassis) |
| Power Consumption | Supplied via PLC-3 backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Approvals | UL Listed, CE Marked |
| Unit Weight | 2,960 g (as configured) |
| Form Factor | Single-slot PLC-3 chassis module |
Proven Application Environments
- Automotive Assembly Lines — Coordinating remote I/O racks across body-in-white welding and paint shop conveyors where PLC-3 systems remain in service.
- Chemical & Petrochemical Plants — Maintaining deterministic scan cycles for valve control and process interlocks in hazardous-area installations.
- Food & Beverage Processing — Supporting distributed I/O on packaging lines and batch processing systems with legacy PLC-3 controllers.
- Water & Wastewater Treatment — Enabling remote I/O communication across geographically distributed pump stations and treatment cells.
- Power Generation & Utilities — Sustaining reliable I/O scanning in turbine control and substation automation panels.
- Pulp & Paper Mills — Maintaining high-availability I/O communication on continuous-process lines where downtime is measured in thousands of dollars per minute.
- MRO / Spare Parts Inventory — Held as critical spares by maintenance teams to minimize mean time to repair (MTTR) on PLC-3 platforms.
Engineering Advantages
- Deterministic I/O Scanning — Fixed scan cycle ensures predictable response times for time-critical process control loops.
- High Remote I/O Capacity — Supports up to 32 remote I/O racks, enabling large-scale distributed architectures without additional hardware.
- Native PLC-3 Integration — Plug-and-play compatibility with the 1775 chassis backplane; no gateway or protocol converter required.
- Proven Long-Term Reliability — Industrial-grade design with decades of field-proven performance in harsh manufacturing environments.
- Cost-Effective Legacy Support — Extends the operational life of PLC-3 systems, deferring costly migration projects while maintaining production continuity.
- Simplified Diagnostics — Onboard status indicators for communication health, fault detection, and scanner activity.
System Architecture & Signal Flow
The 1775-SR5 occupies a dedicated slot in the PLC-3 processor chassis (1775 series). During each scan cycle, the module:
- Receives output image data from the PLC-3 processor via the backplane.
- Transmits output data to remote 1771 I/O racks over the Remote I/O link.
- Collects input status data from all configured remote racks.
- Returns input image data to the PLC-3 processor for ladder logic evaluation.
This closed-loop scan architecture ensures that all remote I/O states are synchronized with the processor’s data table on every program scan, maintaining control integrity across distributed installations.
Sourcing & Quality Verification
- Source: Verified surplus, refurbished, or new-old-stock (NOS) units from audited industrial suppliers.
- Inspection: Each unit undergoes visual inspection, board-level examination, and functional bench testing prior to shipment.
- Firmware: Firmware revision confirmed and documented at time of testing.
- Packaging: Anti-static packaging with desiccant; double-boxed for international freight.
- Traceability: Serial number and test records provided upon request for regulated industries.
- Warranty: 90-day functional warranty against defects in materials and workmanship.
Procurement Process
- Submit Inquiry — Contact us via email or phone with your required quantity and delivery timeline.
- Stock Confirmation — We verify current inventory, firmware revision, and unit condition within 1 business day.
- Quotation — Formal quotation issued with unit price, shipping cost, lead time, and warranty terms.
- Order Confirmation — Purchase order accepted; payment via T/T, PayPal, or agreed trade terms.
- Inspection & Dispatch — Final QC check, photographic documentation, and dispatch via DHL / FedEx / UPS with tracking.
- After-Sales Support — Technical support available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the 1775-SR5 compatible with all PLC-3 processor variants?
A: The 1775-SR5 is designed for the PLC-3 platform (1775 chassis). Compatibility depends on the specific processor model and firmware revision. Contact us with your processor part number for confirmation.
Q: Can the 1775-SR5 communicate with 1771 I/O modules directly?
A: Yes. The 1775-SR5 scans standard Allen-Bradley 1771 remote I/O racks over the Remote I/O link at supported baud rates.
Q: What is the maximum cable distance for the Remote I/O link?
A: Maximum cable distance depends on baud rate. At 57.6 Kbps, the RIO link supports up to 3,048 m (10,000 ft); at higher baud rates, distance is reduced. Refer to Allen-Bradley publication 1775-6.4 for detailed specifications.
Q: Do you provide firmware revision documentation?
A: Yes. Firmware revision is recorded during bench testing and provided with the unit’s test certificate upon request.
Q: Can you supply multiple units for a plant-wide spare parts program?
A: Yes. We support bulk procurement for MRO programs. Contact us for volume pricing and scheduled delivery options.
Q: What if the unit fails within the warranty period?
A: We offer a 90-day functional warranty. Defective units will be replaced or refunded subject to our returns policy. Contact support@konmask.com to initiate a claim.
