ABB 3HAC14550-4 – Single Servo Drive Unit | IRC5 Robot Controller Platform
Engineering Background: The ABB IRC5 controller platform represents ABB Robotics’ fifth-generation motion control architecture, engineered for high-precision, multi-axis industrial robot applications. The servo drive subsystem is the power backbone of this platform, translating digital motion commands into precise torque and velocity outputs at each robot joint.

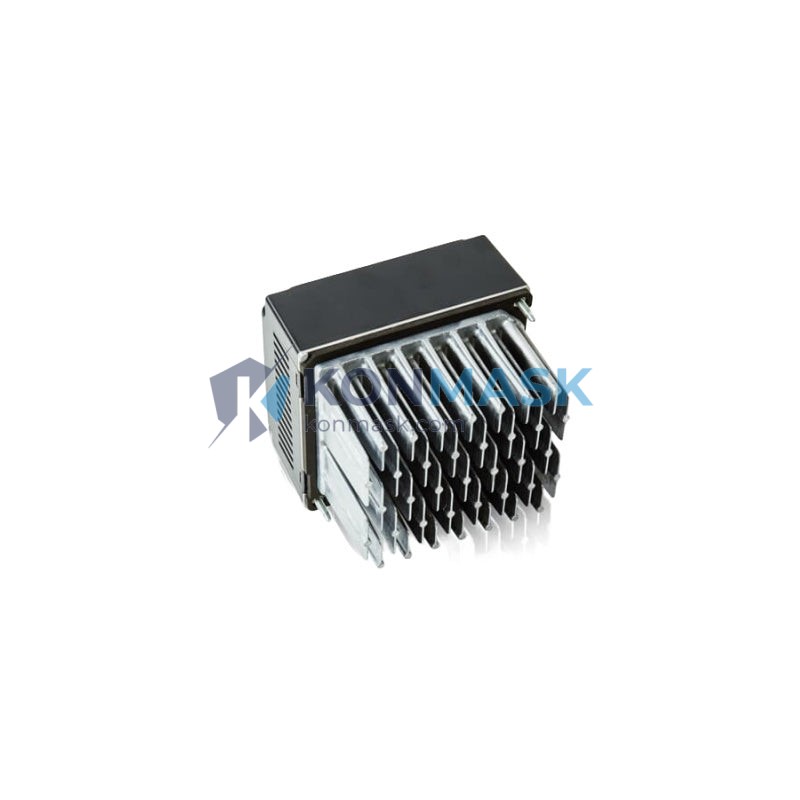

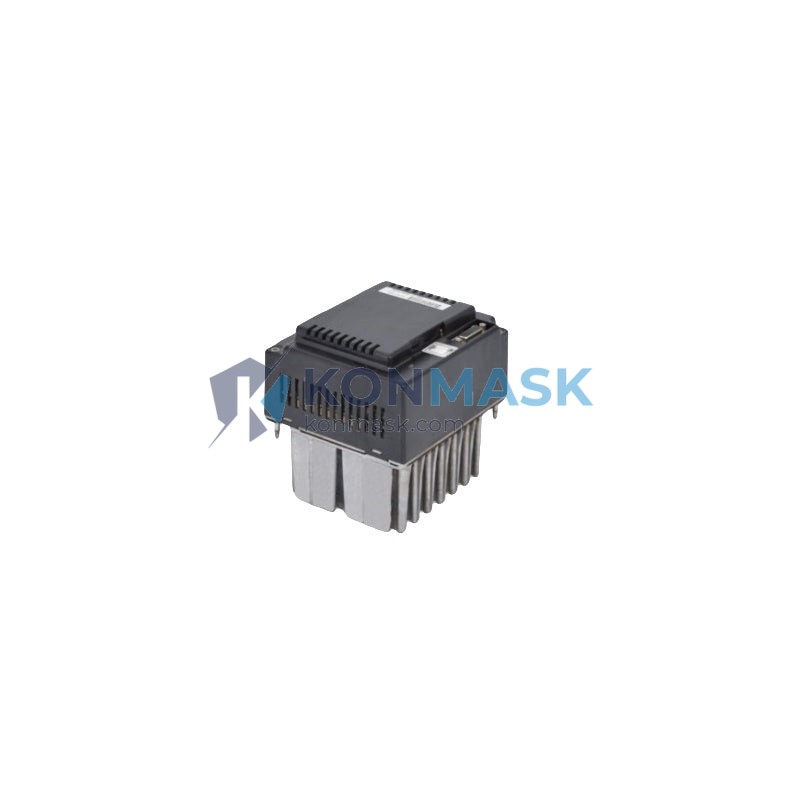

Product Positioning: The ABB 3HAC14550-4 is a single-axis servo drive unit designed exclusively for IRC5 controller cabinets. It manages one servo axis independently, enabling modular drive configurations for 6-axis articulated robots, SCARA systems, and auxiliary positioner axes. This unit is a direct OEM-equivalent replacement sourced through verified industrial supply channels.
Complete Technical Specifications
- Part Number: 3HAC14550-4
- Manufacturer: ABB Robotics
- Series / Platform: IRC5 Robot Controller
- Module Type: Single Servo Drive Unit (1-axis)
- Country of Origin: Sweden
- Unit Weight: 900 g
- Compatible Controllers: IRC5 Single Cabinet, IRC5 Dual Cabinet, IRC5 Panel Mounted Controller (PMC)
- Compatible Robot Families: IRB 140, IRB 1600, IRB 2400, IRB 4400, IRB 6600, IRB 7600 (and auxiliary axes)
- Drive Topology: Voltage Source Inverter (VSI), PWM-controlled
- Communication Interface: Internal IRC5 drive bus (proprietary ABB serial link)
- Cooling Method: Forced air (cabinet-integrated fan system)
- Protection Class: IP20 (installed within IRC5 cabinet enclosure)
- Operating Temperature: 0 °C to +52 °C (ambient, cabinet interior)
- Storage Temperature: -25 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Compliance: CE, RoHS
Proven Application Environments
- Automotive body welding and assembly lines (IRC5-controlled IRB 6600 / 7600 cells)
- Electronics PCB handling and precision pick-and-place (IRB 140 / IRB 1600)
- Palletizing and material handling with auxiliary positioner axes
- Foundry and die-casting robot cells requiring robust drive replacement
- Pharmaceutical and food-grade automation with cleanroom-adjacent IRC5 cabinets
- Retrofit and life-extension projects for legacy IRC5 installations
Engineering Advantages
- Modular Single-Axis Architecture: Replace only the failed drive axis without disturbing adjacent drive modules — minimizes downtime and reduces repair cost.
- OEM-Equivalent Performance: Identical firmware compatibility and drive bus protocol as factory-installed units; no parameter re-mapping required after swap.
- Plug-and-Play Integration: Direct connector-compatible with IRC5 drive bus backplane — no custom cabling or adapter boards needed.
- Verified Thermal Management: Designed to operate within IRC5 cabinet thermal envelope; no additional cooling modifications required.
- Long-Term Availability: Stocked as a strategic spare for IRC5 fleets with extended service life requirements (10+ year robot installations).
System Architecture & Signal Flow
Within the IRC5 cabinet, the 3HAC14550-4 receives motion reference signals from the IRC5 main computer (DSQC 639 / DSQC 1000) via the internal drive bus. The unit converts these references into PWM gate signals driving the IGBT power stage, which outputs three-phase AC power to the servo motor. Encoder feedback from the motor is routed back through the drive unit to the main computer, closing the position and velocity control loops. The single-axis design allows independent fault isolation — a drive fault on one axis does not propagate to adjacent drive units in the same cabinet.
Sourcing & Quality Verification
- Source: Procured through verified industrial automation supply channels with full traceability documentation available on request.
- Inspection: Each unit undergoes visual inspection, connector integrity check, and label/serial number verification prior to shipment.
- Packaging: Anti-static ESD bag + foam-lined carton; compliant with IEC 61340-5-1 ESD handling standards.
- Warranty: 90-day functional warranty against manufacturing defects (DOA policy applies).
- Documentation: ABB part number label, revision code, and country of origin markings verified on every unit.
Procurement Process
- Submit your inquiry via support@konmask.com or the product page quote form.
- Provide your IRC5 cabinet serial number and robot model for compatibility confirmation.
- Receive a formal quotation with lead time and shipping options within 1 business day.
- Order confirmation and proforma invoice issued upon PO receipt.
- Shipment via DHL Express / FedEx International Priority with full tracking.
- Post-delivery technical support available for installation verification.
Technical FAQ
Q: Is the 3HAC14550-4 compatible with all IRC5 cabinet variants?
A: Yes — it is compatible with IRC5 Single Cabinet, Dual Cabinet, and Panel Mounted Controller (PMC) configurations. Confirm your cabinet revision with ABB documentation before ordering.
Q: Does replacing this drive unit require re-calibration of the robot?
A: Drive unit replacement does not require full robot calibration. However, axis parameter verification via RobotStudio or the FlexPendant is recommended after installation.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For bulk orders or specific revision requirements, lead time is 5–10 business days.
Q: Can you provide an ABB OEM certificate of conformity?
A: We provide sourcing traceability documentation. Official ABB CoC is available for units sourced directly from ABB authorized distributors — please specify this requirement at inquiry stage.
Q: What export/import regulations apply?
A: This product is classified as industrial automation equipment. Buyers are responsible for verifying import regulations in their jurisdiction. We provide commercial invoice, packing list, and HS code documentation to support customs clearance.
