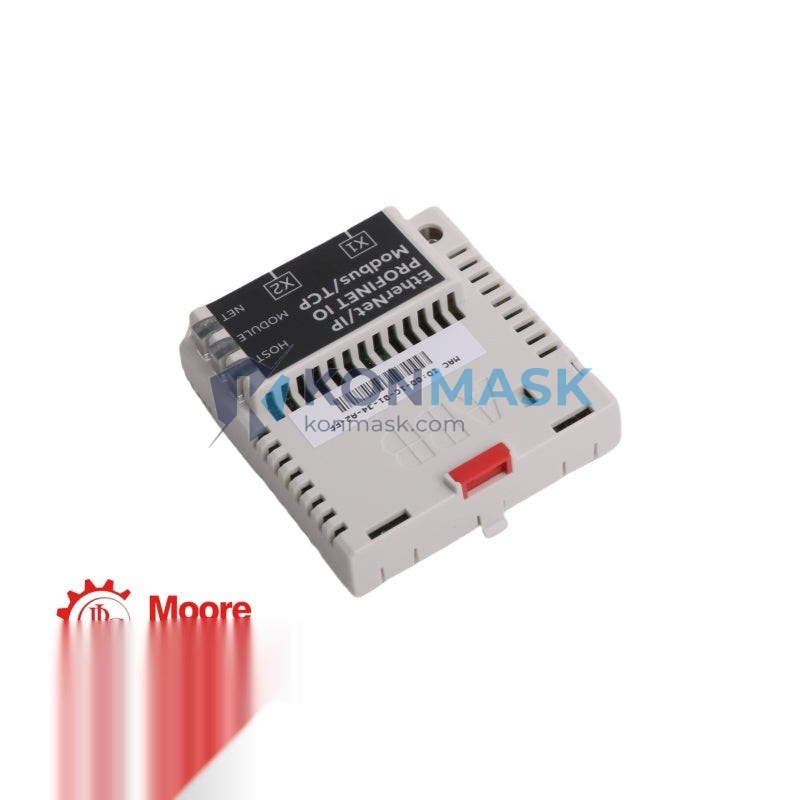

ABB FENA-21 (3AUA0000089108) – Dual-Port Ethernet Adapter Module | ACS880 / ACS580 / ACS480 Platform
Engineering Background
The FENA-21 is ABB’s second-generation dual-port Ethernet fieldbus adapter, engineered specifically for the ACS880, ACS580, and ACS480 variable-speed drive families. It replaces the single-port FENA-11 and delivers simultaneous multi-protocol Ethernet connectivity—enabling seamless integration into modern industrial Ethernet architectures without additional gateways or protocol converters.
Product Positioning
Designed for procurement engineers and system integrators who require deterministic, high-throughput fieldbus communication in demanding automation environments. The FENA-21 is the preferred choice for new installations and retrofit projects where EtherNet/IP, PROFINET IRT, or Modbus TCP connectivity is mandated by the control system specification.
Complete Technical Specifications
| Part Number | FENA-21 / 3AUA0000089108 |
| Manufacturer | ABB Ltd. (Helsinki, Finland) |
| Module Type | Dual-Port Ethernet Fieldbus Adapter |
| Supported Protocols | EtherNet/IP, PROFINET IO (RT & IRT), Modbus TCP, EtherCAT (firmware-selectable) |
| Ethernet Ports | 2 × RJ-45 (10/100 Mbps, auto-negotiation, daisy-chain / star topology) |
| Compatible Drives | ACS880, ACS580, ACS480, ACS380, ACS355 (with option slot) |
| Installation Interface | Drive option slot (plug-in, tool-free) |
| Power Supply | Supplied via drive option slot (no external PSU required) |
| Cyclic Data | Up to 12 words input / 12 words output (configurable) |
| IP Rating | IP20 |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 55 × 80 × 25 mm |
| Weight | ~400 g (with packaging) |
| Certifications | CE, UL, cUL, RoHS |
| ABB Document Reference | 3AUA0000093568 (User Manual) |
| Country of Origin | Finland |
Proven Application Environments
- Automotive Manufacturing: Conveyor and robot cell speed control integrated via PROFINET IRT to Siemens TIA Portal / S7-1500 PLCs.
- Water & Wastewater: Pump station VFD networks using Modbus TCP with SCADA systems (Wonderware, Ignition).
- Oil & Gas Upstream: Compressor and fan drives on EtherNet/IP rings with Rockwell ControlLogix / CompactLogix controllers.
- Food & Beverage: Hygienic conveyor lines requiring deterministic IRT communication for synchronized multi-axis motion.
- Building Automation: HVAC fan and pump drives integrated into BACnet/IP or Modbus TCP building management systems.
- Marine & Offshore: Thruster and winch drives on redundant Ethernet rings (daisy-chain topology, dual-port failover).
Engineering Advantages
- Dual-Port Daisy-Chain: Eliminates the need for managed switches in linear topologies, reducing BOM cost and cabinet space.
- Multi-Protocol Firmware: Single hardware SKU supports EtherNet/IP, PROFINET, and Modbus TCP—select protocol via drive parameter, no hardware swap required.
- Plug-In Installation: Tool-free insertion into the drive option slot; no additional wiring harness or power supply.
- Transparent Parameter Access: Full ABB drive parameter read/write over Ethernet—enables remote commissioning and predictive maintenance integration.
- Backward Compatibility: Drop-in replacement for FENA-11 in existing installations; same mechanical footprint and parameter mapping.
- Diagnostics LED Array: On-board LEDs for link status, activity, and module health—accelerates fault isolation during commissioning.
System Architecture & Signal Flow
The FENA-21 mounts directly into the drive’s option slot and communicates with the drive’s internal fieldbus interface via a high-speed parallel bus. On the network side, two RJ-45 ports allow either star (both ports active, independent) or daisy-chain (linear ring) topologies. The module handles all protocol stack processing on-board, presenting the drive as a standard Ethernet node to the PLC/SCADA layer. Cyclic process data (speed reference, torque reference, status word, actual speed) is exchanged at the network update rate; acyclic parameter access uses the protocol’s native messaging services (CIP Explicit, PROFINET Record Data, Modbus FC03/FC16).
Sourcing & Quality Verification
- All units sourced from ABB-authorized distribution channels or verified OEM surplus with full traceability.
- Each module inspected for: correct label markings (part number, serial, date code), firmware version compatibility, and physical integrity of the RJ-45 ports and option-slot connector.
- Functional test performed on ABB ACS880 test bench prior to shipment—drive communication verified at 100 Mbps.
- Original ABB packaging retained where available; anti-static ESD bag used for all shipments.
- Certificate of conformity and test report available upon request.
Procurement Process
- Confirm Compatibility: Verify your drive model and firmware version against ABB compatibility matrix (document 3AUA0000093568).
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination port.
- Order Confirmation: Purchase order accepted; lead time confirmed within 24 hours.
- Shipment: DHL Express / FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, COO) included.
- After-Sales: 12-month warranty; technical support via email and WhatsApp (+0086 19859288691).
Technical FAQ
Q: Can FENA-21 replace FENA-11 directly?
A: Yes. The FENA-21 is mechanically and electrically compatible with the same option slot. Re-parameterize the drive’s fieldbus adapter settings after installation.
Q: Which ABB drive firmware is required?
A: ACS880 standard drive application firmware ≥ 1.60 is recommended. Refer to ABB document 3AUA0000093568 for full firmware compatibility table.
Q: Can both Ethernet ports be used simultaneously for different protocols?
A: No. Both ports operate under the same protocol (selected by drive parameter). Port 2 is used for daisy-chain or redundant ring topology within the same network.
Q: Is EtherCAT supported?
A: EtherCAT support depends on firmware version. Confirm with ABB or contact Konmask for the latest firmware availability.
Q: What is the maximum number of FENA-21 modules per ACS880 drive?
A: One FENA-21 per option slot. ACS880 multidrives may support multiple option slots—consult the drive hardware manual.
