ABB JCU-11 Control Unit for ACS880 | Replacement, Equivalent & Selection Guide

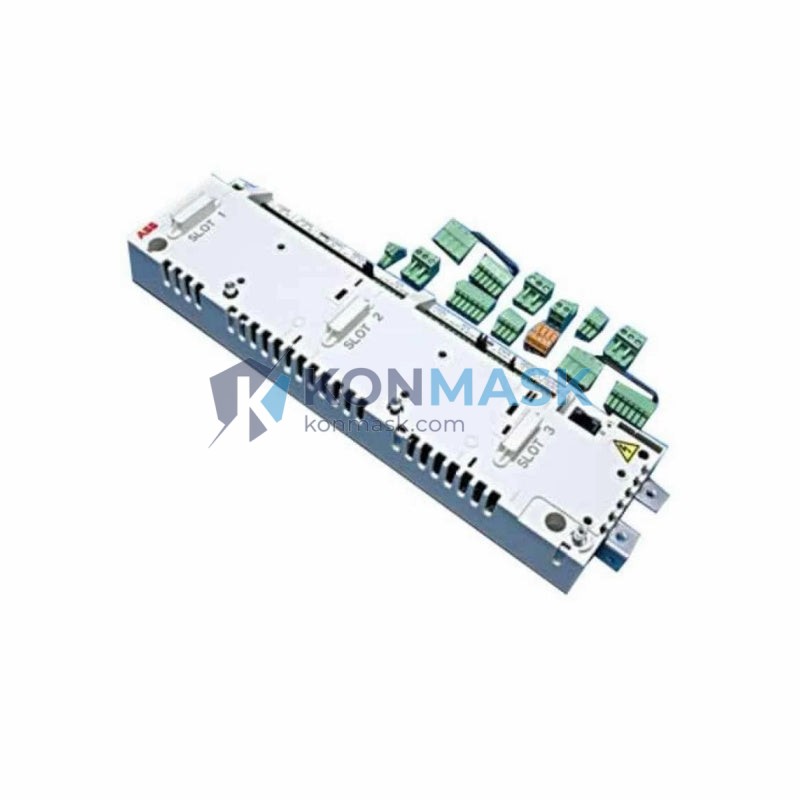

The ABB JCU-11 (SKU: JCU-11) is the standard control unit (CU) for the ABB ACS880 single drive series. It provides the core processing, I/O interface, and fieldbus communication backbone for the drive. This page is a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams sourcing the JCU-11 or evaluating alternatives.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | JCU-11 |
| Compatible Drive Series | ABB ACS880-01, ACS880-04, ACS880-07, ACS880-11, ACS880-14, ACS880-17 |
| Processor | Dual-core ARM Cortex-A9 |
| Digital Inputs | 6 × DI (24 VDC) |
| Digital Outputs | 3 × DO (relay) |
| Analog Inputs | 2 × AI (0–10 V / 0–20 mA, 12-bit) |
| Analog Outputs | 2 × AO (0–20 mA, 12-bit) |
| Encoder Interface | TTL / HTL via FEN-xx option modules |
| Fieldbus (onboard) | EtherNet/IP, Modbus TCP (via FENA-21) |
| Option Module Slots | 2 × option slots (fieldbus, I/O expansion, encoder) |
| Memory Card Slot | SD card (parameter backup & firmware) |
| Supply Voltage | 24 VDC (from drive internal PSU) |
| Operating Temperature | -10 °C to +55 °C |
| Protection Class | IP20 |
| Firmware | ACS880 Primary Control Program (upgradeable) |
| Weight | ~3.19 kg (kit incl. accessories) |
| Certifications | CE, UL, cUL, RoHS |
Compatible Replacement & Equivalent Models
When the JCU-11 is unavailable or under evaluation, the following models are commonly considered:
- ABB JCU-12 – Enhanced version with additional I/O; direct functional replacement for most ACS880 frames. Requires firmware ≥ 2.80.
- ABB BCU-12 / BCU-22 – Cabinet drive control units for ACS880-07 / ACS880-17 multi-drive systems; not a drop-in for single drives.
- ABB ACX-AP-x Control Panel – Supplementary HMI; does not replace the JCU-11 but works alongside it.
- Siemens CU320-2 PN – Equivalent class for SINAMICS S120; requires full system re-engineering; not a direct swap.
- Danfoss MCO 305 – Motion control option for FC 302; comparable positioning functionality; different ecosystem.
Note: Always verify firmware compatibility and hardware revision before substitution. Contact Konmask for cross-reference validation.
Why Choose the Original ABB JCU-11
- Factory-validated for all ACS880 single drive frames (R1–R11)
- Seamless integration with ABB Drive Composer and DDCS communication
- Full support for ABB’s adaptive programming (function block editor)
- Guaranteed firmware upgrade path via ABB official channels
- Backed by ABB global service network and 24-month warranty
- Reduced commissioning time vs. third-party alternatives
Typical Applications
- Industrial pump and fan variable speed control
- Conveyor and material handling automation
- Compressor and HVAC drive systems
- Crane and hoist motion control
- Extruder and mixer process lines
- Wind turbine pitch and yaw control (ACS880-17 variant)
System Compatibility
- Drive Series: ACS880-01 (0.55–250 kW), ACS880-04, ACS880-07, ACS880-11, ACS880-14, ACS880-17
- Fieldbus Options: PROFIBUS (FPBA-01), PROFINET (FENA-21), EtherNet/IP (FENA-21), Modbus RTU (FSCA-01), DeviceNet (FDNA-01), CANopen (FCAN-01)
- I/O Expansion: FIO-01, FIO-11 analog/digital I/O modules
- Encoder Feedback: FEN-01 (TTL), FEN-11 (HTL), FEN-21 (resolver), FEN-31 (absolute)
- Safety Options: FSO-11, FSO-21 (STO, SS1, SLS, SDI – SIL 2 / PLd)
- PLC Integration: Compatible with Siemens TIA Portal, Rockwell Studio 5000, Beckhoff TwinCAT via standard fieldbus adapters
Selection Guide
Use the following criteria to confirm the JCU-11 is the correct control unit for your application:
- Drive frame: Confirm your ACS880 frame size (R1–R11) — JCU-11 is standard for all single-drive frames.
- I/O count: If more than 6 DI / 3 DO / 2 AI / 2 AO are required, add FIO expansion modules or consider JCU-12.
- Fieldbus protocol: Select the matching FENA/FPBA/FSCA adapter for your network.
- Safety level: For SIL 2 / PLd requirements, add FSO-11 or FSO-21 safety option module.
- Encoder feedback: Choose FEN-xx based on encoder type (TTL / HTL / resolver / absolute).
- Firmware version: Verify current drive firmware; JCU-11 supports ACS880 Primary Control Program from v1.xx onward.
Quality Assurance & Sourcing
- All JCU-11 units sourced by Konmask are genuine ABB OEM parts with traceable batch documentation.
- Pre-shipment inspection includes visual check, firmware version verification, and connector integrity test.
- Packaging: original ABB anti-static packaging with serial number label intact.
- Lead time: typically 3–7 business days for in-stock units; 2–4 weeks for factory-order items.
- Export compliance: HS Code 8537.10, ECCN EAR99 (subject to change — confirm at order).
How to Order
- Confirm your ACS880 drive model and frame size.
- Note your current firmware version (visible on drive display or Drive Composer).
- Select any required option modules (fieldbus, I/O, encoder, safety).
- Add JCU-11 to cart or contact support@konmask.com for a formal quotation.
- Provide PO number, delivery address, and any special packing/export requirements.
Replacement & Compatibility FAQ
Q: Can I replace a JCU-11 with a JCU-12 without hardware changes?
A: Yes, in most cases. The JCU-12 is mechanically compatible and uses the same connector layout. Firmware upgrade to ≥ 2.80 is required. Verify option module compatibility before swapping.
Q: Will my parameters be retained after replacing the JCU-11?
A: Parameters are stored on the SD memory card. Back up to the SD card before removal and restore after installing the new unit using Drive Composer or the control panel.
Q: Is the JCU-11 compatible with ACS800 drives?
A: No. The JCU-11 is exclusively designed for the ACS880 platform. ACS800 uses the RMIO board, which is a different architecture.
Q: Can the JCU-11 run custom application programs?
A: Yes. ABB’s adaptive programming environment (function block editor) runs on the JCU-11, enabling custom logic without an external PLC for simple applications.
Q: What is the typical lead time for a replacement JCU-11?
A: In-stock units ship within 3–7 business days. Contact us for urgent requirements — expedited sourcing is available.
