Semiconductor Wafer Handling Solution – Applied Materials MBTC BD 3200-1000-06 / 3200-1000-09 | Brooks Extended MyPro Series
Where This Product Is Used
The Applied Materials MBTC BD (Motion & Bus Transfer Control Board) is a core motion control PCB deployed inside Applied Materials cluster tool platforms — including the Centura, Endura, and Producer series — as well as Brooks Automation Extended MyPro atmospheric robot systems. Typical deployment environments include:
- 300 mm & 200 mm semiconductor fab wafer handling modules
- CVD, PVD, and etch process tool front-end robot arms
- Atmospheric Equipment Front-End Modules (EFEM)
- Cleanroom automation cells requiring precise multi-axis motion coordination
- OEM spare-parts programs for fab maintenance and sustaining engineering teams
Technical Specifications
- Part Numbers: 3200-1000-06 / 3200-1000-09
- Cross-Reference: VM14 203-0028-RC | VPM-4214-01

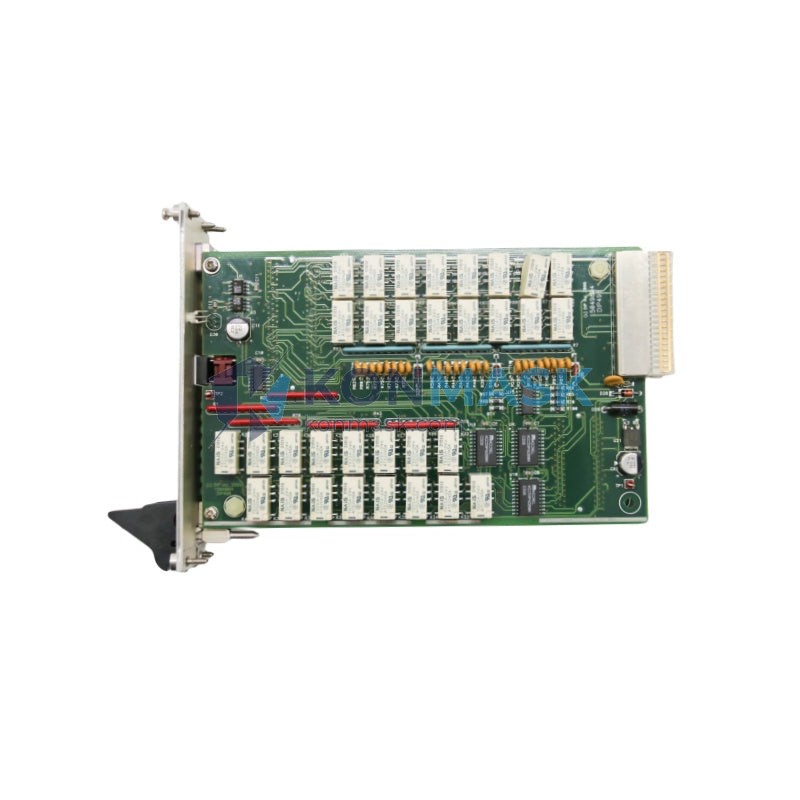

- Board Type: MBTC BD – Motion & Bus Transfer Control Board
- Platform: Brooks Extended MyPro Atmospheric Robot
- OEM: Applied Materials / Brooks Automation
- Form Factor: PCB Assembly (field-replaceable unit)
- Weight: ~4.1 kg (packaged)
- Condition: Refurbished / Tested – Functionally verified prior to shipment
- Compatibility: Applied Materials Centura, Endura, Producer platforms; Brooks MyPro robot series
Why Engineers Specify This Model
- Dual part-number coverage (3200-1000-06 & 3200-1000-09) ensures compatibility across multiple fab tool revisions without re-qualification
- Integrated motion + bus control on a single board reduces inter-board communication latency critical for wafer placement accuracy
- Brooks MyPro Extended architecture supports longer reach atmospheric robots, enabling larger process tool footprints without additional motion controllers
- Drop-in replacement for sustaining engineering — no firmware re-flash required in most configurations
- Functionally tested before shipment, reducing fab downtime risk versus untested surplus
Complete System Bill of Materials
This board is typically ordered alongside the following complementary components for a full robot control system rebuild:
- Brooks MyPro Robot Arm Assembly (Extended reach variant)
- Applied Materials Robot Controller Chassis
- EFEM Interface Board / I/O Expansion Card
- Servo Drive / Amplifier Module (axis-specific)
- Wafer Mapping Sensor & Alignment Module
- Cleanroom-rated cable harness set
Contact [email protected] for BOM-level sourcing assistance.
Compliance & Industry Standards
- Designed for use in SEMI S2 / S8 compliant semiconductor equipment environments
- Compatible with SEMI E84 / E87 EFEM communication protocols
- RoHS status: legacy component — confirm with your fab’s environmental compliance team
- ESD-sensitive device — handled and packaged per ANSI/ESD S20.20 standards
- Export compliance: verify ECCN classification with your trade compliance officer prior to international shipment
Quality Assurance & Sourcing
- Source: Decommissioned fab equipment, OEM surplus, and authorized refurbishers
- Inspection: Visual inspection + functional power-on test performed on every unit
- Packaging: Anti-static bag + foam-lined carton, cleanroom-exit handling
- Warranty: 90-day functional warranty — contact us for extended coverage options
- Traceability: Serial number and revision level documented at time of shipment
How to Source This Part
- Click Add to Cart or submit a Request for Quote (RFQ) via email
- Provide your tool serial number and current board revision for compatibility confirmation
- Receive proforma invoice with lead time and shipping options (DHL / FedEx / sea freight)
- Payment via T/T bank transfer, PayPal, or trade assurance
- Shipment with full documentation: packing list, test report, commercial invoice
📧 [email protected] | 📞 +0086 19859288691
Application-Specific FAQ
Q: Is this board compatible with both 3200-1000-06 and 3200-1000-09 revisions?
A: Yes. Both revision levels are covered by this listing. The functional difference between -06 and -09 is minor firmware/PCB spin — confirm your tool’s accepted revision range with your process engineer.
Q: Can this board be used in a non-Extended (standard) MyPro robot?
A: The Extended MyPro MBTC BD has a different axis-count configuration. Use in a standard MyPro requires engineering validation. Contact us before ordering.
Q: What is the lead time?
A: In-stock units ship within 2–5 business days. Out-of-stock units are sourced within 2–6 weeks depending on market availability.
Q: Do you provide a test report?
A: Yes. A functional test summary is included with every shipment upon request.
Q: Can you supply multiple units for a fab-wide spare parts program?
A: Yes. Volume pricing is available. Contact us with your annual usage forecast for a blanket order quote.
