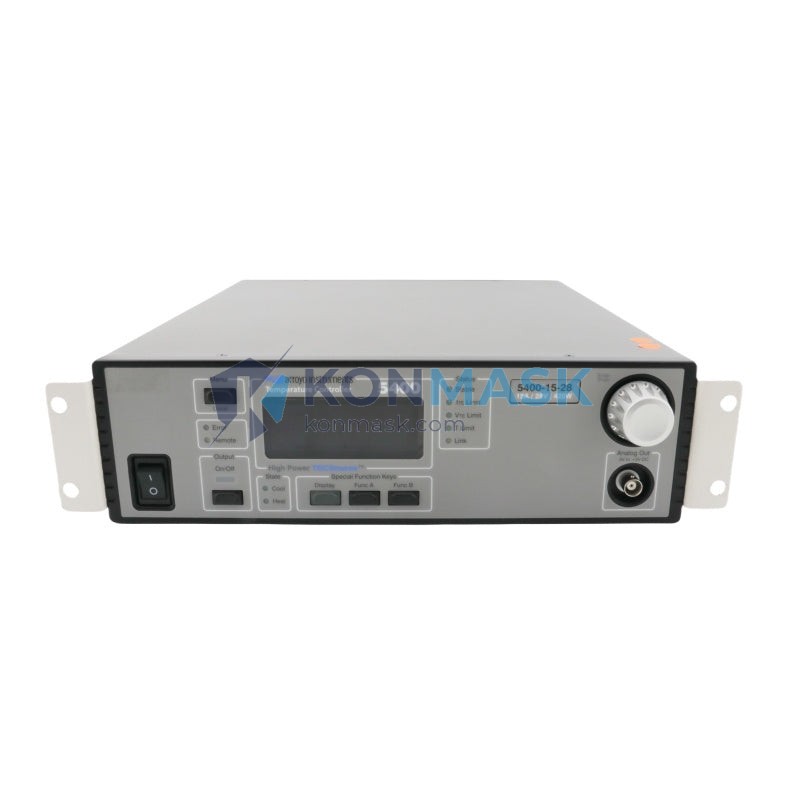

Arroyo Instruments 5400-15-28 EI-3203MD-A1 – Dual-Loop TEC Temperature Controller PCB | TECSource 5400 Series
Engineering Background
The Arroyo Instruments TECSource 5400 platform is a precision thermoelectric controller series engineered for laser diode and photonic device thermal management. The 5400-15-28 variant integrates a dual-loop analog temperature control (DLATC) architecture with protection circuitry (PROT) on a compact PCB assembly, designed for OEM integration into laser test systems, fiber-optic transceivers, and photonic instrumentation.
Product Positioning
This EI-3203MD-A1 PCB module (G2/G3 revision) delivers 21.7 mA TEC drive current with Q2 output stage configuration. It is a direct OEM replacement and upgrade component for Arroyo Instruments 5400-series mainframes, suitable for procurement engineers sourcing verified, traceable automation and photonics control hardware.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Arroyo Instruments |
| Part Number | 5400-15-28 EI-3203MD-A1 |
| Revision | G2 / G3 |
| Barcode / Internal Ref | 0100-01445 |
| Module Type | DLATC/PROT PCB (Dual-Loop Analog TEC Controller + Protection) |
| Output Stage | Q2 Configuration |
| TEC Drive Current | 21.7 mA |
| Series Platform | TECSource 5400 |
| Form Factor | PCB Module (OEM Integration) |
| Country of Origin | United States |
| Weight | 360 g |
Proven Application Environments
- Laser diode thermal stabilization in fiber-optic transceivers and DWDM systems
- Photonic device characterization benches requiring ±0.01°C temperature stability
- OEM integration into Arroyo Instruments 5400-series laser/TEC mainframes
- Semiconductor test equipment with precision thermoelectric cooling control
- Research-grade photonics labs and telecom component burn-in stations
- Industrial automation systems requiring embedded analog temperature loop control
Engineering Advantages
- Dual-Loop DLATC Architecture: Independent analog control loops for fast thermal response and high setpoint accuracy
- Integrated Protection Circuit (PROT): Over-current, over-temperature, and reverse-polarity protection on-board
- Q2 Output Stage: Optimized for low-noise TEC drive at 21.7 mA, minimizing thermal interference in sensitive photonic assemblies
- G2/G3 Revision: Latest production revision with improved EMI shielding and component tolerances
- OEM-Grade Reliability: Manufactured to Arroyo Instruments’ production standards for long-term field deployment
- Compact PCB Form Factor: Drop-in replacement for 5400-series mainframe slots, no mechanical modification required
System Architecture & Signal Flow
The EI-3203MD-A1 PCB implements a closed-loop analog temperature control path:
- Sensor Input: Thermistor or RTD signal conditioning via precision instrumentation amplifier
- Error Amplifier (DLATC Loop 1): Compares setpoint reference to measured temperature; generates error signal
- Compensation Network (DLATC Loop 2): PID-equivalent analog compensation for loop stability across TEC load variations
- Q2 Output Driver: Linear TEC current driver stage delivering 21.7 mA to thermoelectric module
- PROT Supervisory Circuit: Monitors output current, TEC voltage, and PCB temperature; asserts fault latch on threshold breach
Sourcing & Quality Verification
- OEM Traceability: All units sourced with original Arroyo Instruments part markings and barcode (0100-01445)
- Inspection Standard: Visual and functional inspection per IPC-A-610 Class 2 criteria prior to shipment
- Authenticity: No counterfeit, remarked, or refurbished units — Konmask.com maintains a strict OEM-only sourcing policy
- Packaging: ESD-safe anti-static bag with moisture barrier; shipped in rigid protective carton
- Documentation: Datasheet and test report available upon request for qualified procurement inquiries
Procurement Process
- Add to cart and complete checkout — secure payment via Shopify Payments, T/T, or PayPal
- Order confirmation and proforma invoice issued within 1 business day
- Lead time: In-stock units ship within 2–3 business days; ETA provided at order confirmation
- Global shipping via DHL Express, FedEx, or UPS with full tracking
- Export documentation (commercial invoice, packing list, COO) included for customs clearance
- Post-shipment technical support available via [email protected]
Technical FAQ
Q: Is this a direct replacement for the original Arroyo Instruments 5400-15-28 PCB?
A: Yes. The EI-3203MD-A1 G2/G3 is the current production revision of the 5400-15-28 DLATC/PROT PCB and is a direct form-fit-function replacement.
Q: What TEC load impedance is this module rated for?
A: The Q2 output stage is optimized for standard 1–5 Ω TEC modules at 21.7 mA drive current. Consult the Arroyo Instruments 5400 series datasheet for full load specifications.
Q: Can this PCB be used standalone outside a 5400 mainframe?
A: The module is designed for OEM integration. Standalone operation requires appropriate power supply rails and interface connectors as specified in the 5400 series integration guide.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 90-day DOA warranty on all OEM components. Extended warranty available upon request for volume orders.
Q: Can I request a datasheet or test report before purchasing?
A: Yes. Contact [email protected] with your inquiry and we will provide available technical documentation for qualified procurement engineers.
