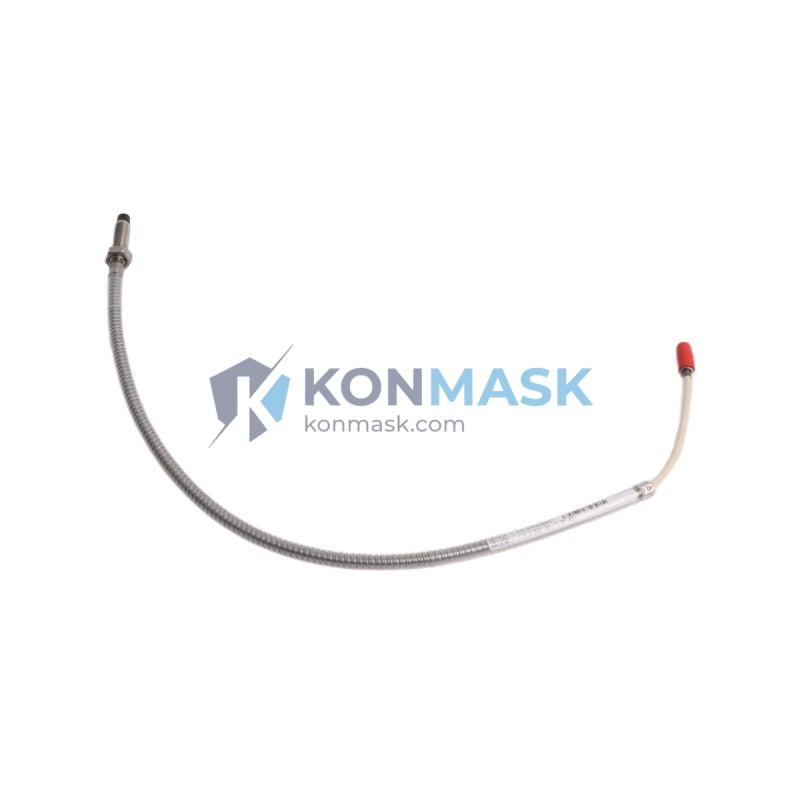

Genuine Bently Nevada 21505-00-40-10-02 - Industrial Automation Part

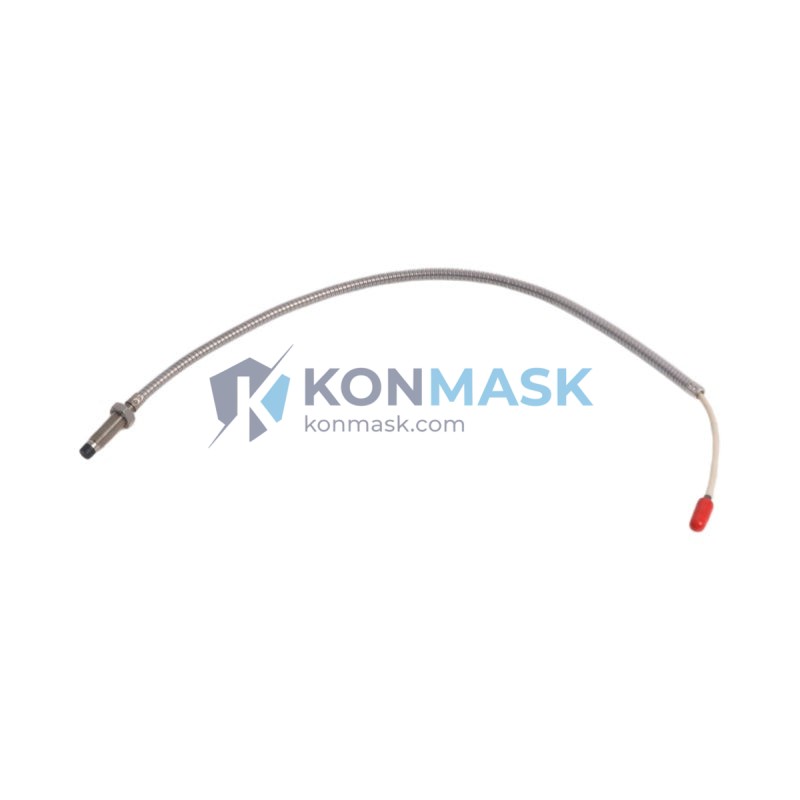

Bently Nevada 21505-00-40-10-02 - Front Panel and Connectivity View

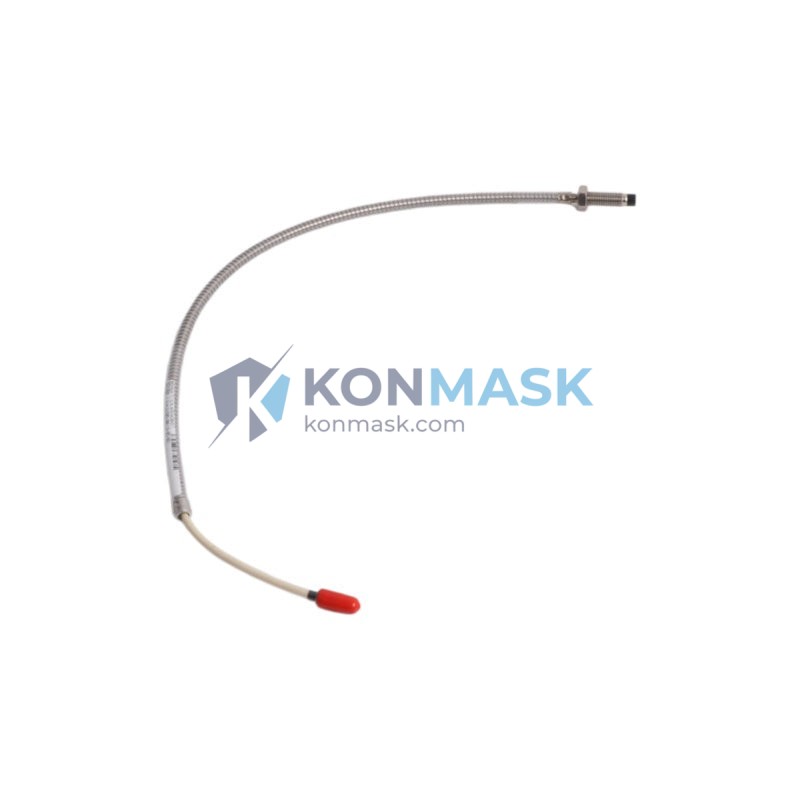

Bently Nevada 21505-00-40-10-02 - Technical Label and Specifications

Bently Nevada 21505-00-40-10-02 Proximity Probe | 3300 Series Eddy Current Sensor

SKU: 21505-00-40-10-02 Category: Bently Nevada Tags: 21505-00-40-10-02, 3300 Series, bently-nevada, proximity-probe, vibration-monitoring

Description

Bently Nevada 21505-00-40-10-02 Proximity Probe – 3300 Series Eddy Current Sensor System

When a critical rotating machine — a steam turbine, compressor, or pump — loses its vibration monitoring capability, the consequences are immediate and severe. Without a functioning proximity probe, operators are blind to shaft displacement, orbital motion, and the early warning signs of bearing failure or rotor instability. Unplanned shutdowns, catastrophic mechanical damage, and costly production losses follow. The Bently Nevada 21505-00-40-10-02 proximity probe is the precision sensing element that keeps your machinery protection system fully operational and your plant running safely.

The 21505-00-40-10-02 is a core component of the Bently Nevada 3300 Series eddy current transducer system — one of the most widely deployed machinery monitoring platforms in global industrial automation. Engineered to API 670 standards, this probe delivers sub-micron resolution shaft position measurement and is trusted in power generation, oil & gas, petrochemical, and heavy manufacturing facilities across more than 100 countries. Its 8 mm tip diameter and 40 mm cable configuration make it the preferred choice for tight-clearance installations where measurement accuracy is non-negotiable.

Technical Specifications

Part Number: 21505-00-40-10-02
Brand: Bently Nevada (Baker Hughes)
Series: 3300 Series Eddy Current Transducer System
Probe Type: Proximity Probe (Non-contact, Eddy Current)
Tip Diameter: 8 mm
Cable Length: 40 inches (approx. 1.0 m)
Connector Type: 10-32 UNF
Thread: 3/8-24 UNF-2A
Target Material Compatibility: Steel, stainless steel, and other ferromagnetic/non-ferromagnetic metals (calibrated for AISI 4140)
Operating Temperature: -35°C to +177°C
Sensitivity: 200 mV/mil (7.87 V/mm) nominal
Linear Range: 10–90 mil (0.25–2.29 mm)
System Compliance: API 670, CE
Weight: 60 g (approx.)

Key Features & Benefits

Non-contact measurement — No mechanical wear, zero maintenance friction, indefinite service life under normal conditions
High-resolution shaft sensing — Detects sub-micron changes in shaft position for early fault detection
API 670 compliant — Meets the international standard for machinery protection systems in critical rotating equipment
Wide temperature range — Reliable performance in harsh industrial environments from cryogenic to high-heat applications
Direct 3300 Series compatibility — Plug-and-play replacement within existing Bently Nevada monitoring infrastructure
Robust construction — Stainless steel housing with hermetically sealed tip for resistance to oil, moisture, and chemical exposure
Minimal installation footprint — Compact 8 mm tip fits tight machine housings and retrofit installations

Industry & Equipment Applications

Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and axial position monitoring
Oil & Gas: Centrifugal compressors, expanders, pipeline pumps — API 670 machinery protection
Petrochemical & Refining: Reactor agitators, boiler feed pumps, critical process compressors
Pulp & Paper / Steel Mills: High-speed rolls, gearboxes, and drive trains requiring continuous vibration surveillance
Marine & Offshore: Propulsion systems and auxiliary machinery on vessels and platforms
General Heavy Industry: Any rotating machinery where bearing health and rotor dynamics must be continuously monitored

System Integration & Compatible Parts

The 21505-00-40-10-02 probe is designed to operate as part of the complete Bently Nevada 3300 Series eddy current transducer system. For a fully functional measurement chain, the following companion components are required:

Extension Cable: 330130-045-00-CN or equivalent 3300 Series extension cable
Proximitor® Sensor / Driver: 3300 XL 8mm Proximitor® (e.g., 330180-X1-05)
Monitor Module: 3500/40M Proximitor®/Seismic Monitor or 3500/42M compatible rack
Rack System: Bently Nevada 3500 Series Machinery Protection System rack

Contact Konmask.com to source the complete system or individual replacement components with verified compatibility.

Our Quality Assurance Process

Authenticity verification — Every unit is cross-referenced against OEM part number databases before shipment
Visual & dimensional inspection — Tip condition, connector integrity, and cable jacket are inspected upon receipt
Traceability documentation — Batch records and sourcing documentation available upon request for regulated industries
Secure packaging — Anti-static, moisture-barrier packaging with foam cushioning to prevent transit damage
Experienced team — Our engineers have hands-on experience with Bently Nevada systems and can advise on compatibility and installation

How to Order

Submit your inquiry via the Contact Us page or email support@konmask.com
Provide your required quantity, delivery timeline, and any system configuration details
Receive a formal quotation within 1 business day
Confirm order and arrange payment via T/T, L/C, or other agreed terms
Shipment with full documentation (packing list, commercial invoice, COO) within agreed lead time

Why Choose Konmask.com?

Specialized in industrial automation and machinery protection components since establishment
Global sourcing network covering OEM, authorized distributors, and certified surplus channels
Technical pre-sales support — we verify compatibility before you commit to an order
Competitive pricing with transparent quotation — no hidden fees
Reliable export logistics to 50+ countries with full customs documentation support
Responsive after-sales service with dedicated account management

Frequently Asked Questions

Q: Is the 21505-00-40-10-02 a direct replacement for other 3300 Series 8mm probes?: A: Yes, within the 3300 Series 8mm probe family, the 21505-00-40-10-02 is dimensionally and electrically compatible with other 8mm probes in the series, provided the extension cable and Proximitor® driver are also 3300 Series components. Always verify the complete system configuration before installation.
Q: Can this probe be used with non-Bently Nevada monitors?: A: The probe outputs a standard eddy current signal (nominally -18V DC bias, 200 mV/mil sensitivity) that is compatible with many third-party monitors designed for 3300 Series inputs. Consult your monitor manufacturer’s specifications to confirm compatibility.
Q: What is the lead time for the 21505-00-40-10-02?: A: Lead time varies by stock availability. Contact Konmask.com for a real-time availability check and delivery estimate. We maintain relationships with multiple sourcing channels to minimize lead times.
Q: Do you provide a warranty on this product?: A: Yes. We offer a standard warranty covering manufacturing defects. Warranty terms are specified in the quotation. Our quality inspection process minimizes the risk of receiving a defective unit.
Q: Can you supply the complete 3300 Series system (probe + cable + Proximitor®)?: A: Absolutely. Konmask.com can source and supply the complete measurement chain. Please provide your system requirements and we will prepare a comprehensive quotation.

{
