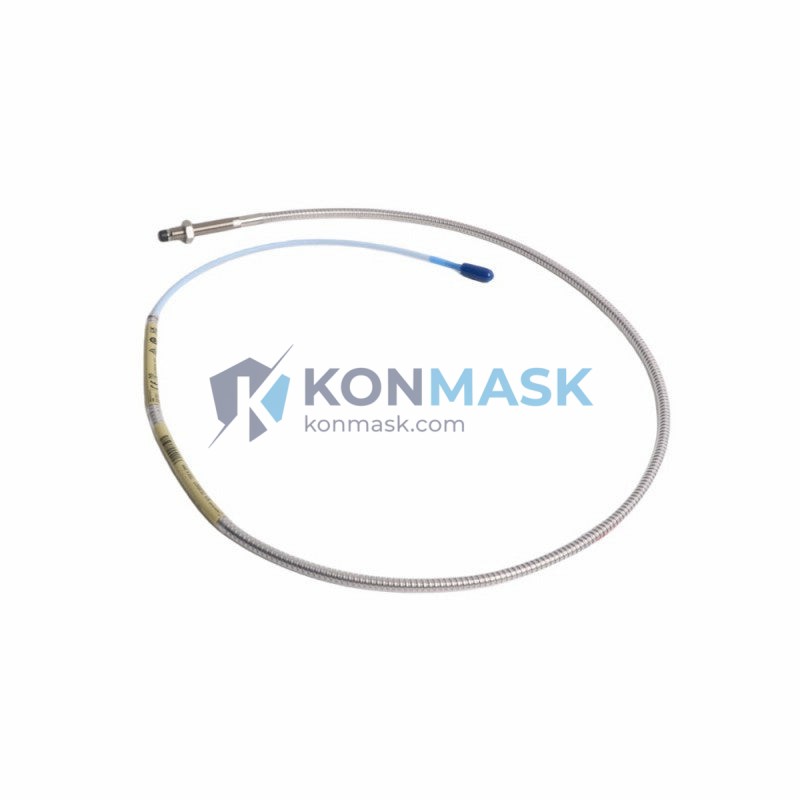

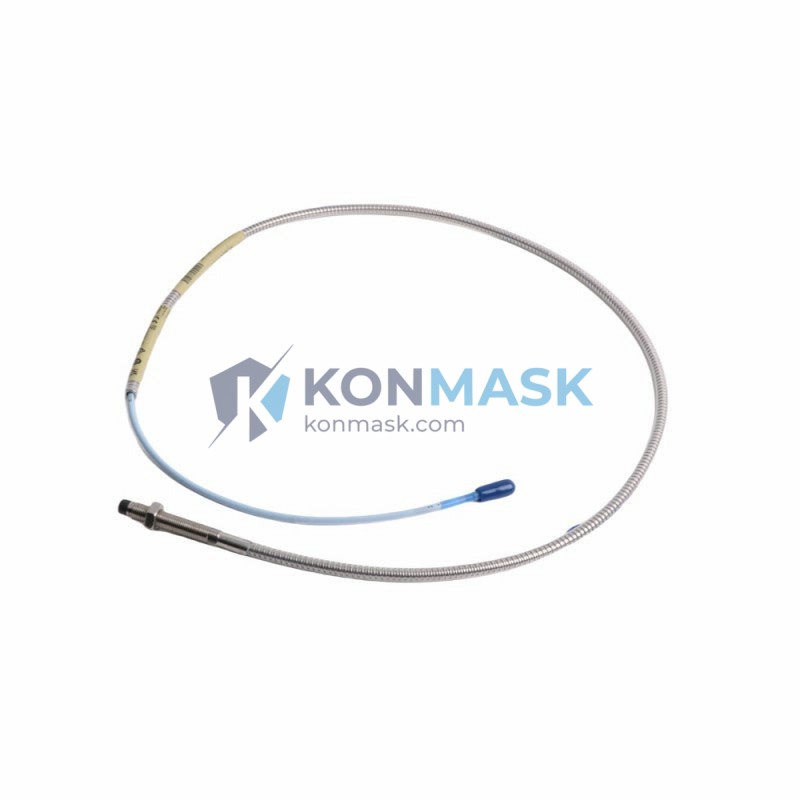

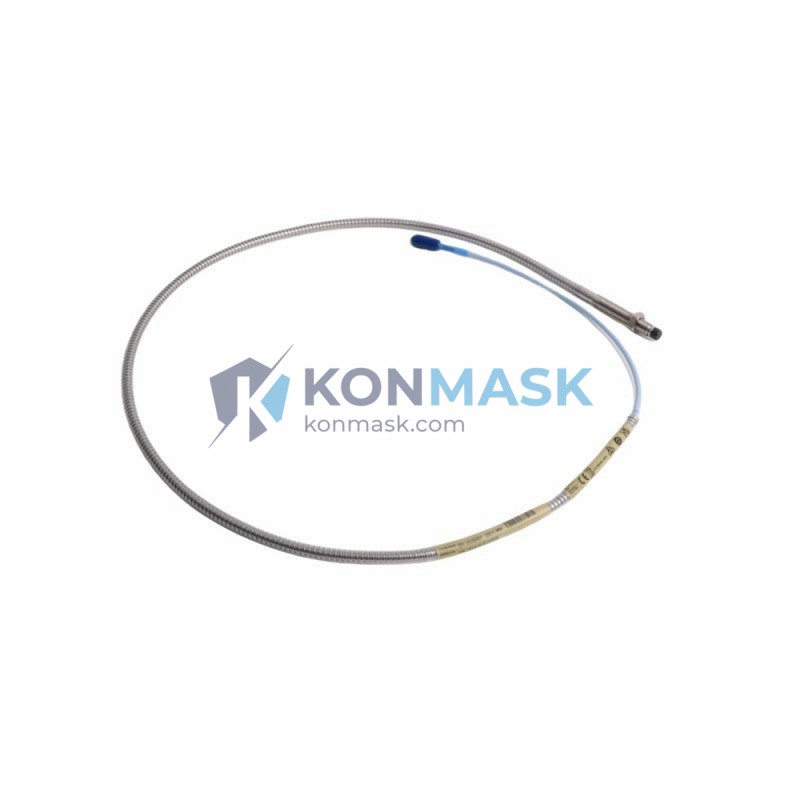

Bently Nevada 330104-00-03-50-02-05 8mm Proximity Transducer System – 3300 XL Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, and unplanned shutdowns that cost industrial facilities tens of thousands of dollars per hour. Without a reliable proximity transducer system in place, operators are flying blind — unable to detect the early warning signs that separate a controlled maintenance stop from a full-scale mechanical failure. The Bently Nevada 330104-00-03-50-02-05 is the component that stands between normal operation and disaster.
Within the 3300 XL Series — Bently Nevada’s industry-defining platform for machinery protection — the 330104-00-03-50-02-05 occupies a precise technical niche: an 8 mm eddy-current proximity transducer system engineered for high-accuracy, non-contact measurement of radial shaft vibration and axial position. The 3300 XL platform is deployed across thousands of turbines, compressors, pumps, and gearboxes worldwide, and this specific configuration (probe + extension cable + proximitor) is one of the most widely specified assemblies in API 670-compliant machinery protection systems globally.
Technical Specifications
- Part Number: 330104-00-03-50-02-05
- Series: Bently Nevada 3300 XL
- Probe Tip Diameter: 8 mm
- Measurement Type: Non-contact eddy-current proximity (radial vibration & axial position)
- System Components: Probe + Extension Cable + Proximitor® Sensor (complete system)
- Standard Compliance: API 670 (Machinery Protection Systems)
- Output Signal: -18 VDC nominal (compatible with 3300 series monitors)
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
- Operating Temperature: Per 3300 XL series specification
- Connector Type: Per Bently Nevada standard (system-matched)
Note: All specifications are based on Bently Nevada published data for the 3300 XL series. Do not substitute components from other series without consulting system documentation.
Key Features & Benefits
- Complete Matched System: Probe, extension cable, and proximitor are factory-matched and calibrated as a unit — eliminating field calibration errors that plague mix-and-match assemblies.
- 8 mm Eddy-Current Technology: Provides superior sensitivity for small-diameter shaft applications where larger probes cannot be physically accommodated.
- API 670 Compliant: Meets the international standard for machinery protection systems, ensuring acceptance by EPC contractors, insurance auditors, and plant safety reviews.
- Drop-in Replacement: Direct OEM-equivalent replacement for existing 3300 XL installations — no rewiring, no reconfiguration of monitors required.
- High Signal Integrity: Shielded cable construction minimizes electromagnetic interference in electrically noisy industrial environments (VFD-heavy plants, substations).
- Long Service Life: Solid-state, non-contact design with no moving parts — designed for continuous 24/7 operation in harsh industrial conditions.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, steam turbines on upstream/midstream/downstream facilities
- Power Generation: Steam and gas turbine-generators, boiler feed pumps, induced draft fans
- Petrochemical & Refining: Reactor charge pumps, cracked gas compressors, process gas blowers
- LNG Plants: Main refrigerant compressor trains requiring continuous vibration surveillance
- Marine & Offshore: Platform compressors and turbines requiring API 670 compliance
- General Industry: High-speed gearboxes, large centrifugal pumps, critical rotating equipment requiring condition monitoring
System Integration & Compatible Parts
The 330104-00-03-50-02-05 is designed to integrate directly with the Bently Nevada 3300 XL monitoring system architecture. Compatible system components include:
- 3300 XL Series Monitors (radial vibration, axial position, speed)
- 3500 Series Machinery Protection System (with appropriate interface modules)
- System 1® Condition Monitoring Software
- Bently Nevada 3300 XL extension cables (matched impedance)
- Proximitor® Sensor housings and junction boxes
When replacing or expanding an existing installation, always verify the complete system part numbers (probe + cable + proximitor) to ensure matched-system calibration is maintained.
Our Quality Assurance Process
- Source Verification: All units are sourced from authorized distributors or verified surplus channels with documented chain of custody.
- Visual & Dimensional Inspection: Each unit is inspected for physical integrity, connector condition, and label authenticity before shipment.
- Functional Testing: Where applicable, units undergo bench testing to verify output signal characteristics against 3300 XL specifications.
- Secure Packaging: Anti-static packaging with shock-absorbing materials to protect precision sensor components during international transit.
- Documentation: Certificate of conformance and inspection report available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and issue a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange export documentation, packaging, and shipment via your preferred freight method (DHL, FedEx, sea freight, etc.).
We support T/T bank transfer, L/C, and other standard B2B payment terms. Contact us to discuss terms suitable for your procurement process.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control and instrumentation components — not a generalist marketplace.
- Global Export Experience: Serving buyers in the Middle East, Southeast Asia, Europe, and the Americas with compliant export documentation.
- Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility verification, and system configuration questions.
- Competitive Lead Times: Extensive supplier network enables faster sourcing than traditional distribution channels for hard-to-find parts.
- Inquiry-First Model: No pressure purchasing — submit an RFQ and receive a detailed quotation before any commitment.
Frequently Asked Questions
Q: Is the 330104-00-03-50-02-05 a complete system or individual component?
A: It is a complete matched system consisting of the 8 mm probe, extension cable, and Proximitor® sensor — all factory-calibrated as a unit.
Q: Can this transducer system be used with Bently Nevada 3500 series monitors?
A: The 3300 XL series proximitor output is compatible with 3500 series monitors in most configurations, but always verify the specific monitor input card specifications before installation.
Q: What is the target material requirement for this probe?
A: The probe is calibrated for AISI 4140 steel. Use on other target materials requires recalibration per Bently Nevada application guidelines.
Q: Do you provide a warranty or certificate of conformance?
A: Yes. We provide inspection documentation with every shipment. Extended warranty terms are available — please discuss with our sales team at the RFQ stage.
Q: What is the typical lead time for this part?
A: Lead time varies by stock availability. Submit an inquiry and we will confirm within 24 business hours.
