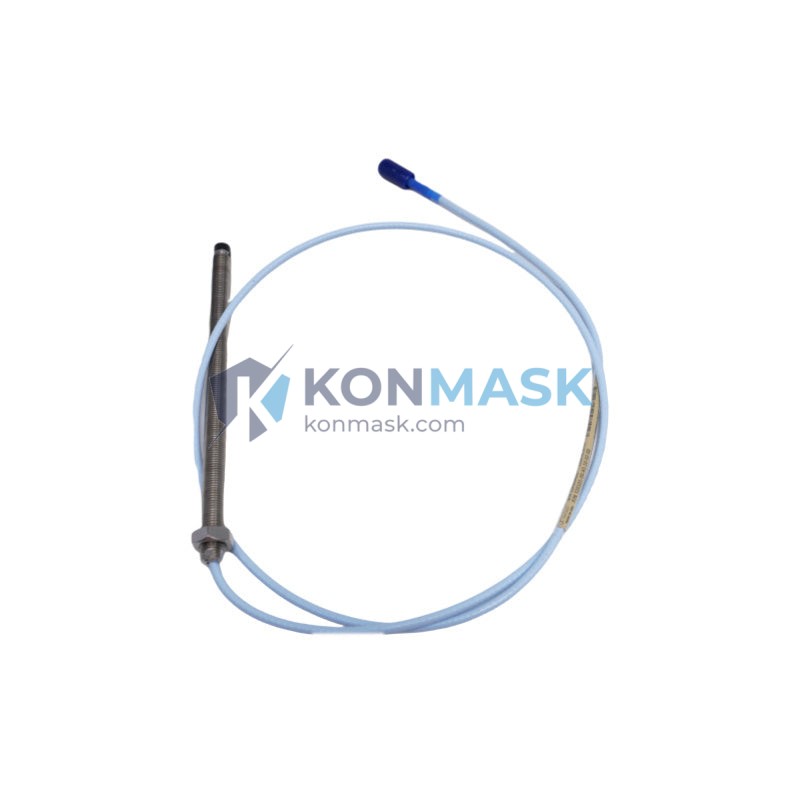

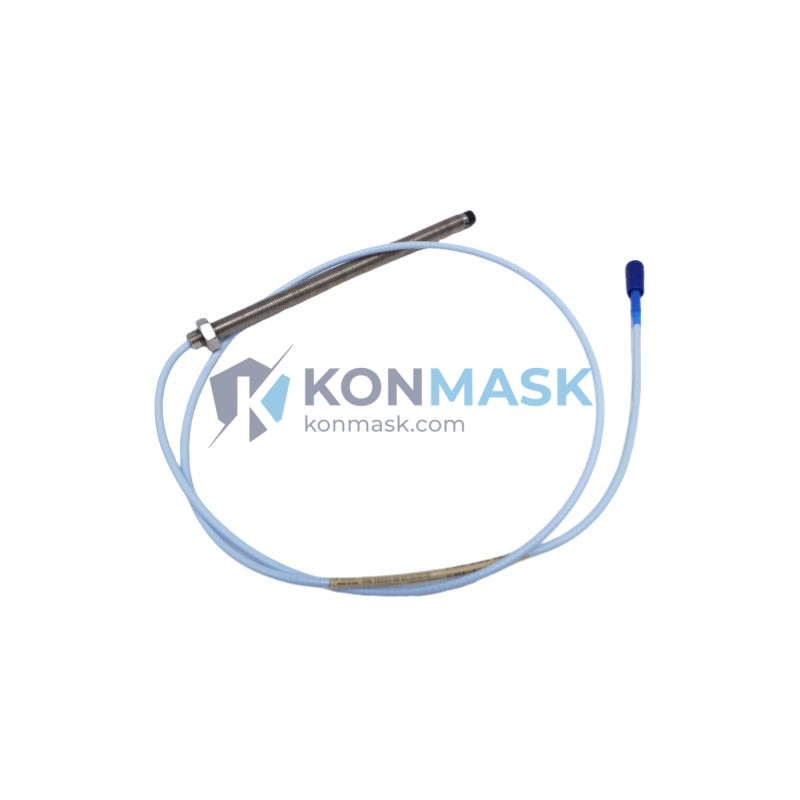

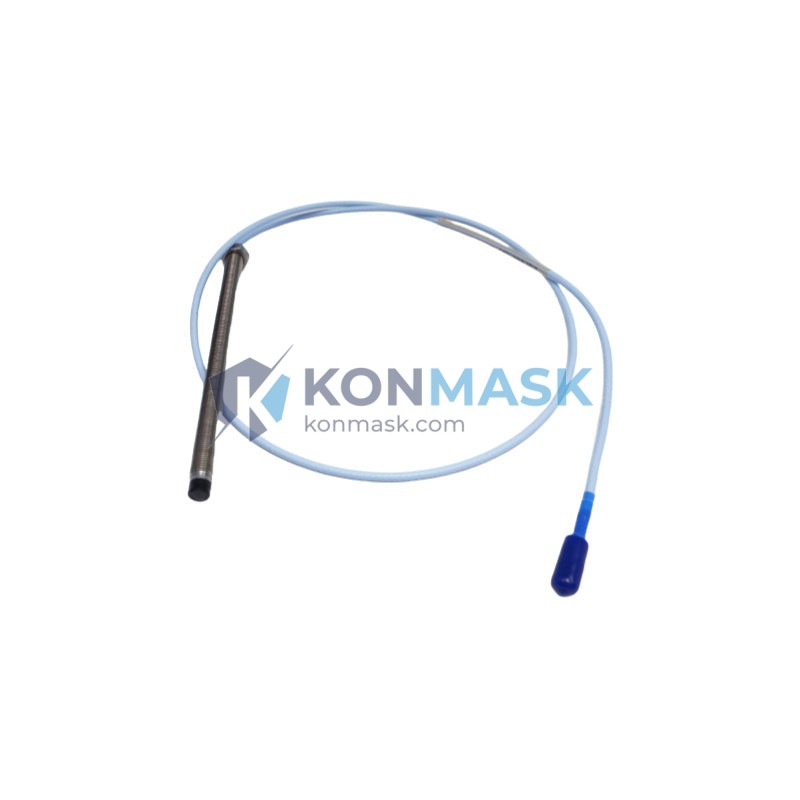

Bently Nevada 330101-00-64-10-12-05 Eddy Current Proximity Sensor – 3300 XL Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in worst cases, irreversible damage to turbines, compressors, or pumps worth millions of dollars. In high-stakes industrial environments — petrochemical plants, power generation facilities, and offshore platforms — a single failed proximity sensor can trigger a full production shutdown. The Bently Nevada 330101-00-64-10-12-05 eddy current proximity sensor is the precision instrument that stands between normal operation and disaster.
The 330101-00-64-10-12-05 is a core component of Bently Nevada’s globally trusted 3300 XL Series proximity transducer system — the industry standard for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery. With decades of field-proven reliability across API 670-compliant installations worldwide, this sensor is specified by OEMs and plant engineers as the benchmark for machinery protection systems. Its eddy current operating principle ensures immunity to oil contamination, pressure, and temperature variations that would compromise other sensor technologies.
Technical Specifications
- Part Number: 330101-00-64-10-12-05
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Sensing Technology: Eddy Current (Non-contact)
- Cable Length: 64 inches (integral cable)
- Thread Size: 10-32 UNF
- Tip Diameter: 5 mm
- Operating Principle: Electromagnetic eddy current induction
- Target Material Compatibility: Steel, stainless steel, and other ferromagnetic/non-ferromagnetic metals (per calibration)
- Standard Compliance: API 670, CE
- Connector Type: Integral coaxial cable with standard BNC/TNC termination (system-dependent)
- Operating Temperature: Refer to OEM datasheet for rated range
- Weight: Approx. 150 g
Note: All specifications are based on Bently Nevada OEM documentation. Do not rely on third-party sources for safety-critical parameters.
Key Features & Benefits
- Non-Contact Measurement: Zero mechanical wear — continuous operation without physical contact with the rotating shaft, ensuring indefinite sensor life under normal conditions.
- High-Resolution Output: Delivers precise analog voltage output proportional to gap distance, enabling accurate vibration amplitude and phase measurement.
- Oil & Contamination Immunity: Eddy current technology is unaffected by oil films, process fluids, or particulate contamination common in turbomachinery environments.
- API 670 Compliant: Fully compatible with machinery protection system requirements per API Standard 670 — the global benchmark for turbomachinery protection.
- Plug-and-Play with 3300 XL System: Designed for seamless integration with Bently Nevada 3300 XL extension cables and proximitors/oscillator-demodulators.
- Robust Construction: Stainless steel housing with hermetically sealed tip for reliable performance in harsh industrial environments.
- Wide Application Range: Suitable for radial vibration, axial position, differential expansion, and eccentricity measurements.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, steam turbines, expanders, and pipeline pumps in upstream, midstream, and downstream facilities.
- Power Generation: Steam turbine-generator sets, hydro turbines, and gas turbine power plants requiring continuous shaft monitoring.
- Petrochemical & Refining: Process compressors, reactor agitators, and critical rotating equipment in ATEX/hazardous area installations.
- Marine & Offshore: Propulsion systems, offshore platform compressors, and LNG carrier machinery.
- Pulp & Paper / Steel Mills: High-speed rolls, fans, and process machinery requiring vibration surveillance.
- General Industrial: Any rotating machinery where API 670-compliant vibration monitoring is specified.
System Integration & Compatible Parts
The 330101-00-64-10-12-05 sensor is designed to operate as part of the complete Bently Nevada 3300 XL Proximity Transducer System. For a complete measurement chain, the following compatible components are typically required:
- Extension Cable: Bently Nevada 330130 Series (matched length to achieve system calibration)
- Proximitor / Oscillator-Demodulator: Bently Nevada 3300 XL 8mm Proximitor (e.g., 330180 Series)
- Monitoring System: Bently Nevada 3500 Series Machinery Protection System or equivalent
- Mounting Hardware: Compatible probe holders and armored conduit fittings
Contact Konmask.com to source the complete system or individual replacement components.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada proximity sensor undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against OEM part number databases and physical inspection of labeling, housing, and connector specifications.
- Functional Pre-Check: Where applicable, basic electrical continuity and impedance checks are performed.
- Packaging Inspection: Original or equivalent protective packaging verified to prevent transit damage to the precision sensor tip.
- Documentation: Certificate of conformance and traceability documentation available upon request.
- Warranty: All products carry Konmask.com’s quality guarantee. Defective items are replaced or refunded per our returns policy.
How to Order
- Submit an Inquiry: Use the contact form or email [email protected] with your part number and required quantity.
- Receive a Quote: Our technical sales team will respond within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: Approve the proforma invoice and complete payment via your preferred method (T/T, PayPal, or other agreed terms).
- Shipment & Tracking: We ship via DHL, FedEx, or UPS with full tracking. Export documentation provided for international orders.
- After-Sales Support: Our engineering team is available for installation guidance and compatibility questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control and automation components — not a generalist marketplace.
- Global Sourcing Network: Access to genuine OEM stock and quality-verified surplus inventory for obsolete or long-lead-time parts.
- Technical Expertise: Our team includes engineers with hands-on experience in DCS, PLC, and machinery protection systems.
- Fast Response: Inquiries answered within 24 hours. Urgent requirements accommodated.
- Trusted by Industry: Serving clients in oil & gas, power generation, and process industries across Asia, Europe, and the Americas.
- Transparent Transactions: Clear quotations, no hidden fees, and full export compliance documentation.
Frequently Asked Questions
Q: Is the 330101-00-64-10-12-05 an OEM Bently Nevada part?
A: Yes. This is a genuine Bently Nevada part number. Konmask.com sources from authorized channels and quality-verified suppliers. Authenticity documentation is available upon request.
Q: What is the difference between the 330101 series variants?
A: The 330101 series sensors differ in cable length, thread size, tip diameter, and target material calibration. The suffix -00-64-10-12-05 specifies: no special options, 64-inch cable, 10-32 UNF thread, 5mm tip, standard calibration. Always verify the full part number before ordering.
Q: Can this sensor be used as a direct replacement for an existing installation?
A: Yes, provided the full part number matches your existing installation. The complete 3300 XL system (sensor + extension cable + proximitor) must be matched in total cable length for accurate calibration. Consult your system documentation or contact us for guidance.
Q: What is the lead time for this part?
A: Lead time varies by stock availability. Contact us for current availability. We maintain stock of common Bently Nevada 3300 XL series components for fast dispatch.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoices, packing lists, certificates of origin, and other export documents required for customs clearance in most countries.
Q: What warranty do you offer?
A: All products are covered by Konmask.com’s quality guarantee. If a product is found to be defective or not as described, we will arrange replacement or refund. Contact [email protected] within 30 days of receipt.
