Rotating Machinery Vibration Monitoring Solution — Bently Nevada 330101-32-70-05-12-05 | 3300 XL Series
Where This Product Is Used

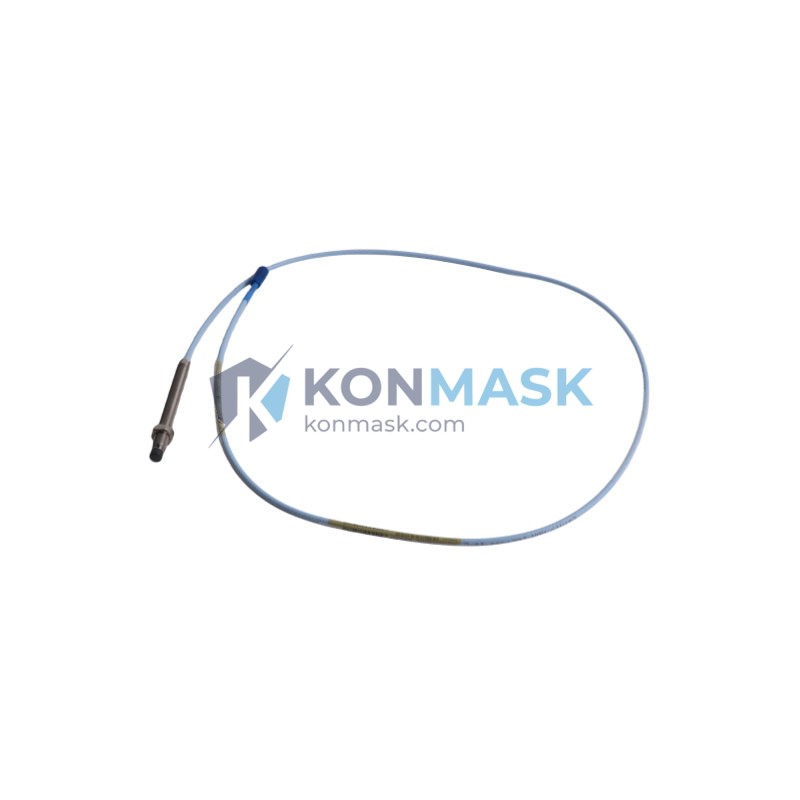

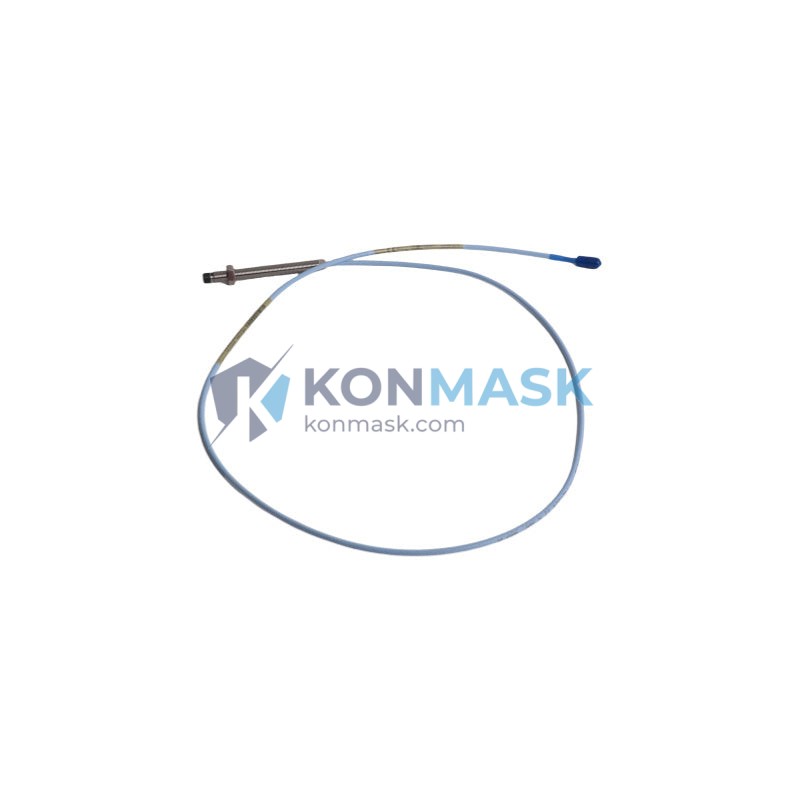

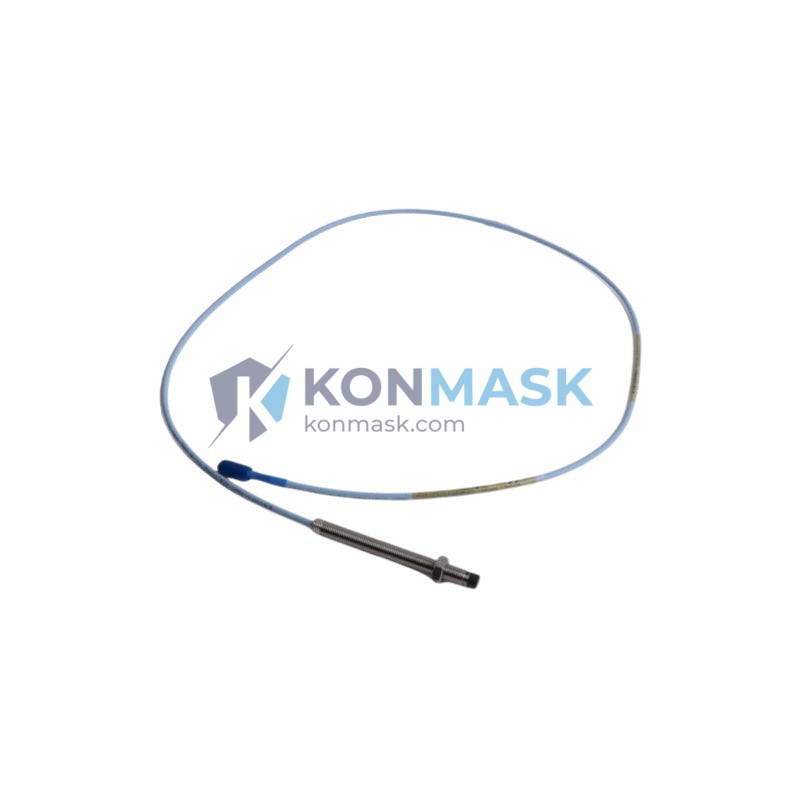

The Bently Nevada 330101-32-70-05-12-05 eddy current proximity sensor is purpose-built for continuous, non-contact vibration and position measurement on rotating machinery in demanding industrial environments. Typical deployment sites include:
- Steam & Gas Turbines — shaft radial vibration and axial position monitoring per API 670
- Centrifugal & Reciprocating Compressors — real-time rotor orbit and eccentricity measurement
- Pumps & Fans — bearing journal displacement monitoring for predictive maintenance
- Gearboxes — gear mesh frequency and shaft runout detection
- Hydro & Wind Turbines — slow-speed shaft monitoring and thrust position
- Marine Propulsion Systems — crankshaft deflection and alignment verification
This sensor is the field-proven standard in petrochemical, power generation, LNG, and offshore platforms where unplanned downtime carries six-figure-per-hour costs.
Technical Specifications
| Part Number | 330101-32-70-05-12-05 |
| Brand / OEM | Bently Nevada (Baker Hughes) |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Sensor Type | Eddy Current (Non-contact) Proximity Sensor |
| Probe Tip Diameter | 8 mm |
| Cable Length | 3.2 m (integral cable) |
| Extension Cable Length | 7.0 m |
| Connector Type | 5-pin, 12 mm |
| Target Material | AISI 4140 steel (standard); other alloys with calibration |
| Linear Range | 0.25 mm – 2.25 mm (10 – 90 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Supply Voltage | –24 VDC (nominal) |
| Temperature Range | –35 °C to +177 °C (probe); –35 °C to +66 °C (driver) |
| Ingress Protection | IP67 |
| Weight | ~80 g |
| Country of Origin | USA |
Why Engineers Specify This Model
- API 670 Compliant — meets the machinery protection standard required by EPC contractors and end-users globally
- Plug-and-Play with 3300 System — direct replacement for existing 3300 XL installations; no recalibration of the driver required when using matched system components
- High-Temperature Probe — rated to 177 °C, suitable for hot-section turbine bearing housings without additional thermal isolation
- Integral Cable Design — eliminates field-splice failure points; 3.2 m integral cable covers most standard bearing-to-junction-box runs
- Broad Frequency Bandwidth — DC to 10 kHz captures both slow-roll runout and high-frequency subsynchronous instabilities
- Proven Field Reliability — millions of operating hours across global fleet; MTBF exceeds 200,000 hours in typical installations
Complete System Bill of Materials
The 330101-32-70-05-12-05 probe is one element of a three-component transducer system. A complete loop requires:
- Probe (this item): 330101-32-70-05-12-05
- Extension Cable: 330130-070-00-00 (7 m, matched to this probe)
- Proximitor® Driver: 330180-X1-05 or 330190-X1-05 (select per loop length)
- Mounting Hardware: Armored conduit, lock nuts, and probe holder per API 670 Annex D
- Junction Box: Bently Nevada 3300/16 or equivalent IP65-rated enclosure
Contact support@konmask.com to source the complete matched system.
Compliance & Industry Standards
- API 670 (5th Edition) — Machinery Protection Systems
- IEC 60079 — Equipment for Explosive Atmospheres (ATEX / IECEx variants available)
- ISO 10816 / ISO 20816 — Mechanical Vibration Evaluation
- CE Marking (EU Machinery Directive)
- RoHS Compliant
Quality Assurance & Sourcing
Every unit offered through Konmask.com undergoes the following verification process before shipment:
- Visual inspection of probe tip, cable jacket, and connector pins for damage or corrosion
- Continuity and insulation resistance check on integral cable
- Dimensional verification of thread and tip geometry
- Cross-reference of date code and lot traceability markings against known-good references
- Packaging integrity check — original OEM packaging preferred; re-packaged units clearly labeled
We source from authorized distributors, decommissioned plant overhauls, and certified surplus channels. Condition (new, refurbished, or tested-used) is explicitly stated on each order confirmation.
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders quoted within 24 hours
- Payment: T/T (wire transfer), PayPal, and major credit cards accepted
- Export: We ship DDP, DAP, and EXW worldwide; export documentation (CO, packing list, commercial invoice) provided
Application-Specific FAQ
Q: Can this sensor monitor non-ferrous targets such as aluminum or titanium impellers?
A: Yes, but the scale factor changes with target material conductivity and permeability. A custom calibration curve must be generated using the actual target material. Contact us for calibration support.
Q: Is this probe compatible with the older 3300/5 and 3300/8 mm systems?
A: The 330101 series is designed for the 3300 XL system. Backward compatibility with legacy 3300/5 drivers requires verification of the driver input impedance — consult Bently Nevada TIL-073 before mixing generations.
Q: What is the maximum gap at installation?
A: The recommended initial gap is 1.0 mm (40 mil), centered in the linear range of 0.25–2.25 mm. This provides equal dynamic range for both inward and outward shaft movement.
Q: Do you offer ATEX-certified versions?
A: Yes. ATEX/IECEx variants of the 3300 XL system are available. Please specify hazardous area classification (Zone 1/2, gas group, temperature class) when inquiring.
Q: Can Konmask provide a Certificate of Conformance (CoC)?
A: Yes. A CoC is provided with every shipment. Third-party inspection (SGS, Bureau Veritas) can be arranged for large orders.
