Genuine Bently Nevada 330103-00-12-10-11-05 Eddy Current Proximity Probe | 3300 XL Series — Verified Source

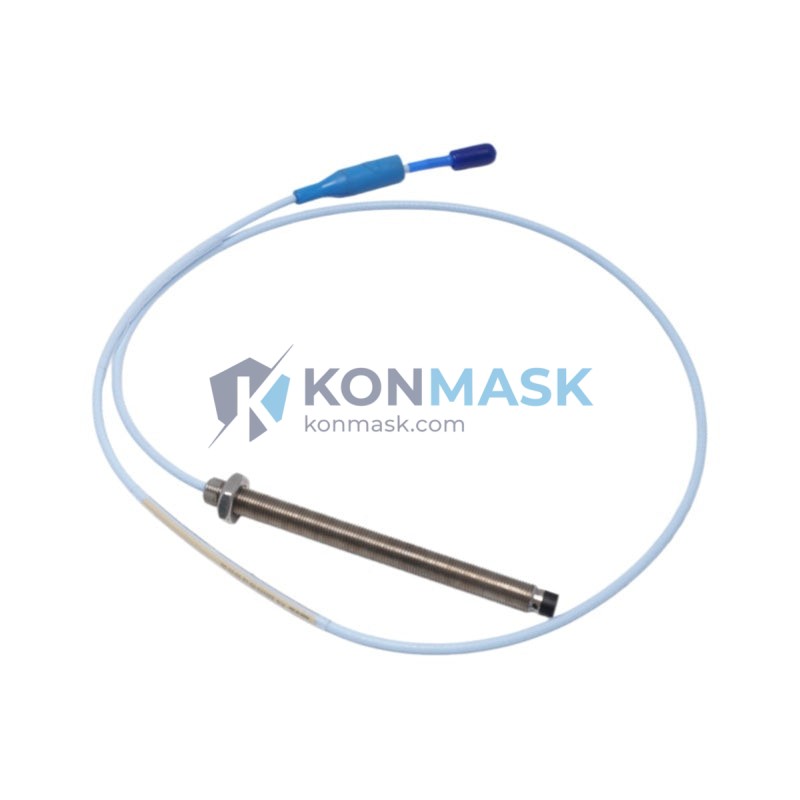

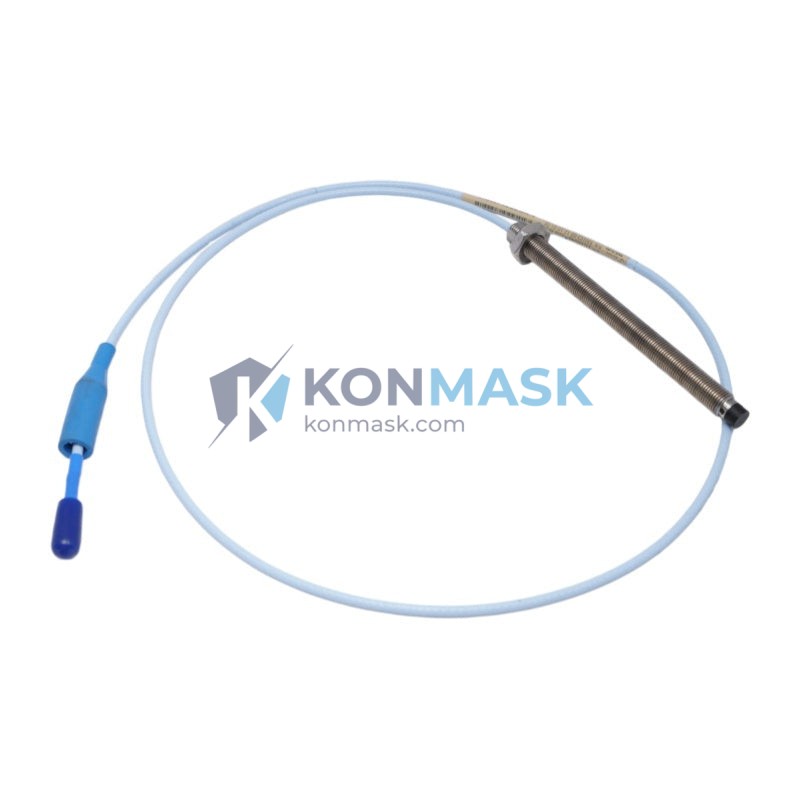

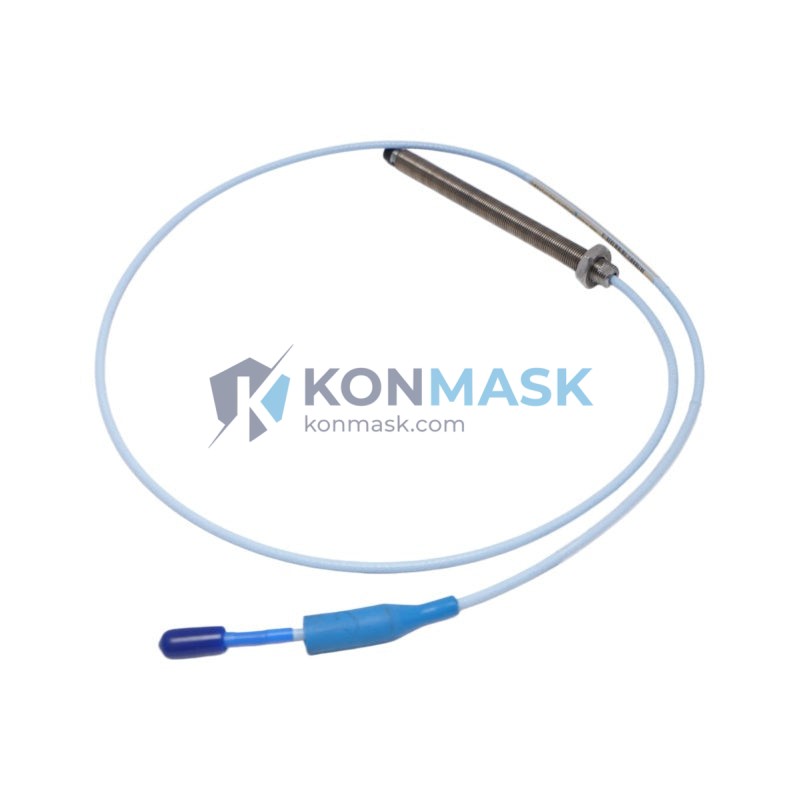

The Bently Nevada 330103-00-12-10-11-05 is a high-precision eddy current proximity probe from the industry-standard 3300 XL Series. Designed for continuous shaft vibration and position monitoring in rotating machinery, this probe delivers the measurement accuracy and long-term reliability that critical industrial applications demand. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes a documented 4-step quality verification process before dispatch.
Technical Specifications
- Part Number: 330103-00-12-10-11-05
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Probe Type: Eddy Current / Non-contact Proximity Probe
- Tip Diameter: 8 mm (standard)
- Cable Length: 1.0 m (integral cable)
- Extension Cable: 5.0 m (system total: 5.0 m)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm – 2.26 mm (10 – 89 mil)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: -35°C to +177°C
- Target Material: AISI 4140 steel (standard)
- Connector: Integral coaxial, armored cable
- Approvals: CE, ATEX, IECEx (refer to compliance section)
Our 4-Step Quality Verification Process
Every 330103-00-12-10-11-05 unit shipped from Konmask.com passes through our documented QC protocol:
- Step 1 — Source Authentication: Unit traceability verified against manufacturer batch records and authorized distributor documentation.
- Step 2 — Physical Inspection: Housing, connector, cable jacket, and tip examined for damage, tampering, or counterfeit indicators.
- Step 3 — Label & Marking Verification: Part number, date code, and serial number cross-checked against Bently Nevada OEM labeling standards.
- Step 4 — Functional Pre-check: Impedance and continuity tested prior to packaging. Results logged per unit.
Key Features & Benefits
- Non-contact measurement eliminates mechanical wear — ideal for continuous 24/7 monitoring
- Wide frequency response (DC–10 kHz) captures both static position and dynamic vibration data
- High sensitivity (200 mV/mil) ensures accurate detection of sub-mil shaft movement
- Armored integral cable withstands harsh industrial environments including oil mist and high vibration
- Direct drop-in replacement for existing 3300 XL system installations — no recalibration required
- Compatible with Bently Nevada 3500 Series monitoring racks and legacy 3300 Series drivers
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing proximity sensing
- Gearbox and expander shaft displacement monitoring
- API 670 compliant machinery protection systems
- Petrochemical, power generation, and LNG plant installations
Compatible System Components
- Extension Cables: Bently Nevada 330130 Series (5 m, 9 m)
- Drivers / Oscillator-Demodulators: Bently Nevada 3300 XL 8mm Driver (330180 Series)
- Monitoring Racks: Bently Nevada 3500/40M, 3500/42M, 3500/45
- Junction Boxes: Bently Nevada 3300 XL field wiring enclosures
- Calibration Targets: AISI 4140 / AISI 4340 steel per API 670 Annex D
Global Sourcing & Shipping Capabilities
Konmask.com maintains established procurement channels for Bently Nevada components across Asia-Pacific, Europe, and the Americas. We support:
- Single-unit urgent orders with same-day processing (subject to stock availability)
- Bulk B2B procurement with consolidated shipping and commercial invoice documentation
- Export documentation: CO, packing list, commercial invoice, and MSDS where applicable
- Shipping carriers: DHL Express, FedEx International Priority, UPS Worldwide
- Typical lead time: 3–7 business days international; 1–3 days domestic (CN)
- Customs HS Code: 9031.80 (precision measuring instruments)
Certifications & Compliance Statement
The Bently Nevada 330103-00-12-10-11-05 is manufactured to the following standards:
- API 670 — Machinery Protection Systems (5th Edition)
- CE Marking — EMC Directive 2014/30/EU
- ATEX — Directive 2014/34/EU (Zone 1 & Zone 2 rated variants)
- IECEx — International Electrotechnical Commission Ex certification
- RoHS — Restriction of Hazardous Substances compliant
Konmask.com is an independent reseller. All trademarks remain the property of Bently Nevada / Baker Hughes. Certification documentation available upon request for qualified B2B buyers.
How to Order
- Online: Add to cart and complete checkout — we accept T/T wire transfer, PayPal, and major credit cards
- Email RFQ: Send your PO or RFQ to support@konmask.com for bulk pricing and lead time confirmation
- Phone / WhatsApp: +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Minimum Order: 1 unit (no MOQ for standard stock items)
- Please include your target application and required delivery date in your inquiry for fastest response
Authenticity & Trust FAQ
Q: Is this a genuine OEM part?
A: Yes. All units are sourced through verified supply channels with traceable documentation. We do not sell remanufactured or counterfeit parts.
Q: Can you provide a certificate of conformance (CoC)?
A: Yes, CoC and inspection reports are available for B2B orders upon request. Contact us before placing your order.
Q: What if the part does not match my system?
A: Contact us within 7 days of receipt. We will verify compatibility and arrange exchange or refund per our returns policy.
Q: Do you offer warranty?
A: We offer a 90-day seller warranty covering defects in materials and workmanship. Manufacturer warranty terms apply where applicable.
Q: Can I order a sample before bulk purchase?
A: Yes. Single-unit sample orders are accepted. Contact us for sample pricing and lead time.
