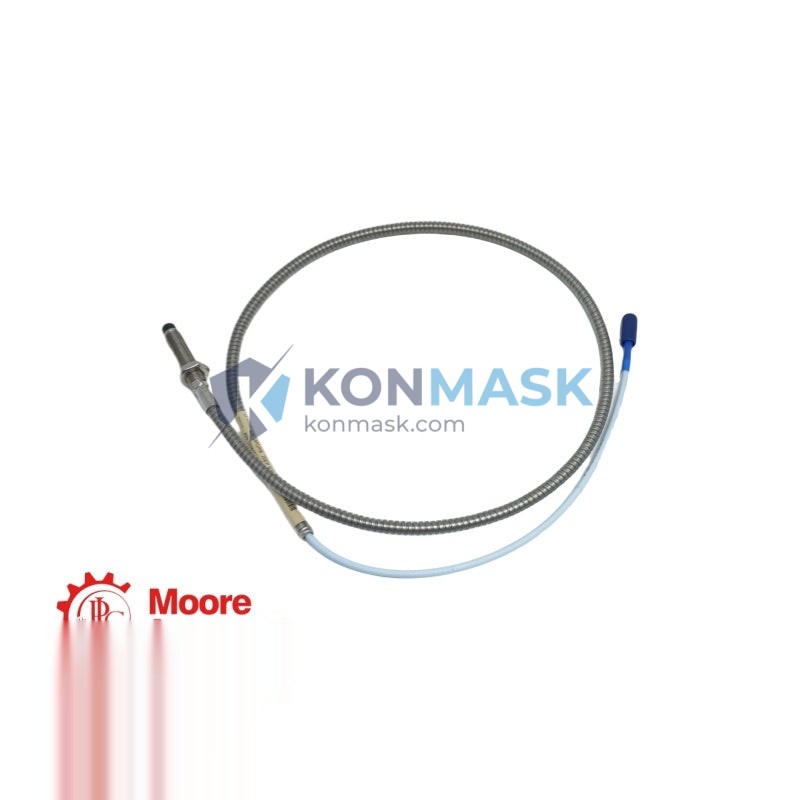

Bently Nevada 330104-00-05-10-02-05 Proximity Transducer System | 3300 XL Series
Engineering Background: The Bently Nevada 3300 XL Proximity Transducer System is the industry benchmark for non-contact, continuous vibration and position measurement in rotating machinery. Engineered to API 670 standards, this system is deployed globally in critical turbomachinery protection and condition monitoring applications across oil & gas, power generation, and petrochemical industries.
Product Positioning: The 330104-00-05-10-02-05 is a complete eddy-current proximity transducer system comprising a matched probe, extension cable, and Proximitor® sensor. It delivers high-resolution shaft displacement data to Bently Nevada 3500 and System 1 monitoring platforms, enabling real-time machinery health assessment and predictive maintenance decisions.
Complete Technical Specifications
- Part Number: 330104-00-05-10-02-05
- Series / Platform: Bently Nevada 3300 XL
- System Type: Eddy-Current Proximity Transducer System
- Probe Tip Diameter: 5 mm (3/16 in)
- Probe Length: 5 mm tip-to-tip
- Cable Length (Extension): 10 m (32.8 ft)
- Proximitor® Sensor: Included (matched set)
- Output Voltage Range: -2 VDC to -18 VDC (linear range)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Operating Temperature (Probe): -35°C to +177°C (-31°F to +350°F)
- Operating Temperature (Proximitor): -35°C to +85°C (-31°F to +185°F)
- Supply Voltage: -24 VDC (nominal)
- Target Material: AISI 4140 steel (standard); other alloys supported
- Ingress Protection: IP67 (probe and connector)
- Compliance: API 670, CE, RoHS
- Weight: Approx. 180 g (system)
- Country of Origin: USA
Proven Application Environments
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and thrust measurement
- Pump and motor bearing displacement surveillance
- Gearbox and expander differential expansion monitoring
- Bently Nevada 3500 Series rack integration (direct drop-in)
- Retrofit and upgrade of legacy 3300 Series installations
Engineering Advantages
- Matched System Accuracy: Probe, cable, and Proximitor® are factory-calibrated as a matched set, eliminating field calibration errors and ensuring ±1% full-scale accuracy.
- API 670 Compliance: Meets the most stringent international standard for machinery protection systems, accepted by all major EPC contractors and end-users.
- Extended Temperature Range: Probe rated to +177°C, suitable for high-temperature bearing housings without additional thermal isolation.
- Robust IP67 Sealing: Hermetically sealed probe tip and connector resist process fluids, steam, and washdown environments.
- Plug-and-Play Compatibility: Direct replacement for existing 3300 XL installations; no re-wiring or re-configuration of monitoring racks required.
- Long-Term OEM Support: Part of Baker Hughes / Bently Nevada’s active product line with guaranteed long-term availability and firmware compatibility.
System Architecture & Signal Flow
The 330104-00-05-10-02-05 system operates on the eddy-current principle. The probe tip generates a high-frequency electromagnetic field; as the conductive target (shaft) approaches, eddy currents are induced, loading the oscillator circuit within the Proximitor® sensor. This loading is converted to a linear DC voltage output proportional to the gap distance. The signal is transmitted via the matched extension cable to the Proximitor® sensor, then output to the 3500 monitor rack’s I/O module for processing, alarming, and data logging in System 1 software.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified OEM-surplus channels with full traceability documentation.
- Each system undergoes incoming inspection: visual check, connector integrity, and functional output verification against Bently Nevada calibration curves.
- Original factory calibration certificates and test reports available upon request.
- Serialized units: serial number cross-referenced against Bently Nevada production records where applicable.
- Packaging: anti-static, moisture-barrier bag with desiccant; original OEM box where available.
Procurement Process
- Step 1: Confirm part number 330104-00-05-10-02-05 matches your existing system configuration (probe tip size, cable length, Proximitor® model).
- Step 2: Submit RFQ or place order directly via Konmask.com product page.
- Step 3: Receive order confirmation with lead time and shipping details within 1 business day.
- Step 4: Shipment with full documentation package (datasheet, calibration certificate, packing list).
- Step 5: Post-delivery technical support available via support@konmask.com or +0086 19859288691.
Technical FAQ
Q: Is this a complete system or individual components?
A: This listing covers the complete matched system: probe (330104), extension cable (330130), and Proximitor® sensor (330180) as configured by the part number suffix -00-05-10-02-05.
Q: Is it compatible with the Bently Nevada 3500/42M monitor?
A: Yes. The 3300 XL system is the standard transducer input for all 3500 Series monitors. No additional adapters are required.
Q: What target material is required?
A: Standard calibration is for AISI 4140 steel. For other alloys (Inconel, titanium, etc.), a material correction factor must be applied. Contact our engineering team for guidance.
Q: Can I use a different cable length?
A: Cable length is encoded in the part number suffix. Mixing cable lengths from different part numbers will affect scale factor and accuracy. Always use the matched set.
Q: Do you provide installation and commissioning support?
A: Yes. Our technical team can provide remote commissioning guidance, wiring diagrams, and calibration verification procedures.
