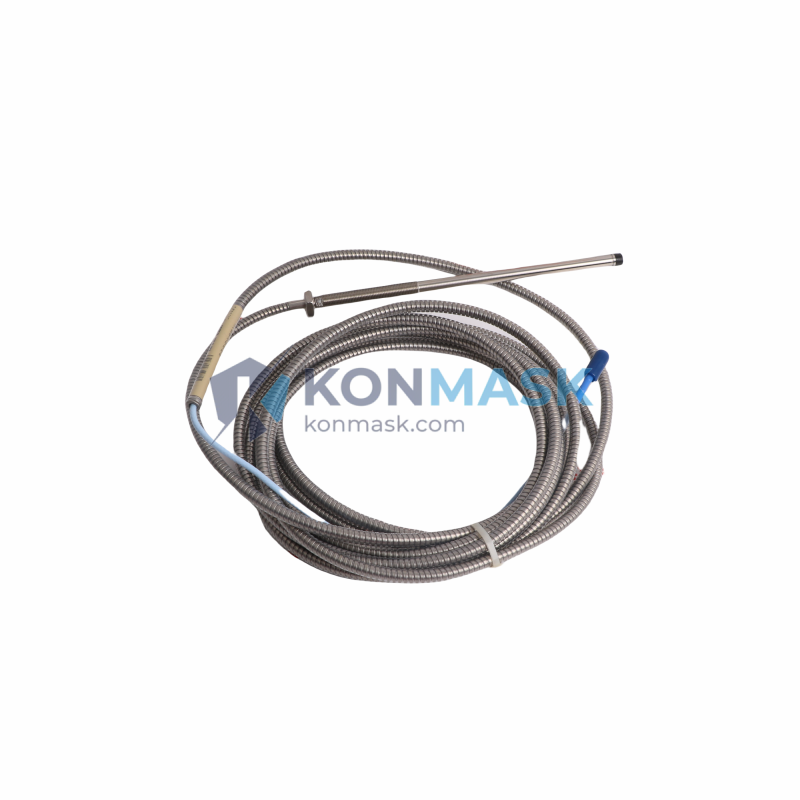

Bently Nevada 330104-13-20-50-02-00 – 8mm Eddy Current Proximity Probe | 3300 XL Series
The Bently Nevada 330104-13-20-50-02-00 is a precision 8mm eddy current proximity probe from the industry-standard 3300 XL Series, engineered for continuous non-contact measurement of shaft radial vibration, axial position, and differential expansion in critical rotating machinery. Procurement engineers worldwide specify this probe as the cornerstone of API 670-compliant machinery protection systems.
Product Positioning: Designed for turbomachinery applications — steam turbines, gas turbines, centrifugal compressors, and large pumps — where real-time shaft dynamics data is essential for predictive maintenance and plant safety. The 330104-13-20-50-02-00 integrates natively with Bently Nevada 3300 XL NSv Proximitors and System 1 condition monitoring software, providing a fully validated measurement chain from probe tip to control room.
Complete Technical Specifications
- Part Number: 330104-13-20-50-02-00
- Series / Platform: Bently Nevada 3300 XL
- Probe Tip Diameter: 8 mm
- Armored Cable Length: 13 in (330 mm)
- Extension Cable Length: 20 ft (6.1 m)
- Proximitor Cable Length: 50 ft (15.2 m)
- Connector Type: 02 – Standard Industrial
- Probe Body Material: Stainless Steel
- Linear Sensing Range: 0.25 – 2.25 mm (10 – 90 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: −35°C to +177°C (−31°F to +350°F)
- Supply Voltage: −24 VDC (nominal)
- Output Voltage Range: −2 to −22 VDC
- Standard Target Material: AISI 4140 Steel (other alloys with calibration)
- Ingress Protection: IP67
- Agency Approvals: CE, FM, CSA; Intrinsically Safe options available
- Assembly Weight: 620 g (probe + cable assembly)
- Compatible Proximitor: 3300 XL NSv (330180 Series)
- Compliance Standard: API 670
Proven Application Environments
- Steam & Gas Turbines: Shaft radial vibration and thrust position monitoring per API 670
- Centrifugal Compressors: Real-time rotor dynamics in petrochemical and LNG plants
- Pumps & Motors: Bearing journal orbit analysis and imbalance detection
- Gearboxes: Gear mesh frequency monitoring and early fault detection
- Hydro Turbines: Axial thrust and radial position in hydro power generation
- Marine Propulsion: Shaft monitoring in harsh offshore and subsea environments
Engineering Advantages
- Non-Contact Measurement: Zero mechanical wear; continuous operation without scheduled maintenance
- High Linearity: ±1% linearity over full sensing range for measurement-grade accuracy
- Wide Frequency Bandwidth: DC to 10 kHz captures slow-roll vectors and high-speed vibration events
- Thermal Stability: Thermally compensated design maintains calibration across the full operating range
- Rugged Construction: Stainless steel body and armored cable rated for aggressive process environments
- API 670 Drop-In Replacement: Direct replacement for existing 3300 XL installations; no recalibration required
- System 1 Native Integration: Full compatibility with Bently Nevada System 1 for advanced machinery analytics
System Architecture & Signal Flow
The 330104-13-20-50-02-00 operates as part of a three-component eddy current measurement chain:
- Probe (330104-13-20-50-02-00): Generates a 1–2 MHz electromagnetic field directed at the rotating shaft. Gap changes modulate field impedance proportionally to displacement.
- Extension Cable (330130 Series): Transmits the modulated signal from probe tip to proximitor with minimal signal loss. Total cable length is factory-matched to the probe.
- Proximitor/Driver (3300 XL NSv, 330180 Series): Demodulates the signal and outputs a DC voltage proportional to probe-to-target gap. Output feeds 3500 Series rack monitors or DCS/PLC systems via 4–20 mA or voltage outputs.
Important: Probe, extension cable, and proximitor must be ordered as a matched system. Mixing cable lengths from different part numbers will affect calibration and scale factor accuracy.
Sourcing & Quality Verification
- OEM Traceability: All units sourced through authorized Bently Nevada / Baker Hughes distribution channels with full documentation
- Incoming Inspection: 100% visual, dimensional, and functional verification against OEM datasheet on every unit
- Calibration Certificate: Factory calibration certificate available upon request
- Original Packaging: OEM packaging preserved; anti-static and moisture-barrier protection for long-term storage
- Climate-Controlled Storage: Inventory rotation policy ensures component freshness and shelf life compliance
- Counterfeit Prevention: Serial number verified against Bently Nevada OEM database prior to every shipment
Procurement Process
- Inquiry: Submit part number 330104-13-20-50-02-00 via email to support@konmask.com or WhatsApp +0086 19859288691
- Quote: Competitive pricing with lead time confirmation within 24 business hours
- Order Confirmation: Pro-forma invoice issued; payment via T/T, PayPal, or trade terms for qualified accounts
- Quality Hold: Final inspection and documentation package prepared before dispatch
- Shipping: DHL / FedEx / UPS express worldwide; EXW, FOB, CIF Incoterms available
- After-Sales Support: 12-month warranty; dedicated technical support from Konmask engineering team
Technical FAQ
- Q: Is the 330104-13-20-50-02-00 compatible with legacy 3300 Series (non-XL) proximitors?
- A: No. The 3300 XL probe is designed exclusively for 3300 XL NSv proximitors. Mixing with legacy 3300 (non-XL) drivers produces incorrect scale factor and measurement errors. Verify your proximitor model before ordering.
- Q: What target material is required for standard calibration?
- A: Standard calibration is for AISI 4140 steel. For other alloys (stainless steel, titanium, Inconel), a material-specific calibration curve is required. Contact Konmask for custom calibration options.
- Q: Can this probe be installed in hazardous (Ex) classified areas?
- A: Yes, with an appropriate Zener barrier or galvanic isolator in the signal loop. Confirm the specific Ex certification (ATEX, IECEx, FM) required for your installation zone before specifying.
- Q: What is the difference between the -02-00 and -02-05 suffix?
- A: The suffix denotes connector and termination options. -02-00 is the standard industrial connector configuration. Refer to the Bently Nevada 3300 XL product catalog for full suffix decode table.
- Q: Is expedited shipping available for shutdown or turnaround emergencies?
- A: Yes. Konmask maintains ready stock for critical spares. Contact us directly for same-day dispatch options on in-stock units.
