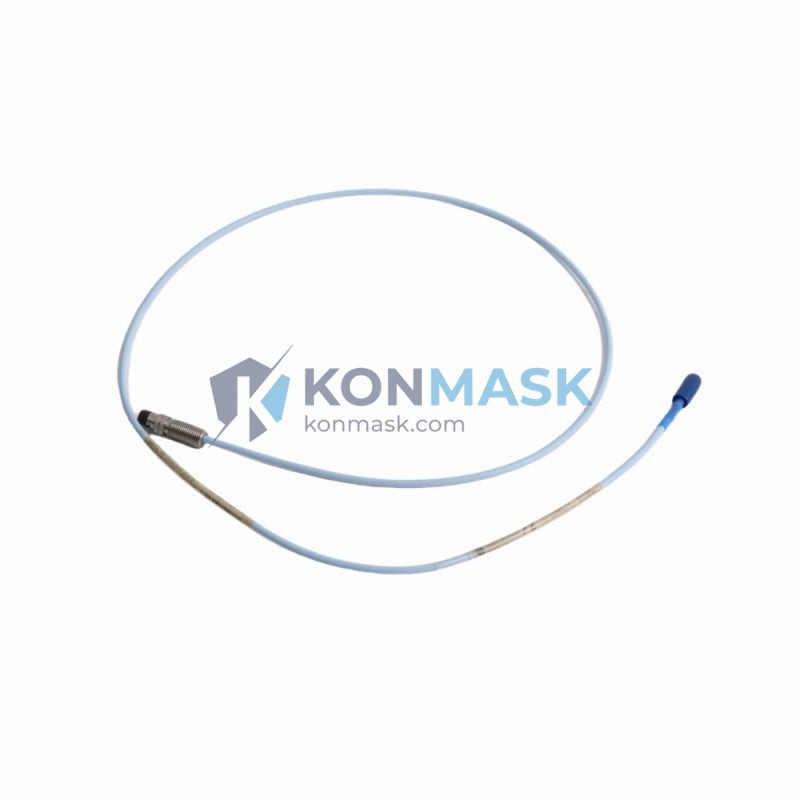

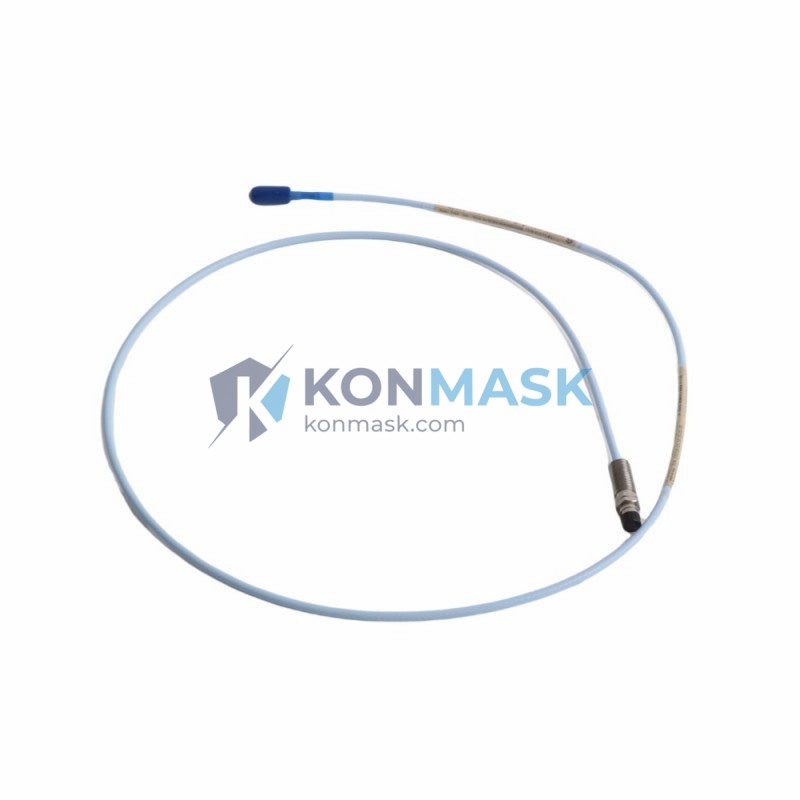

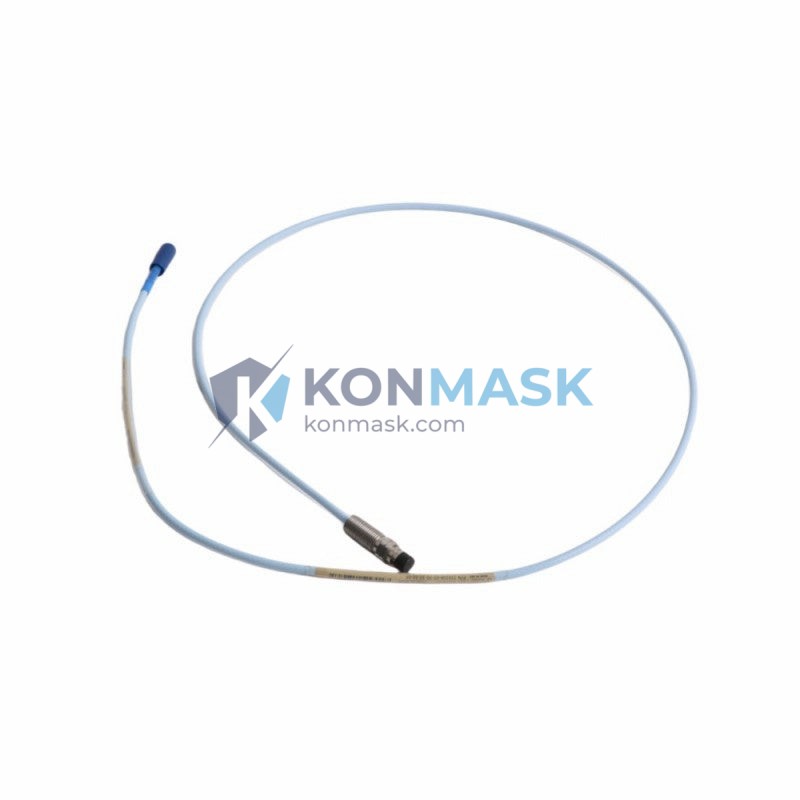

Bently Nevada 330171-00-12-05-02-CN Proximitor Transducer System – 3300 XL 8mm Series
When a critical rotating machine loses its shaft proximity monitoring capability, the consequences cascade rapidly: vibration data goes blind, protection systems lose their primary input, and plant operators face an impossible choice between running blind or initiating an unplanned shutdown. In high-stakes environments — turbines, compressors, pumps, and generators — every minute of unmonitored operation is a liability. The Bently Nevada 330171-00-12-05-02-CN Proximitor Transducer System exists precisely to prevent that scenario, delivering continuous, high-accuracy eddy-current proximity measurement that keeps your machinery protection system fully informed at all times.
The 330171-00-12-05-02-CN is a factory-configured transducer system within Bently Nevada’s globally trusted 3300 XL 8mm Series — the industry benchmark for shaft vibration and position measurement in turbomachinery. This specific configuration (12-inch extension cable, 5-meter armored cable, 02 connector type, CN revision) is engineered for installations requiring a compact probe-to-Proximitor interface with robust cable protection in harsh industrial environments. Deployed across refineries, power generation facilities, and petrochemical plants on every continent, the 3300 XL platform is recognized by API 670 as the de facto standard for machinery protection transducer systems.
Technical Specifications
- Part Number: 330171-00-12-05-02-CN
- Series: Bently Nevada 3300 XL 8mm Proximitor System
- Probe Type: 8mm Eddy-Current Proximity Probe
- Extension Cable Length: 12 inches (30.5 cm)
- Interconnect Cable Length: 5 meters (armored)
- Connector Type: 02 (standard BNC-compatible interface)
- Revision: CN
- Measurement Range: 0 to 90 mil (0 to 2.29 mm) linear range
- Scale Factor: 200 mV/mil (7.87 V/mm)
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Operating Temperature: –35°C to +121°C (probe); –35°C to +66°C (Proximitor)
- Power Supply: –24 VDC (nominal)
- Output: –2 VDC to –18 VDC (proportional to gap)
- Compliance: API 670, CE, RoHS
- Weight: Approx. 220 g (system)
Key Features & Benefits
- High-Linearity Eddy-Current Sensing: Delivers consistent, repeatable gap measurement across the full operating range, minimizing false trips and missed alarms.
- Armored Interconnect Cable: The 5-meter armored cable provides superior mechanical protection against abrasion, vibration fatigue, and chemical exposure in demanding plant environments.
- Wide Temperature Range: Probe rated to +121°C enables installation close to hot bearing housings without signal degradation.
- DC-Coupled Output: Simultaneous measurement of dynamic vibration (AC component) and static position (DC gap) from a single transducer — no additional sensors required.
- API 670 Compliant: Fully meets the requirements of the international standard for machinery protection systems, ensuring regulatory and insurance compliance.
- Plug-and-Play with 3300 Monitors: Direct compatibility with Bently Nevada 3300 series monitors (3300/16, 3300/20, 3300/25, 3300/55) eliminates integration risk.
- Long Service Life: Non-contact measurement principle means zero mechanical wear, delivering decades of reliable service with minimal maintenance.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and axial position monitoring per API 670.
- Oil & Gas / Petrochemical: Centrifugal compressors, expanders, boiler feed pumps — continuous protection in SIL-rated safety loops.
- Refining: Fluid catalytic cracking (FCC) unit blowers, charge pumps, and wet gas compressors.
- Marine & Offshore: Propulsion turbines and auxiliary machinery on FPSO vessels and offshore platforms.
- Industrial Manufacturing: High-speed spindles, paper machine rolls, and large HVAC centrifugal chillers.
System Integration & Compatible Parts
The 330171-00-12-05-02-CN is designed to operate as part of a complete Bently Nevada 3300 XL measurement chain. Typical compatible components include:
- Monitors: Bently Nevada 3300/16, 3300/20, 3300/25, 3300/55 Dual Channel Monitors
- I/O Modules: 3300/10 Keyphasor Module for phase reference integration
- Junction Boxes: Bently Nevada 3300 Series field junction boxes for multi-probe installations
- DCS Integration: 4–20 mA output modules for integration with DeltaV, Ovation, ABB 800xA, and Honeywell Experion systems
- Replacement Probes: 330171-00-12-05-02 (non-CN revision for reference)
Our Quality Assurance Process
Every Bently Nevada 330171-00-12-05-02-CN unit sourced and supplied by Konmask.com undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against Bently Nevada OEM documentation and part number databases to confirm genuine origin.
- Visual & Mechanical Inspection: Probe tip, cable jacket, connector pins, and Proximitor housing inspected for damage, corrosion, or non-conformance.
- Functional Bench Test: Gap-versus-output linearity verified using calibrated target material and precision gap gauge.
- Documentation Package: Each unit ships with a test report, traceability record, and original manufacturer datasheet where available.
- Secure Packaging: ESD-safe, shock-absorbing packaging with desiccant to protect against transit damage and humidity.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and issue a formal quotation within 24 hours.
- Upon PO confirmation, we arrange quality inspection, export documentation, and international shipping.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and machinery protection components — not a generalist distributor.
- Global Export Experience: Serving buyers in Europe, Southeast Asia, the Middle East, and the Americas with compliant export documentation.
- Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility checks, and installation guidance.
- Competitive Lead Times: Extensive supplier network enables fast sourcing of both current and legacy Bently Nevada parts.
- Transparent Process: No hidden fees. Clear quotation, inspection report, and shipping tracking provided for every order.
Frequently Asked Questions
Q: What does the “-CN” suffix mean in part number 330171-00-12-05-02-CN?
A: The “-CN” designates a specific revision or configuration variant within the 330171 product family, typically indicating a regional or application-specific modification to the standard build. Always specify the full part number including suffix when ordering to ensure exact replacement.
Q: Is the 330171-00-12-05-02-CN compatible with Bently Nevada 3500 series monitors?
A: The 330171 series is natively designed for the 3300 XL monitor platform. While the eddy-current output signal is electrically compatible with some 3500 series inputs, we recommend confirming compatibility with your specific 3500 monitor model before installation. Contact our technical team for assistance.
Q: Can you supply the complete transducer system including probe, extension cable, and Proximitor as a matched set?
A: Yes. The 330171-00-12-05-02-CN is supplied as a factory-matched system. All three components (probe, extension cable, Proximitor) are calibrated together and should not be mixed with components from other serial number sets.
Q: What is the typical lead time for this part?
A: Lead time varies by current stock availability. Please submit an RFQ and our team will provide a confirmed delivery schedule within 24 hours.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and can arrange third-party inspection certificates upon request.
