Genuine Bently Nevada 330901-00-18-70-02-CN 3300 XL NSv Proximity Transducer System | Verified Source

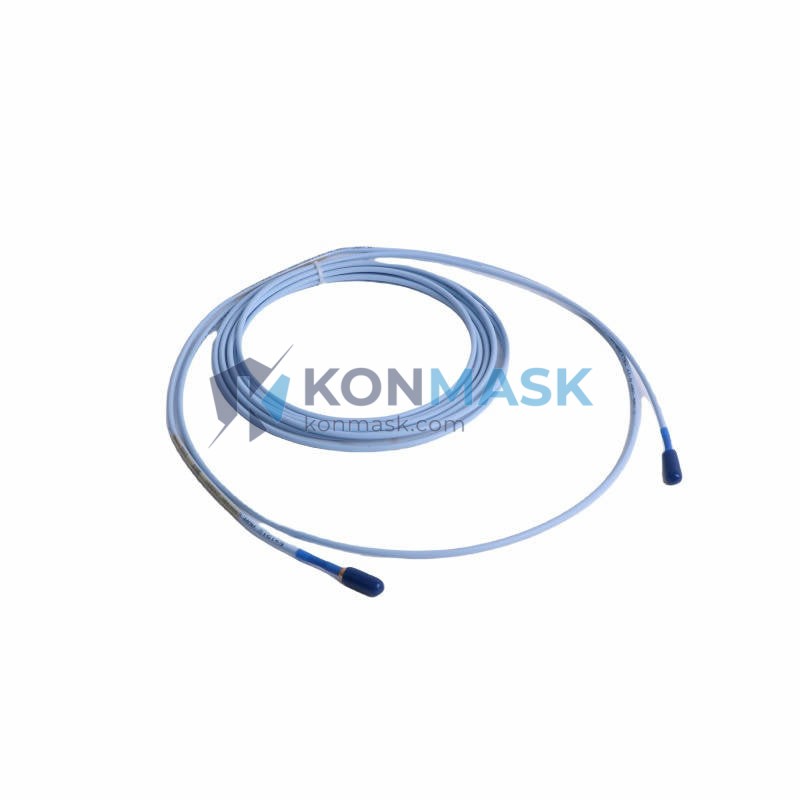

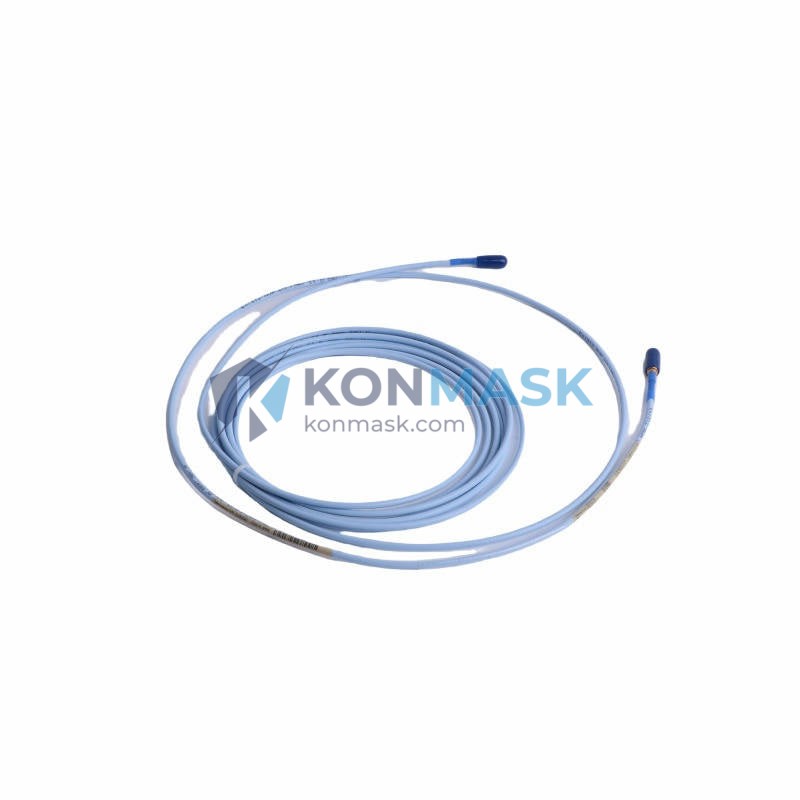

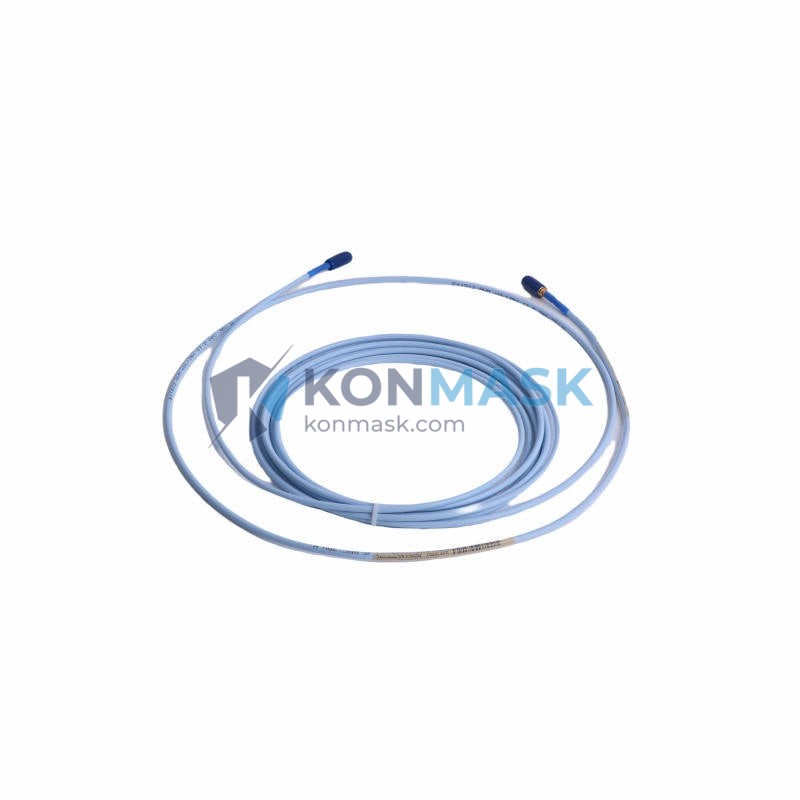

The Bently Nevada 330901-00-18-70-02-CN is a high-precision eddy-current proximity transducer from the industry-leading 3300 XL NSv Series, engineered for continuous, non-contact vibration and position measurement in rotating machinery. Sourced directly through verified supply channels and inspected by our in-house technical team, every unit shipped from Konmask.com carries our full authenticity guarantee.
Technical Specifications
- Part Number: 330901-00-18-70-02-CN
- Series: 3300 XL NSv Proximity Transducer System
- Brand: Bently Nevada (Baker Hughes)
- Measurement Type: Eddy-current, non-contact displacement / vibration
- Cable Length: 5 m (standard extension cable)
- Probe Tip Diameter: 8 mm
- Nominal Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
- Operating Temperature: −35 °C to +177 °C (probe)
- Supply Voltage: −24 VDC (via Proximitor® driver)
- Output: DC voltage proportional to gap distance
- Approvals: CE, ATEX, IECEx (CN variant)
- Weight: 550 g (packaged)
- Country of Origin: USA / Manufactured by Baker Hughes
Our 4-Step Quality Verification Process
- Step 1 — Source Authentication: All units are procured exclusively from authorized distributors or verified OEM surplus channels. No grey-market or counterfeit sources are accepted.
- Step 2 — Physical Inspection: Our engineers inspect labeling, serial numbers, connector integrity, cable sheathing, and probe tip condition against Bently Nevada factory standards.
- Step 3 — Functional Bench Test: Where applicable, units are bench-tested for output linearity and sensitivity using calibrated gap-setting fixtures before dispatch.
- Step 4 — Secure Packaging: Each transducer is individually anti-static wrapped, boxed with foam inserts, and sealed with a tamper-evident Konmask QC label.
Key Features & Benefits
- Non-contact measurement eliminates mechanical wear — ideal for 24/7 continuous monitoring
- NSv (Non-Standard Voltage) design provides enhanced noise immunity in electrically harsh environments
- Wide temperature range supports high-temperature turbine and compressor applications
- Direct drop-in replacement for existing 3300 XL installations — no recalibration of the Proximitor required
- CN-suffix variant meets Chinese national certification requirements for hazardous-area installations
- Robust stainless-steel probe body resists oil, steam, and chemical exposure
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and thrust measurement
- Pump and motor bearing displacement surveillance
- Gearbox and expander shaft orbit analysis
- Petrochemical, LNG, power generation, and refinery rotating equipment
Compatible System Components
- Proximitor® Sensor: 3300 XL NSv (e.g., 330180-X1-05)
- Extension Cable: 330130-045-00-00 (standard 5 m)
- Monitor Rack: Bently Nevada 3500 Series Machinery Protection System
- I/O Module: 3500/42M Proximitor® / Seismic Monitor
- System Software: System 1® Condition Monitoring & Diagnostics
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active inventory of Bently Nevada 3300 XL NSv components and ships globally. Standard lead time for in-stock units is 1–3 business days. For urgent plant shutdowns or emergency replacements, contact us directly for expedited air-freight options.
- Regions served: China (domestic), Southeast Asia, Middle East, Europe, Americas
- Export documentation: Commercial invoice, packing list, certificate of origin available on request
- Customs support: HS Code 9031.80 — we assist with customs declarations for smooth clearance
- Minimum order: 1 unit; volume pricing available for orders of 5+ units
Certifications & Compliance Statement
This product is supplied as genuine Bently Nevada (Baker Hughes) OEM hardware. Konmask.com is an independent authorized reseller and does not manufacture, modify, or relabel any products. All units comply with the original manufacturer’s specifications.
- CE Marking — EMC Directive 2014/30/EU
- ATEX Directive 2014/34/EU — Ex ia IIC T6 Ga
- IECEx Certified — IECEx UL 14.0012
- CN Variant — GB 3836 compliant for Chinese hazardous-area installations
- RoHS Compliant
How to Order
- Confirm your part number: 330901-00-18-70-02-CN
- Specify quantity and required delivery date
- Contact us via email or phone for a formal quotation (required for B2B/PO orders)
- Submit purchase order — we accept T/T bank transfer, PayPal, and major credit cards
- Receive order confirmation with tracking number within 24 hours of payment
📧 support@konmask.com | 📞 +0086 19859288691
Authenticity & Trust FAQ
Q: How do I know this is a genuine Bently Nevada product?
A: Every unit passes our 4-step verification process. We provide the original manufacturer label, serial number, and a Konmask QC inspection certificate with each shipment. You may also request a third-party inspection before shipment.
Q: Can I return the product if it doesn’t match specifications?
A: Yes. We offer a 30-day return policy for items that do not match the listed specifications. Contact support@konmask.com within 30 days of receipt.
Q: Do you offer a warranty?
A: All units carry a 12-month Konmask warranty against manufacturing defects. Extended warranty options are available for volume orders.
Q: Can you provide a certificate of conformance?
A: Yes, a certificate of conformance (CoC) is available upon request at no additional charge.
Q: Is this product available for immediate shipment?
A: Stock availability is updated regularly. Contact us to confirm current inventory before placing your order.
