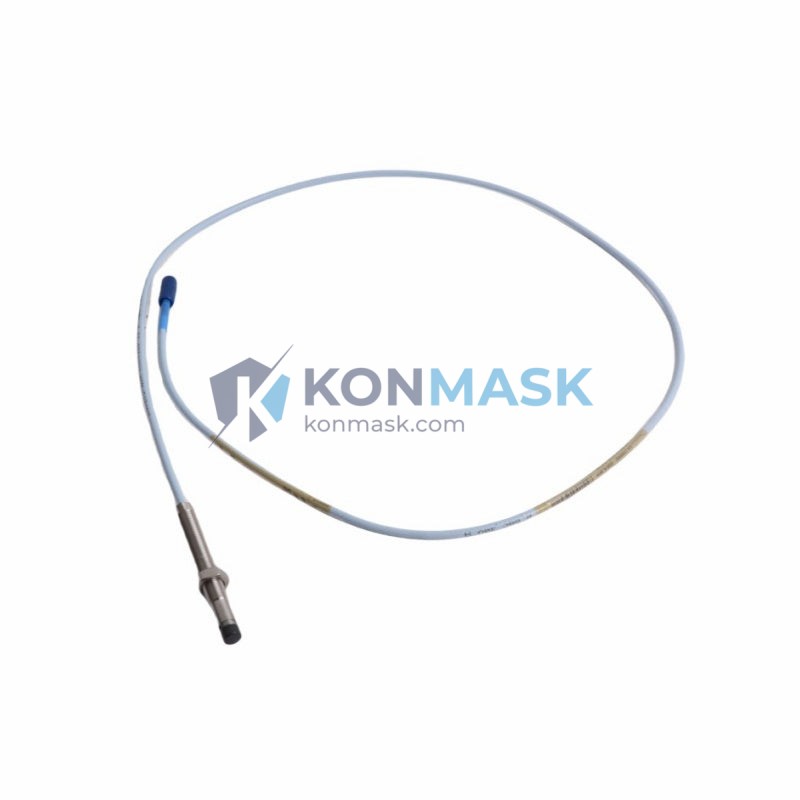

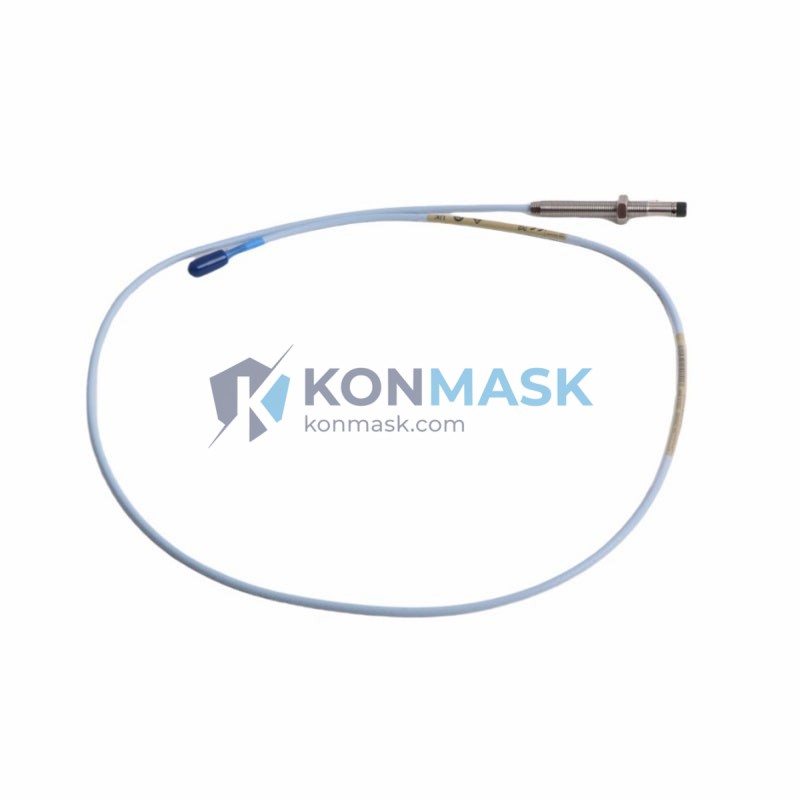

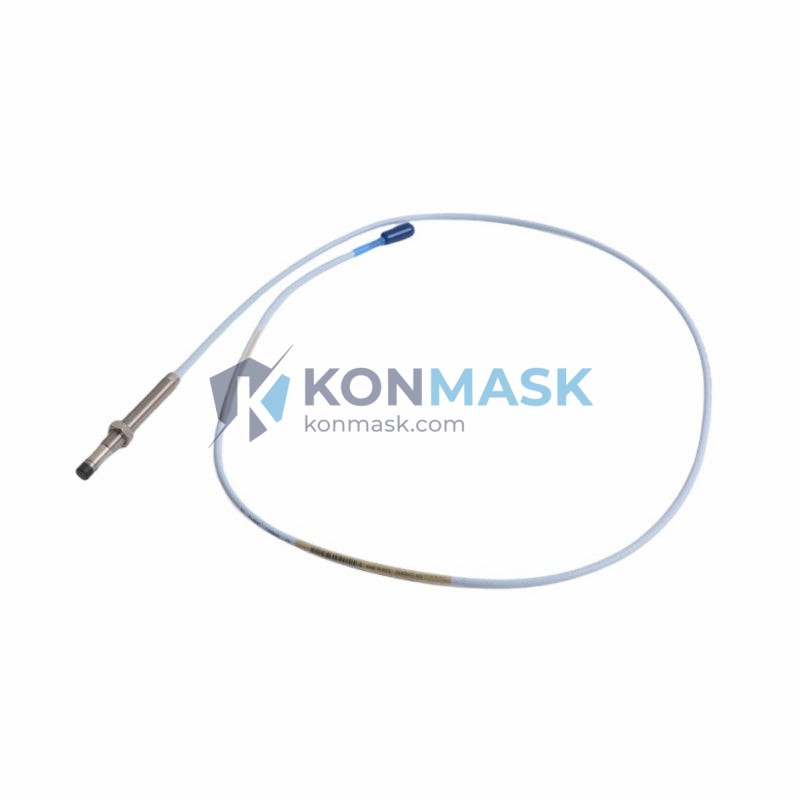

Bently Nevada 330903-00-09-50-02-00 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide
The Bently Nevada 330903-00-09-50-02-00 is a high-performance proximity transducer from the 3300 XL NSv Series, engineered for continuous non-contact vibration and position measurement in rotating machinery. Widely deployed in turbines, compressors, pumps, and motors across oil & gas, power generation, and heavy industry, this transducer delivers reliable eddy-current sensing with exceptional signal stability.
Technical Specifications
- Part Number: 330903-00-09-50-02-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL NSv Proximity Transducer System
- Sensing Technology: Eddy-current (non-contact)
- Cable Length: 9 m (extension cable)
- Linear Range: 50 mil (1.27 mm)
- Output: -18 VDC nominal (standard Bently Nevada output)
- Scale Factor: 200 mV/mil (7.87 V/mm)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: -35°C to +121°C (transducer tip)
- Target Material: AISI 4140 steel or equivalent
- Connector: Standard Bently Nevada coaxial
- Approvals: CE, ATEX (consult datasheet for zone ratings)
- Compatible Driver/Monitor: 3300 XL series monitors
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330903-00-09-50-02-00. Always verify electrical and mechanical compatibility before substitution:
- Bently Nevada 330903-00-05-50-02-00 — Same series, 5 m cable variant
- Bently Nevada 330903-00-30-50-02-00 — Same series, 30 m cable variant
- Bently Nevada 330180-91-00 — 3300 XL 8 mm proximity transducer (check gap range)
- Epro PR6423/010-040 — Compatible eddy-current transducer (third-party, verify driver compatibility)
- Metrix ST5484E — Equivalent proximity transducer for 3300-series monitors (verify scale factor)
Note: Konmask.com recommends using OEM Bently Nevada parts for safety-critical applications. Third-party equivalents should be validated by a qualified instrumentation engineer.
Why Choose the Original Model
- Guaranteed OEM Compatibility: Plug-and-play with all 3300 XL series monitors — no recalibration required.
- Certified Performance: Factory-calibrated scale factor and linearity, traceable to NIST standards.
- Long-Term Support: Backed by Baker Hughes / Bently Nevada global service network.
- Proven Reliability: Millions of operating hours in critical rotating machinery worldwide.
- Regulatory Compliance: Meets API 670 requirements for machinery protection systems.
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing vibration surveillance
- Gearbox and expander rotor dynamic monitoring
- API 670-compliant machinery protection systems
- Petrochemical, LNG, and power plant rotating equipment
System Compatibility
The 330903-00-09-50-02-00 is designed to operate within the complete Bently Nevada 3300 XL NSv Proximity Transducer System, which includes:
- Transducer: 330903 series (this unit)
- Extension Cable: 330130 / 330180 series
- Proximitor® Sensor (Driver): 3300 XL 8 mm Proximitor (e.g., 330180-X1-00)
- Monitor: 3500/40M, 3500/42M, or compatible 3300 XL rack monitors
Ensure all system components share the same series designation and cable length configuration for correct gap voltage and scale factor.
Selection Guide
Use the table below to identify the correct part number suffix for your application:
- Cable Length: -00-05 = 5 m | -00-09 = 9 m | -00-30 = 30 m
- Linear Range: -50 = 50 mil standard range
- Connector Type: -02 = standard coaxial | -00 = no connector (bare lead)
- Approval Code: -00 = standard (non-hazardous) | consult factory for ATEX/IECEx
If your application requires a different cable length, temperature rating, or hazardous area certification, contact support@konmask.com for a tailored recommendation.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels.
- Each unit undergoes incoming inspection: visual check, connector integrity, and documentation review.
- Serialized traceability records available upon request.
- Warranty: 12 months from date of shipment (see Terms & Conditions).
- Export compliance: ECCN classification reviewed for international orders.
How to Order
- Confirm your full part number: 330903-00-09-50-02-00
- Specify quantity and required delivery timeline.
- Contact us via email or phone for lead time and pricing confirmation.
- Submit a Purchase Order (PO) or use the online checkout.
- Receive order acknowledgment with tracking within 1 business day.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a 330903-00-05-50-02-00 (5 m) in place of the 9 m version?
A: Only if the total system cable length (transducer + extension) matches the Proximitor driver specification. Mismatched lengths affect gap voltage and scale factor.
Q: Is the 330903-00-09-50-02-00 compatible with older 3300 series monitors?
A: The 3300 XL NSv series is backward-compatible with most 3300 series monitors. Verify the monitor firmware version and input card type before installation.
Q: Can third-party equivalents (e.g., Epro, Metrix) replace this unit?
A: Electrically similar units may work, but OEM certification and API 670 compliance cannot be guaranteed. Always consult your machinery OEM or rotating equipment engineer.
Q: What is the lead time for the 330903-00-09-50-02-00?
A: Typically 1–5 business days for in-stock units. Contact us for current availability.
Q: Do you provide calibration certificates?
A: Factory calibration documentation is included where available. Third-party calibration can be arranged upon request.
