Bently Nevada 330904-00-07-05-01-00 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide

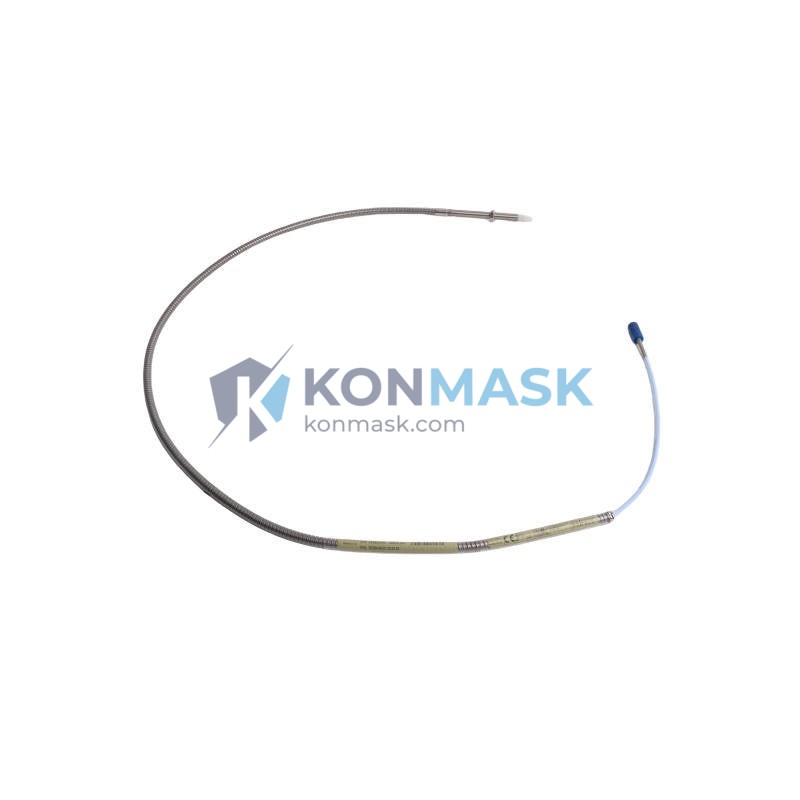

The Bently Nevada 330904-00-07-05-01-00 is a high-precision eddy-current proximity transducer system from the 3300 XL NSv series, engineered for continuous vibration, position, and eccentricity monitoring on rotating machinery in critical industrial environments. Konmask.com supplies genuine and compatible units with full traceability for MRO and OEM procurement.
Technical Specifications
| Part Number | 330904-00-07-05-01-00 |
| Series | 3300 XL NSv Proximity Transducer System |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Sensing Technology | Eddy-Current (Non-contact) |
| Cable Length | 7 ft (2.1 m) — encoded in part number position 3 |
| Extension Cable | 5 m — encoded in part number position 4 |
| Output Signal | -18 VDC nominal (standard Bently Nevada output) |
| Frequency Range | DC to 10,000 Hz |
| Temperature Range | -35°C to +121°C (probe tip) |
| Connector Type | Standard BNC / Bently Nevada proprietary |
| Weight | 220 g (approx.) |
| Compliance | API 670, CE |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330904-00-07-05-01-00. Always verify gap voltage, cable length, and system compatibility before substitution.
| Model | Brand | Notes |
|---|---|---|
| 330903-00-07-05-01-00 | Bently Nevada | Standard NSv variant; different connector option |
| 330905-00-07-05-01-00 | Bently Nevada | Extended temperature version |
| 330780-50-00 | Bently Nevada | 3300 XL 8mm probe — older generation equivalent |
| PR6423/010-100 | Epro (GE) | Third-party compatible; verify driver pairing |
| CON021/916-000 | Epro (GE) | Conditioner module for Epro probes |
| TQ402 Series | Metrix | Cross-brand alternative; requires recalibration |
⚠ Disclaimer: Cross-brand replacements require engineering validation. Konmask.com recommends using OEM parts for safety-critical applications.
Why Choose the Original Model
- API 670 Certified — meets the industry standard for machinery protection systems
- Matched System Performance — probe, extension cable, and driver are factory-calibrated as a system
- Proven Reliability — widely deployed in turbines, compressors, and pumps globally
- OEM Traceability — full documentation and CoC available upon request
- Long Service Life — robust construction for continuous 24/7 operation
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Large motor and generator eccentricity detection
- Pump and fan bearing displacement monitoring
- Machinery protection systems (MPS) per API 670
System Compatibility
The 330904-00-07-05-01-00 is designed to operate within the Bently Nevada 3300 XL NSv system and is compatible with the following monitors and drivers:
- Bently Nevada 3300/16 Dual Vibration Monitor
- Bently Nevada 3300/20 Radial Vibration Monitor
- Bently Nevada 3300/25 Keyphasor Module
- System 1 Condition Monitoring Software
- 3500 Series Machinery Protection System (with adapter)
Selection Guide
Use the part number decoder below to select the correct variant for your application:
| Position | Code | Meaning |
|---|---|---|
| 1–6 | 330904 | Base model — 3300 XL NSv Proximity Transducer |
| 7–8 | 00 | Standard configuration |
| 9–10 | 07 | Probe cable length: 7 ft |
| 11–12 | 05 | Extension cable: 5 m |
| 13–14 | 01 | Driver/Conditioner type |
| 15–16 | 00 | Connector: standard |
Need a different cable length or connector? Contact support@konmask.com for custom configuration sourcing.
Quality Assurance & Sourcing
- ✅ Sourced from authorized distributors and verified MRO channels
- ✅ Each unit inspected and tested prior to shipment
- ✅ Certificate of Conformance (CoC) available on request
- ✅ Secure anti-static packaging for sensitive electronics
- ✅ Export documentation supported (HS Code: 9031.80)
How to Order
- Confirm your part number: 330904-00-07-05-01-00
- Specify quantity and required delivery timeline
- Request a quote via support@konmask.com or add to cart directly
- Receive order confirmation with lead time and tracking
For urgent requirements or bulk orders, contact us directly at +0086 19859288691.
Replacement & Compatibility FAQ
Q: Can I replace 330904-00-07-05-01-00 with a 330903 series probe?
A: The 330903 and 330904 share the same sensing element but differ in connector and cable options. Verify your driver compatibility before substitution.
Q: Is this probe compatible with the Bently Nevada 3500 system?
A: Direct compatibility requires an adapter or reconfiguration. Consult your system integrator or contact Konmask for guidance.
Q: Do you supply the full system (probe + extension cable + driver)?
A: Yes. Konmask.com can source complete matched sets. Specify your system requirements when ordering.
Q: What is the lead time for this part?
A: Standard stock items ship within 3–7 business days. Contact us for expedited options.
Q: Can I get a datasheet or calibration certificate?
A: Yes, technical documentation is available upon request for qualified buyers.
